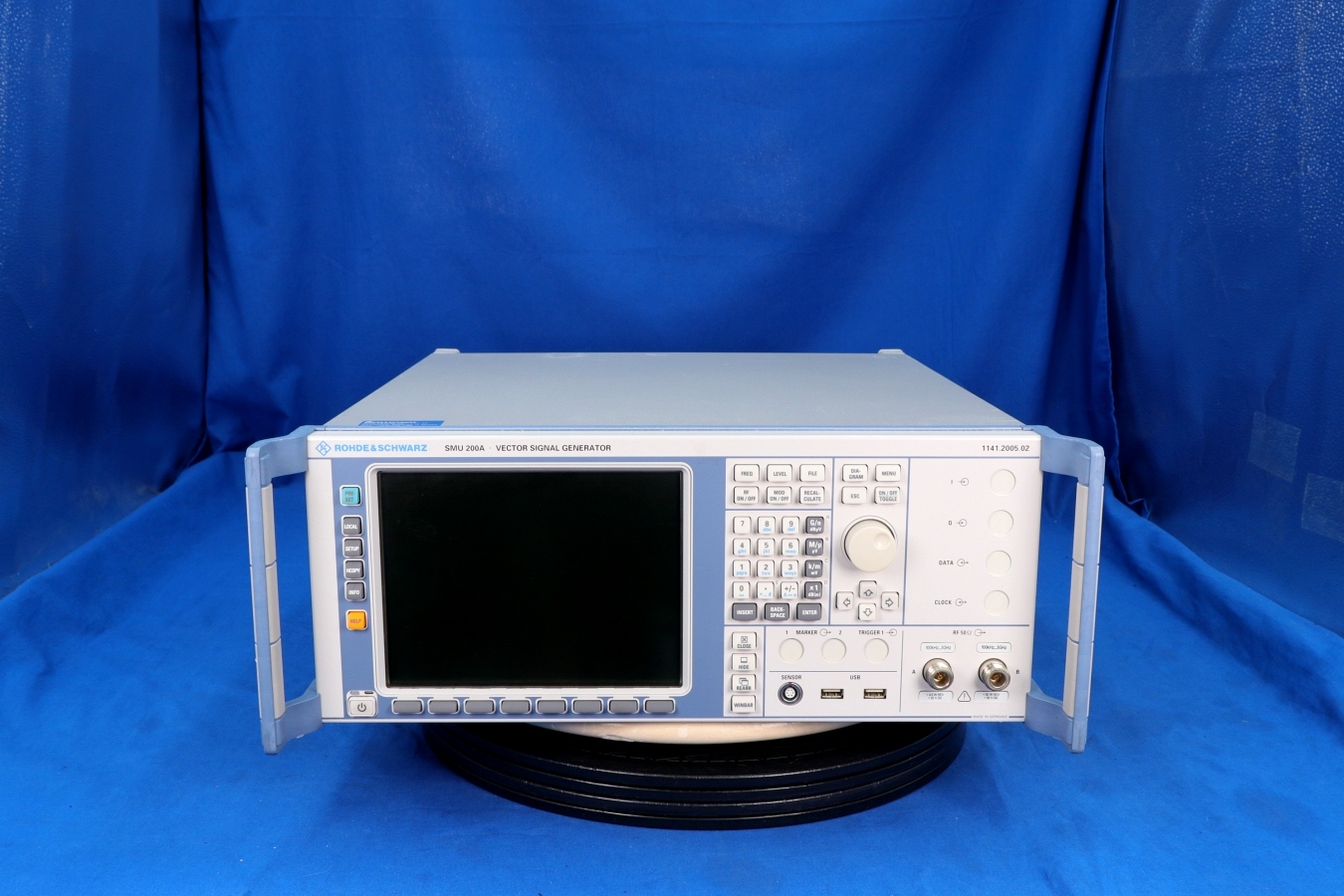

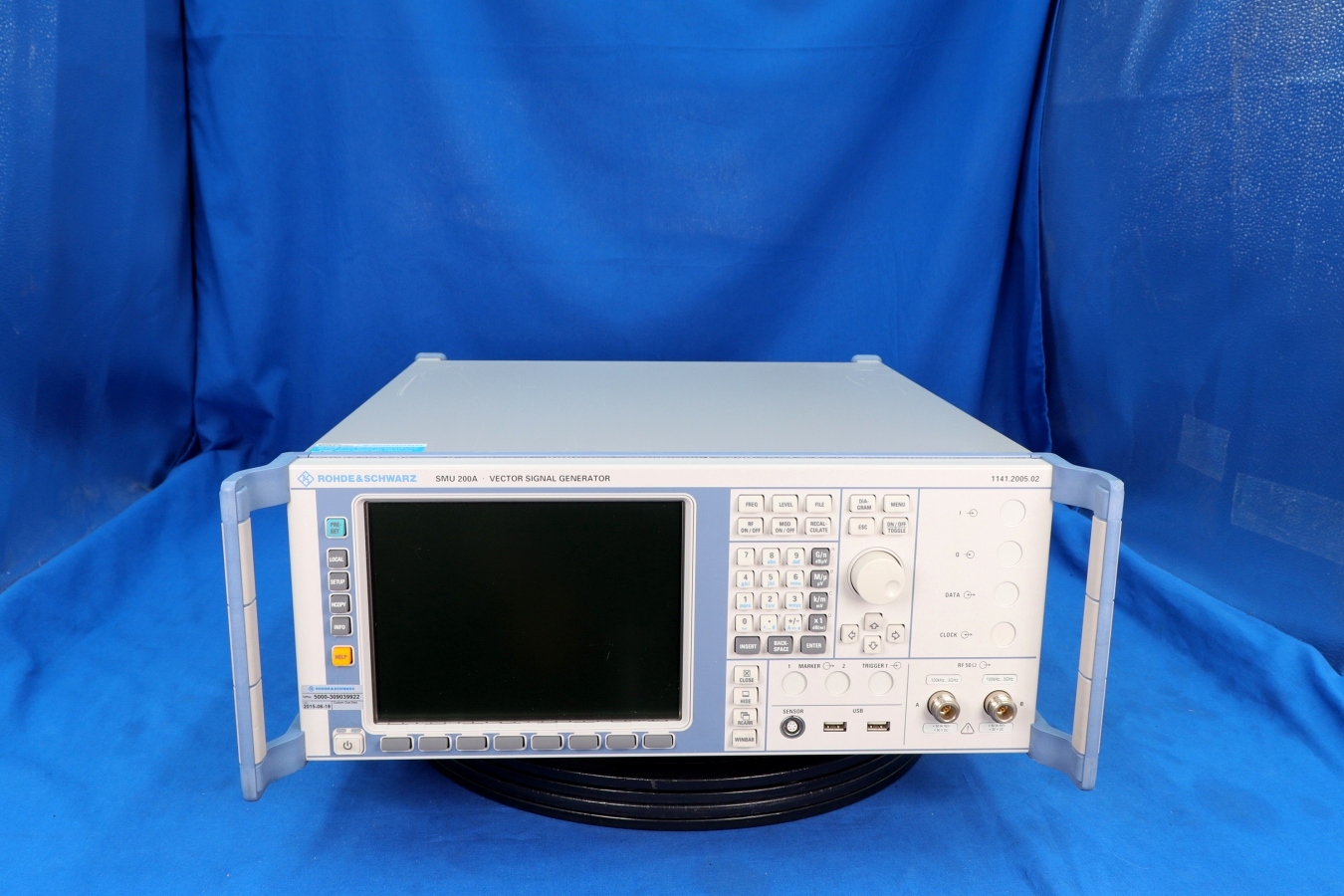

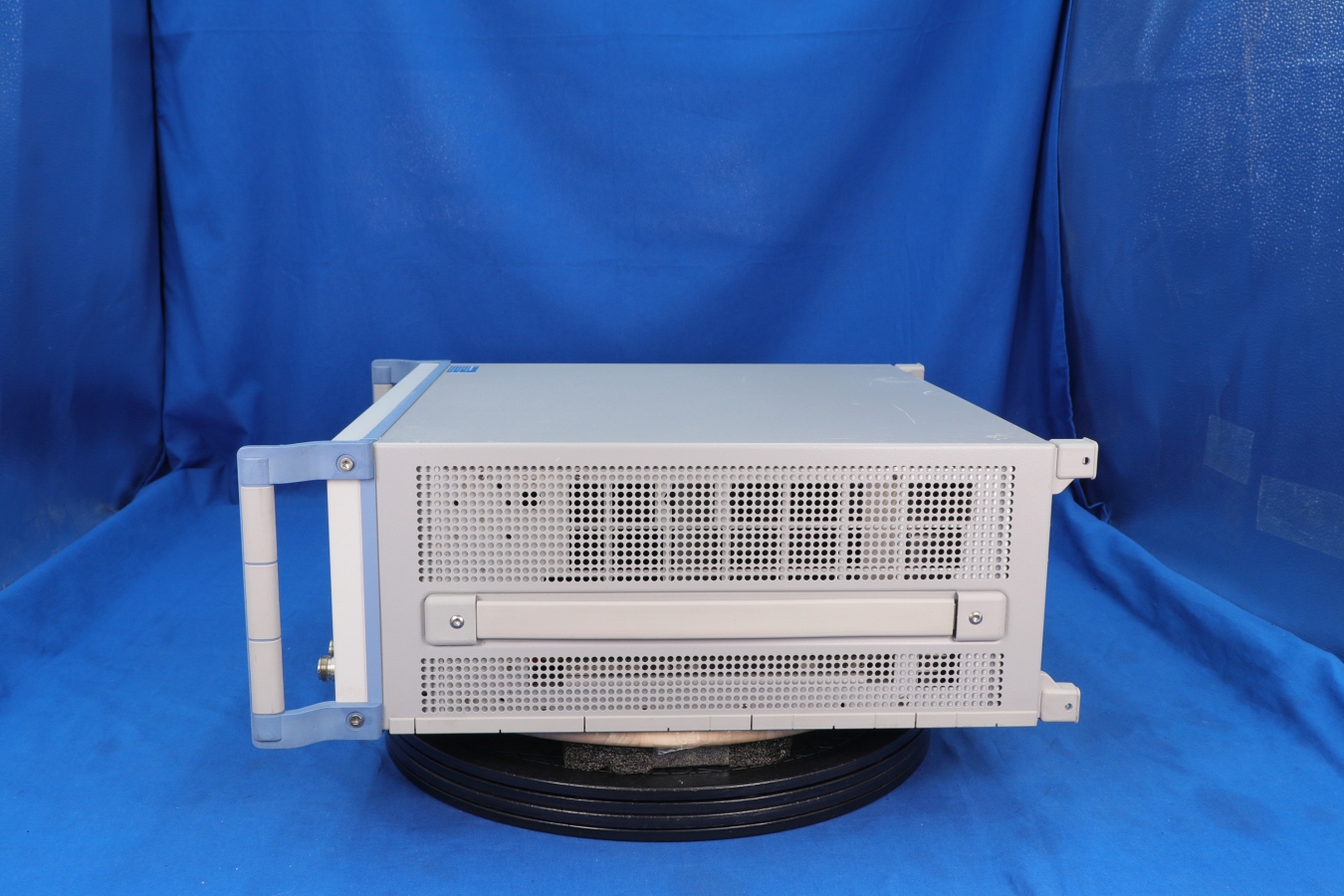

SMU200A(1141.2005.02) Rohde & Schwarz Signal Generator
B103: 100kHz to 3GHz /
B11: Baseband Generator with ARB /
B13: Baseband Main Module /
B31: High Power Output /
K40: GSM/EDGE /
K42: 3GPP FDD /
K43: 3GPP Enhanced MS/BS Tests incl. HSDPA /
K45: 3GPP HDD HSUPA /
Price: CALL
SMU200A(1141.2005.02) Rohde & Schwarz Signal Generator
Price: CALL
Detail

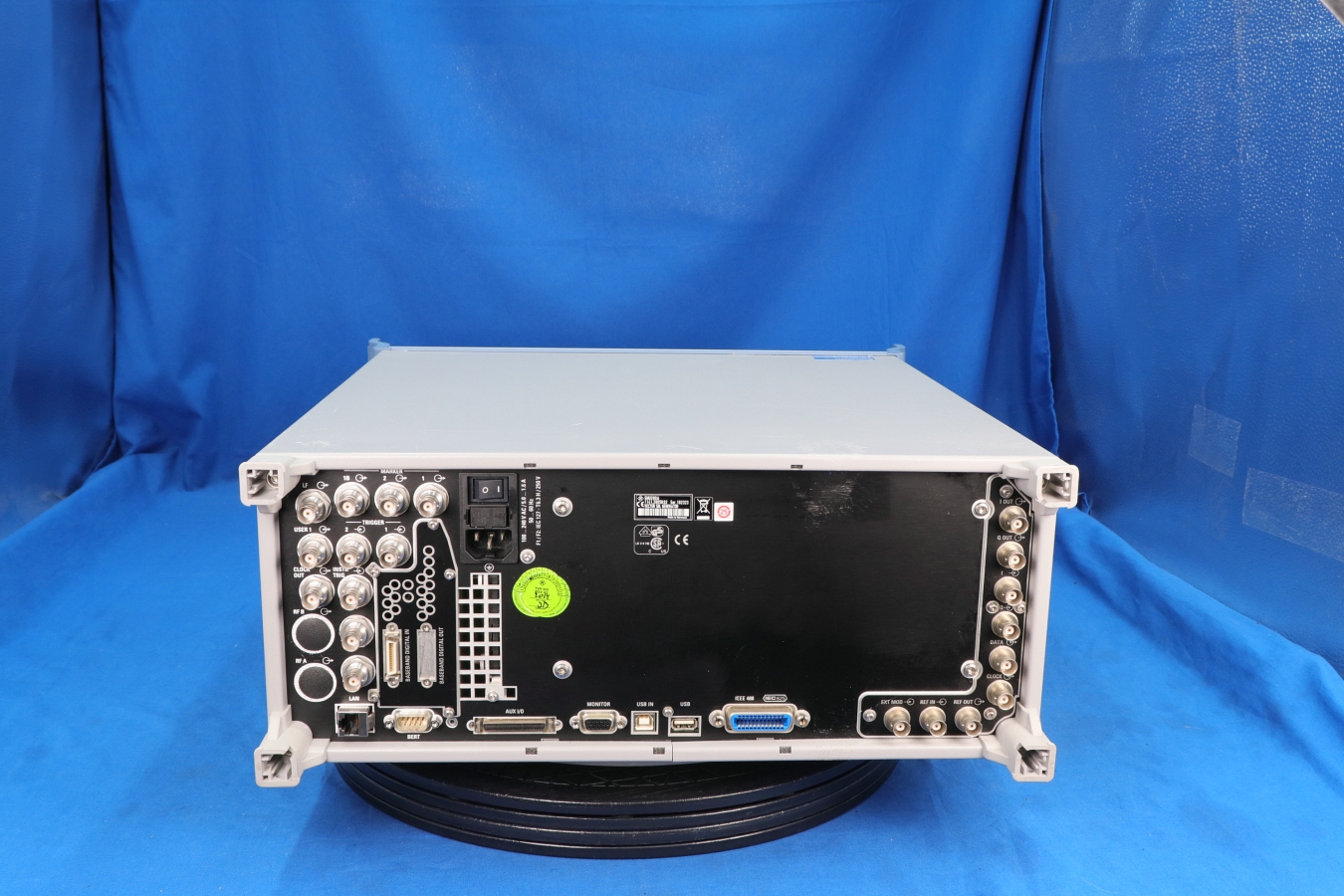

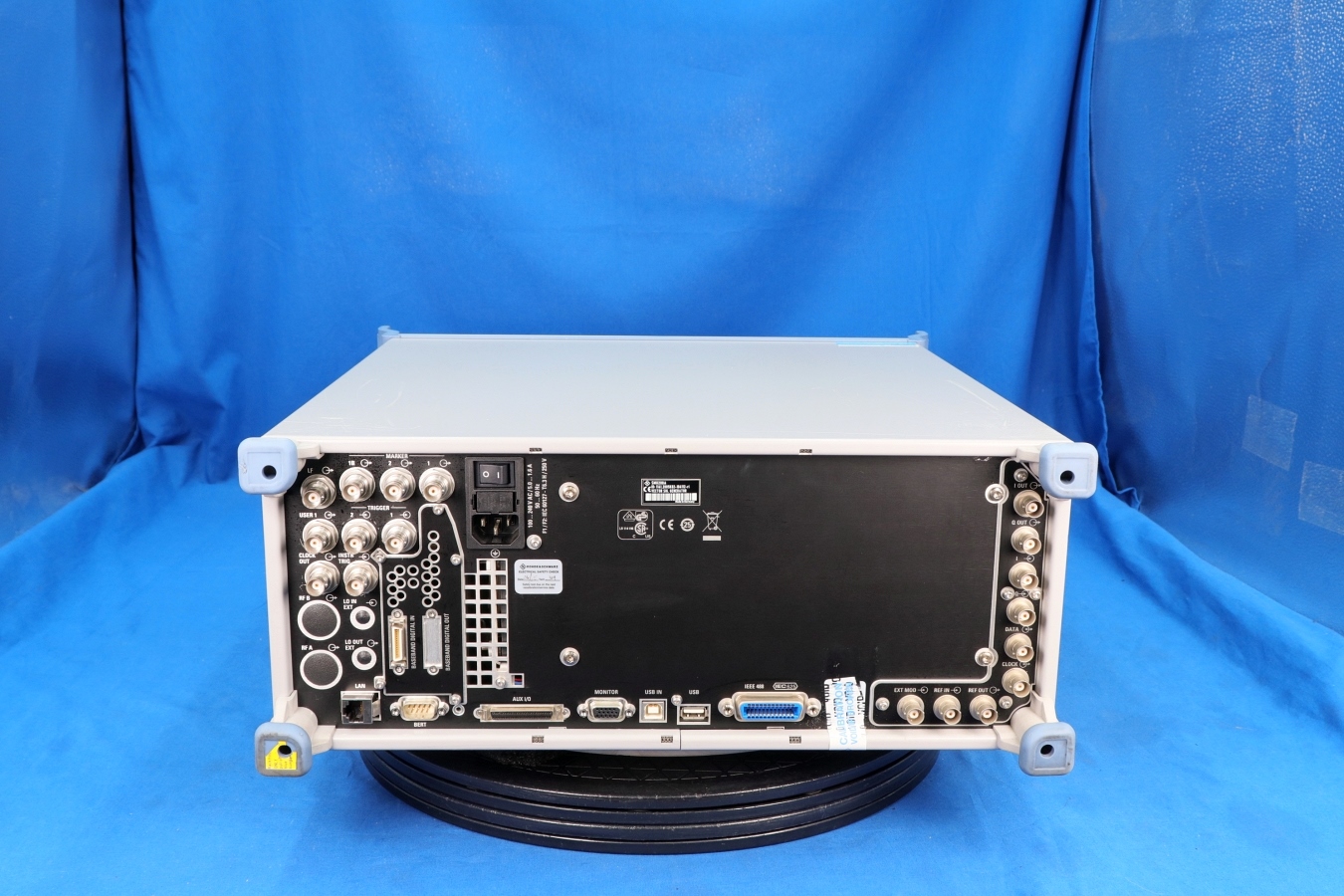

Vector Signal Generator, dual CH, 3GHz, rear panel output
Option
| Option | Description |
|---|---|
| B103 | 100kHz to 3GHz |
| B106 | 100kHz to 6GHz |
| B11 | Baseband Generator with ARB |
| B13 | Baseband Main Module |
| B14 | Fading Simulator |
| B15 | Fading Simulator Extension |
| B16 | Differential I/Q out |
| B17 | Baseband digital/analog in |
| B18 | Baseband digital out |
| B20 | FM/PhiM |
| B203 | 100kHz to 3GHz |
| B22 | FM/ Modulation and Enhanced Phase Noise Performance |
| B30 | Overvoltage Protection |
| B31 | High Power Output |
| B35 | Overvoltage Protection |
| B81 | Rear panel connectors for 1st RF path |
| B82 | Rear panel connectors for 2nd RF path |
| B9 | Baseband Generator with ARB (128Msample) and Digital Modulation |
| K11 | |
| K12 | |
| K17 | |
| K40 | GSM/EDGE |
| K42 | 3GPP FDD |
| K43 | 3GPP Enhanced MS/BS Tests incl. HSDPA |
| K44 | |
| K45 | 3GPP HDD HSUPA |
| K46 | |
| K47 | |
| K48 | |
| K49 | |
| K5 | |
| K50 | |
| K51 | |
| K55 | |
| K62 | AWGN |
| K71 | Dynamic Fading and Enhanced Resolution |
