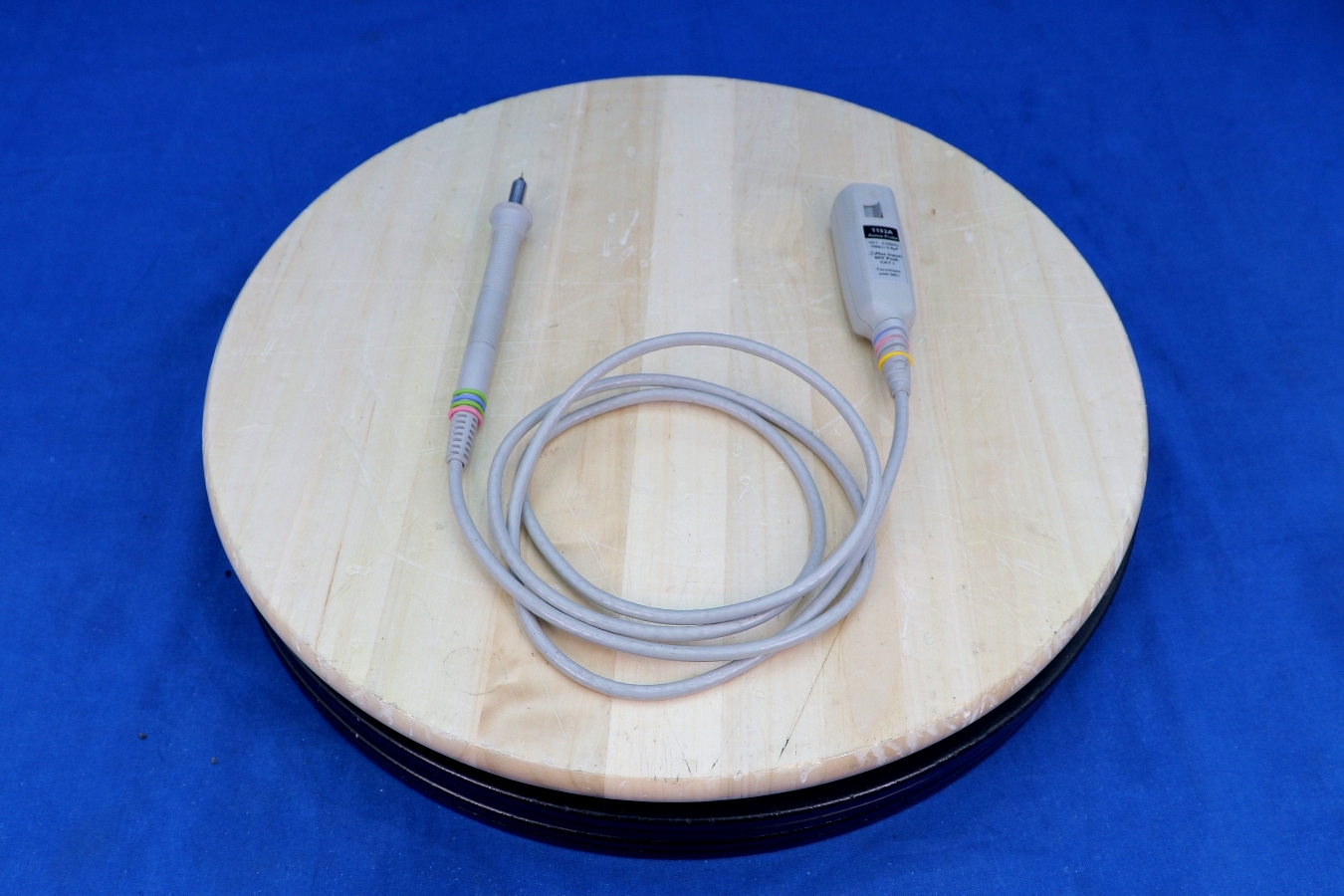

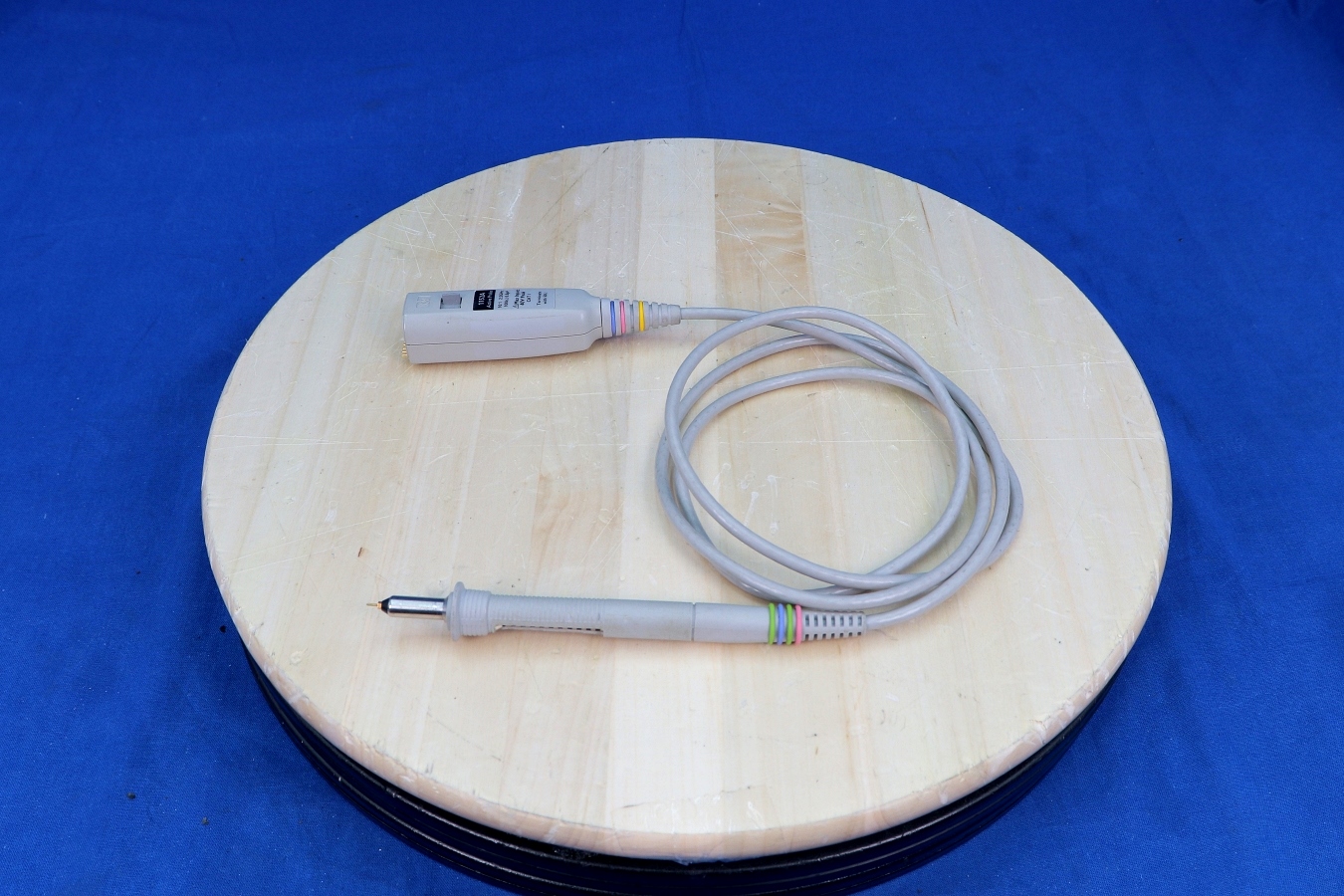

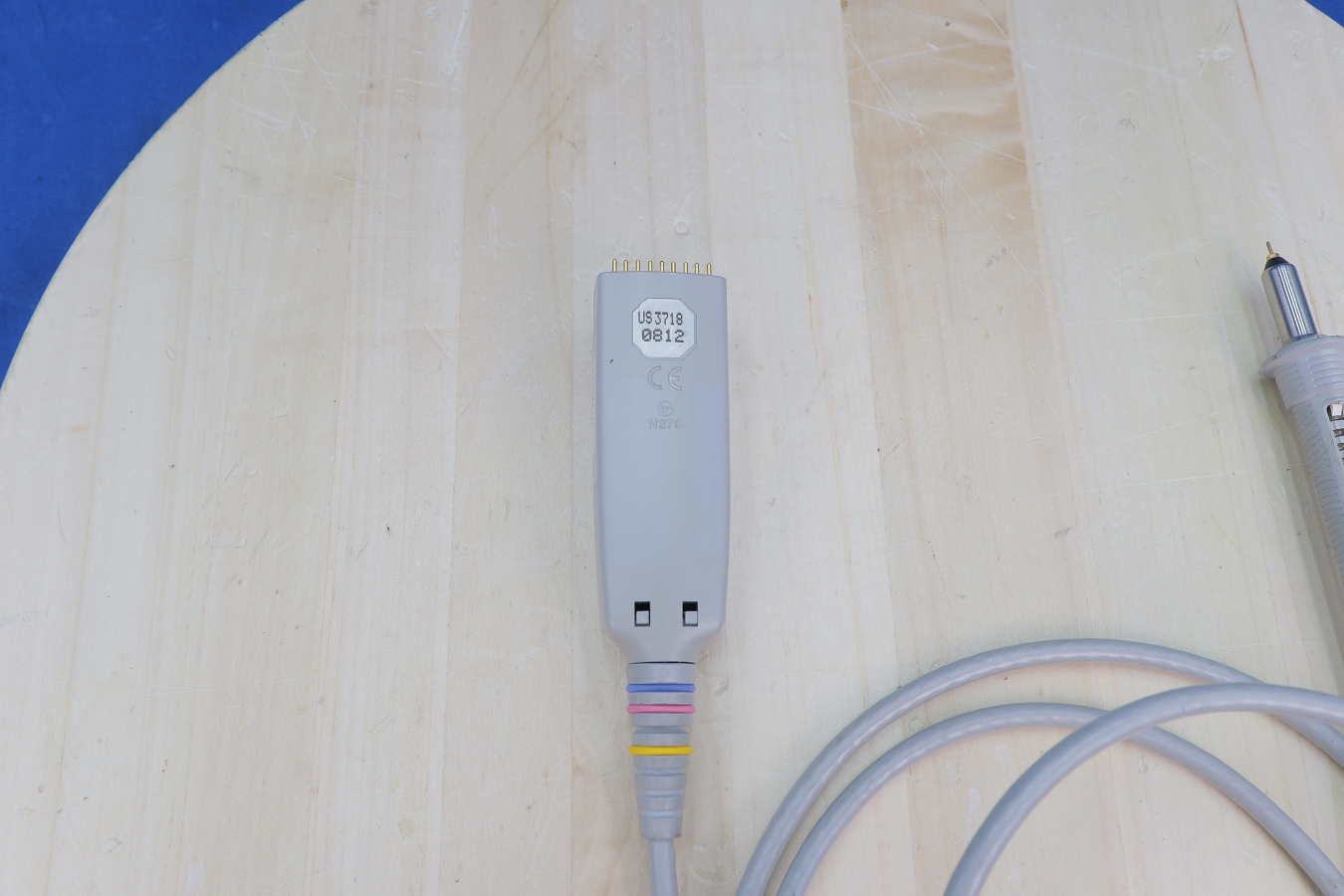

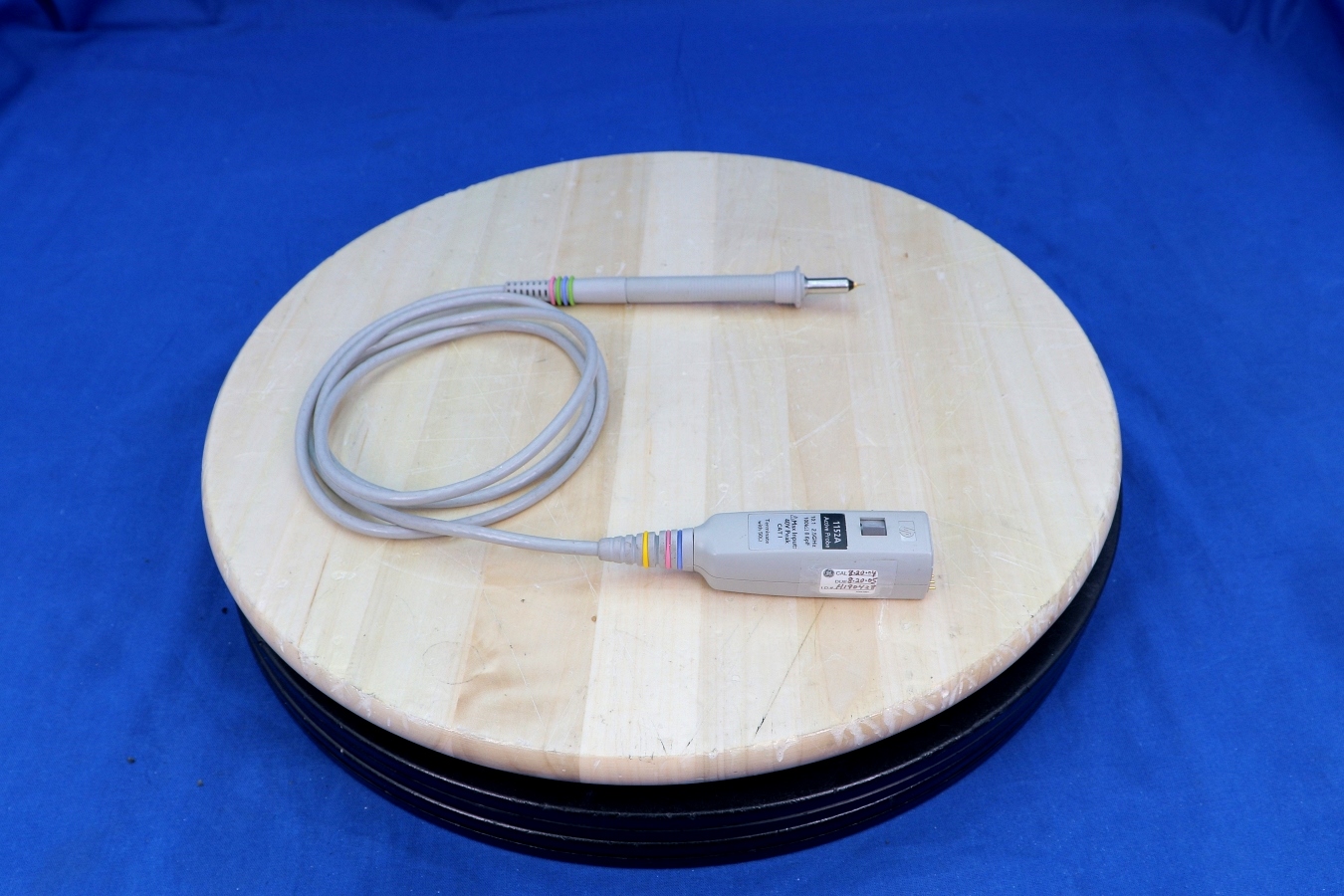

The Keysight 1152A active probe's bandwidth, superior accuracy, and reliability make it an ideal companion for the Keysight 54845A 1.5 GHz bandwidth oscilloscope.

The low input capacitance of the active probe eliminates distortion caused by excessive loading. As frequency increases, probe tip capacitance decreases the impedance of the probe by Xc=1/(2pi*fC), resulting in measurement error, depending on the source impedance of the output device. The Keysight 1152A's low tip capacitance becomes a distinct advantage as frequency increases.

Nonintrusive, reliable probing provides faithful reproduction of signals.

• 2.5 -GHz bandwidth
• 140 ps rise time
• 1% long-term flatness
• ±0.5% dc gain accuracy
• 200 Vac max input tolerance
• ±12 kV ESD tolerance
• Pliable, replaceable probe tips
• ±5 V dc + peak ac
• AutoProbe interface compatible
• Bandwidth (-3 dB): >2.5 GHz
• Risetime (10% to 901%): <140 ps (calculated from tr=0.35/bandwidth)
• Attenuation factor: 10:1
• dc Input resistance: 100 kΩ ±1%
• Input capacitance: 0.6 pF (typical)
• Maximum input voltage: ±40 V (dc + peak ac(<20 MHz)), CAT I
