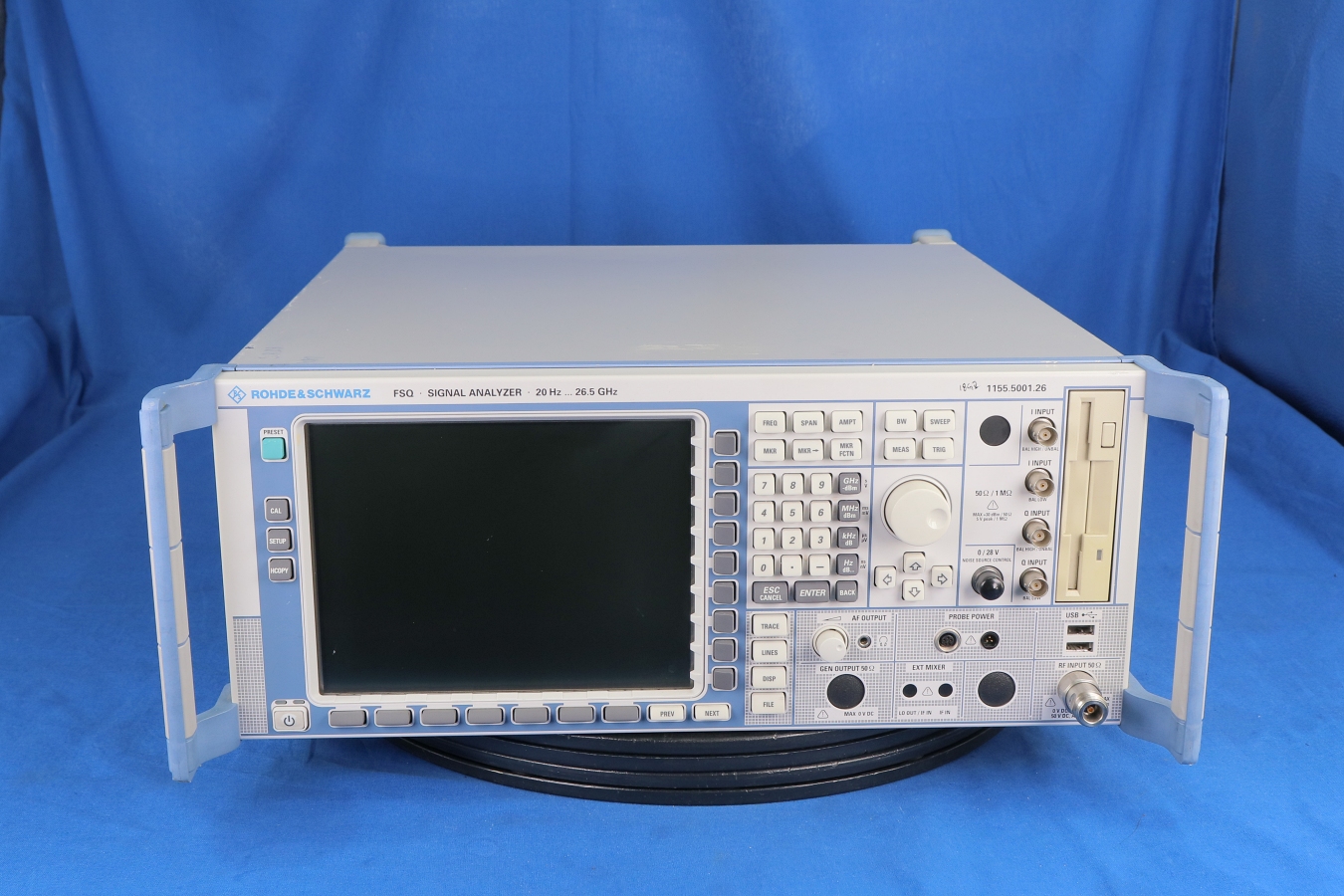

FSQ26(1155.5001K26) Rohde & Schwarz Spectrum Analyzer

20Hz to 26.5GHz

REQUEST A QUOTE

FSQ26(1155.5001K26) Rohde & Schwarz Spectrum Analyzer

B71: I/Q baseband input / B72: I/Q bandwidth extension /

Price: CALL

REQUEST A QUOTE

FSQ26(1155.5001K26) Rohde & Schwarz Spectrum Analyzer

B25: Electronic attenuator / B4: OCXO / B71: I/Q baseband input / B72: I/Q bandwidth extension / B100: I/Q Memory Extension to 235 Msample / B102: IQ Memory Extension from 235 Msample to 705 Msample / B17: Digital Baseband Interface / K73: WCDMA FDD MS Analyzer V4.70SP2 / K100: LTE FDD Downlink V4.72 SP1 / K101: LTE FDD Uplink V4.72 SP1 / K105: LTE TDD Uplink V4.72 SP1 /

Price: CALL

REQUEST A QUOTE

Detail

Frequency range from 20 Hz to 3.6/8/26.5/40 GHz

28 MHz signal analysis bandwidth, optionally 120 MHz

Outstanding RF characteristics:

TOI typ. +25 dBm

1 dB compression point +13 dBm

84 dBc ACLR/3GPP with noise correction

-173 dBm (1 Hz) displayed average noise level (DANL) with noise correction and R&S FSU-B24 preamplifier

Analysis of signals in the analog and digital baseband

Numerous firmware applications extending the signal analysis capabilities

16 Msample I/Q memory, expandable up to 705 Msample

Option

Option	Description
B100	I/Q Memory Extension to 235 Msample
B102	IQ Memory Extension from 235 Msample to 705 Msample
B17	Digital Baseband Interface
B23	RF Preamp
B25	Electronic attenuator
B4	OCXO
B71	I/Q baseband input
B72	I/Q bandwidth extension
K100	LTE FDD Downlink V4.72 SP1
K101	LTE FDD Uplink V4.72 SP1
K105	LTE TDD Uplink V4.72 SP1
K40	Application firmware for phase noise measurement
K70
K73	WCDMA FDD MS Analyzer V4.70SP2
