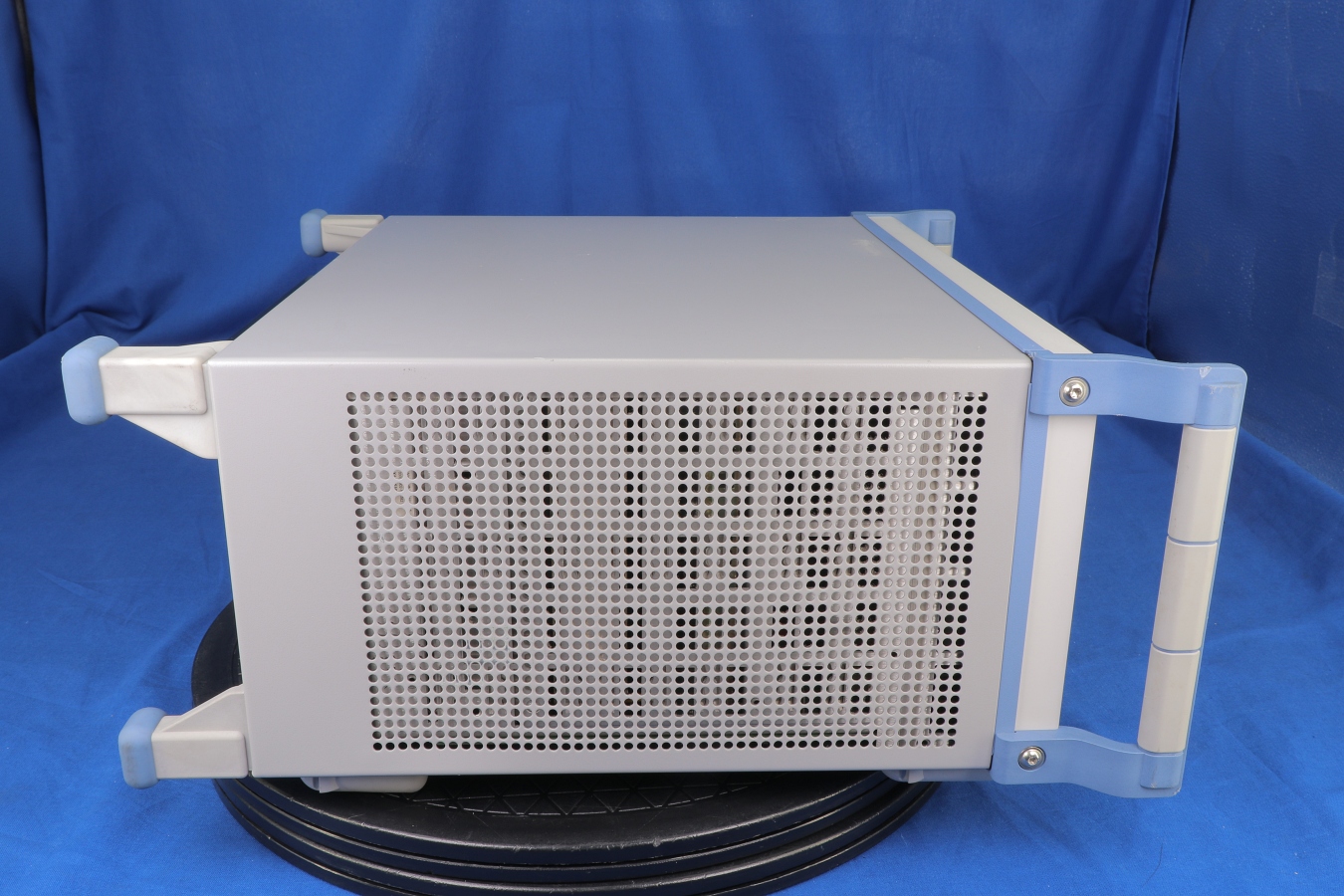

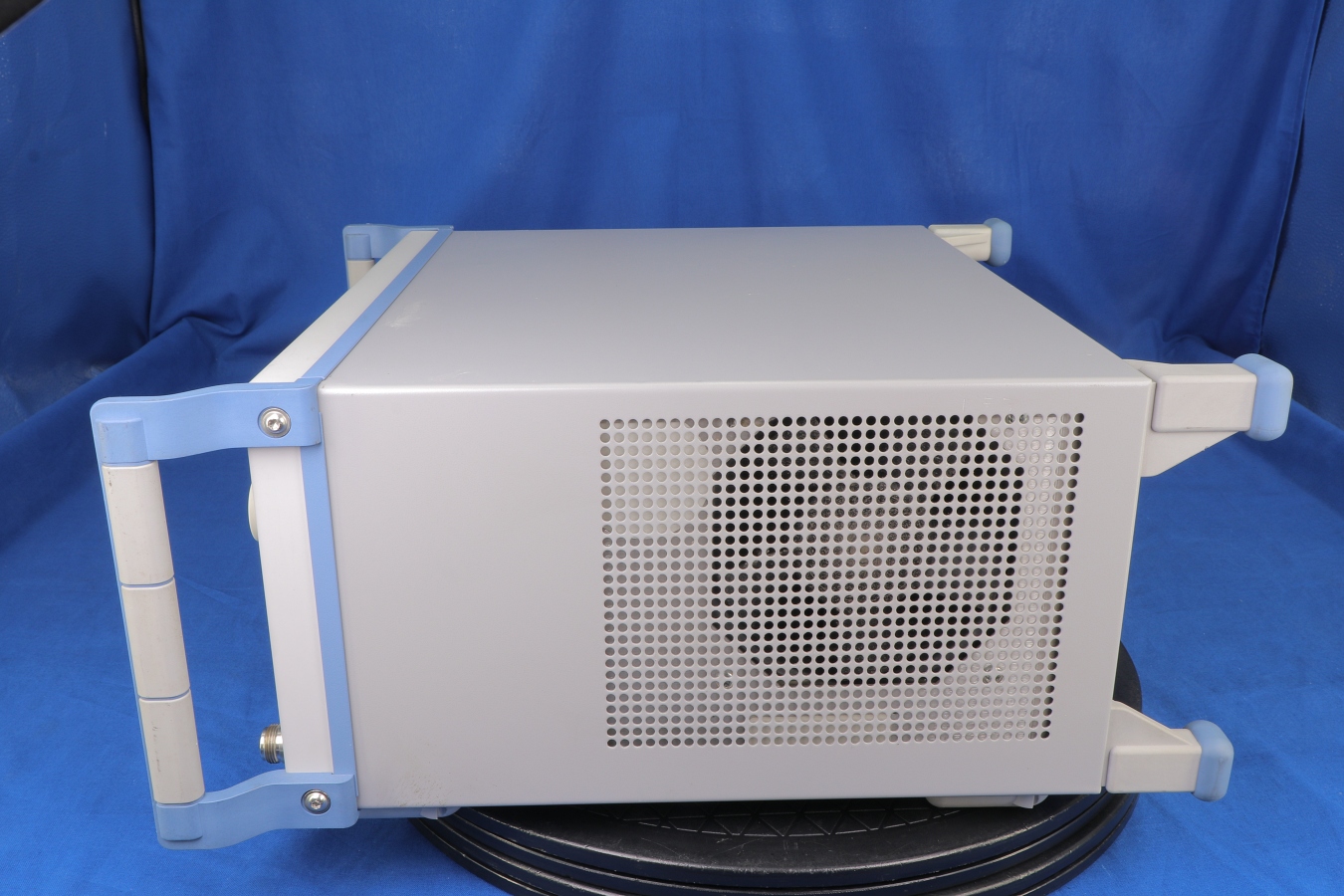

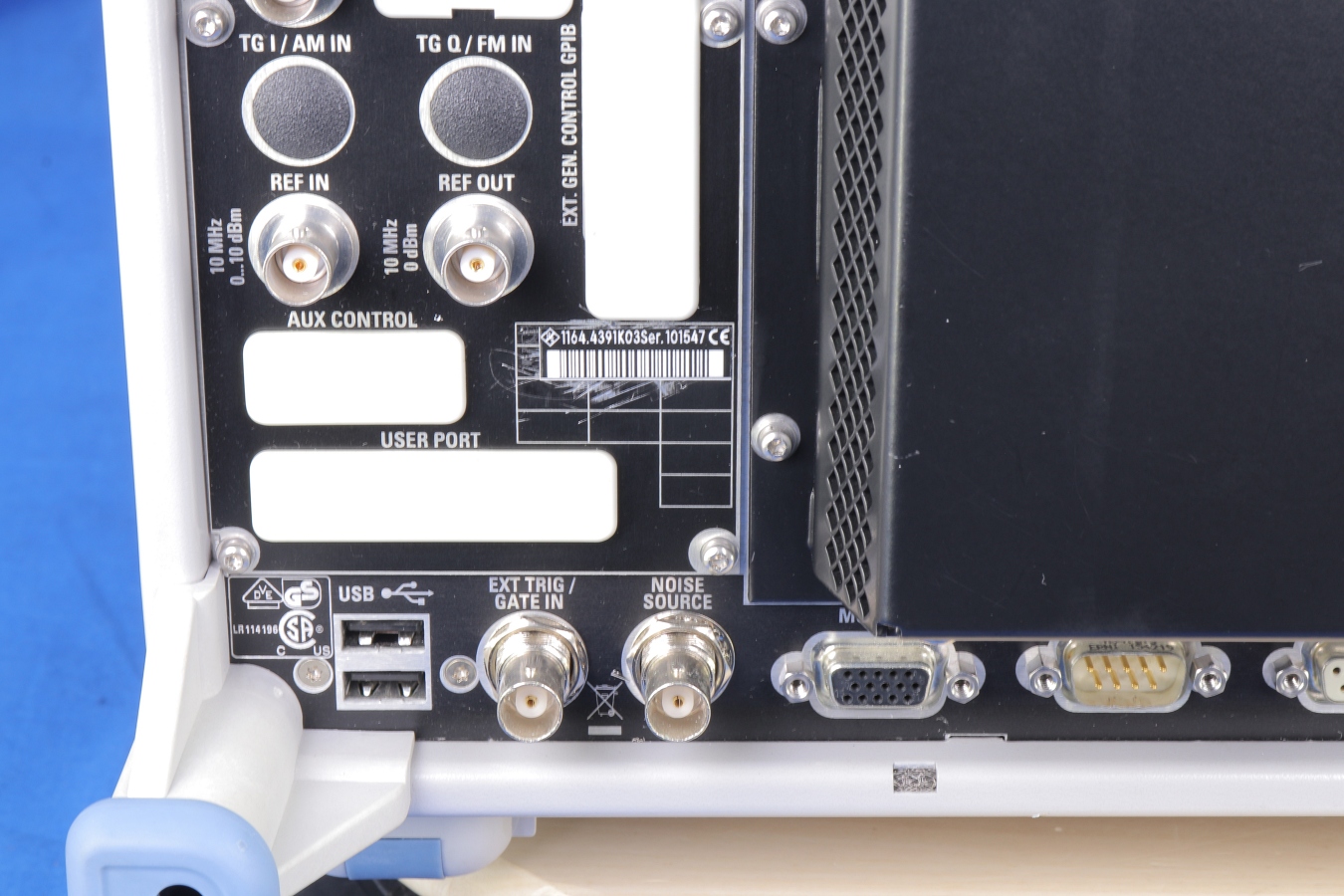

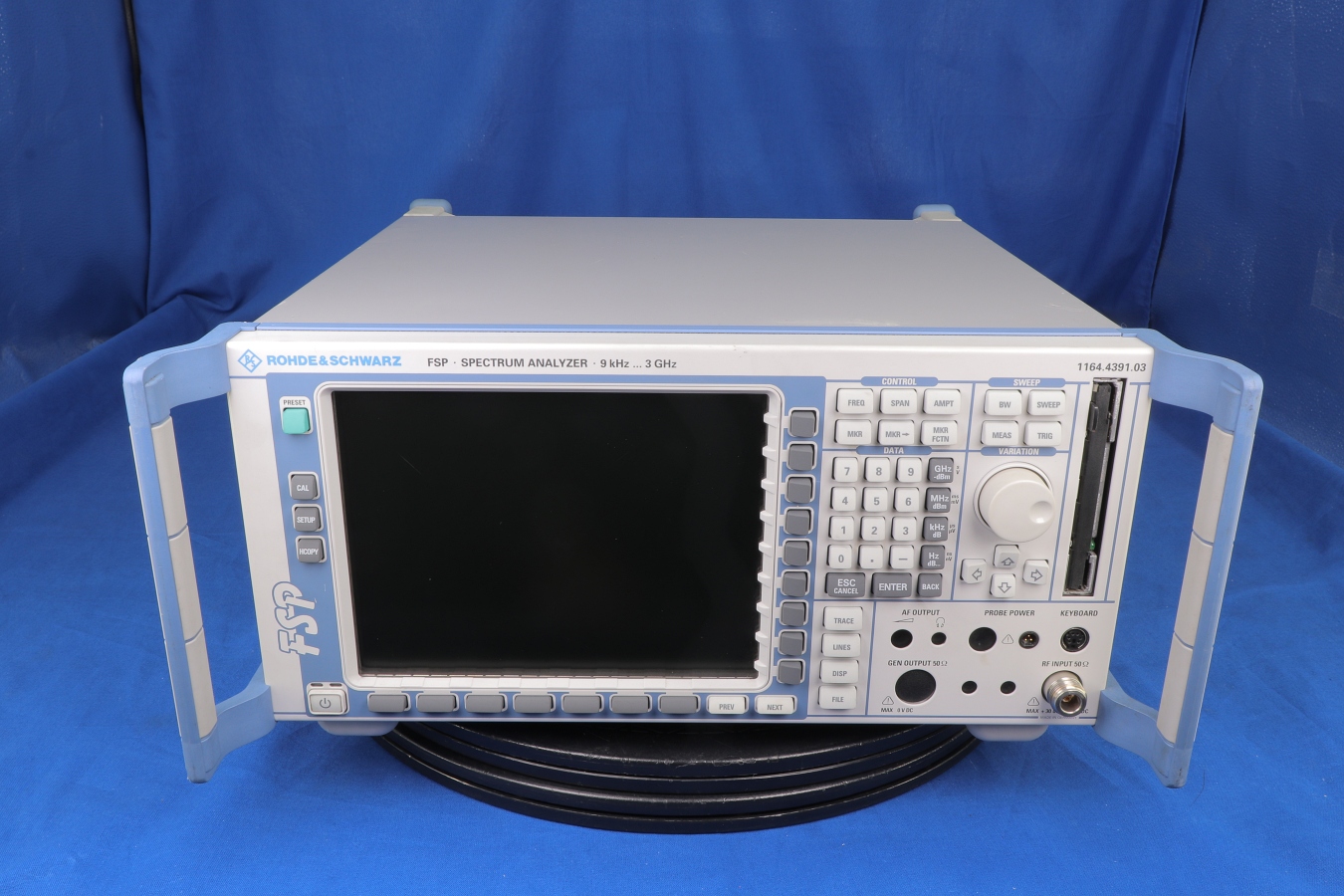

FSP3(1164.4391K03) Rohde & Schwarz Spectrum Analyzer

Frequency range: 9 kHz to 3 GHz Resolution bandwidth: 1 Hz to 10 MHz Displayed average noise level: -155 dBm (1 Hz) Phase noise: -113 dB (1 Hz) at 10 kHz

REQUEST A QUOTE

FSP3(1164.4391K03) Rohde & Schwarz Spectrum Analyzer

Price: CALL

REQUEST A QUOTE

FSP3(1164.4391K03) Rohde & Schwarz Spectrum Analyzer

FSP-B4: OCXO Reference Frequency / FSP-B16: LAN interface / FSP-B25: Electronic attenuator /

Price: CALL

REQUEST A QUOTE

FSP3(1164.4391K03) Rohde & Schwarz Spectrum Analyzer

Price: CALL

REQUEST A QUOTE

Detail

Frequency range: 9 kHz to 3 GHz
Resolution bandwidth: 1 Hz to 10 MHz
Displayed average noise level: -155 dBm (1 Hz)
Phase noise: -113 dB (1 Hz) at 10 kHz
Additional filters: Channel filters from 100 Hz to 5 MHz and RRC filters, FFT filters from 1 Hz to 30 kHz, EMI bandwidths and quasi-peak detector
Measurement functions for TOI, MC ACP(R), OBW, CCDF, APD, etc
Measurement applications for cellular standards and general purpose, e.g. phase noise, noise figure, etc.
DANL typ.: -155 dBm (1 Hz) w/o preamp
Phase-noise typ.: -113 dBc/Hz @ 10 kHz offset, CF 500 MHz
Phase-noise typ.: - 145 dBc/Hz @ 10 MHz offset, CF 500 MHz
TOI typ.: 10 dBm
1-dB-compression point: 0 dBm
0.5 dB total level uncertainty up to 3.6 GHz
<0.2 dB linearity error down to -70 dB
IF digitizer 12 bit 32 MHz (20.4 MHz IF)
IQ memory 2x128 ksamples
2.5ms sweep time in frequency domain
1 µs sweep time in time domain
Up to 70 remote measurements/s via GPIB
Up to 80 manual measurements/s (screen update)

Option

Option	Description
B3	AM/FM Audio Demodulator
FSP-B16	LAN interface
FSP-B25	Electronic attenuator
FSP-B4	OCXO Reference Frequency
