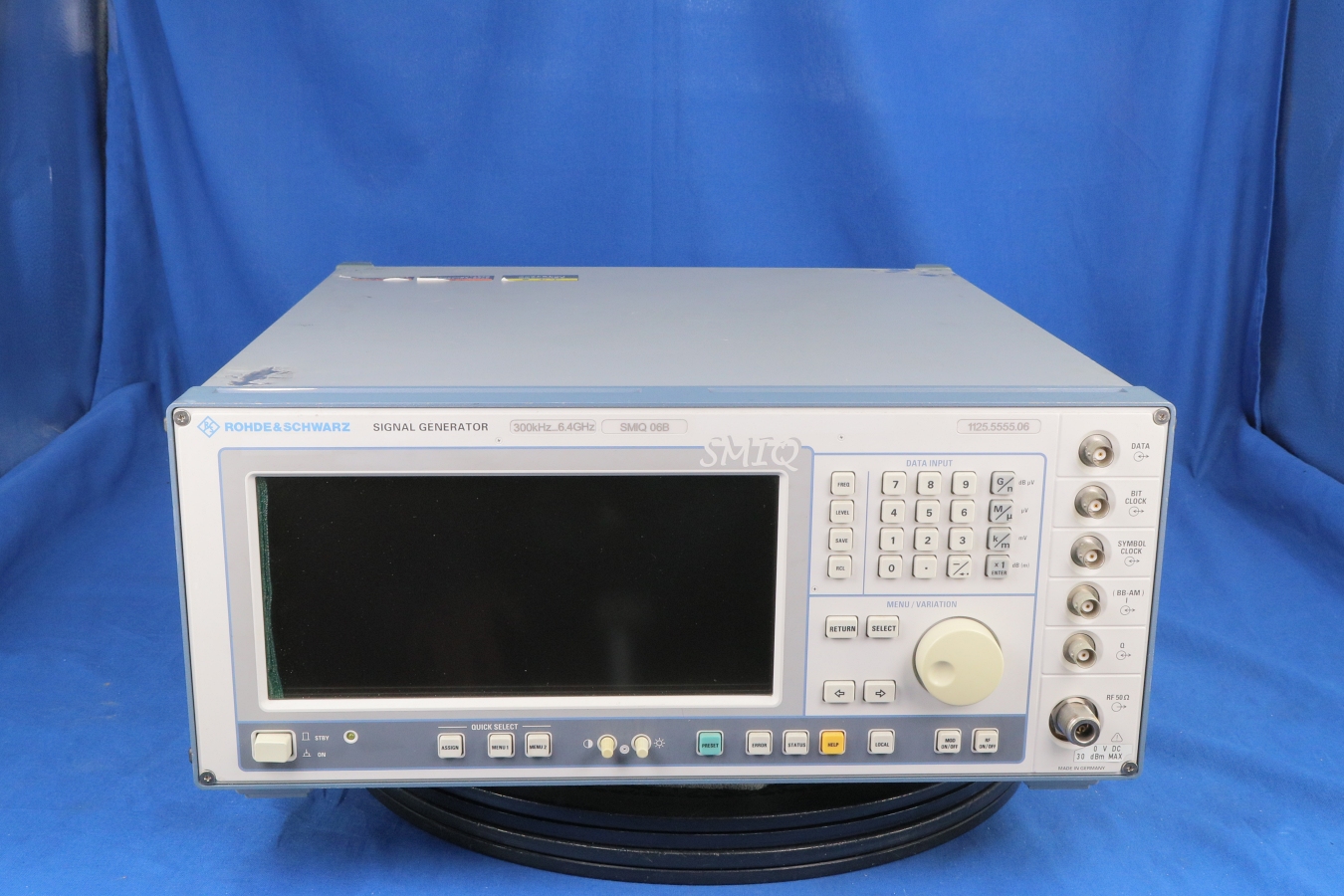

Additional Features: Frequency range: 300 kHz to 6.4 GHz Resolution: 0.1 Hz Analog and Digital Modulation Versatile and Broadband Generation of Digitally Modulated Signals up to 18 Msymbol/s Generation of TDMA, CDMA, WCDMA and CDMA2000 Standard Signals to All Main Mobile Radio Standards Broadband I/Q Modulator with Outstanding Vector Accuracy Low Cost of Ownership Due to Three-Year Calibration Intervals Future-oriented Platform Concept Applications: Type-approval Testing of Digital Base and Mobile Stations Sensitivity Measurements on Digital Receivers Selectivity Measurements on Digital Receivers Base-station Transmitter Test Testing of Equalizers Tolerance Tests on Digital Systems Components Tests Development of New Digital Communication System The SMIQ06B is a vector signal generator with a frequency range of 300 kHz to 6.4 GHz. The high-grade I/Q modulator fitted as standard ensures minimum error vector magnitude and high intermodulation suppression. Using modern digital signal processor (DSP) technology, the versatile concept allows the generation of high-precision digital modulation signals at high bit rates without any limitations on modulation modes or standards. In addition to digital modulation, the SMIQ06B provides the full range of analog modulation modes as well as simultaneous modulation capability.
