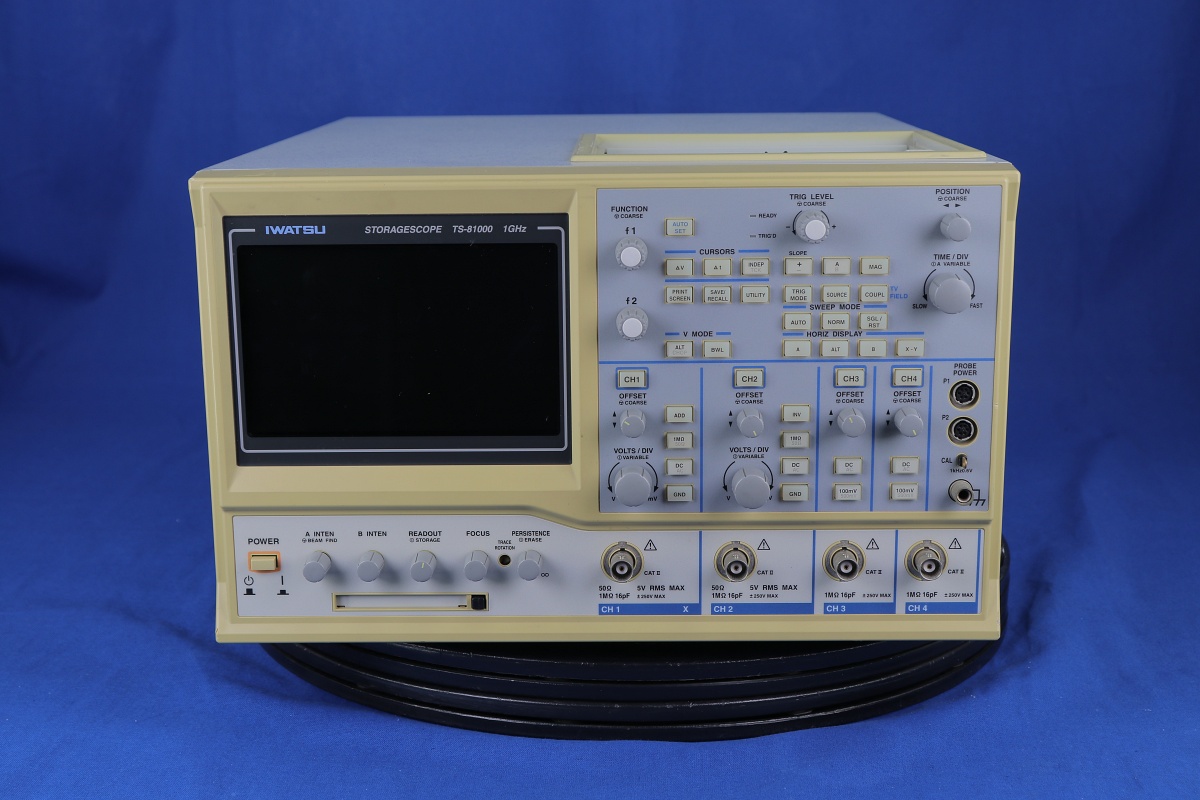

TS-81000 Iwatsu Analog Oscilloscope
DC to 1GHz Analog Oscillocope, 2ch+2ch(Fixed), DC to 500MHz with 1Mohm Passive Probe, 초고휘도 가변 잔광기능, Max 1,000,000/sec waveform, internal Printer, LAN port, NTSC/VGA video out, ATA Card
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
TS-81000 Iwatsu Analog Oscilloscope
Price: CALL
TS-81000 Iwatsu Analog Oscilloscope
Price: CALL
TS-81000 Iwatsu Analog Oscilloscope
Price: CALL
Detail
DC - 1GHz/600MHz (50W) wide frequency bandwidth

Fastest sweep of 200 ps/div

Ultra-fast writing speed of 10 div/ns can capture 6 div amplitude, 500 ps rise time pulse

DC - 500MHz (1 MW, passive probes are optional), 4 CH

Sharp traces and high-resolution color display 800 x 480 dots

Versatile output interface and documentation functions

Option
Option Description
SPF-4A 800MHz Probe
SPF-5A 1GHz Probe
