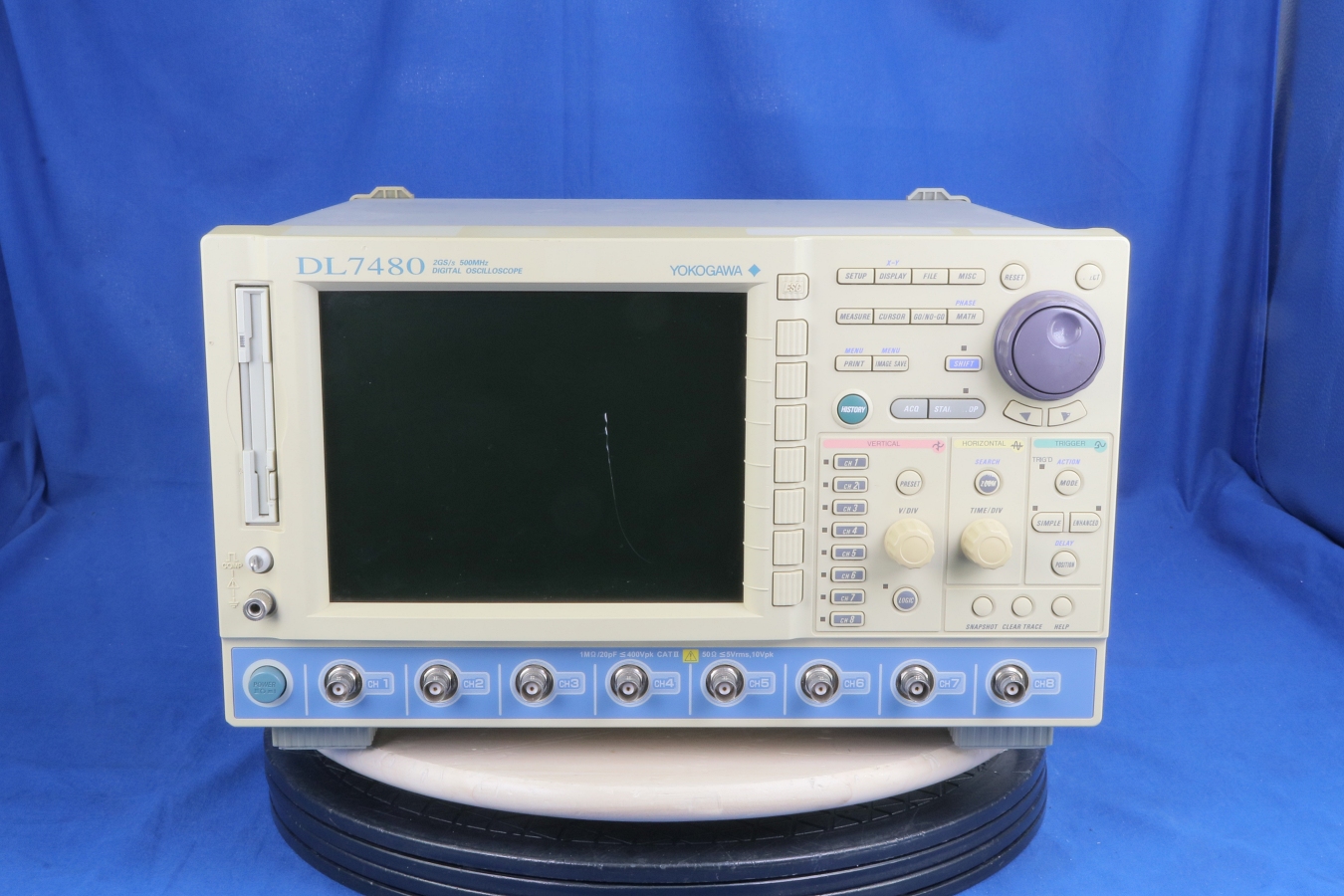

DL7480(701470) Yokogawa Digital Oscilloscope
500MHz bandwidth, 2GS/s, 8 CH input and maximum 4 MW memory
REQUEST A QUOTE
DL7480(701470) Yokogawa Digital Oscilloscope
(701470) /
-M /
-J1: FDD /
B5 /
E4 /
C10: ethernet /
Price: CALL
DL7480(701470) Yokogawa Digital Oscilloscope
M /
J1: FDD /
B5: Built-in Printer /
E4: Four additional passive probe /
P4: Four additional probe power connection /
N3: Logic Input /
C10: Ethernet Interface /
F8: I2C/ CAN/ SPI Bus Analysis /
7N /
Price: CALL
DL7480(701470) Yokogawa Digital Oscilloscope
M /
J1: FDD /
B5: Built-in Printer /
E4: Four additional passive probe /
N3: Logic Input /
C10: Ethernet Interface /
F5: I2C + SPI Bus Analyzer /
Price: CALL
Detail
8ch Oscilloscope Ch & 16 bit Logic Input (option), 500MHz Bandwidth, 2GS/S, 16MW memory, Color LCD Display, USB, PC Card I/F, Internal Printer
Option
| Option | Description |
|---|---|
| 7N | |
| B5 | Built-in Printer |
| C10 | Ethernet Interface |
| E4 | Four additional passive probe |
| F5 | I2C + SPI Bus Analyzer |
| F8 | I2C/ CAN/ SPI Bus Analysis |
| J1 | FDD |
| M | |
| N3 | Logic Input |
| P4 | Four additional probe power connection |
