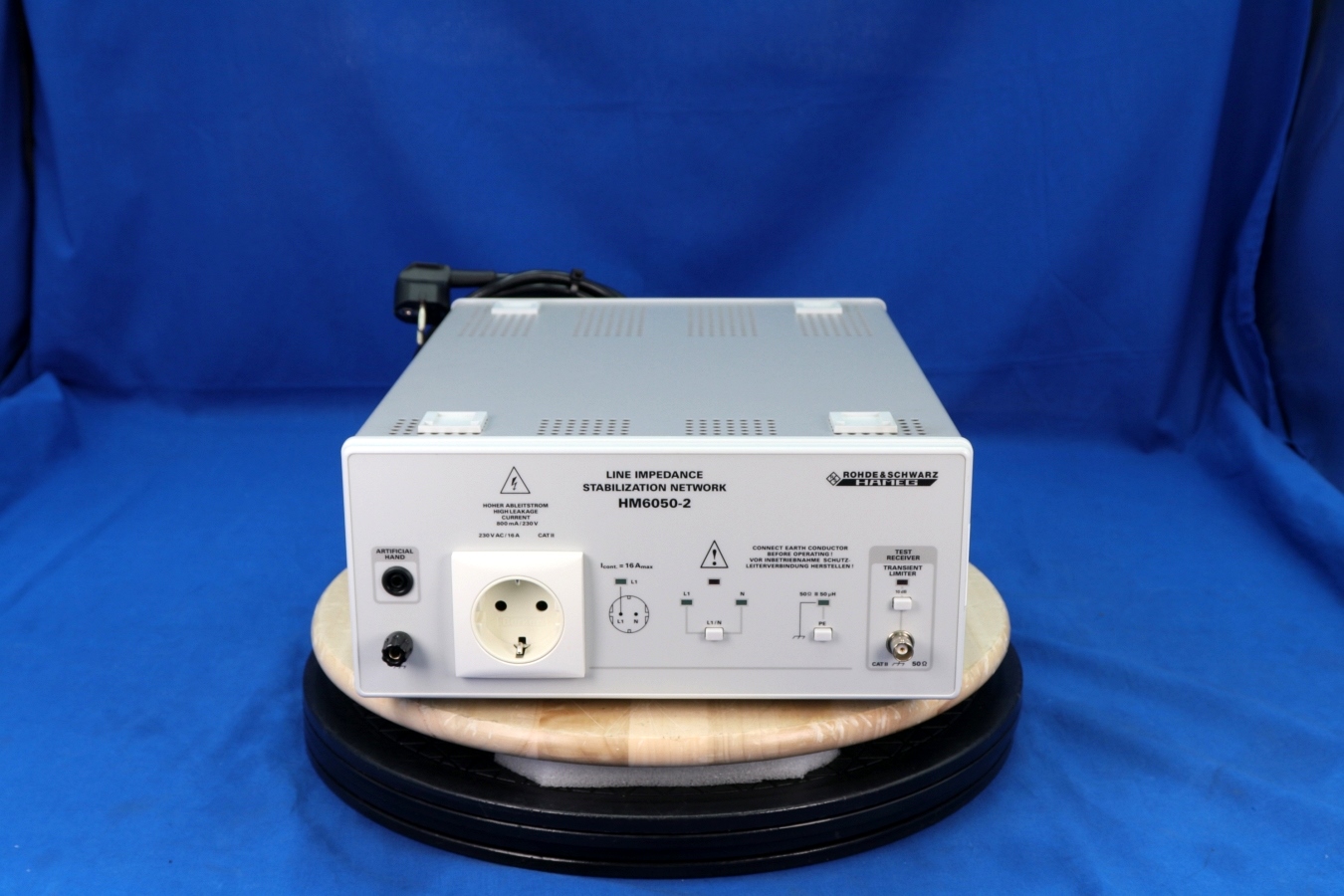

HM6050-2 Hameg LISN

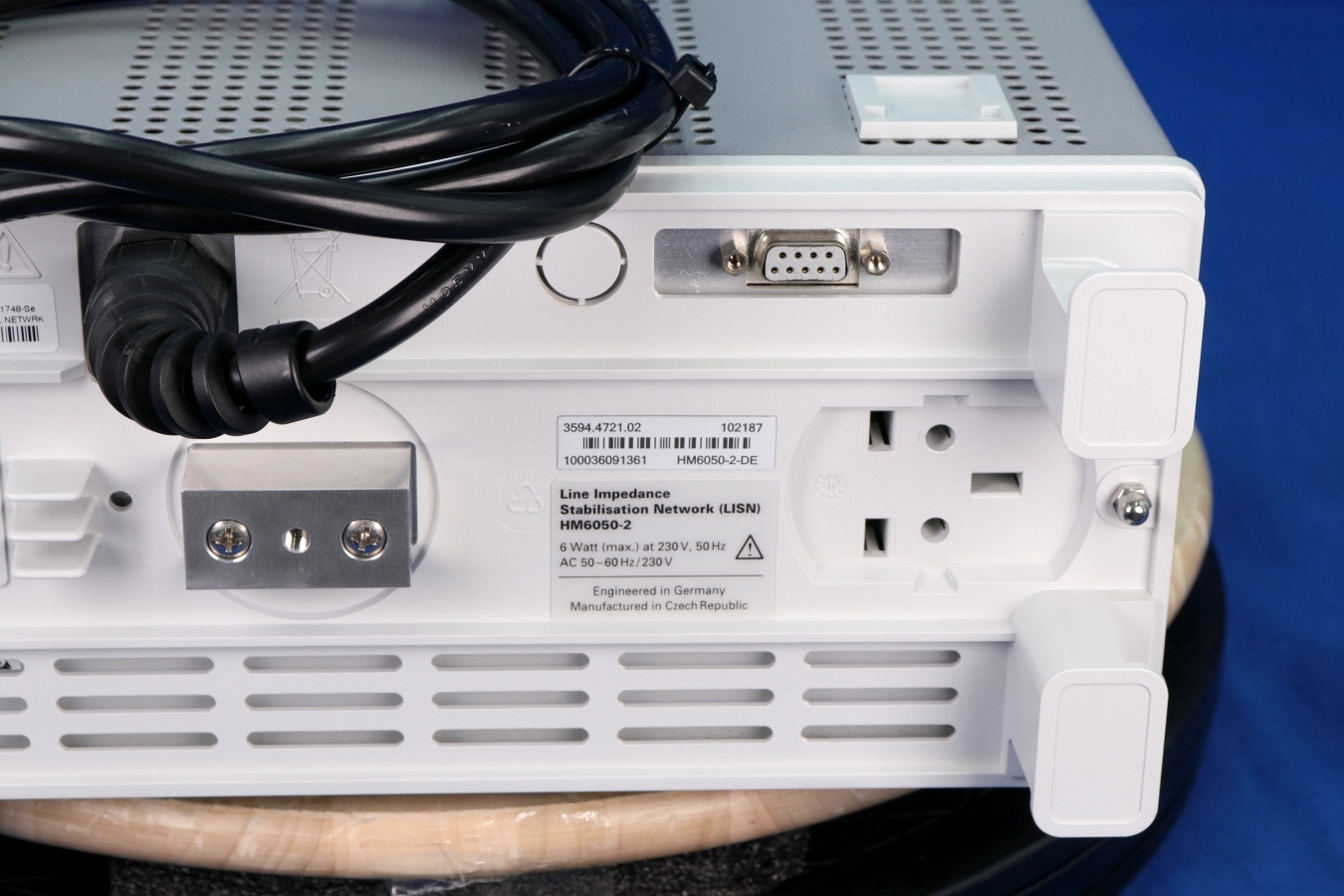

single-phase Line Impedance Stabilization Network (LISN), which is an essential accessory used for measuring conducted emissions (EMI) during electromagnetic compatibility testing -9 kHz to 30 MHz (Fully complies with CISPR 16 standards for conducted emissions) -Maximum Rated Current: Up to 16 A continuous current -Line Voltage: Up to 230 V (AC 50/60 Hz), CAT II -Built-in Transient Limiter: Protects sensitive receiver circuitry by blocking sudden power surges and stabilizing signals (Provides approx. 10 dB attenuation in the 150 kHz to 30 MHz range). -Remote Control Support: Features a rear RS-232 interface that allows users to automate phase selection (Line 1 or Neutral).
