| Receptors | Silicon photocells |
| Measurement area | Ø27mm (Ø10mm probes also available) | Ø27mm |
| Acceptance angle | ±2.5° | ±2.5° |
| Measurement distance | 30±10mm | 30±10mm |
| Display range | Luminance | 0.0001 to 1000 cd/m² | 0.0001 to 1000 cd/m² |
| Chromaticity | Displayed as 4- or 3-digit value (can be chosen) |
| Luminance | Measurement range | 0.0050 to 1000 cd/m² | 0.0050 to 1000 cd/m² |
Accuracy (white) *1
(temperature: 23° +-2°,
relative humidity
(40+-10_%)) | 0.0050 to 0.0999 cd/m2 (±4%±0.0015 cd/m2)
0.1000 to 9.999 cd/m2 (±3%±0.0010 cd/m2)
10.00 to 1000 cd/m2 (±2%±0.0010 cd/m2) | 0.0050 to 0.0999 cd/m2 (±4%±0.0015 cd/m2)
0.1000 to 9.999 cd/m2 (±3%±0.0010 cd/m2)
10.00 to 1000 cd/m2 (±2%±0.0010 cd/m2) |
| Repeatability (2σ) *1 | 0.0050 to 0.0999 cd/m2 (1% + 0.0010 cd/m2)
0.1000 to 0.9999 cd/m2 (0.2% + 0.0010 cd/m2)
1.000 to 1000 cd/m2 (0.1%+0.0010 cd/m2) | 0.0050 to 0.0999 cd/m2 (1% + 0.0010 cd/m2)
0.1000 to 0.9999 cd/m2 (0.2% + 0.0010 cd/m2)
1.000 to 1000 cd/m2 (0.1%+0.0010 cd/m2) |
| Chromaticity | Measurement range | 0.0500 to 1000 cd/m² | 0.0500 to 1000 cd/m² |
| Accuracy (white)*1 | 0.0500 to 4.999 cd/m2 (±0.005 for white)
5.000 to 19.99 cd/m2 (±0.004 for white)
20.00 to 1000 cd/m2 (±0.003 for white)
120 cd/m2 (±0.002 for white)
(±0.004 for monochrome)*2 | 0.0500 to 4.999 cd/m2 (±0.005 for white)
5.000 to 19.99 cd/m2 (±0.004 for white)
20.00 to 1000 cd/m2 (±0.003 for white)
120 cd/m2 (±0.002 for white)
(±0.004 for monochrome)*2 |
| Repeatability (2σ) *1 | 0.0500 to 0.0999 cd/m²: 0.010
0.1000 to 0.1999 cd/m2: 0.004
0.2000 to 0.4999 cd/m²: 0.001
0.5000 to 1000 cd/m²: 0.001 | 0.0500 to 0.0999 cd/m²: 0.010
0.1000 to 0.1999 cd/m2: 0.004
0.2000 to 0.4999 cd/m²: 0.001
0.5000 to 1000 cd/m²: 0.001 |
| Flicker Contrast method | Measurement range | – | 5 cd/m2 or higher |
| Display range | – | 0.0 ~ 999.9 % |
| Accuracy | – | ±1 % (Flicker frequency: 30 Hz AC/DC 10% sine wave)
±2 % (Flicker frequency: 60 Hz AC/DC 10% sine wave) |
| Repeatability(2σ) | – | 1 % (Flicker frequency: 20 to 65 Hz AC/DC 10% sine wave) |
| Flicker JEITA method *3 | Measurement range | – | 5 cd/m2 or higher |
| Accuracy | – | ±0.5 dB (Flicker frequency: 30 Hz AC/DC 4% (-40 dB) sine wave)
±1.0 dB (Flicker frequency: 30 Hz AC/DC 1.2% (-50 dB) sine wave) |
| Repeatability(2σ) | – | 0.1 dB (Flicker frequency: 30 Hz AC/DC 4% (-40 dB) sine wave)
0.3 dB (Flicker frequency: 30 Hz AC/DC 1.2% (-50 dB) sine wave) |
| Measurement speed (USB) | xyLv | 0.0050 to 0.0999 cd/m²: 4 times/sec.
0.1000 to 1.999 cd/m²: 5 times/sec.
2.000 cd/m² to 1000 cd/m²: 20 times/sec. | 0.0050 to 0.0999 cd/m²: 4 times/sec.
0.1000 to 1.999 cd/m²: 5 times/sec.
2.000 cd/m² to 1000 cd/m²: 20 times/sec. |
| Flicker (Contrast) | – | 16(16) times/sec. |
| Flicker JEITA *3 | – | 0.5 (0.3)times/sec. *5 |
| Display | Digital | xyLv, XYZ, TΔuvLv, u’v’Lv, RGB analyze | xyLV, TΔuvLV, RGB analyze, XYZ, u’v’LV, Flicker (Contrast method) *3 |
| Analog | ΔxΔyΔLv, R/G B/G ΔG, ΔR B/R G/R | ΔxΔyΔLV, R/G B/G ΔG, ΔR B/R G/R, Flicker (Contrast method) *3 |
| LCD | 16 characters × 2 lines (with backlight) |
| SYNC mode | NTSC, PAL, EXT, UNIV, INT |
| Object Under Measurement | Vertical synchronous frequency: 40 to 200Hz | Vertical synchronization frequency: 40 to 200 Hz (Luminance or chromaticity measurement), 40 to 130 Hz (Flicker measurement) |
| Memory channels | 100 channels |
| Analyzer function | Standard function |

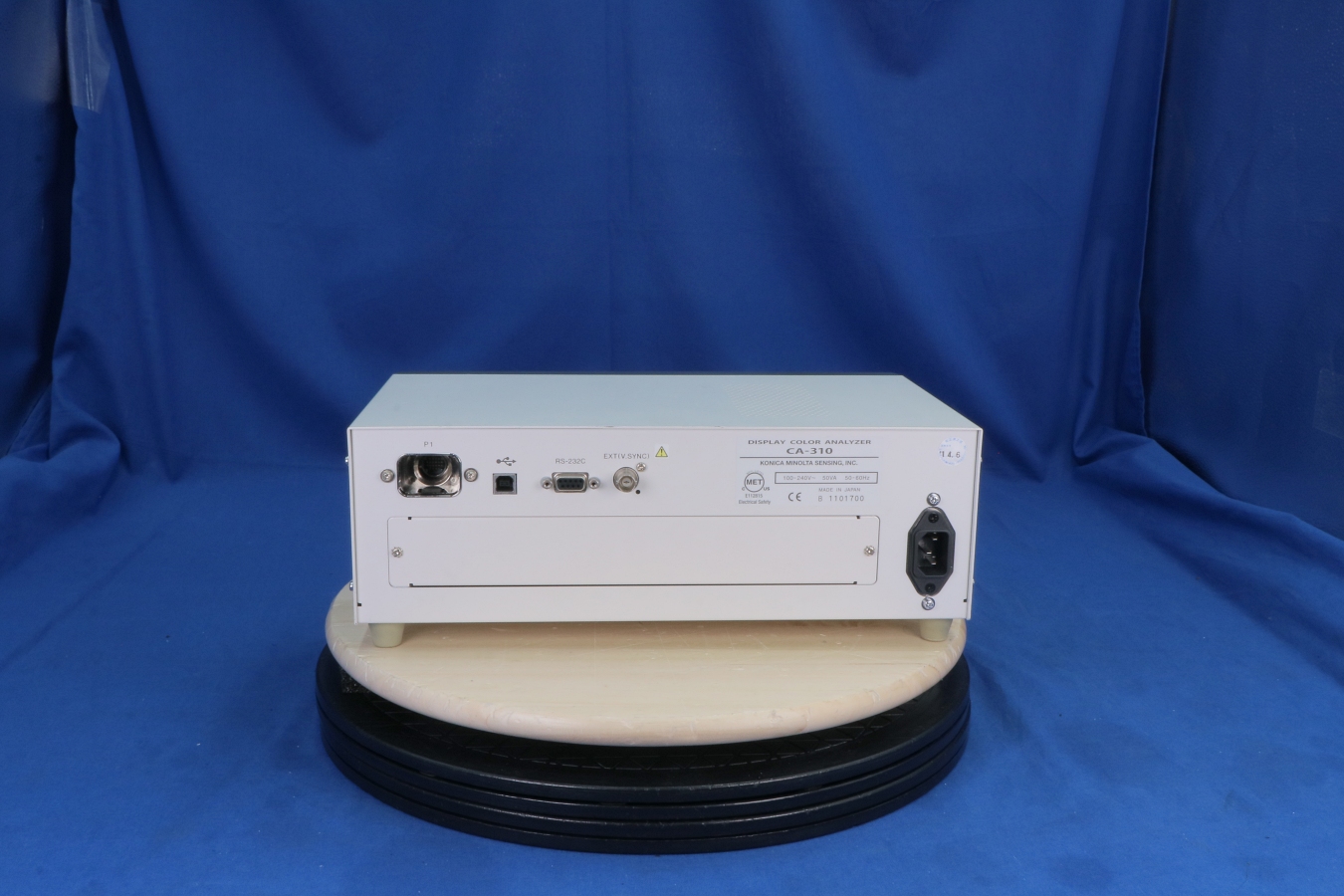

| Interface | USB or RS-232c (38,400 bps maximum) |
| Multi-point measurement Max. | 5 points (using optional 4-Probe Expansion Board CA-B15) |
| Operating temperature/humidity range | Temperature: 10 to 28°C; Relative humidity 70% or less with no condensation. Luminance change: ±2% ±1 digit of reading for white; Chromaticity change: ±0.002 for white, ±0.006 for monochrome from reading of Konica Minolta’s standard LCD *1, 120.0 cd/m² at 23°C 40%RH |
| Storage temperature/humidity range | 0 to 28°C: Relative humidity 70% or less with no condensation; 28 to 40°C: Relative humidity 40% or less with no condensation |

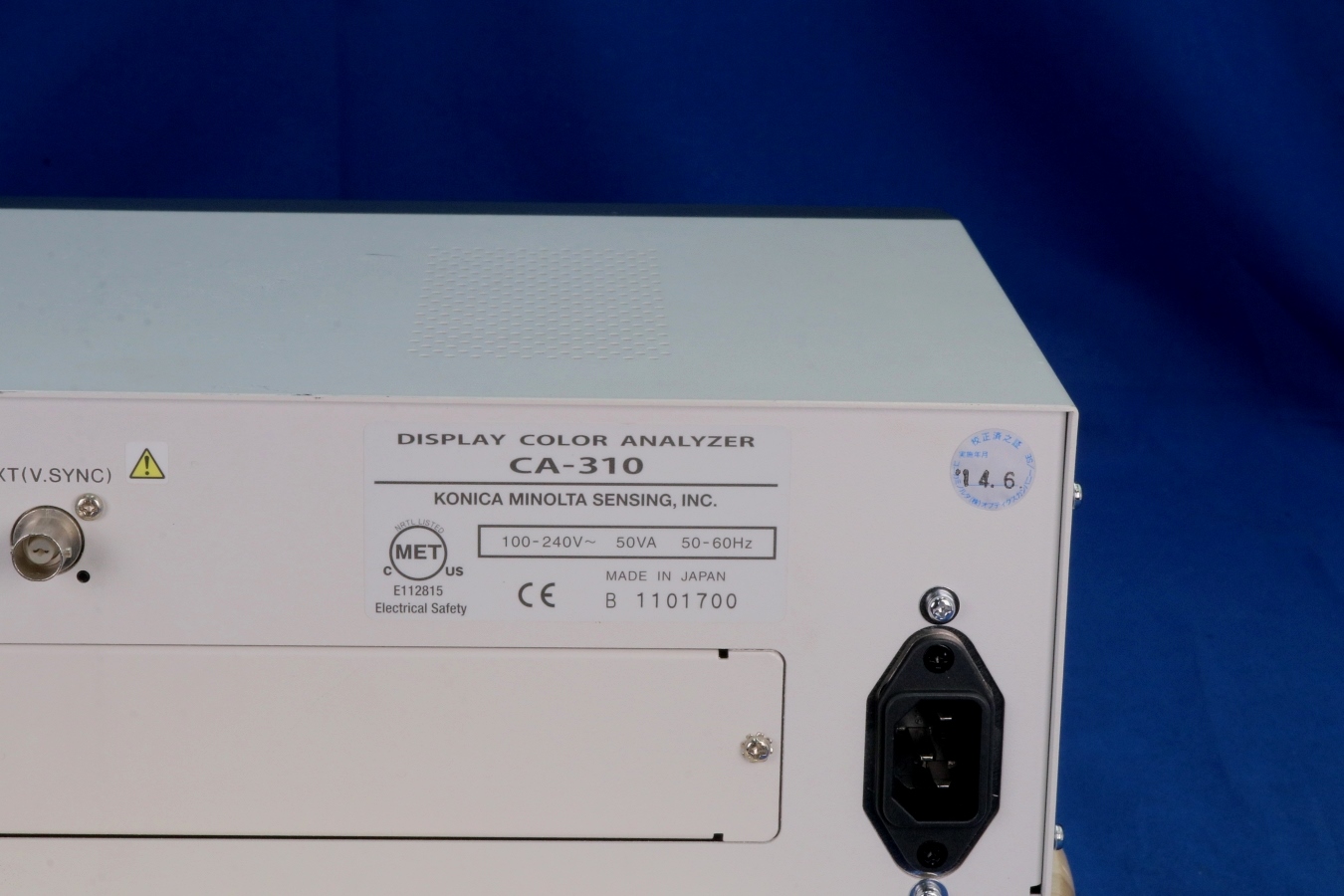

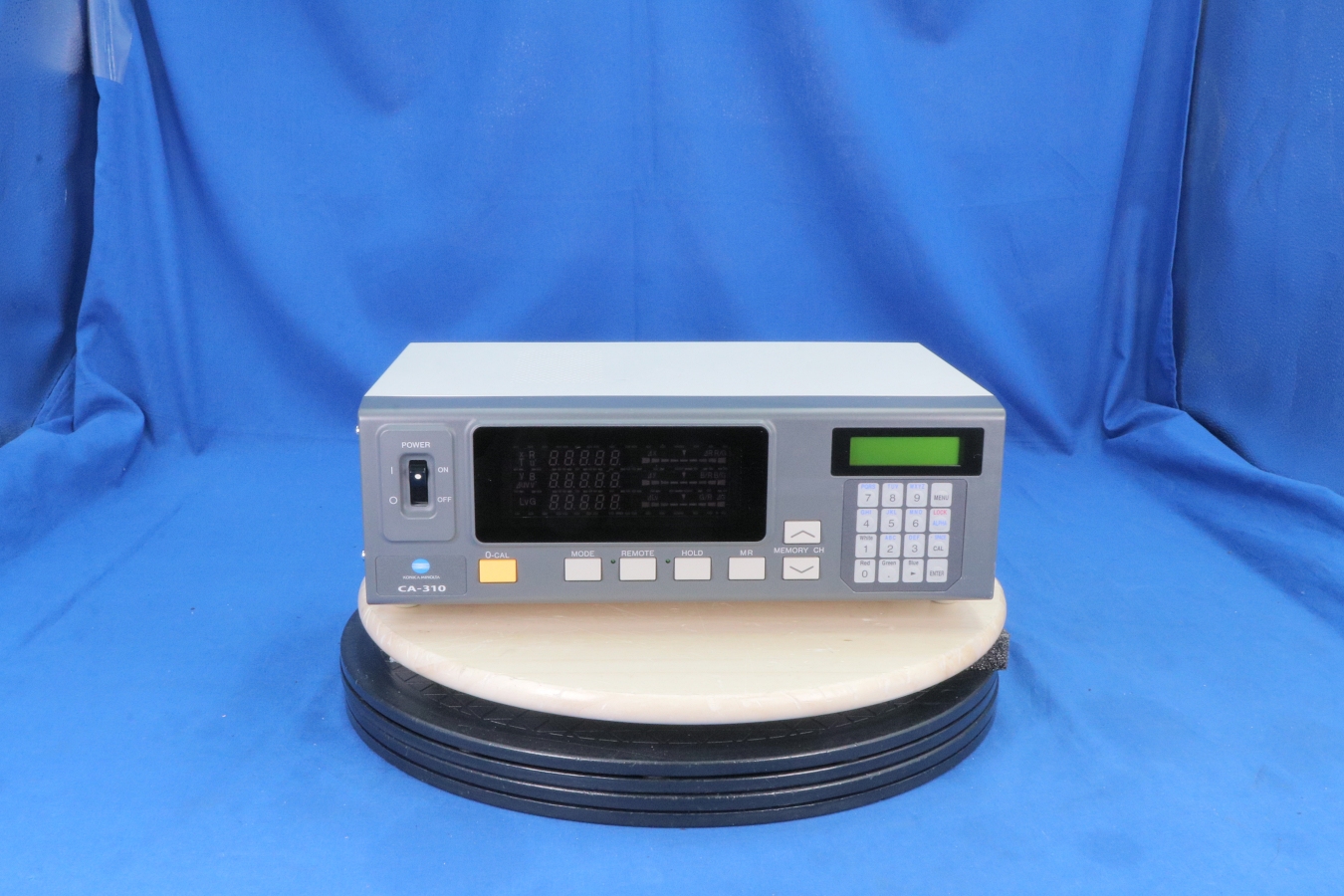

| Input voltage range | 100 to 240V AC, 50/60Hz, 50VA |
| Dimensions (W × H × D) | Main body: 340 × 127 × 216mm

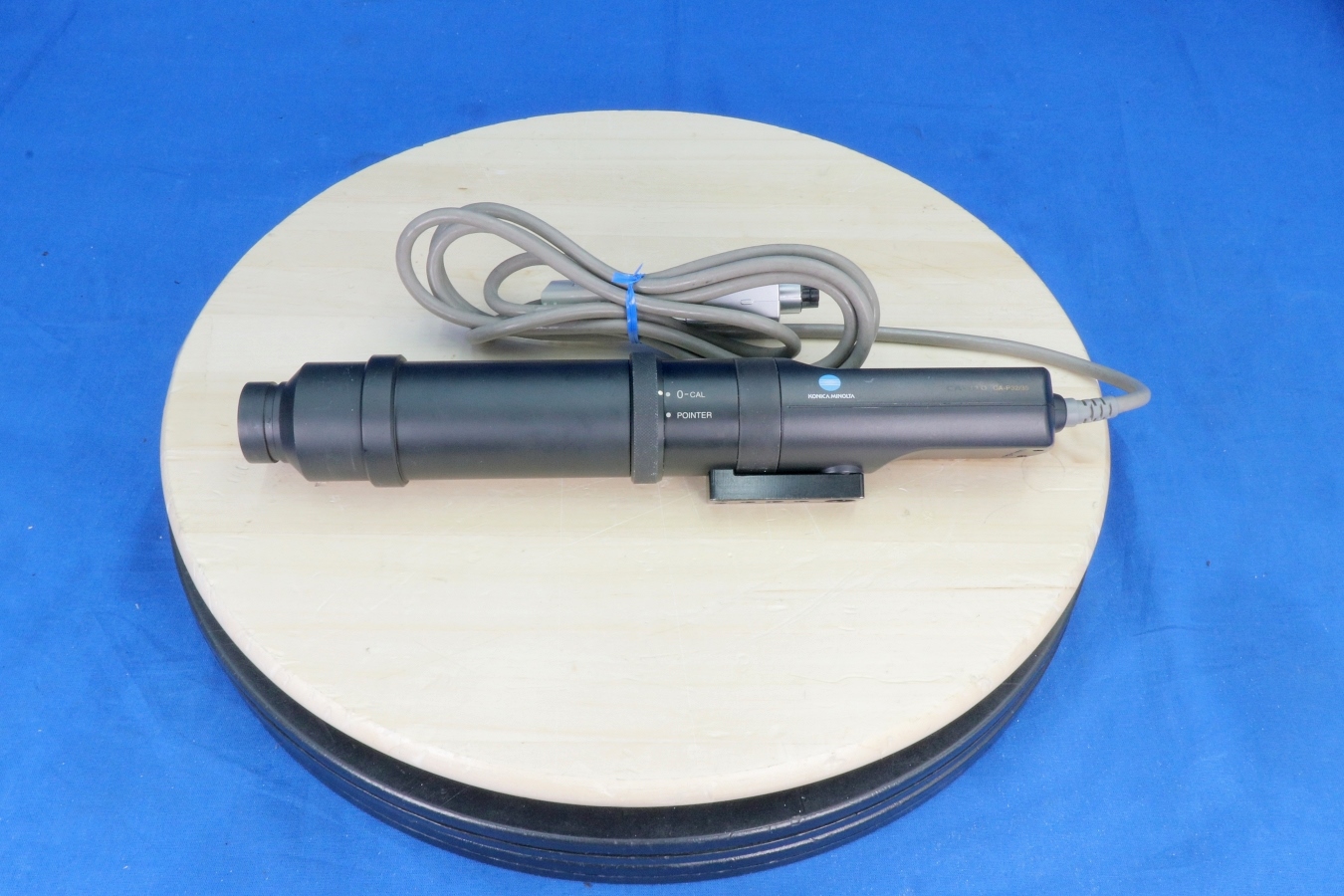

Probe: Ø49 × 208mm | Main body: 340 × 127 × 216mm
Probe: Ø49×208 mm |
| Weight | Main body: 3.58kg; Probe: 530g | Main body: 3.58kg; Probe: 530 g |
| *1 The chromaticity and luminance are measured under Konica Minolta’s condition (standard LCD(6500K, 9300K) is used). *2 The luminance for monochrome is measured when the reading of luminance for white is 120 cd/m2 . *3 Measurement of flicker (JEITA method) is supported by SDK software. *4 Measuring probe connected to probe connector P1 only, used USB(used RS-232C Baud rate: 38400 bps) *5 Measured by Konica Minolta’s PC (P3-600 MHz) |
