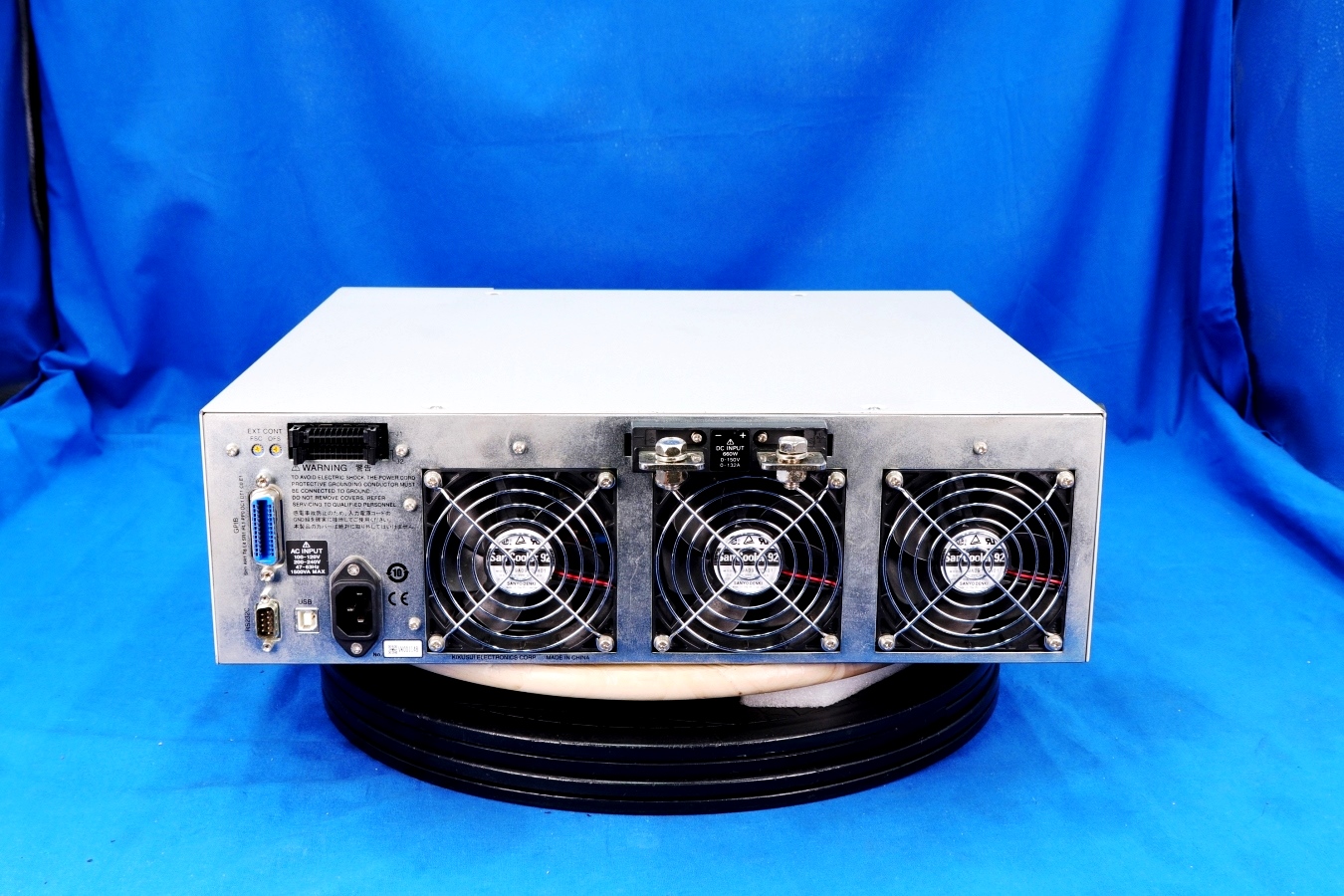

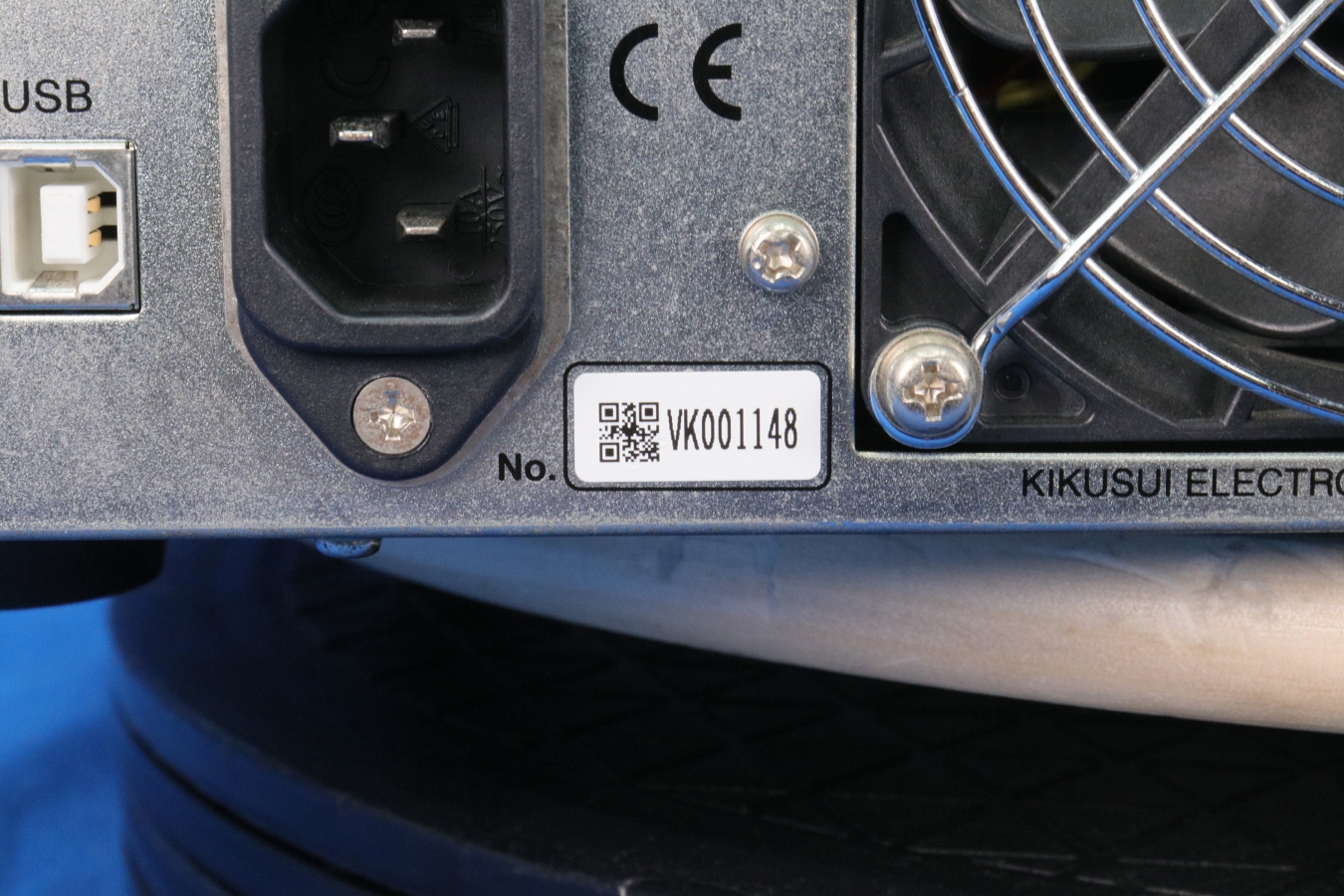

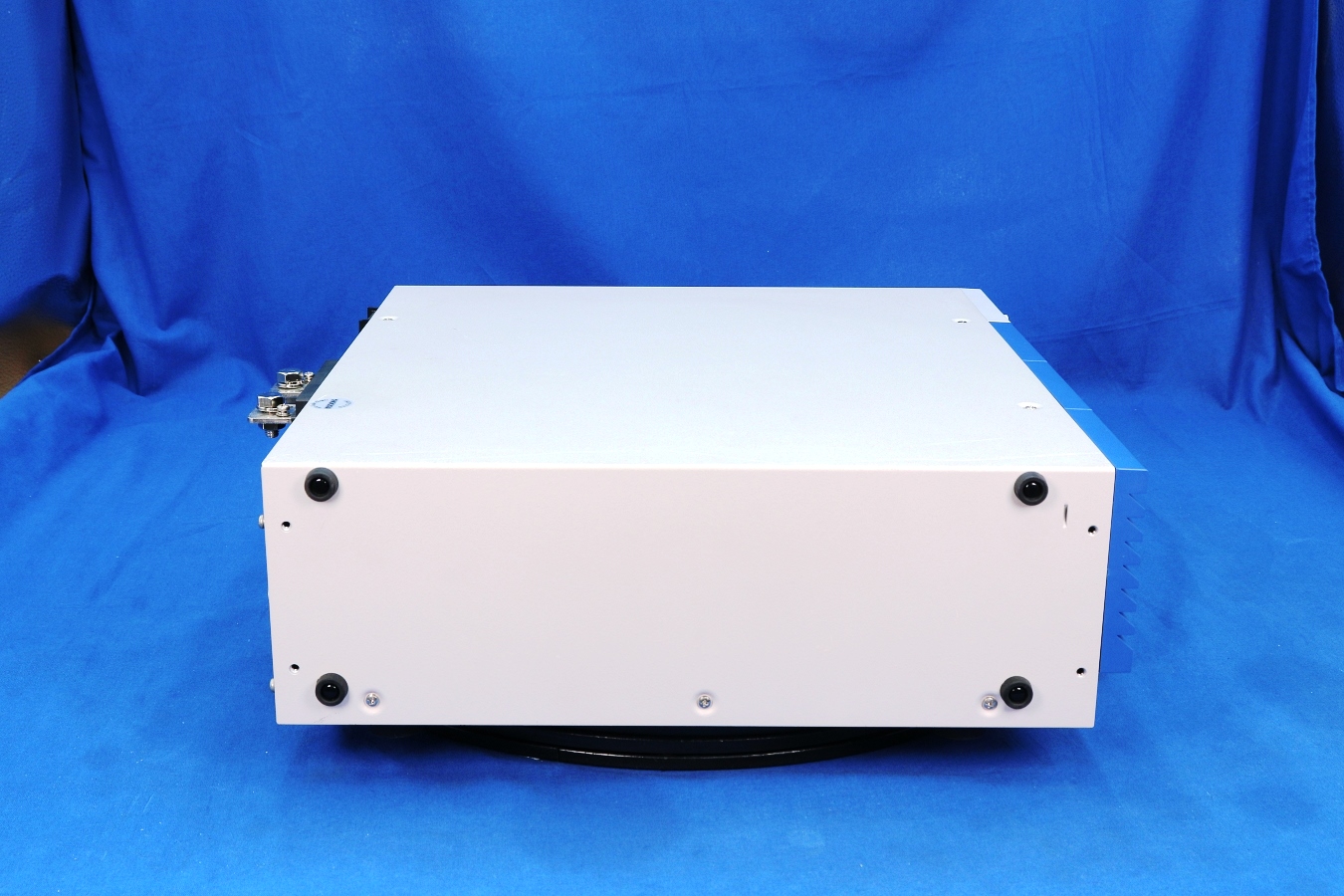

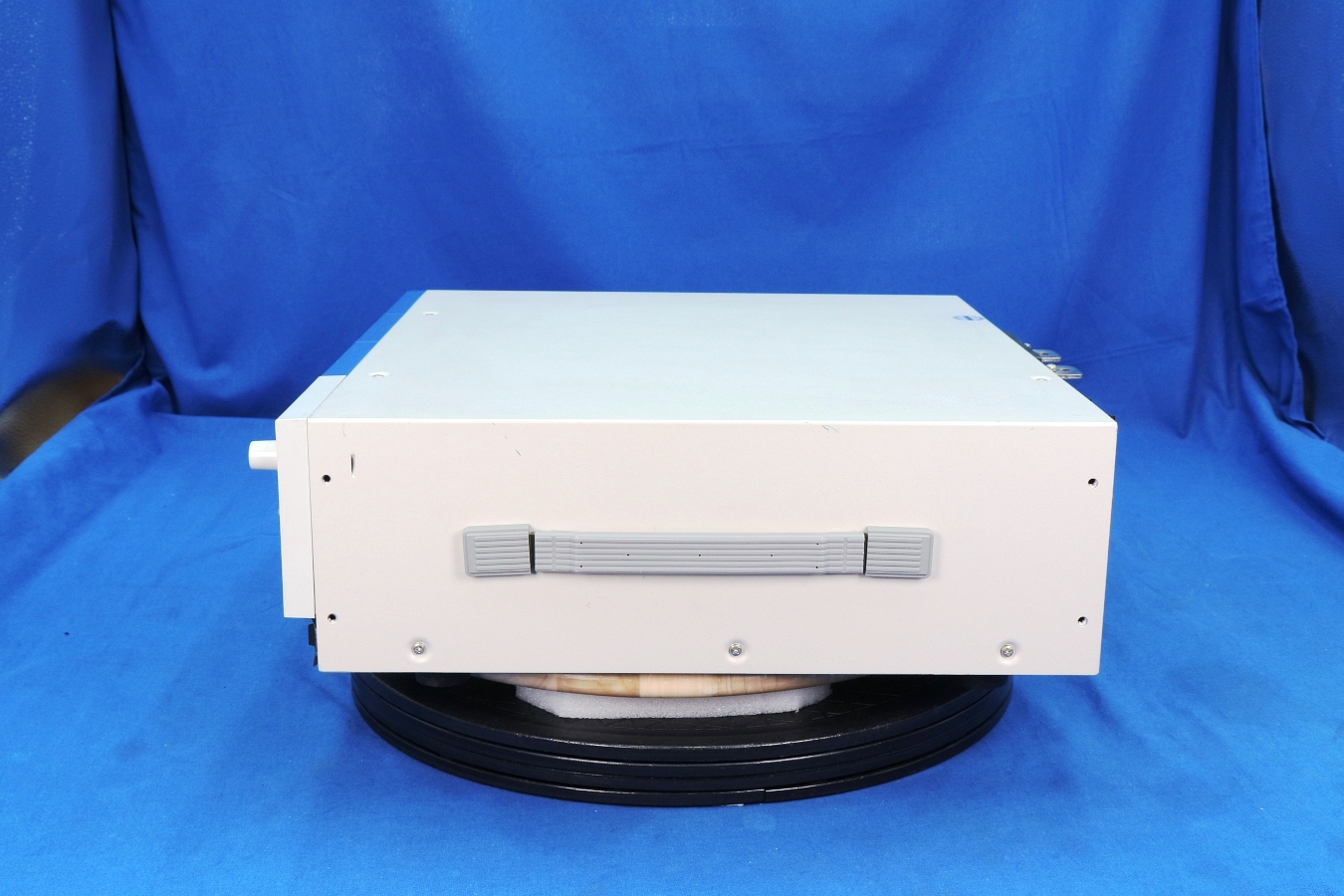

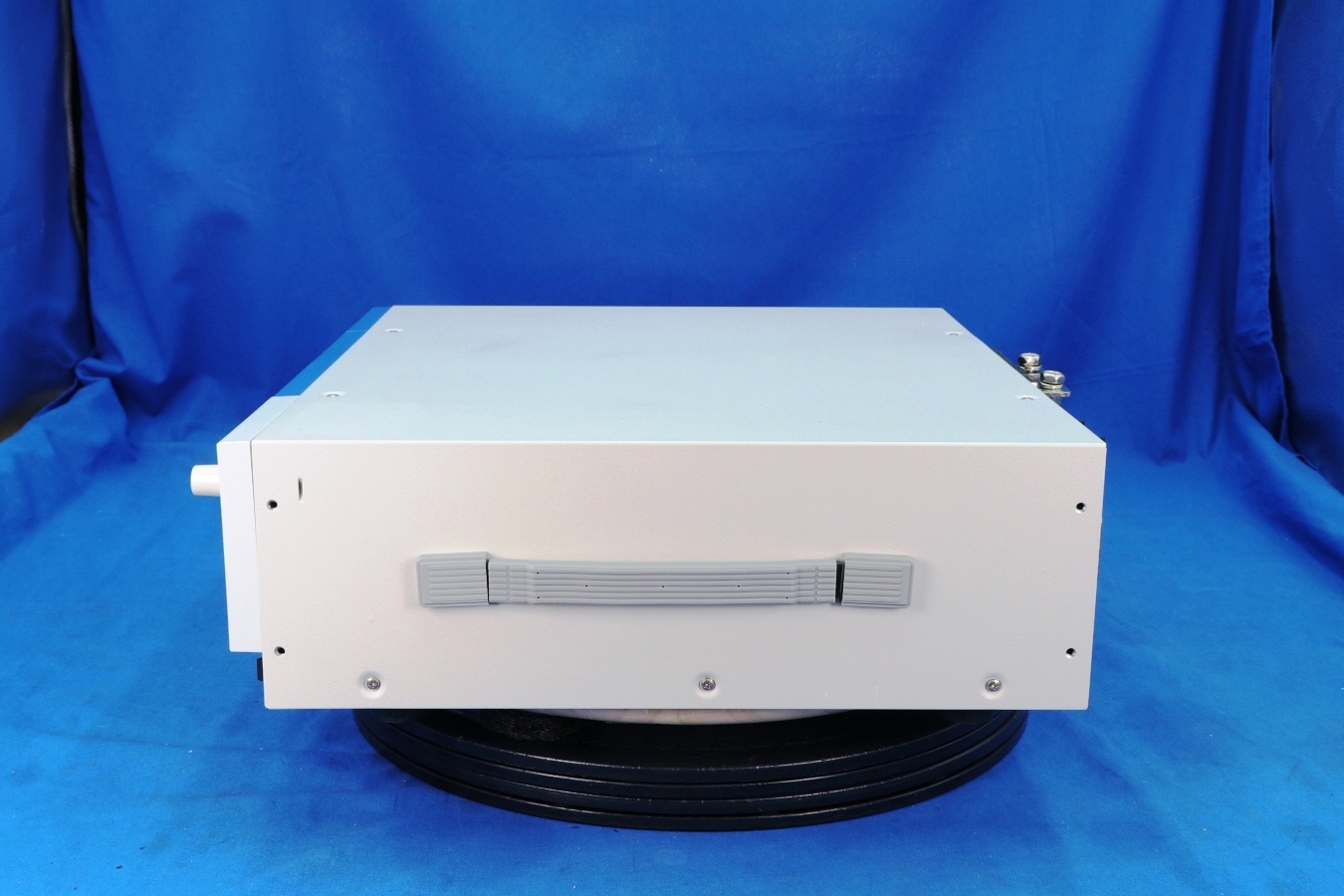

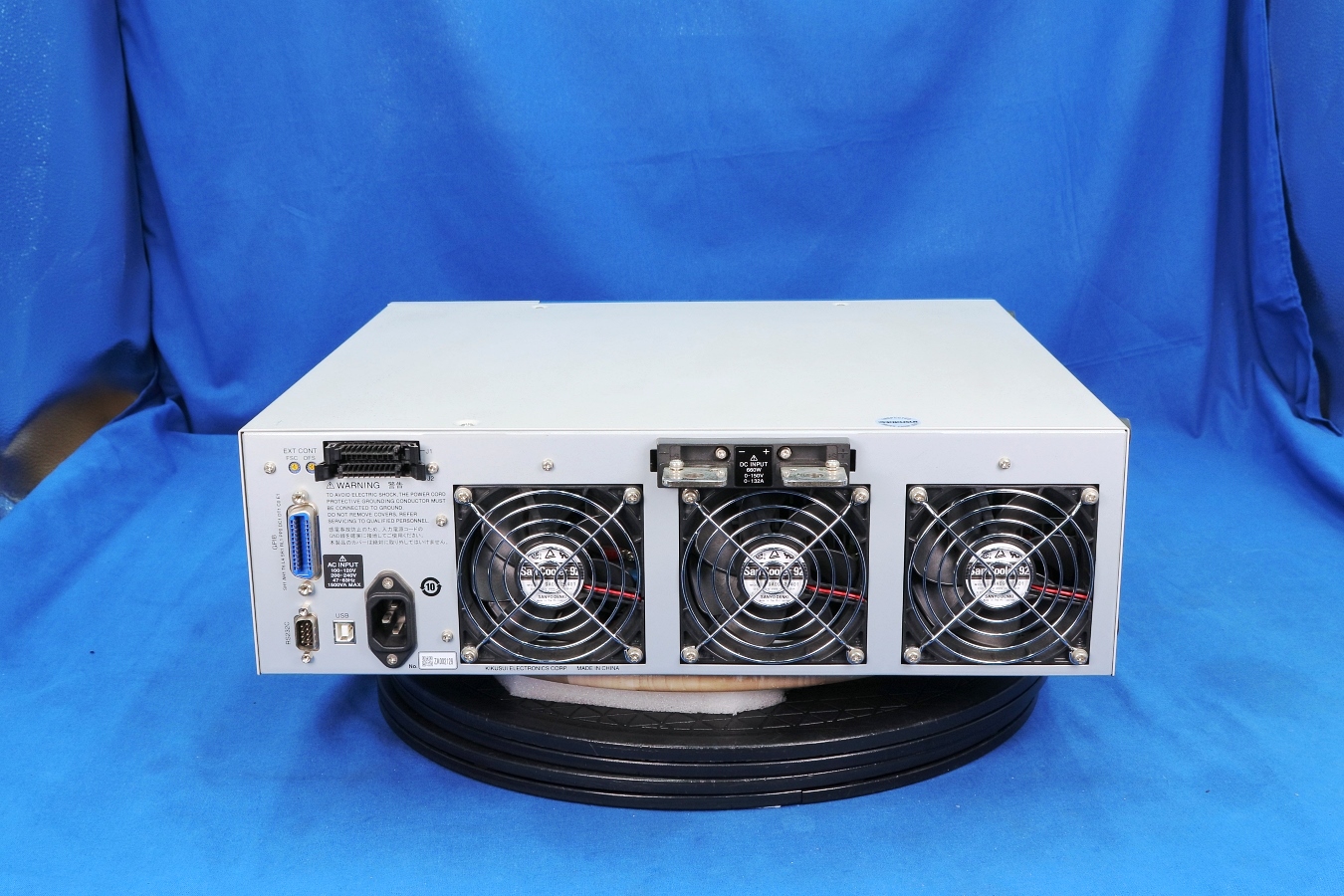

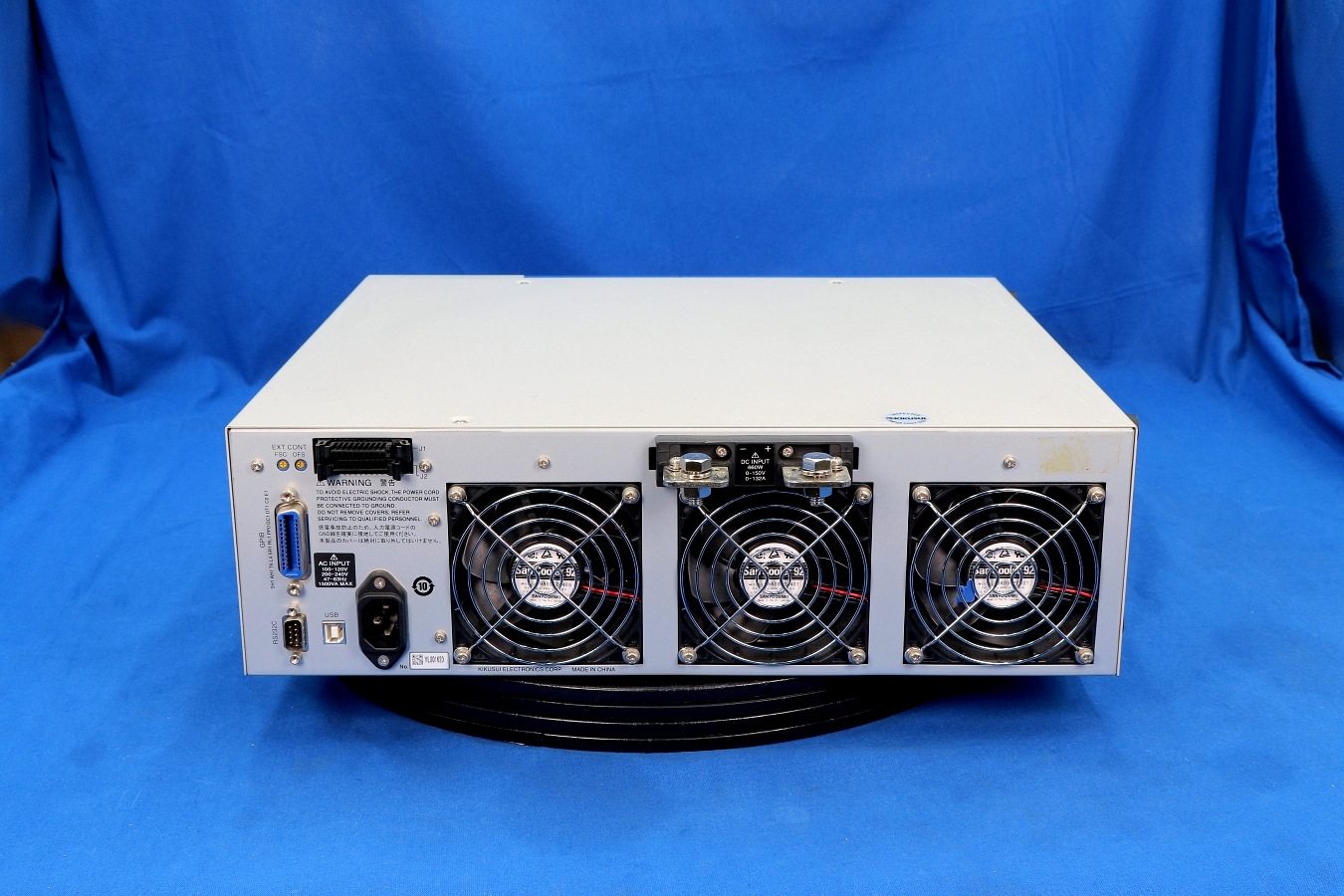

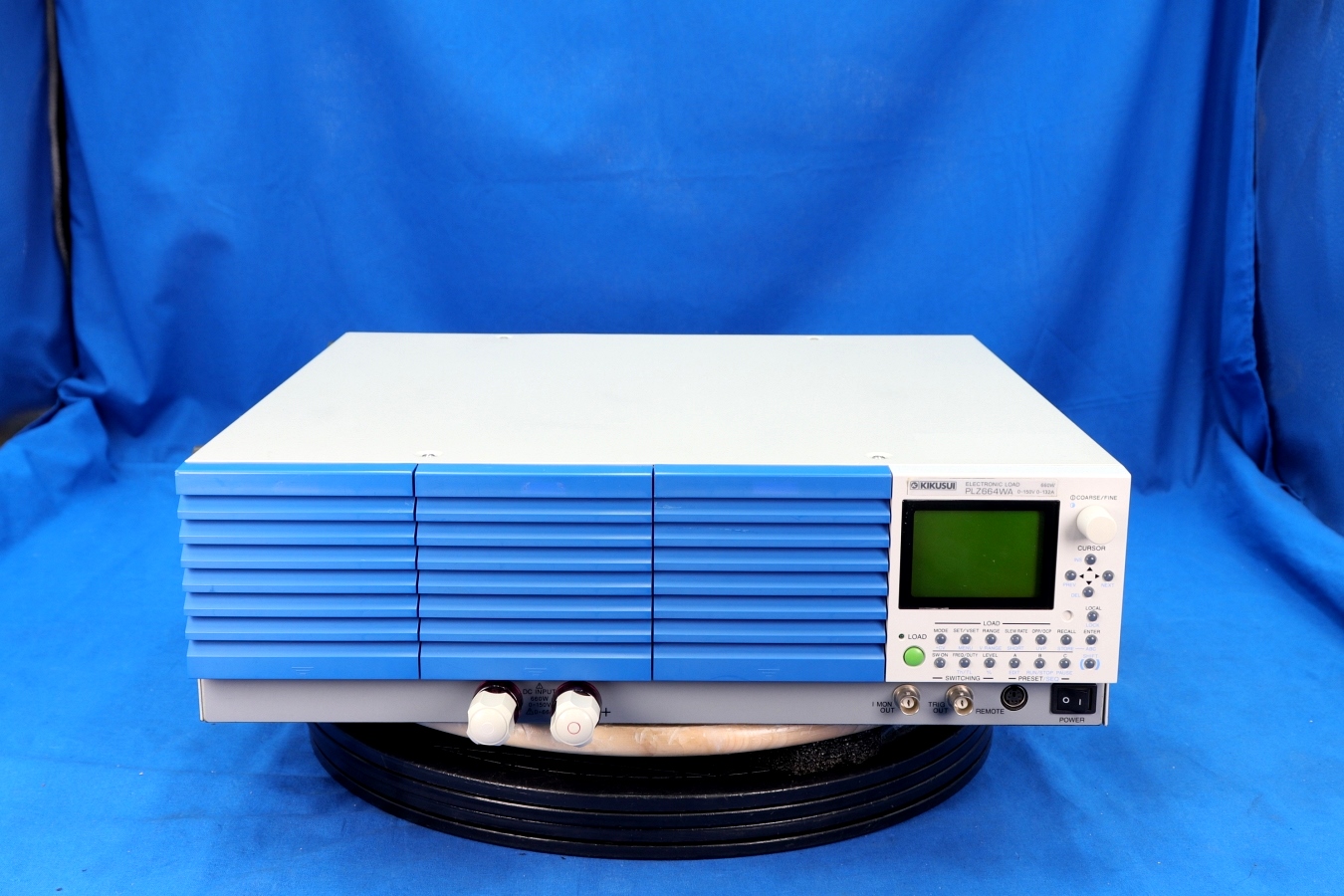

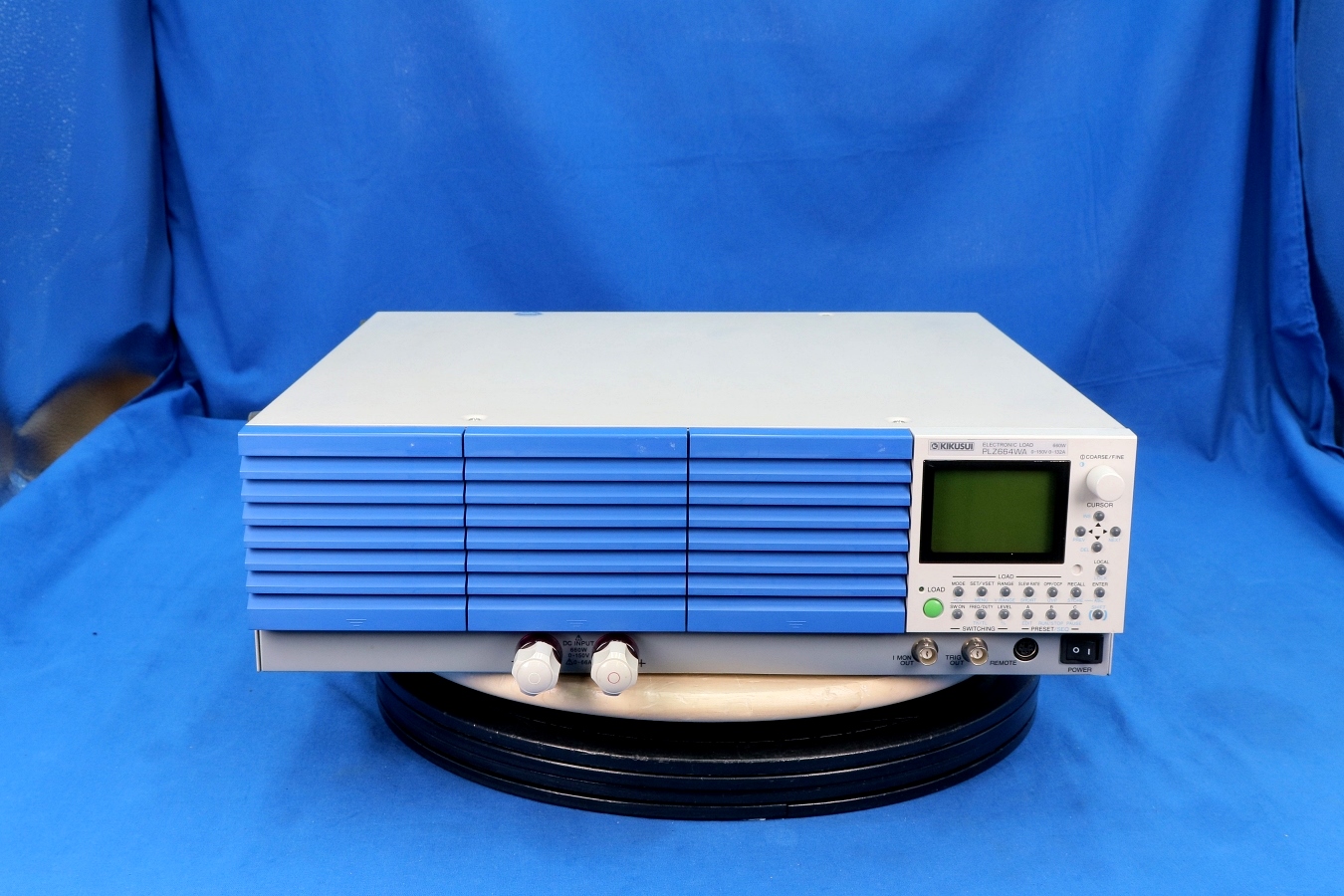

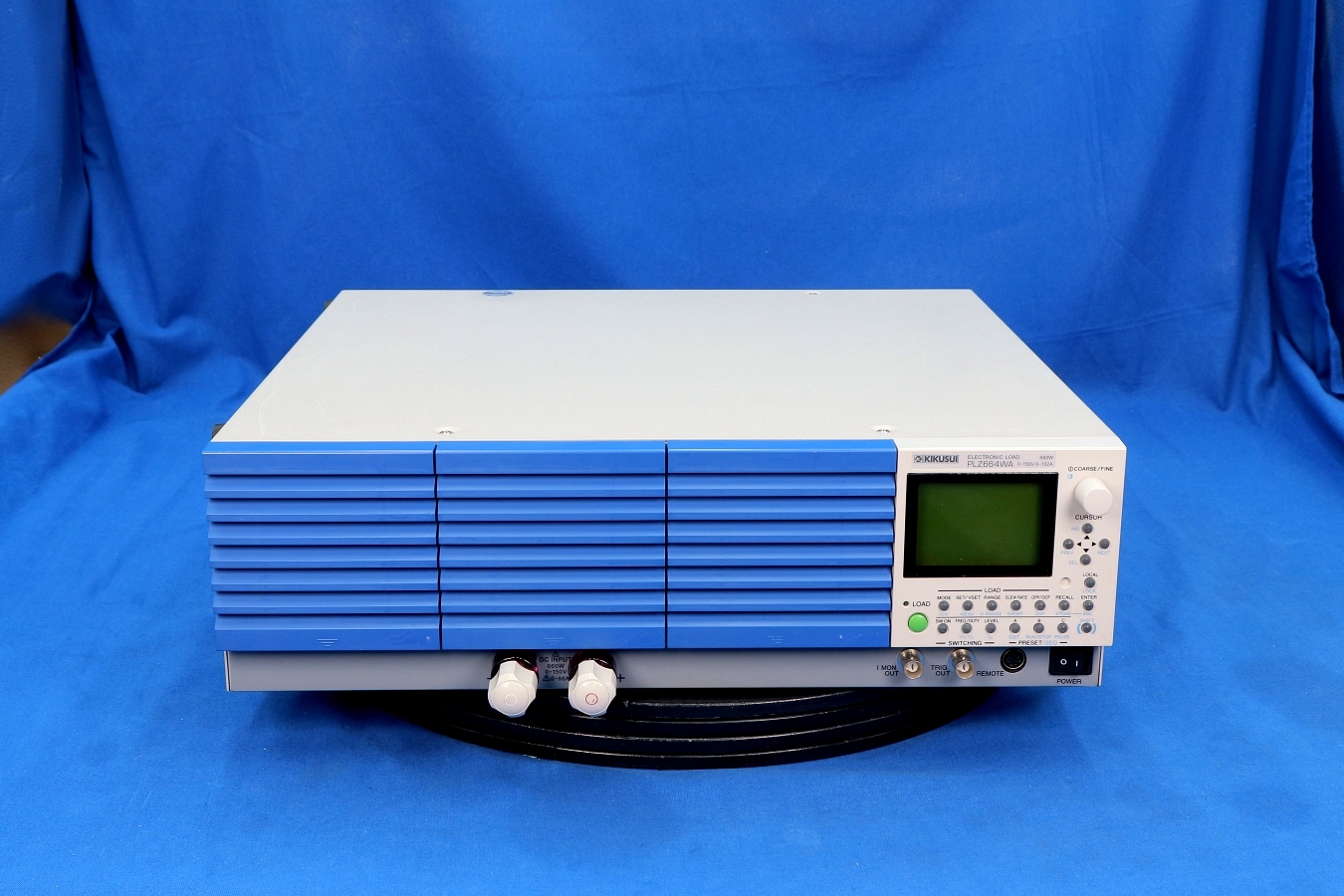

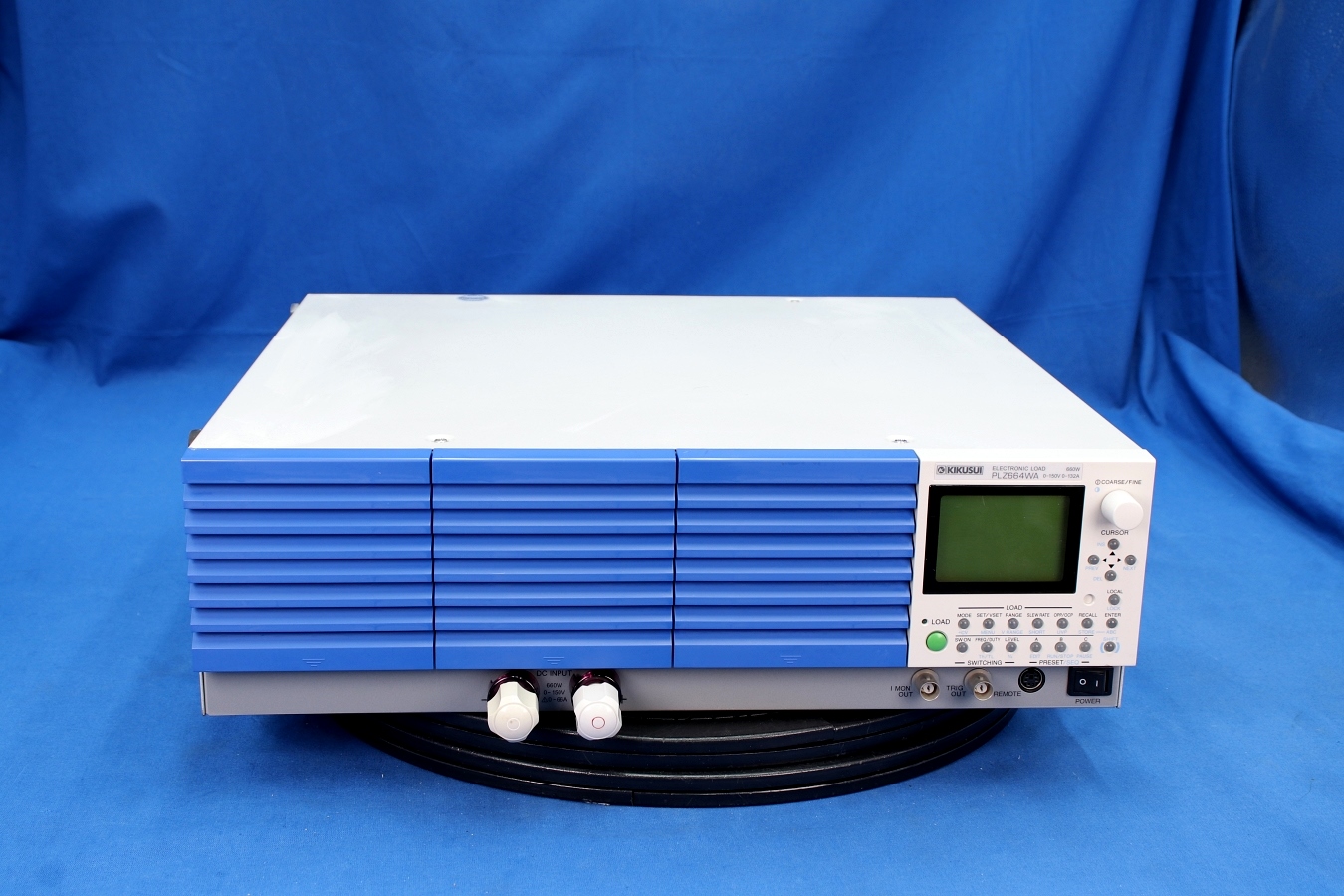

PLZ664WA Kikusui DC Electronic Load
Electronic Load, 0~150V/ 33 or 132A/ 660W, CC/ CR/ CV/ CP mode support
REQUEST A QUOTE
Detail
Additional Features:
Voltage: 150V
Current: 132A
Power: 660W
Type II
Rise time: 10 micro second (which converts to rise and fall times) high-speed response
Possible to perform actual Load simulation by sequence control function

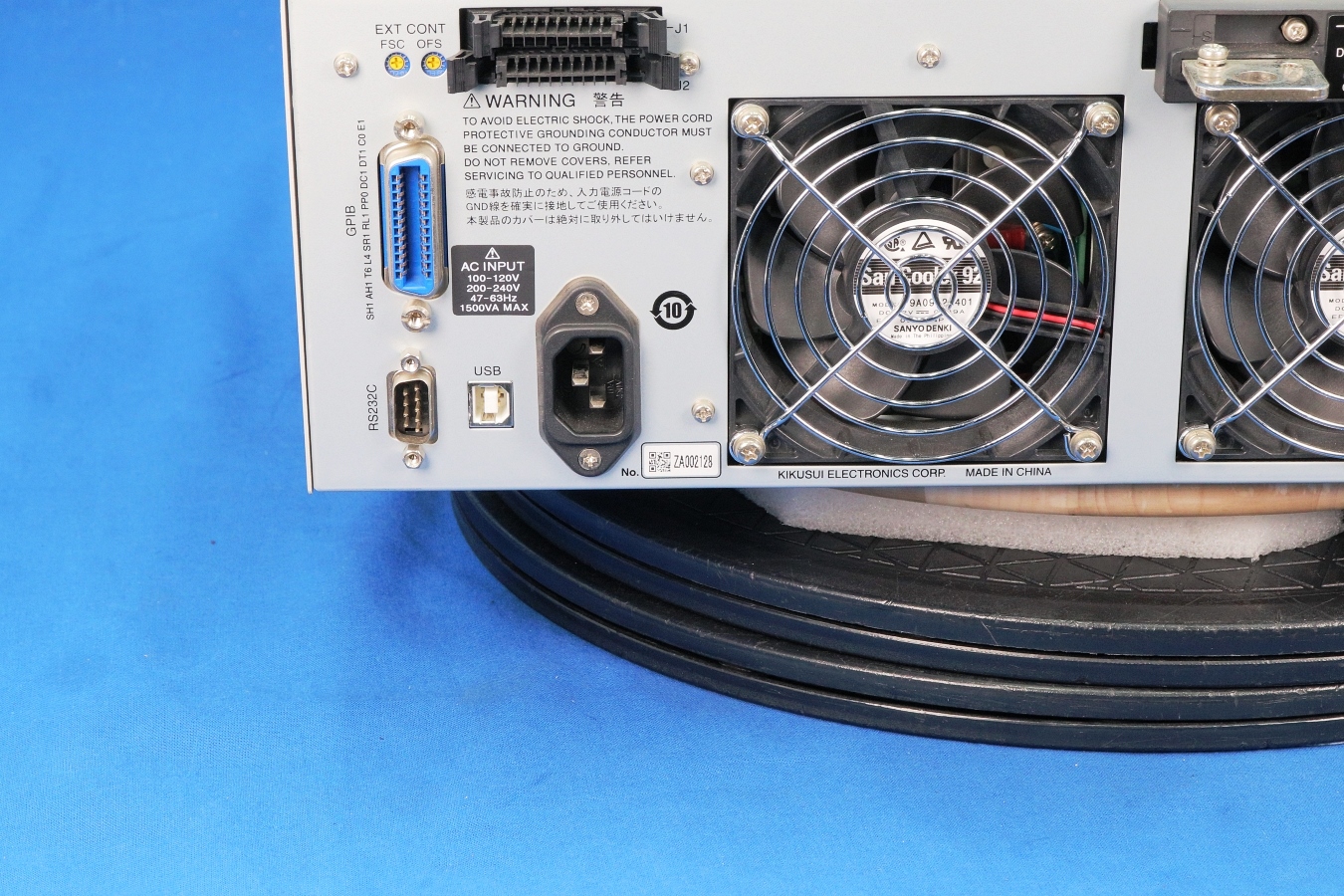

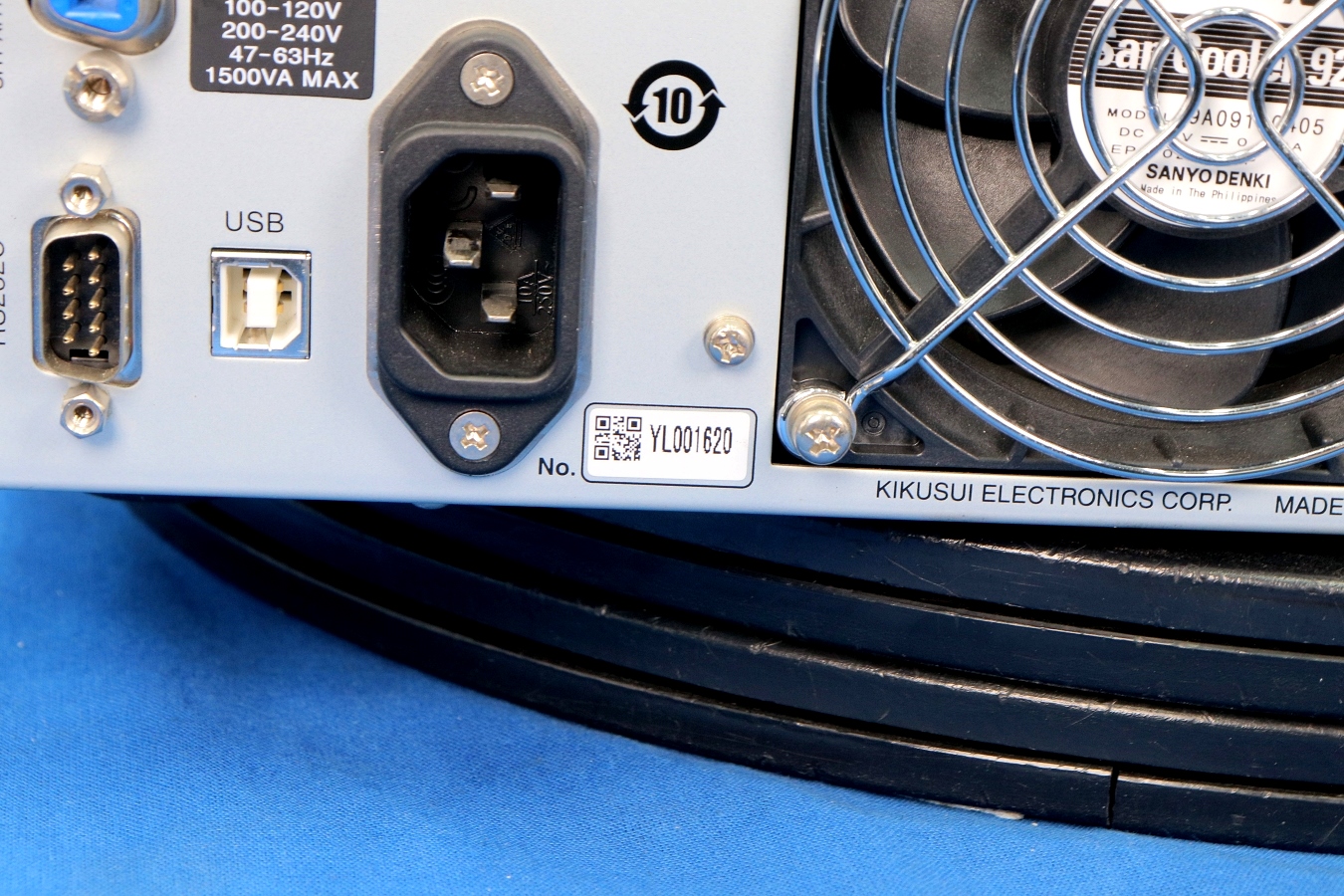

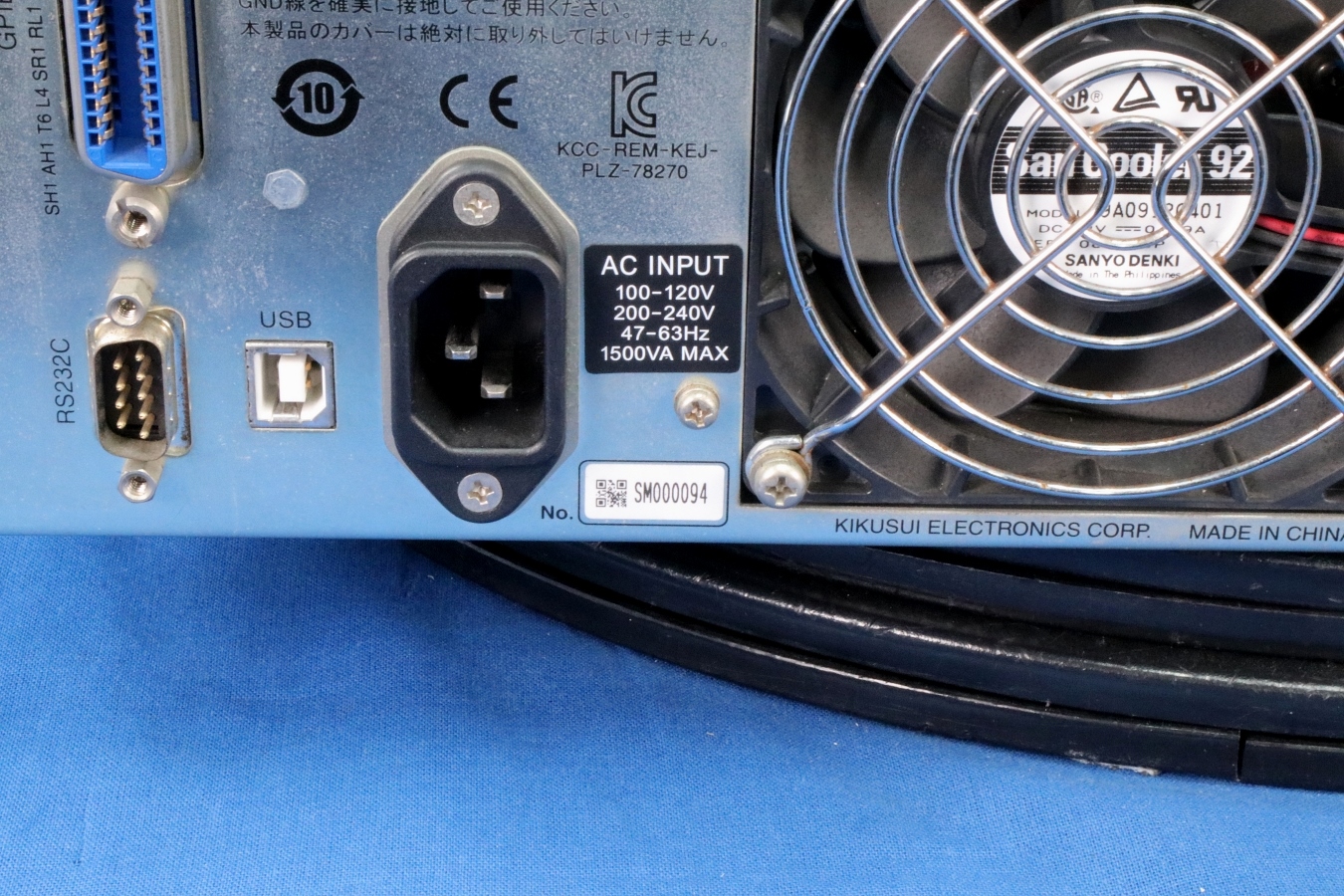

Equipped with USB (Supplied as standard)
The Kikusui PLZ664WA, Multifunctional Electronic Load, features faster rise/fall times with variable slew rates for transient testing on high speed DC/DC convertors and DC power supplies. WA versions offer 0V inputs even at maximum rated current input enabling testing of single cell fuel cells. Test modes are constant current, constant resistance, constant voltage, constant power, or a combination of these modes. Current setting resolution can be as low as 10uA. Sequence function permits 10 sequence patterns to be saved in the built in memory. Battery cell discharge times from load on to load off can be measured. Other functions include soft start, short, ABC memory, set up memory, switching. PLZ4WA has GPIB (SCPI compatible), RS232c and USB as standard.
