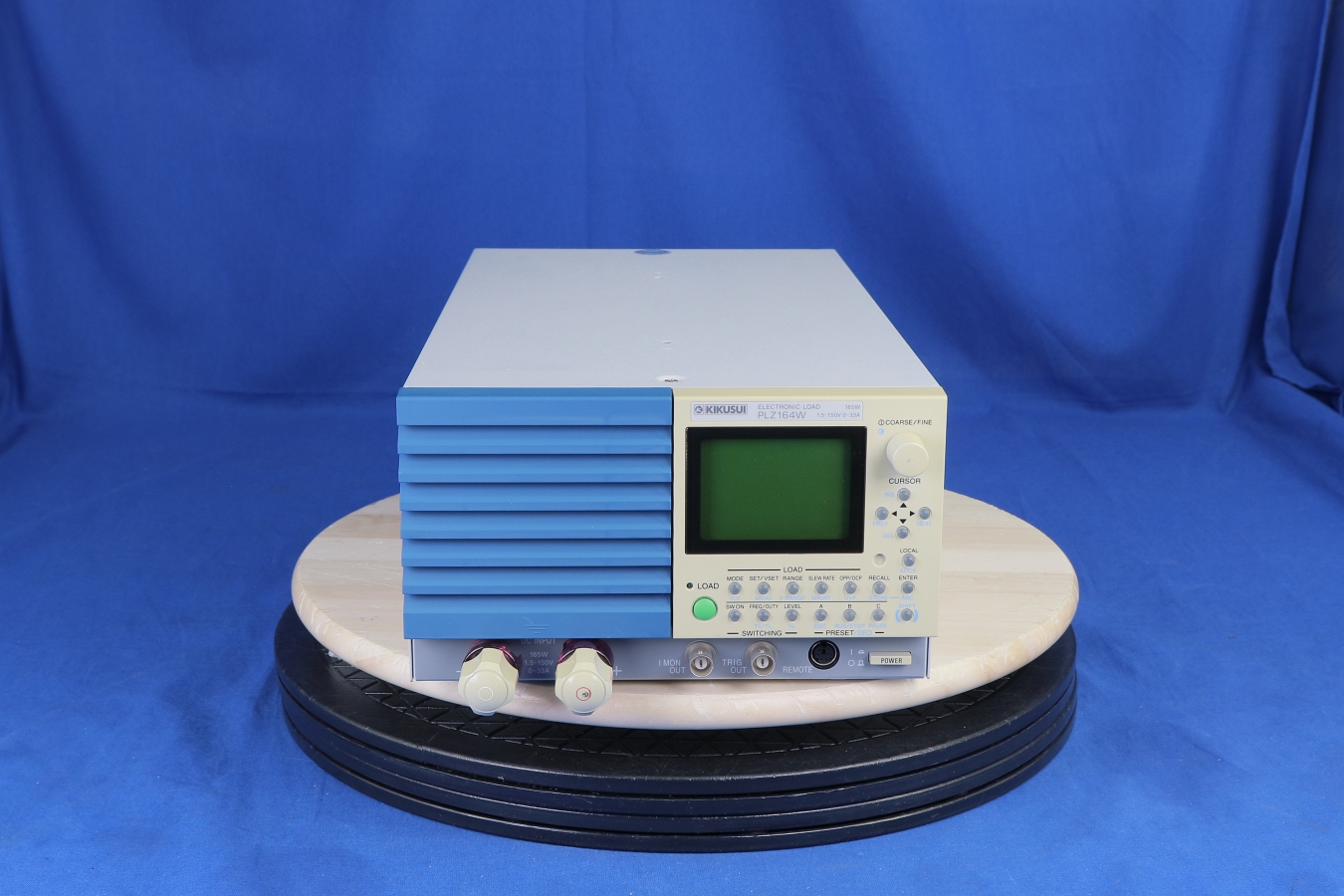

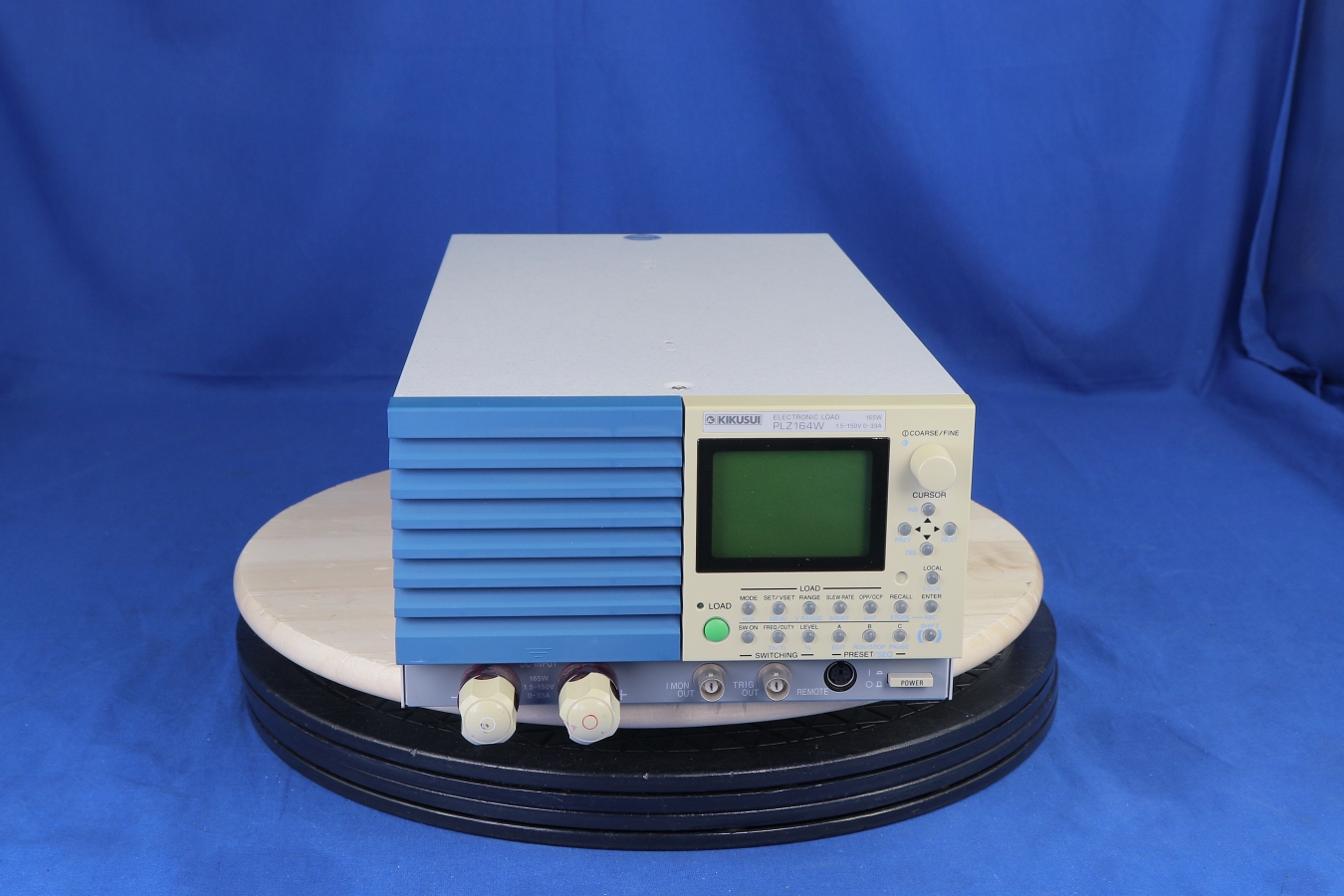

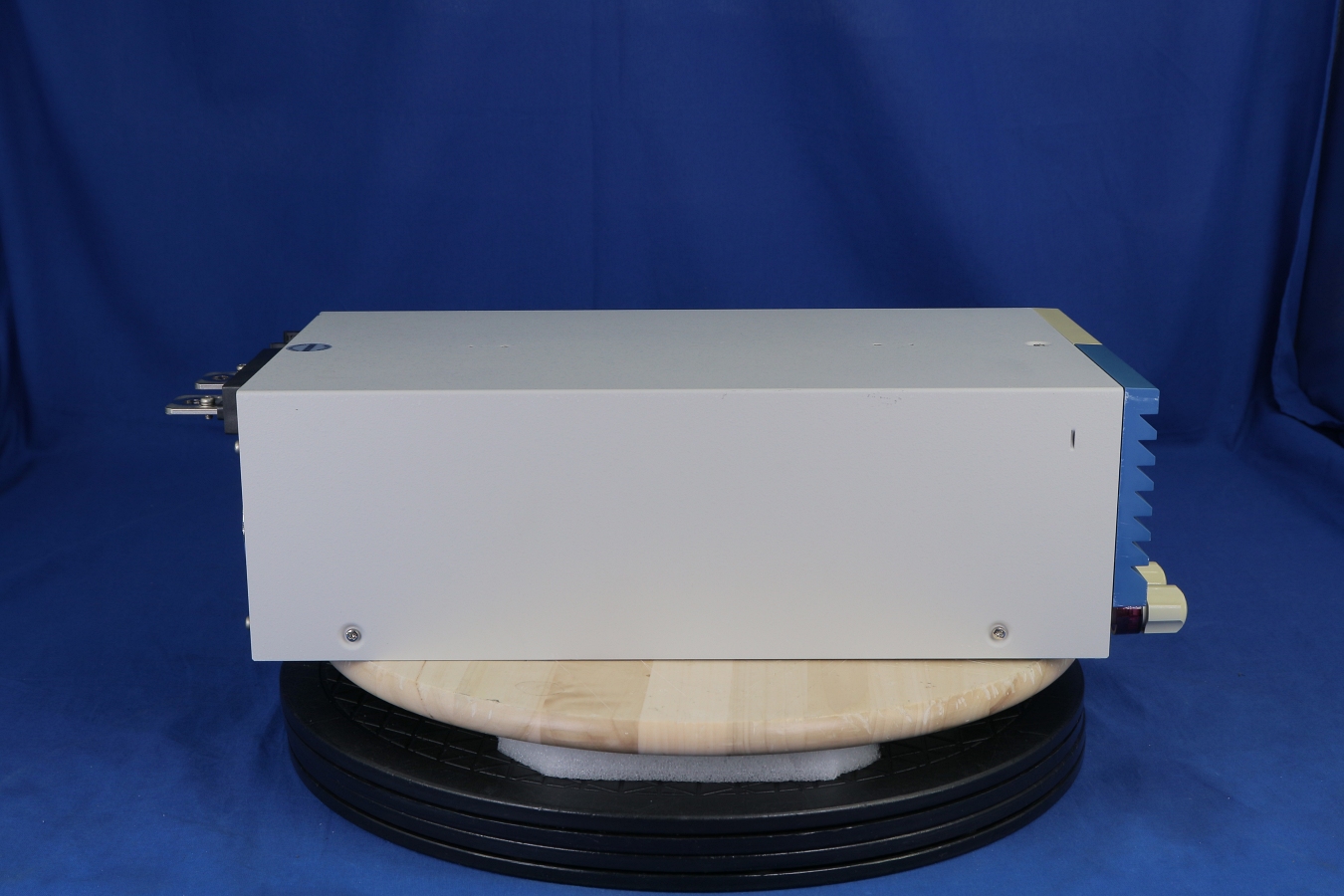

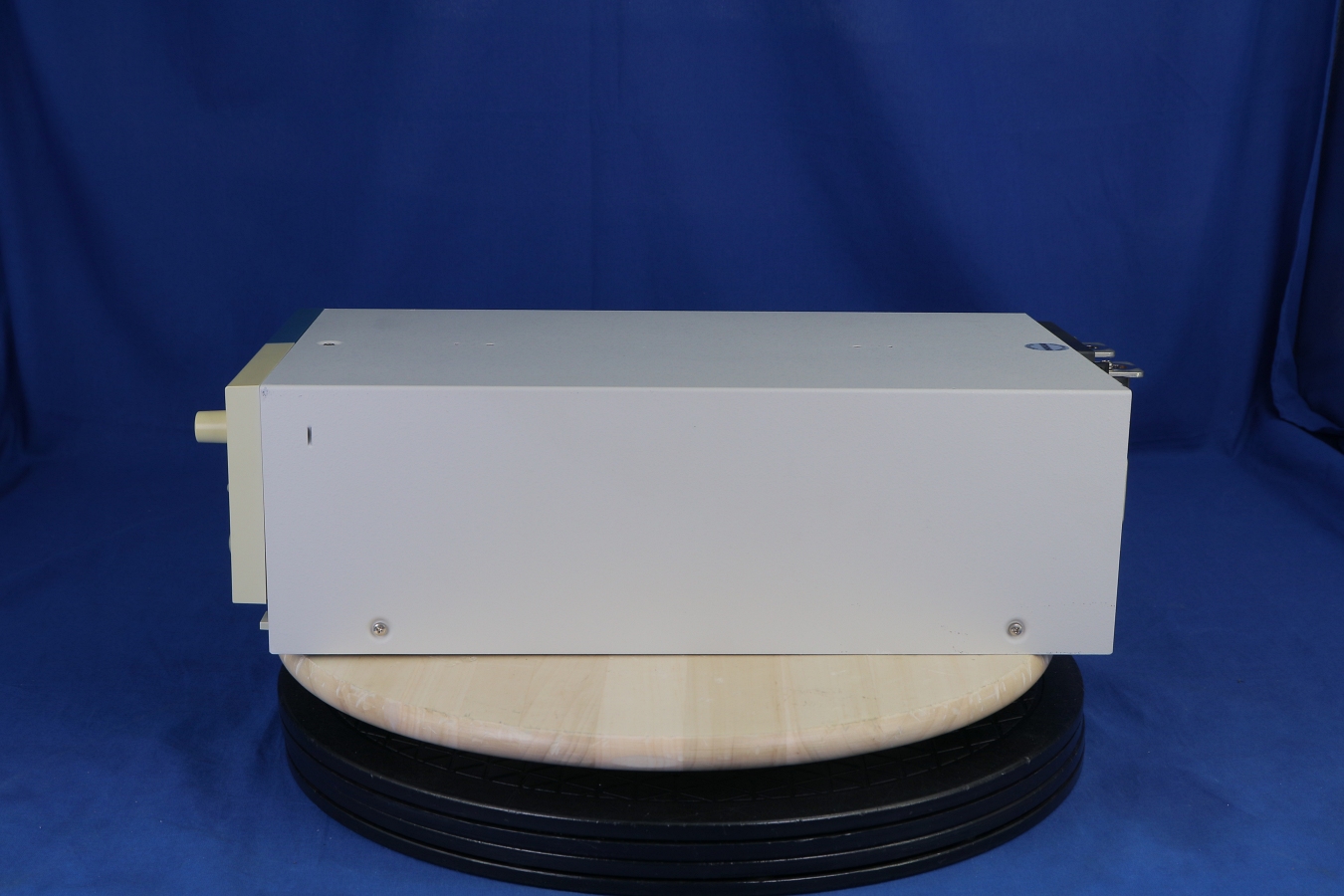

Additional Features: Voltage: 150 V Current: 33A Power: 165 W Rise time: 10 us (which converts to rise and fall times) high-speed response Possiable to perform actual Load simulation by sequence control function OV inp ut operating voltage type The Kikusui PLZ164W, Multifunctional Electric Load, features faster rise/fall times with variable slew rates for transient testing on high speed DC/DC convertors and DC power supplies. WA versions offer OV inputs even at maximum rated current input enabling testing of single cell fuel cells. Test modes are constant current, constant resistance, constant voltage, constant power, or a combination of these modes. Current setting resolution can be as low as 10uA. Sequence function permits 10 sequence patterns to be saved in the built in memory. Battery cell discharge times from load on to load off can be measured. Other functions include soft start, short, ABC memory, set up memory, switching. The Kikusui PLZ164W, Multifunctional Electric Load, has GPIB (SCPI compatiable), RS232c and USB as standard.
