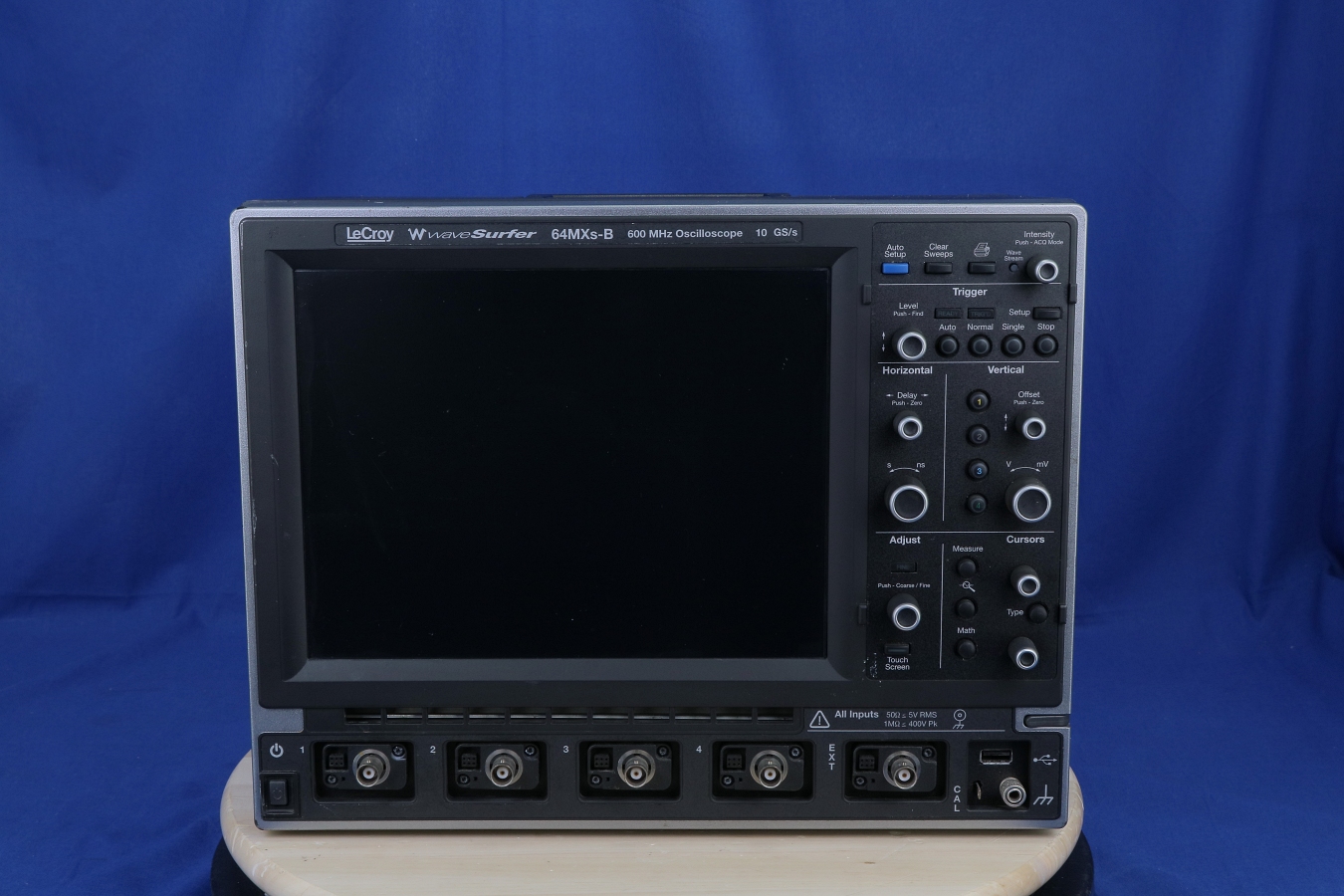

Additional Features: Bandwidth: 600 MHz Input Channels: 4 Single-Shot Sample Rate/Ch: 10 GS/s on 2 Ch; 5 GS/s on 4 Ch Memory: 32 Mpts/Ch on 2 Ch; 16 Mpts/Ch on 4 Ch Rise time: 500 ps Bandwidth Limiters: 20 MHz, 200 MHz Input Impedance: 1 MΩ ± 1.0% || 16 pF ± 2 pF, 50 Ω ± 1.0% Input Coupling: AC, DC, GND Maximum Input Voltage: 1 MΩ: ± 250 Vpk, 50 Ω: 5 VRMS Channel-Channel Isolation: ≥ 52 dB at 100 MHz; ≥ 30 dB at 600 MHz Vertical Resolution: 8 bits Sensitivity: 1 MΩ: 2 mV/div - 10 V/div; 50 Ω: 2 mV/div - 1 V/div DC Gain Accuracy: ±1.5% Fast Processing of Long Memory and Math Responsive User Interface WaveStream™ Fast Viewing Mode WaveScan™ – Advanced Search and Find LabNotebook Documentation and Report Generation 10.4” Touch Screen Display LXI Compliant The WaveSurfer 64MXS-B oscilloscope packs high performance hardware, powerful waveform processing and advanced math, measurement and debug tools into a compact form factor with a large touch screen display and intuitive user interface. With up to 10 GS/s sample rate and 32 Mpts of memory, the WaveSurfer 64MXS-B can capture large amounts of data at very high sample rates. Other oscilloscopes offer long memory but they bog down trying to process or display it. WaveSurfer handles large amounts of data quickly providing fast processing of long memory even when using math and measurement functions. The software responds immediately to the user inputs even while processing data.
