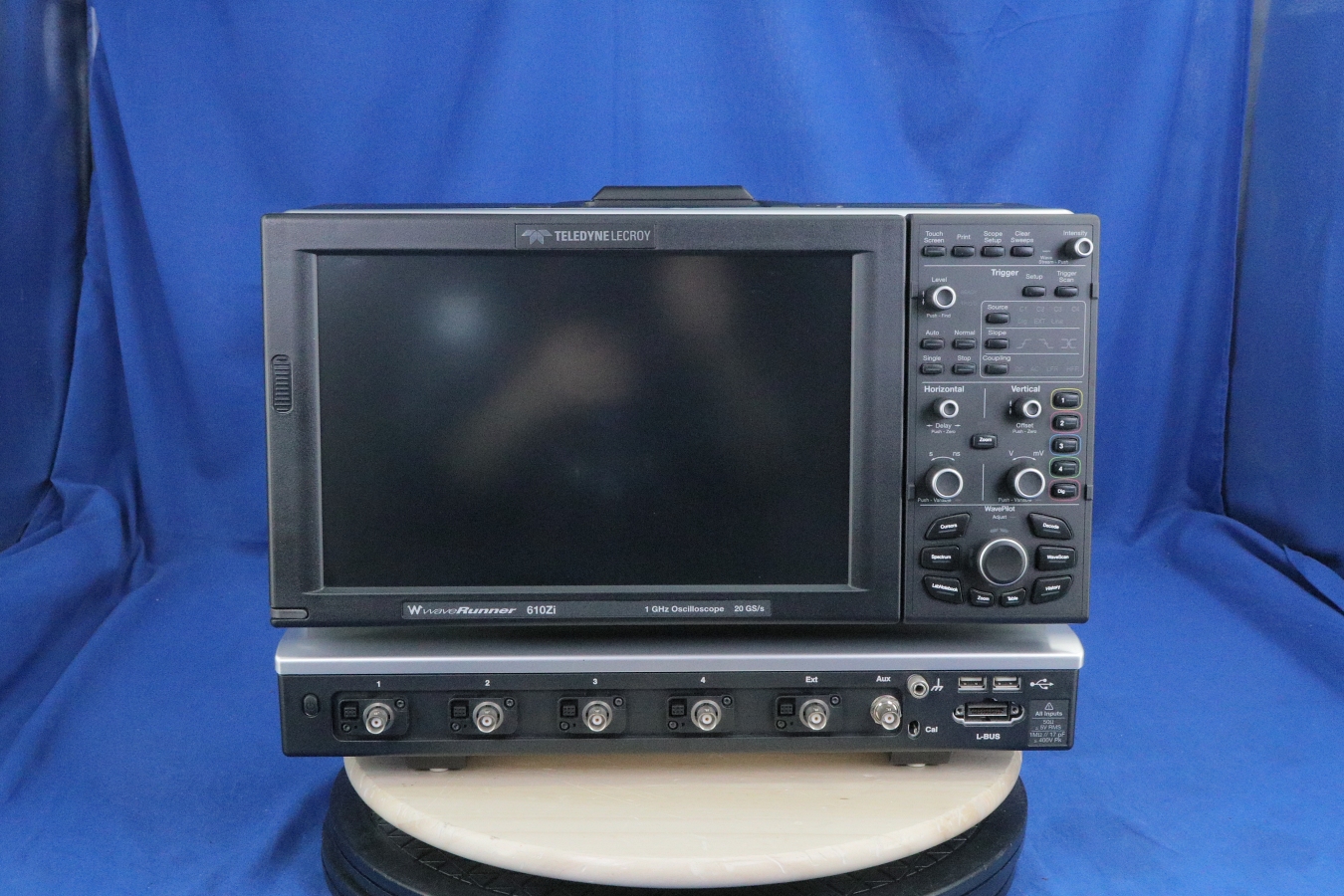

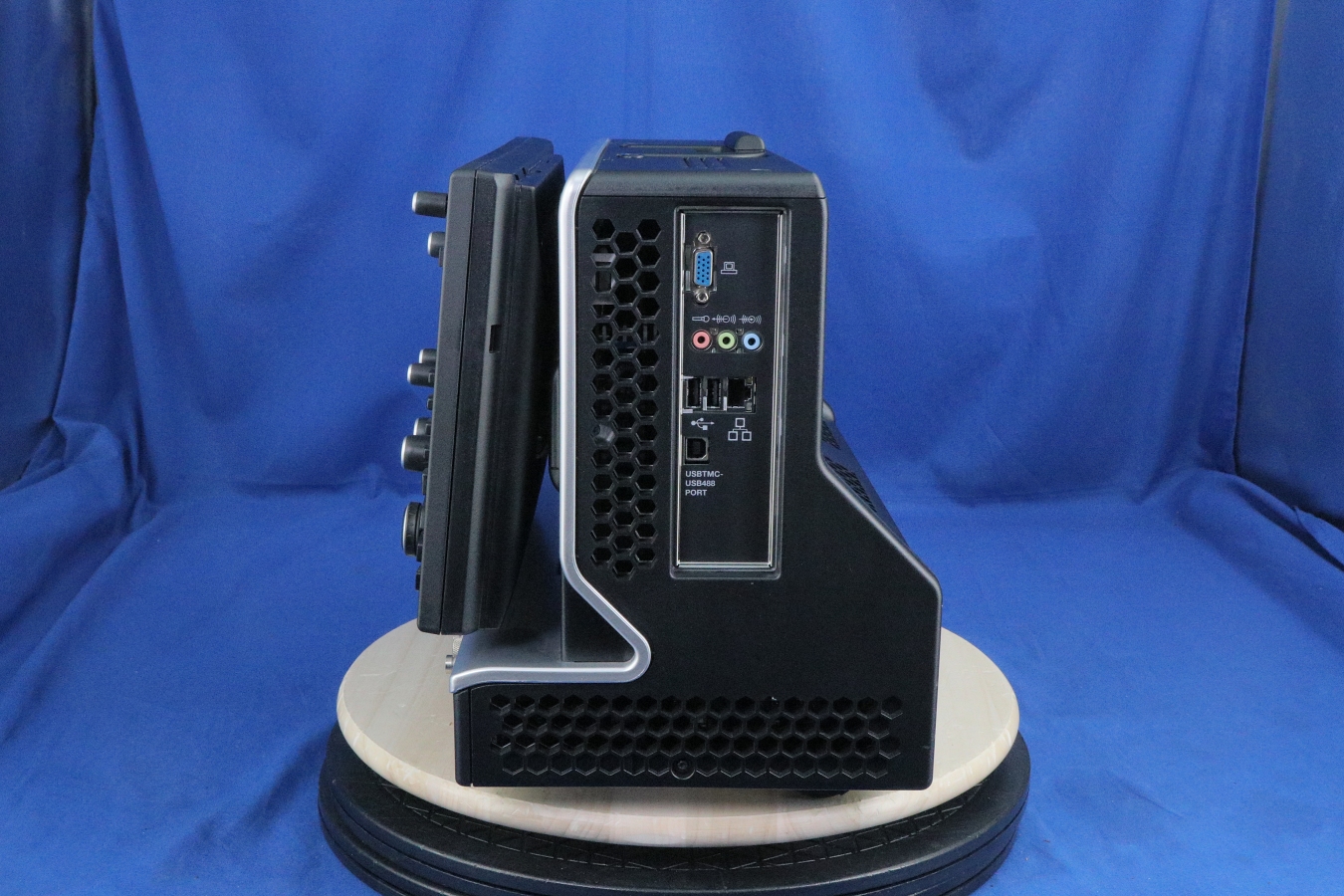

4 Channels Sample Rate: 10 GS/s on 4 Channels; 20 GS/s on 2 Channels Record Length: 16 Mpts 256 Mpts/Ch (Optional) ±0.5% F.S. DC gain accuracy 55 dB SNR 1 mV vertical Sensitivity @ full bandwidth Up to ±400 V offset capability 20 MHz, 100 MHz, 200 MHz, 350 MHz filters for additional noise iltering 12.1" Widescreen (16 x 9) high resolution WXGA color touch screen display 90º rotating and tilting display for optimal viewing of signals Small footprint, only 8.1" deep Easy connectivity with two convenient USB ports on the front, two on the side USBTMC (Test and Measurement Class) port simpliies programming X-Stream™ II streaming architecture 10-100 times faster analysis and better responsiveness than other oscilloscopes Most Comprehensive Serial Data Analysis WaveRunner 6 Zi offers the most tools for serial data analysis. With over 30 trigger, decode, and compliance solutions

Option	Description
EMB	I2C, SPI and UART Trigger and Decode Option
JITKIT	Clock Jitter Analysis with Four Views Software Option
JTA2	Jitter and Timing Analysis
PCIE-D	PCI Express Gen1 Decode Option
PMA2	PowerMeasure Analysis Software Option
SDA2	Serial Data Analysis Option
USB3-D	USB 3.0 Decode option for WavePro Zi
