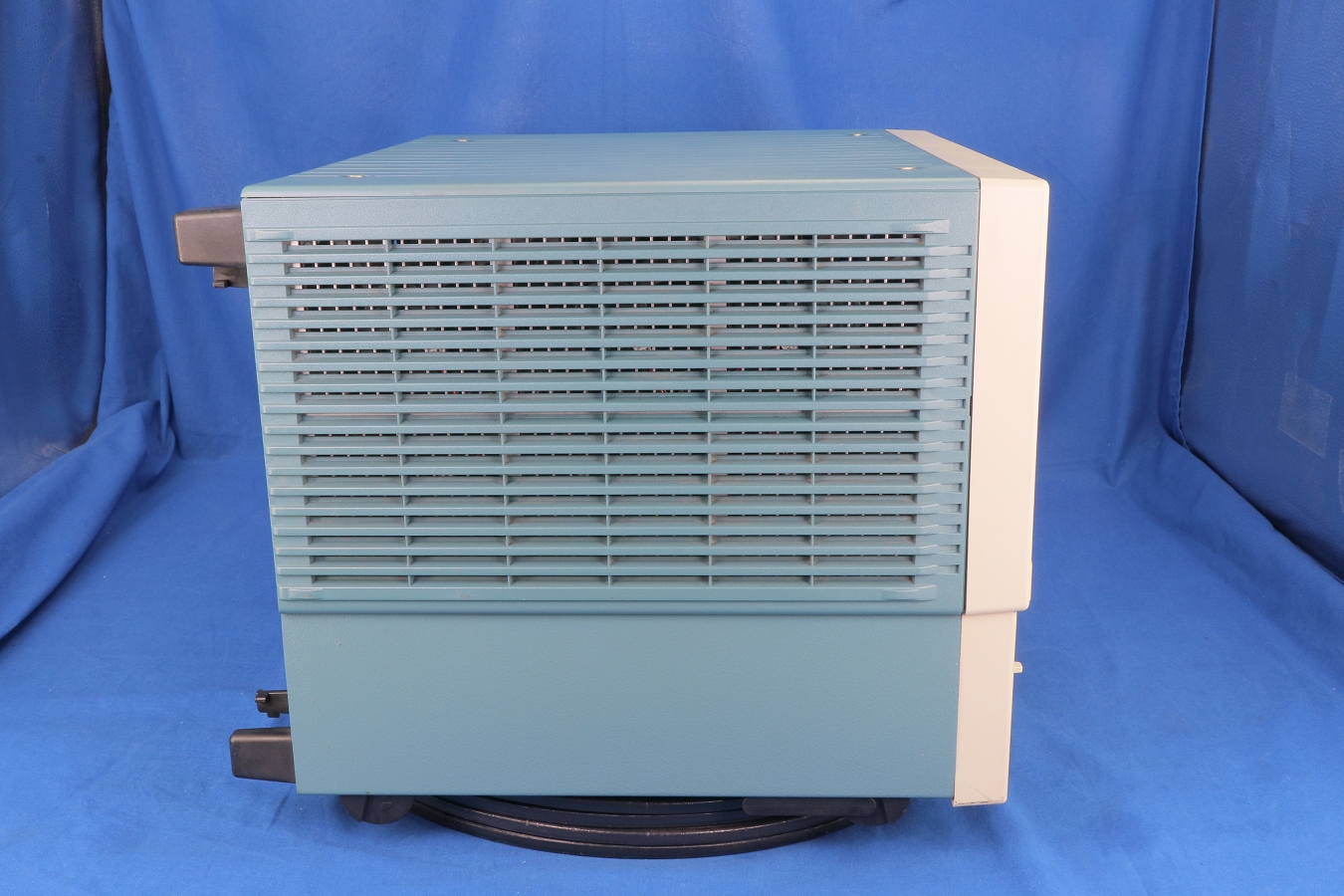

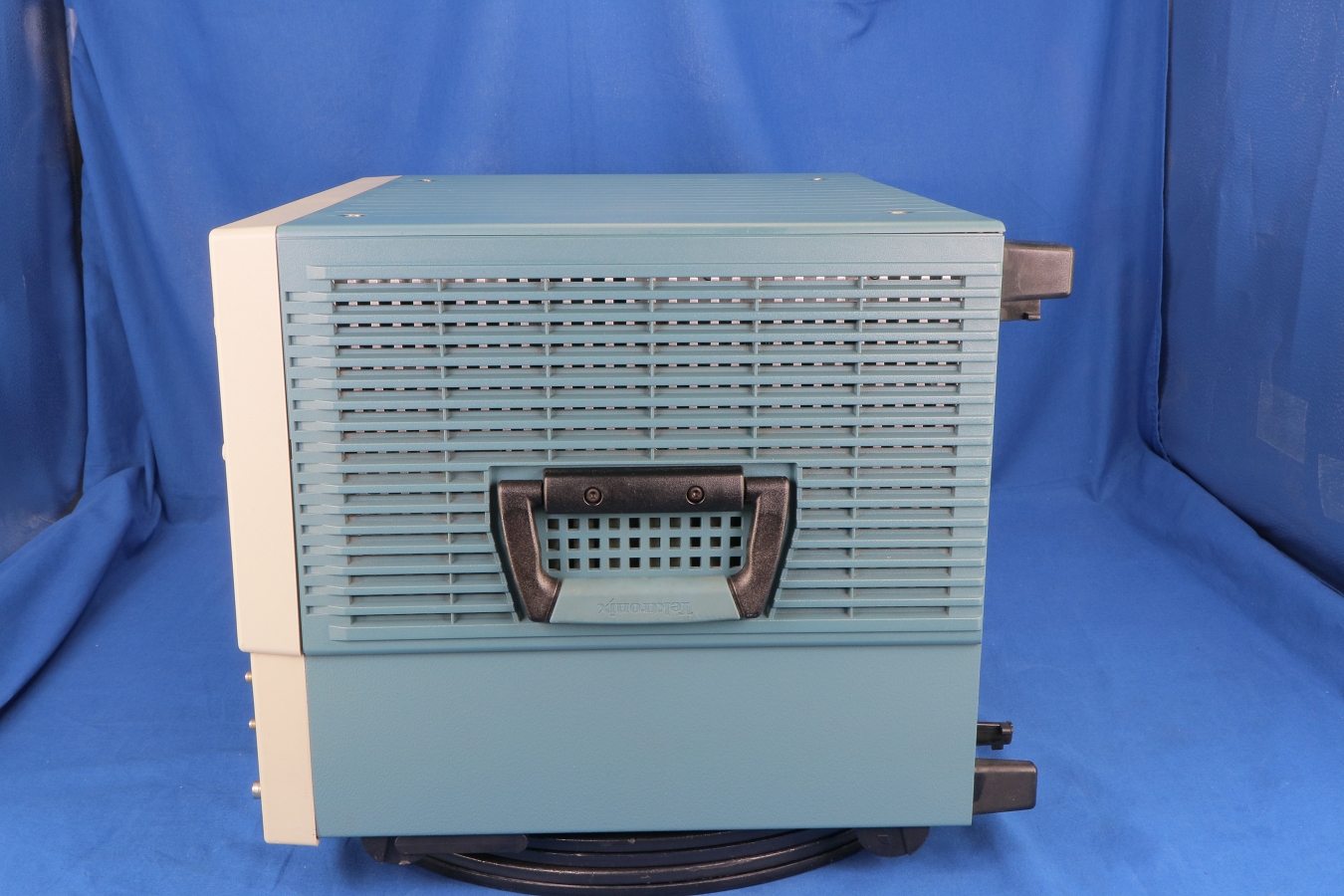

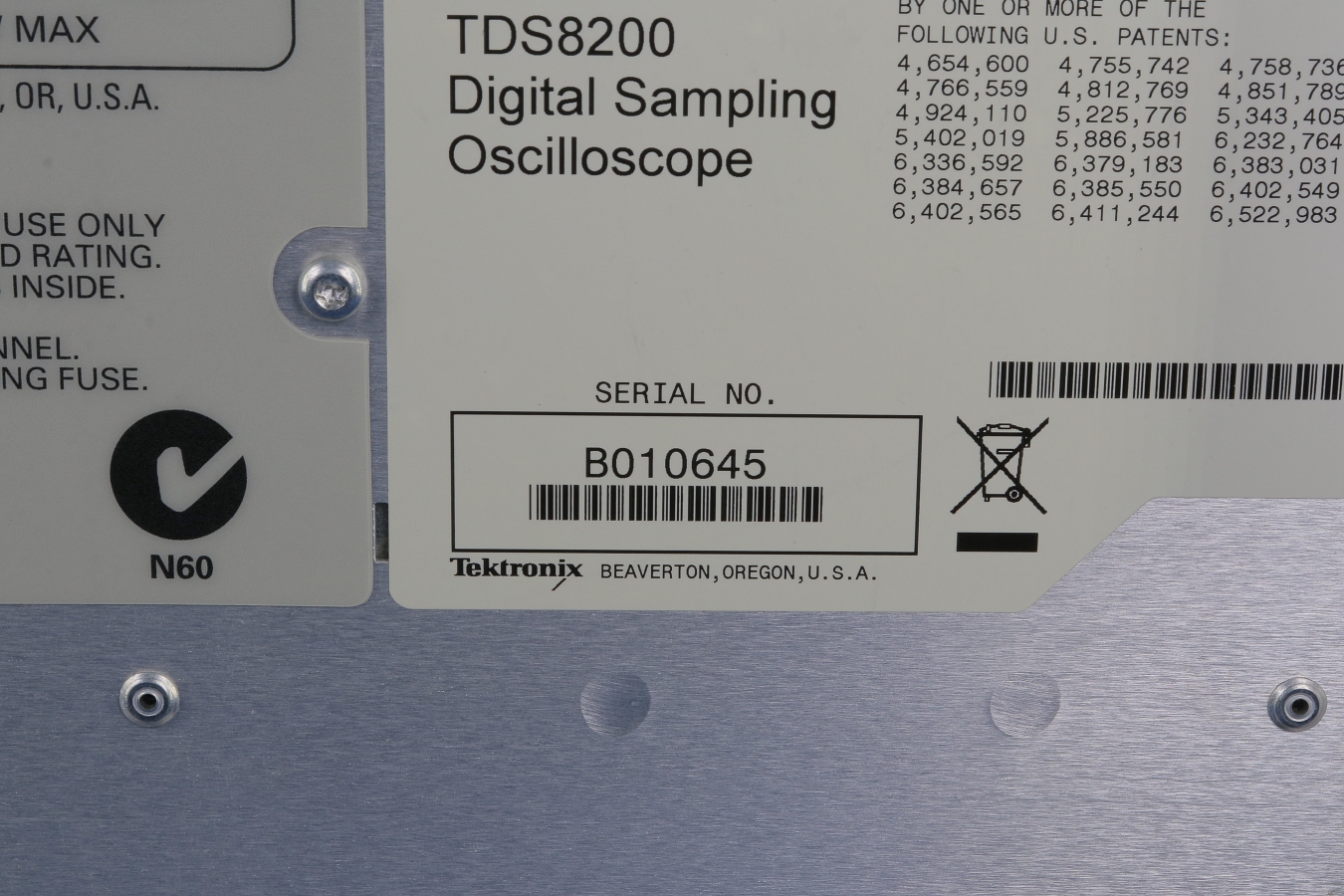

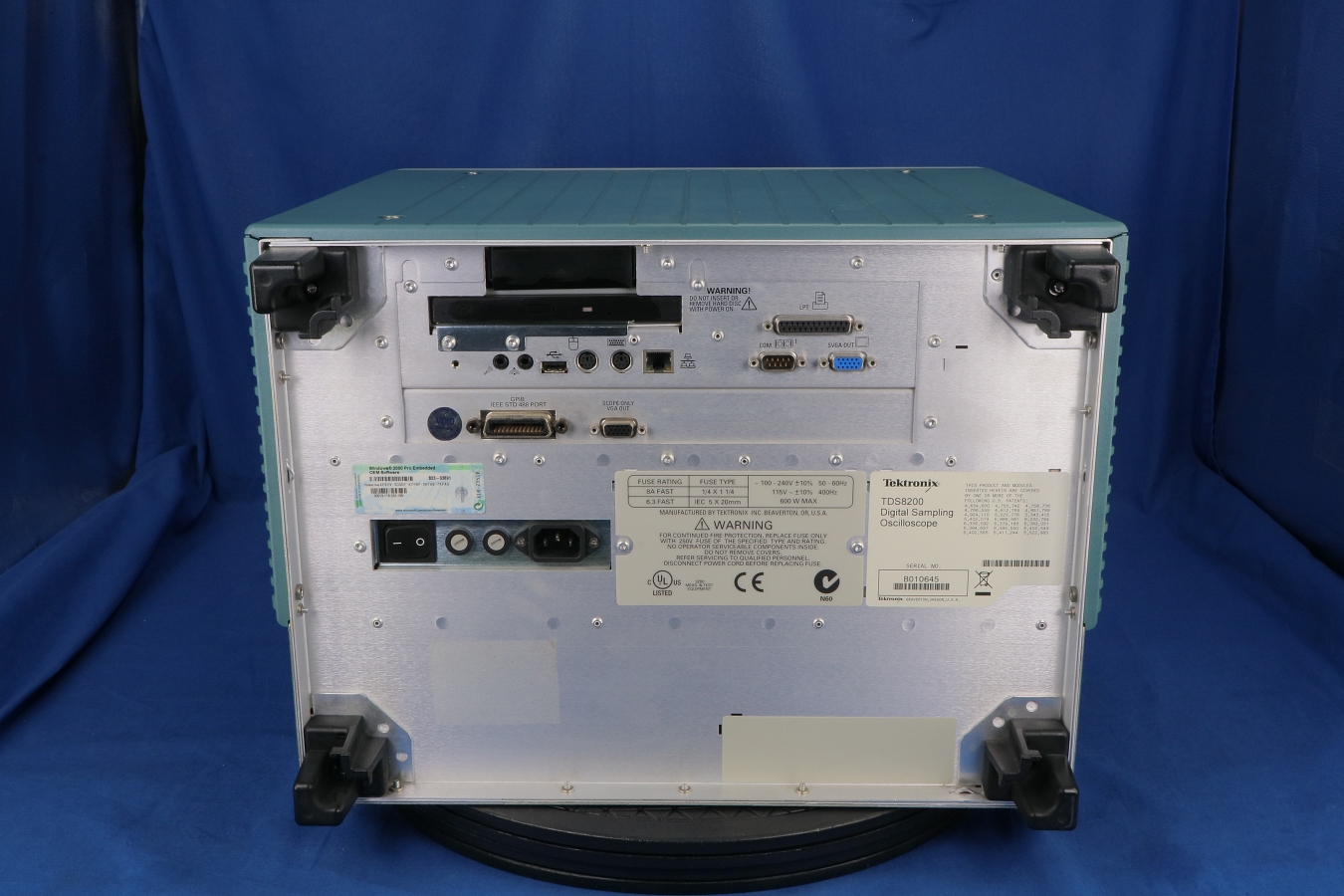

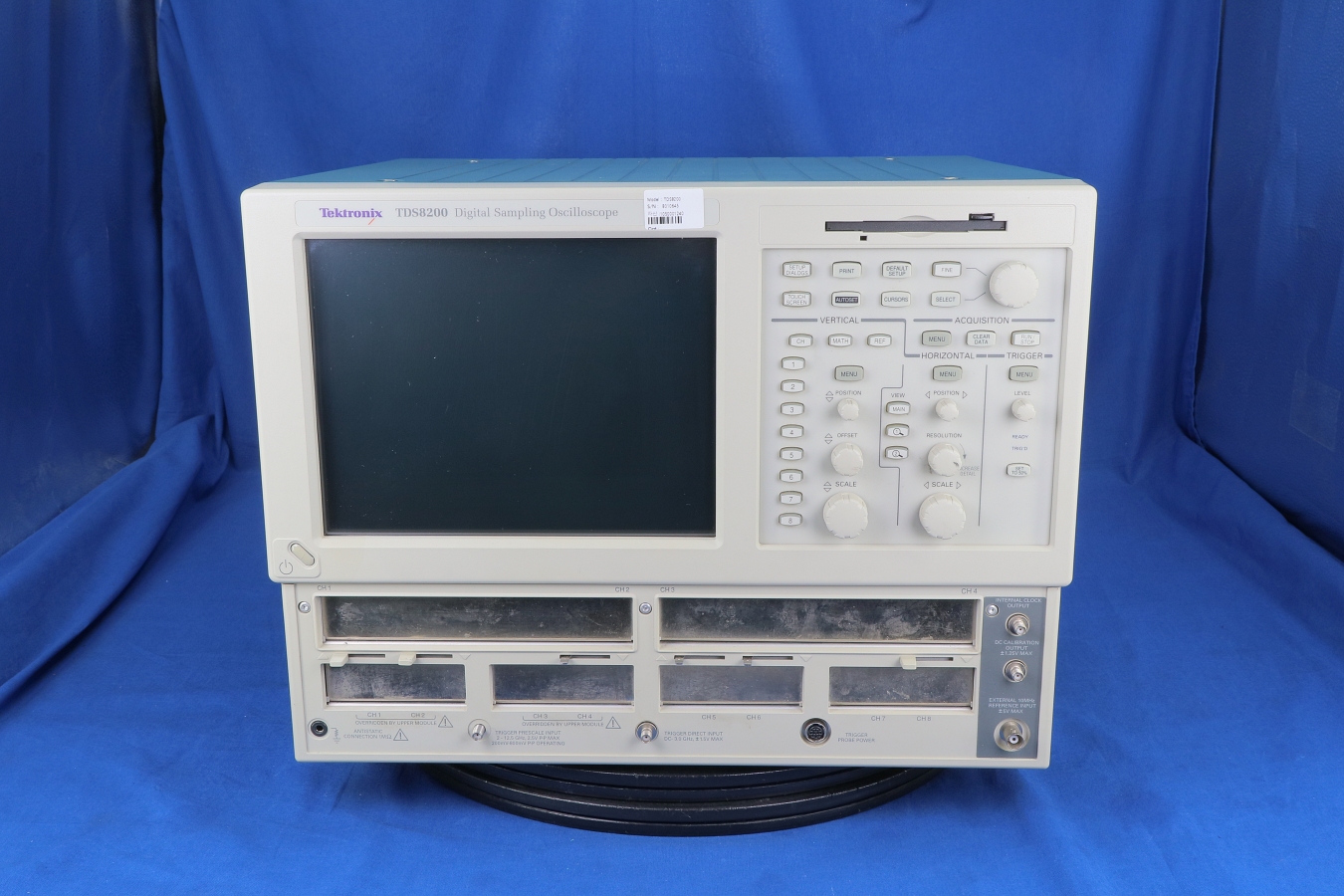

TDS8200 Tektronix Digital Oscilloscope
Model: TDS8200
Manufactured by: Tektronix
Bandwidth: 70.0GHz
Channels: 8
Sample Rate: 40.00GSa/sec
REQUEST A QUOTE
TDS8200 Tektronix Digital Oscilloscope
Price: CALL
TDS8200 Tektronix Digital Oscilloscope
Price: CALL
Detail
- State-of-the-art Acquisition System
- Modularity and Flexibility
- Superior Performance
- 8200 Series Sampling Oscilloscope Platform
- TDS8200 Series Sampling Oscilloscope Optical Modules
- Very low jitter with the Phase Reference mode
- Jitter <200 fsRMS*2
- Both Conventional Free Run and Triggered modes available with same low jitter
- 2 to 60 GHz continuous
- Up to eight signal channels
- TDR ≤ 35ps reflected risetime
- True differential TDR/TDT with up to four differential pairs for TDR/TDT/Crosstalk
- TDR probes, static protection modules available
- Four Color Graded Variable Persistence waveform databases
- MS Windows 2000 Operating System
- Modular Architecture
- Fast Acquisition Rate
- Excellent Signal Fidelity
- FrameScan™ Acquisition Mode
- Comprehensive Measurement system with independently customizable measurements
- Includes all of the features of the CSA8200 Communication Signal Analyzer
