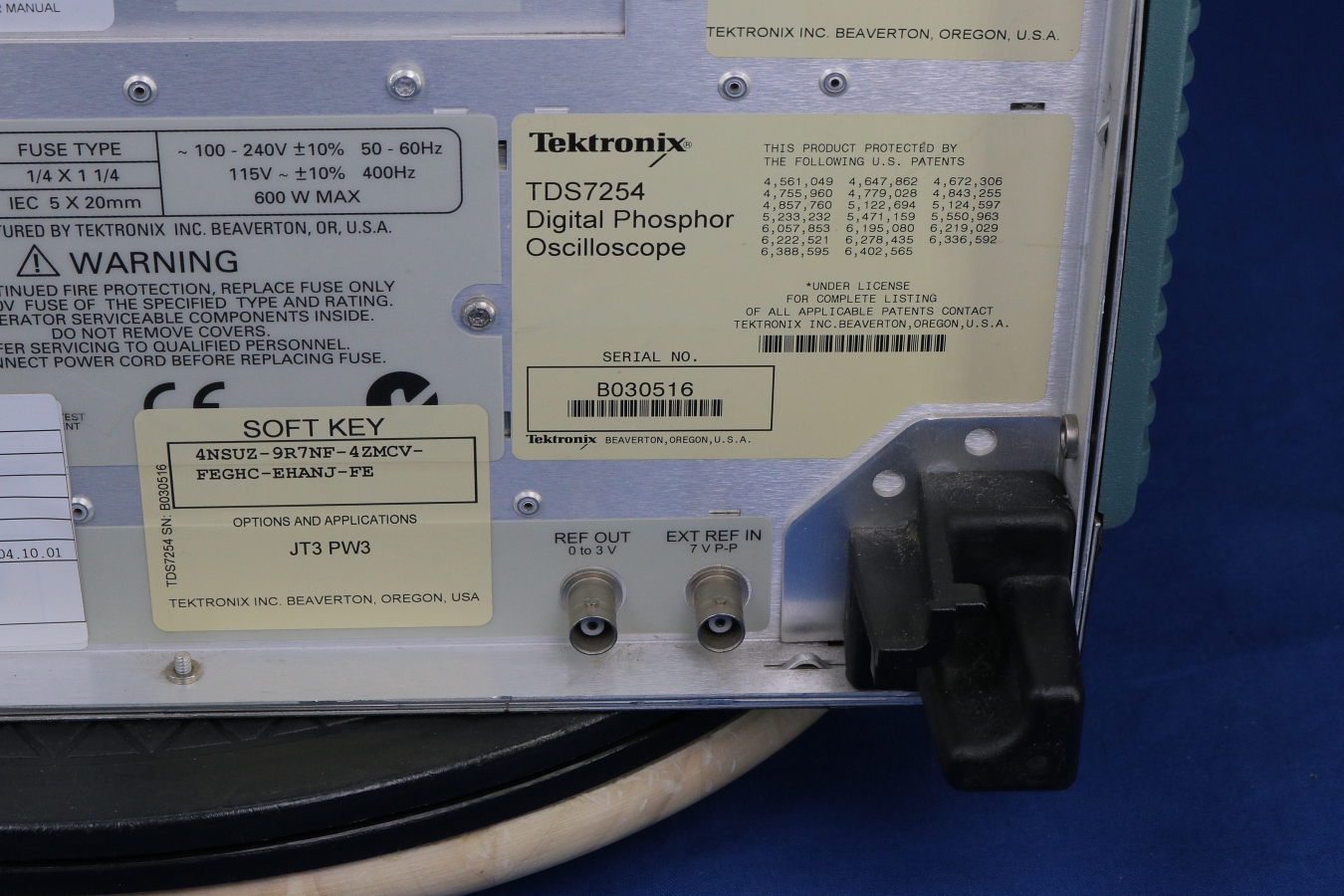

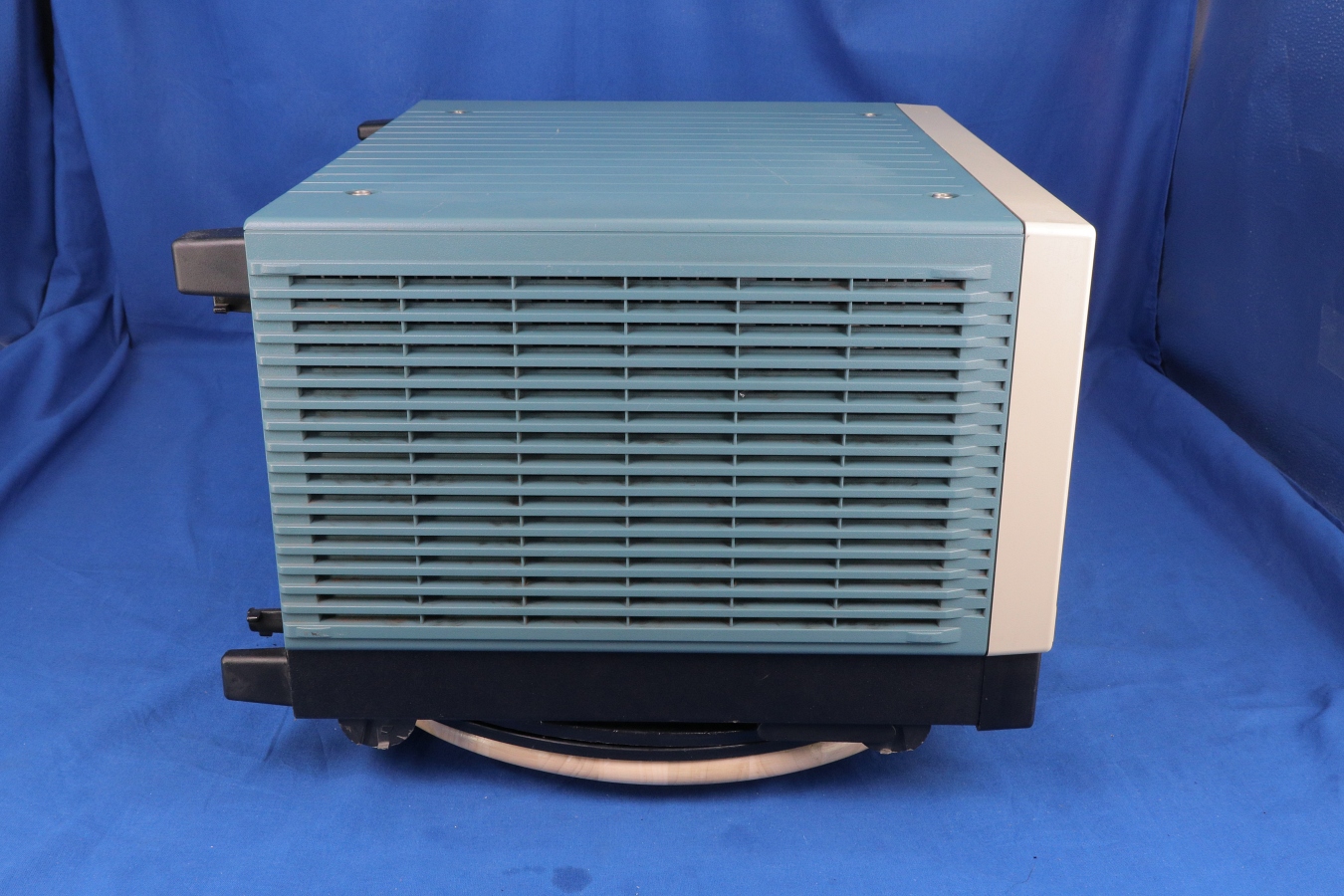

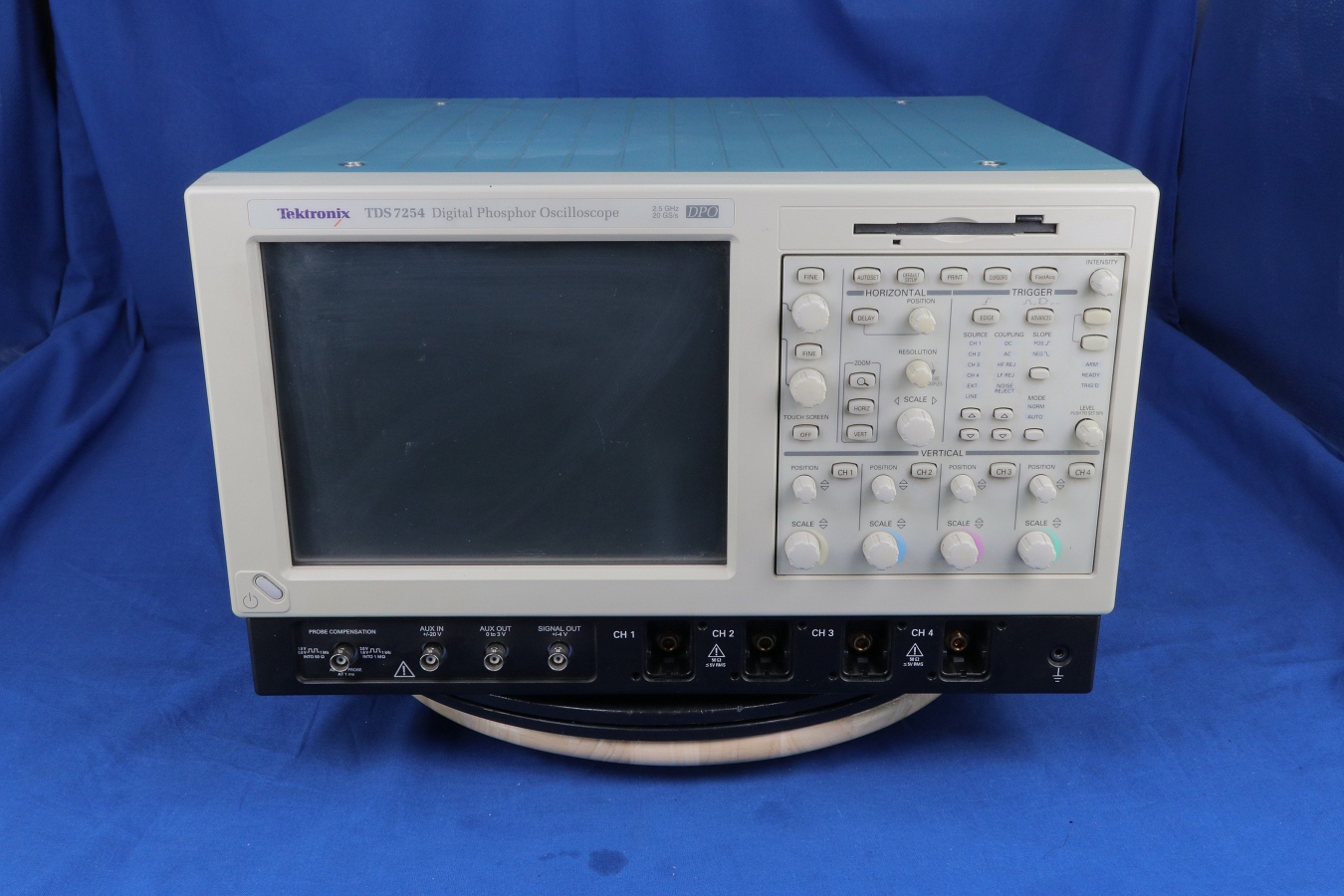

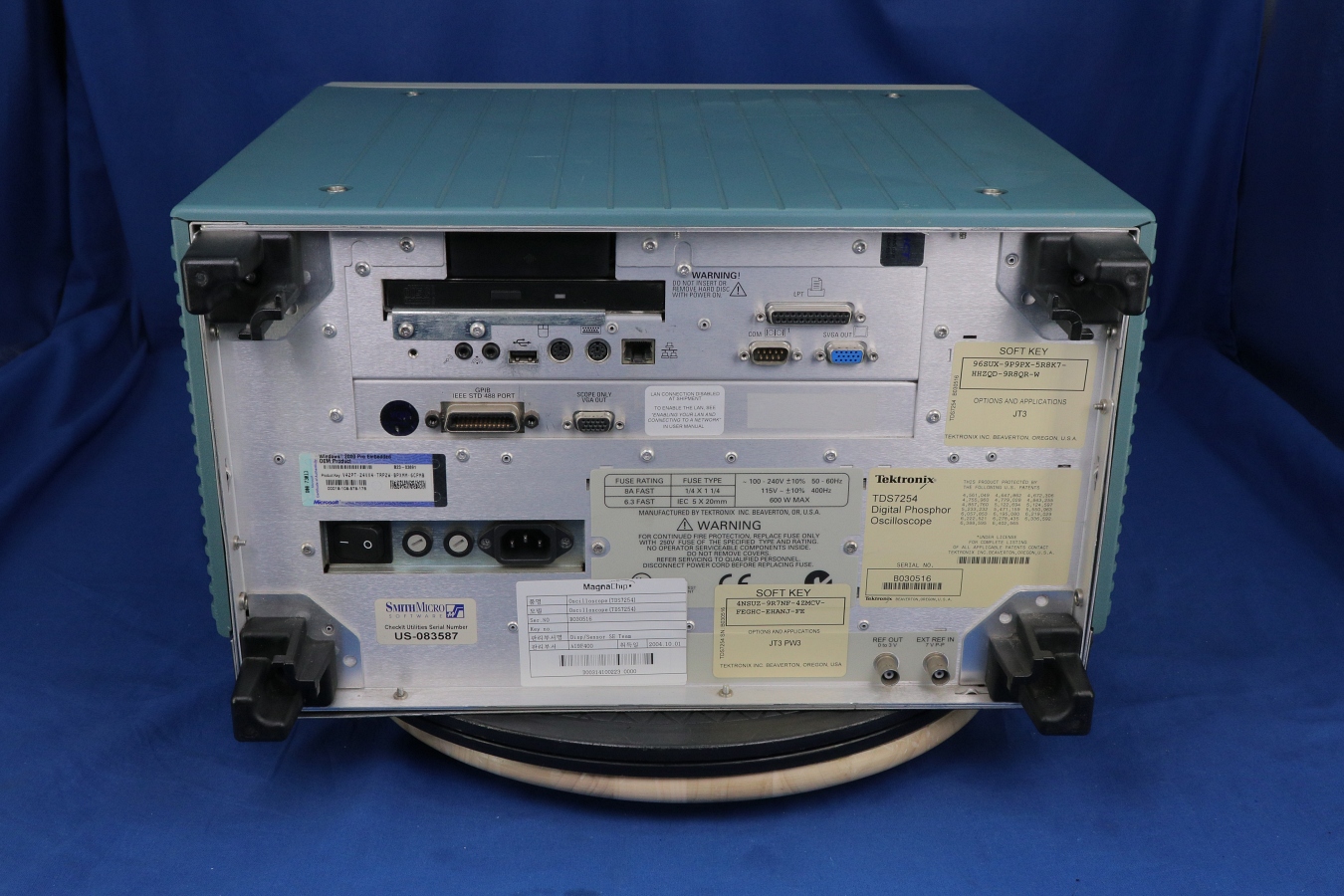

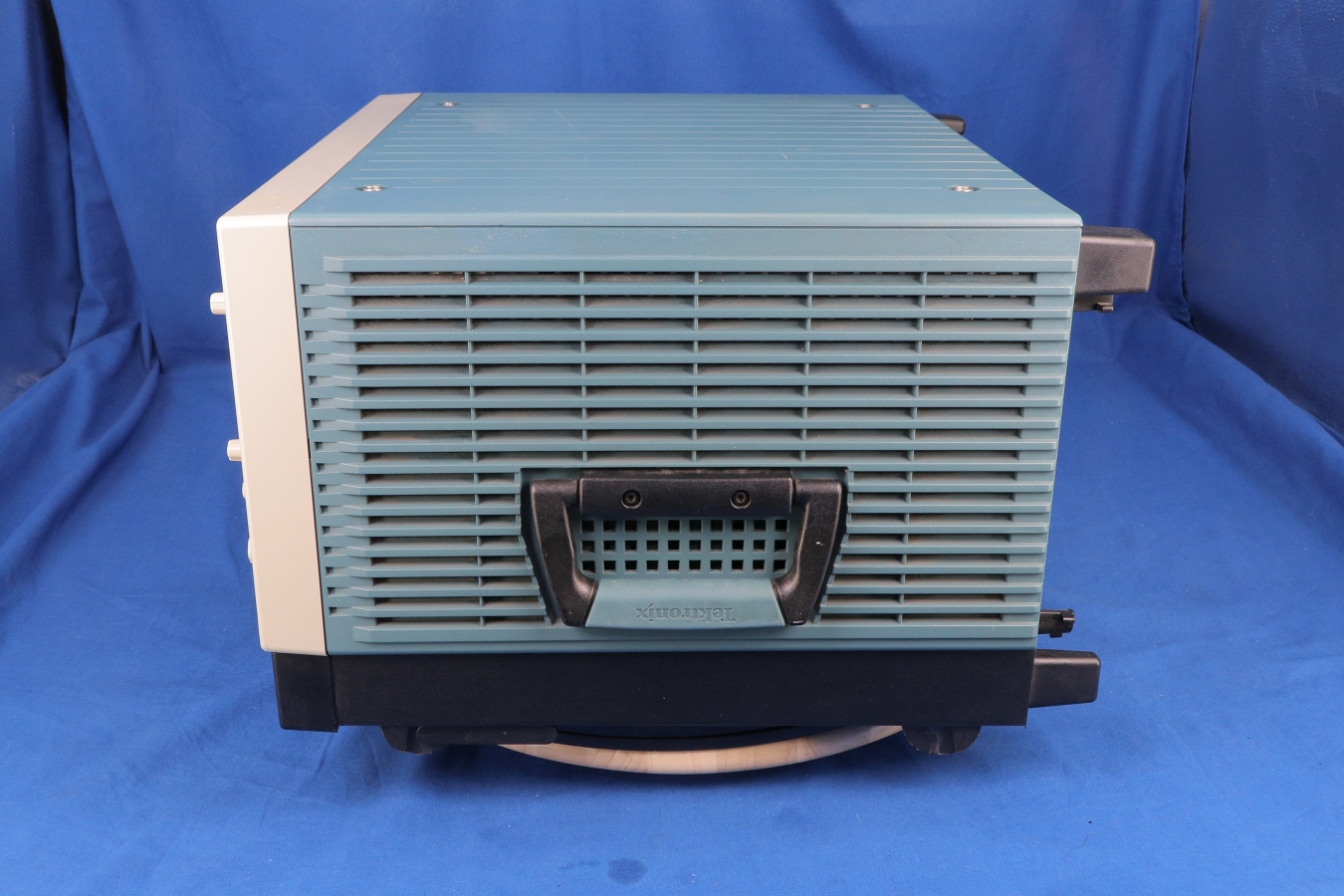

TDS7254 Tektronix Digital Oscilloscope

The TDS7254 is a 2.5 GHz, 4 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.

REQUEST A QUOTE

TDS7254 Tektronix Digital Oscilloscope

Price: CALL

REQUEST A QUOTE

Detail

Bandwidth: 2.5 GHz
Channels: 4
Sample Rate: 20 GS/s
Record Length: 400kpts
Display: Color
>400,000 Wfms/second Maximum Waveform Capture Rate
Jitter measurements to 1 psRMS
Graphical User Interface
Control via Classic Direct Controls, Touch-sensitive Color Display or Mouse Navigation
Open Microsoft Windows Environment
Built-in Networking

Option

Option	Description
1M	2 Msamples max, 500 ksamples/ch
2M	8 Msamples max, 2 Msamples/ch
3M	16 Msamples max, 4 Msamples/ch
4M	32 Msamples max, 8 Msamples/ch
J1	Jitter Analysis Software
J2	Disk Drive Analysis Software
JE3	Jitter Analysis - Essentials
JT3	TDSJIT3 Advanced Jitter Analysis application with random anTDSJIT3 Advanced Jitter Analysis application with random and deterministic jitter analysisd deterministic jitter analysis
STD
USB	TDSUSBS-USB2.0 Compliance Test S/W Only
