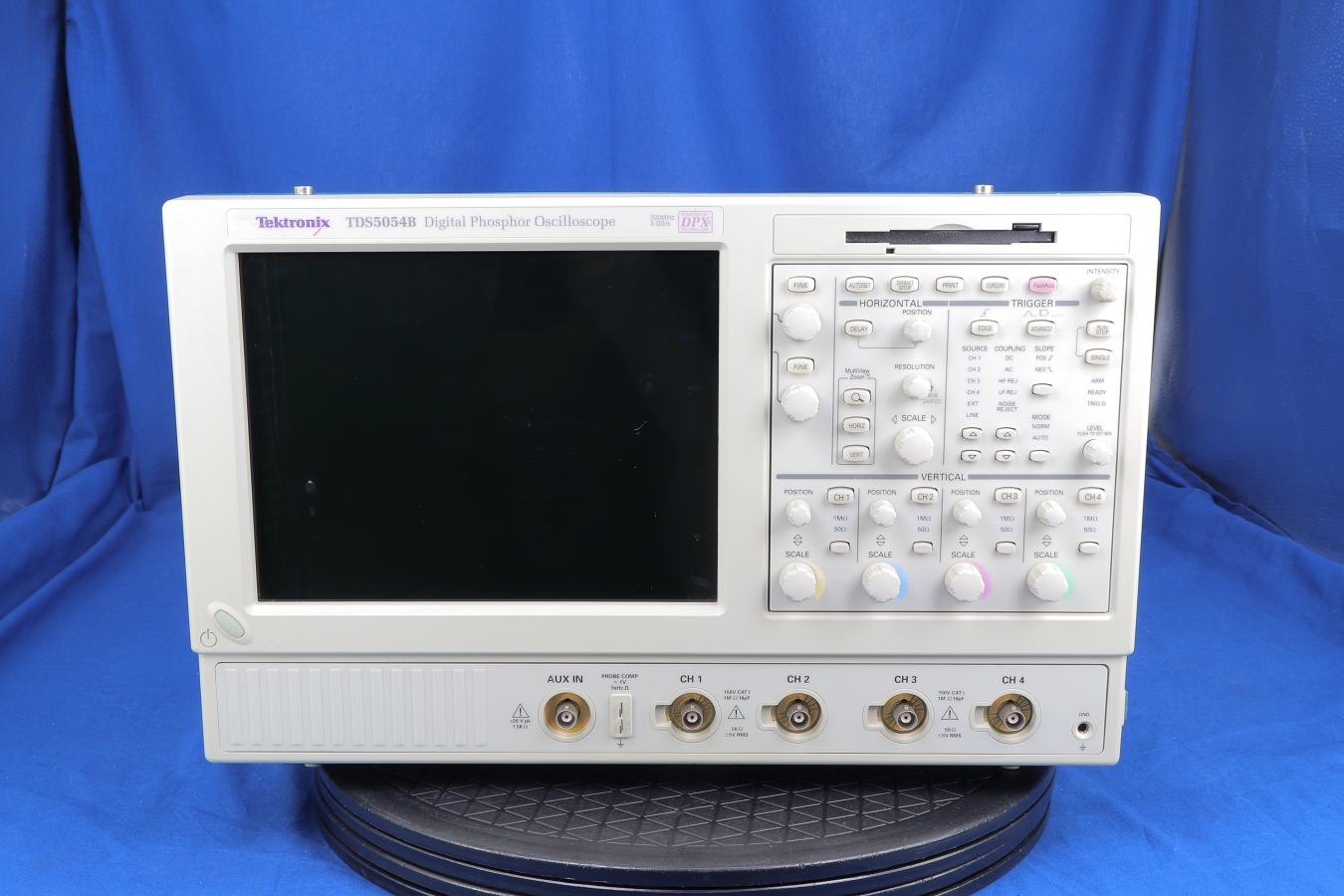

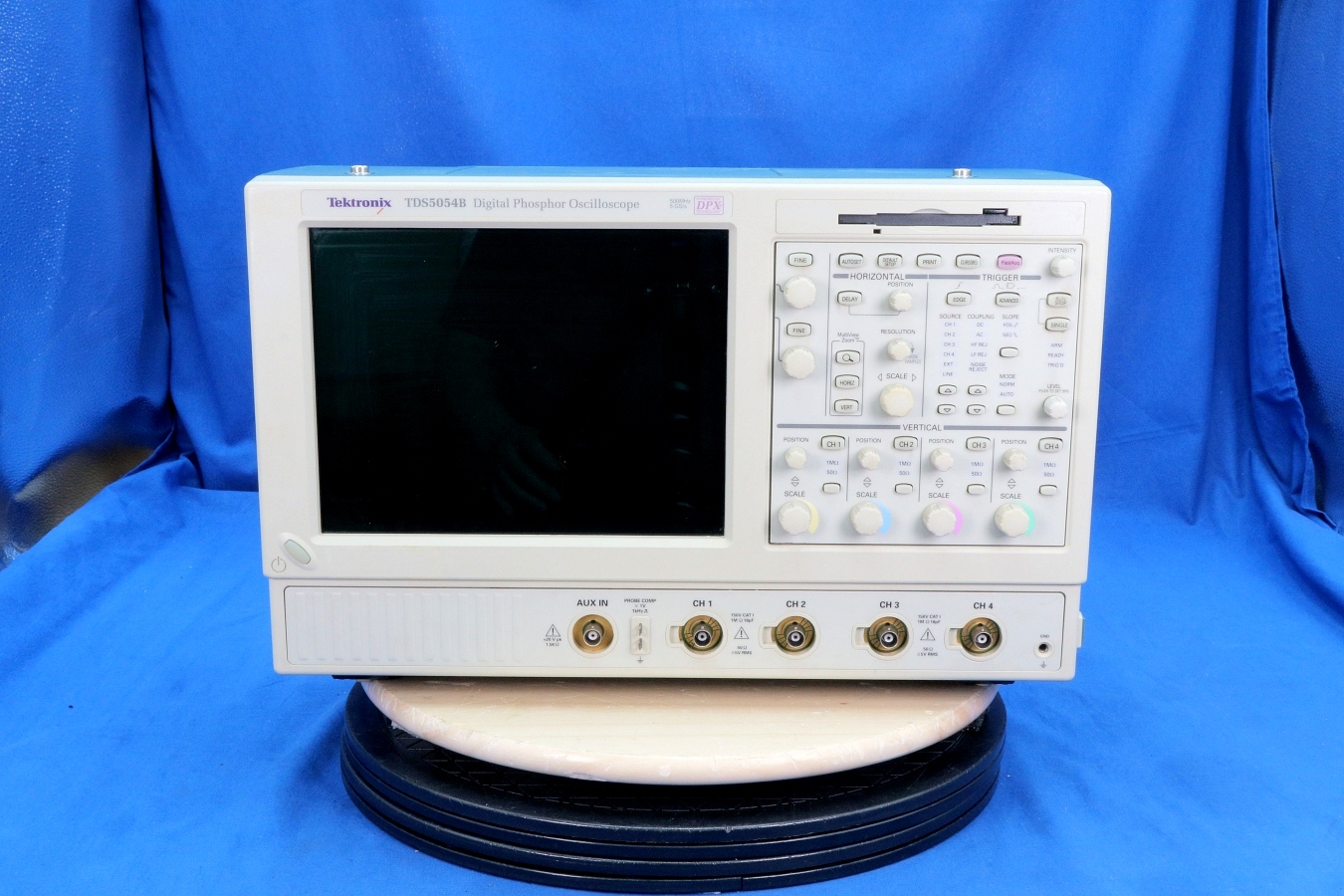

TDS5054B Tektronix Digital Oscilloscope
Additional Features: Bandwidth: 500 MHz  4 Channels 5 GS/s Sample Rate Record Length: 8M Calculated Rise Time 5 mV/div (typical): 800 ps 100,000 wfms/s Maximum Waveform Capture Rate MyScope Custom Control Windows Enhance Productivity Right Mouse-click Menus for Exceptional Efficiency OpenChoice® Platform with Windows 2000 delivers Built-in Networking and Analysis Small Footprint / Lightweight 10.4 in. Bright Display Suite of Advanced Triggers Communication Mask Testing Pass/Fail Limit Testing Remote Viewing and Control E-mail on Event CD-RW Drive Interoperability with Tektronix Logic Analyzers GPIB Controller Applications: Digital Design and Debug Mask Testing for Telecomm/Datacomm/Video Standards Investigation of Transient Phenomena Power Measurements Video Design and Debug Spectral Analysis Automotive Electronics Manufacturing Test Electromechanical Biomedical Industrial Control The World’s Easiest to Use Midrange Oscilloscope Since the control windows are stored as files on the hard drive, they can easily be transferred to other TDS5000B Series oscilloscopes, or they can even be e-mailed to a co-worker around the world when the need arises. MyScope control windows will benefit all oscilloscope users, from eliminating the ramp-up time that many face when returning to the lab after not using an oscilloscope for a while, to the power user who can now operate far more efficiently. Everything you need is found in one control window rather than having to constantly navigate through menu after menu to repeat similar tasks. The customization and efficiency provided by MyScope control windows and right-click menus make the TDS5000B Series the world’s easiest to use midrange oscilloscope, enabling you to achieve levels of productivity you wouldn’t have thought possible with your current oscilloscope. The Performance and Feature Set You Expect Applied measurement extensions can be installed to enhance TDS5000B capability. These software applications build on the precision acquisition performance of the TDS5000B Series to address the need for application specific measurements to quickly quantify device and system performance. Optional applications include power measurement and analysis, jitter and timing analysis, disk drive measurements, USB compliance testing, optical storage analysis, ANSI/ITU telecom pulse compliance, and Ethernet compliance testing. In addition, the OpenChoice architecture provides a comprehensive software infrastructure for faster, more versatile operations. Data transfer programs, such as the Excel Toolbar, Word Toolbar, and Report Generator are used to simplify analysis and documentation on the Windows desktop or on external PCs. Tektronix' implementation of industry-standard protocols, such as TekVISA™ interface and ActiveX Control, are included for using and enhancing Windows applications for data analysis and documentation. Or, use the Software Developer's Kit (SDK) to help create custom software to automate multi-step processes in waveform collection and analysis with Visual BASIC, C, C++, MATLAB, LabVIEW, LabWindows/CVI and other common Application Development Environments (ADE). Integration of the oscilloscope with external PCs and non-Windows hosts is also supported by the TDS5000B Series software solutions. Plug-and-play and IVI instrument drivers are included to enable easy communication with the oscilloscope using GPIB, Serial, and LAN connections from programs running on the instrument or an external PC. UNIX applications, and other LAN resources, can connect directly over Ethernet using the VXI 11.2 server included on the TDS5000B Series. The unparalleled ease-of-use, coupled with the TDS5000B’s high performance, OpenChoice platform, and comprehensive feature set all in a compact bench-top package, provides exceptional value. Applications The TDS5000B Series' high performance features make it ideal for a multitude of applications, such as digital design and debug, power measurements, communications mask testing, and video design. The iView Wizard simplifies this integration of the oscilloscope and logic analyzer by guiding the user through set up and connection. No user calibration is required. And, once set up, the iView feature is completely automated. The result – an integrated tool set for digital design and troubleshooting. The image is a representation of selection. See specifications for product details.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
TDS5054B Tektronix Digital Oscilloscope
3M /
Price: CALL
TDS5054B Tektronix Digital Oscilloscope
Price: CALL
Detail
Additional Features: Bandwidth: 500 MHz  4 Channels 5 GS/s Sample Rate Record Length: 8M Calculated Rise Time 5 mV/div (typical): 800 ps 100,000 wfms/s Maximum Waveform Capture Rate MyScope Custom Control Windows Enhance Productivity Right Mouse-click Menus for Exceptional Efficiency OpenChoice® Platform with Windows 2000 delivers Built-in Networking and Analysis Small Footprint / Lightweight 10.4 in. Bright Display Suite of Advanced Triggers Communication Mask Testing Pass/Fail Limit Testing Remote Viewing and Control E-mail on Event CD-RW Drive Interoperability with Tektronix Logic Analyzers GPIB Controller Applications: Digital Design and Debug Mask Testing for Telecomm/Datacomm/Video Standards Investigation of Transient Phenomena Power Measurements Video Design and Debug Spectral Analysis Automotive Electronics Manufacturing Test Electromechanical Biomedical Industrial Control The World’s Easiest to Use Midrange Oscilloscope Since the control windows are stored as files on the hard drive, they can easily be transferred to other TDS5000B Series oscilloscopes, or they can even be e-mailed to a co-worker around the world when the need arises. MyScope control windows will benefit all oscilloscope users, from eliminating the ramp-up time that many face when returning to the lab after not using an oscilloscope for a while, to the power user who can now operate far more efficiently. Everything you need is found in one control window rather than having to constantly navigate through menu after menu to repeat similar tasks. The customization and efficiency provided by MyScope control windows and right-click menus make the TDS5000B Series the world’s easiest to use midrange oscilloscope, enabling you to achieve levels of productivity you wouldn’t have thought possible with your current oscilloscope. The Performance and Feature Set You Expect Applied measurement extensions can be installed to enhance TDS5000B capability. These software applications build on the precision acquisition performance of the TDS5000B Series to address the need for application specific measurements to quickly quantify device and system performance. Optional applications include power measurement and analysis, jitter and timing analysis, disk drive measurements, USB compliance testing, optical storage analysis, ANSI/ITU telecom pulse compliance, and Ethernet compliance testing. In addition, the OpenChoice architecture provides a comprehensive software infrastructure for faster, more versatile operations. Data transfer programs, such as the Excel Toolbar, Word Toolbar, and Report Generator are used to simplify analysis and documentation on the Windows desktop or on external PCs. Tektronix' implementation of industry-standard protocols, such as TekVISA™ interface and ActiveX Control, are included for using and enhancing Windows applications for data analysis and documentation. Or, use the Software Developer's Kit (SDK) to help create custom software to automate multi-step processes in waveform collection and analysis with Visual BASIC, C, C++, MATLAB, LabVIEW, LabWindows/CVI and other common Application Development Environments (ADE). Integration of the oscilloscope with external PCs and non-Windows hosts is also supported by the TDS5000B Series software solutions. Plug-and-play and IVI instrument drivers are included to enable easy communication with the oscilloscope using GPIB, Serial, and LAN connections from programs running on the instrument or an external PC. UNIX applications, and other LAN resources, can connect directly over Ethernet using the VXI 11.2 server included on the TDS5000B Series. The unparalleled ease-of-use, coupled with the TDS5000B’s high performance, OpenChoice platform, and comprehensive feature set all in a compact bench-top package, provides exceptional value. Applications The TDS5000B Series' high performance features make it ideal for a multitude of applications, such as digital design and debug, power measurements, communications mask testing, and video design. The iView Wizard simplifies this integration of the oscilloscope and logic analyzer by guiding the user through set up and connection. No user calibration is required. And, once set up, the iView feature is completely automated. The result – an integrated tool set for digital design and troubleshooting. The image is a representation of selection. See specifications for product details.
Option
Option Description
13 RS-232-C and Centronics interface ports
1F Floppy disk drive
1M Extended Acquisition Memory
2F Advanced DSP math
3M
