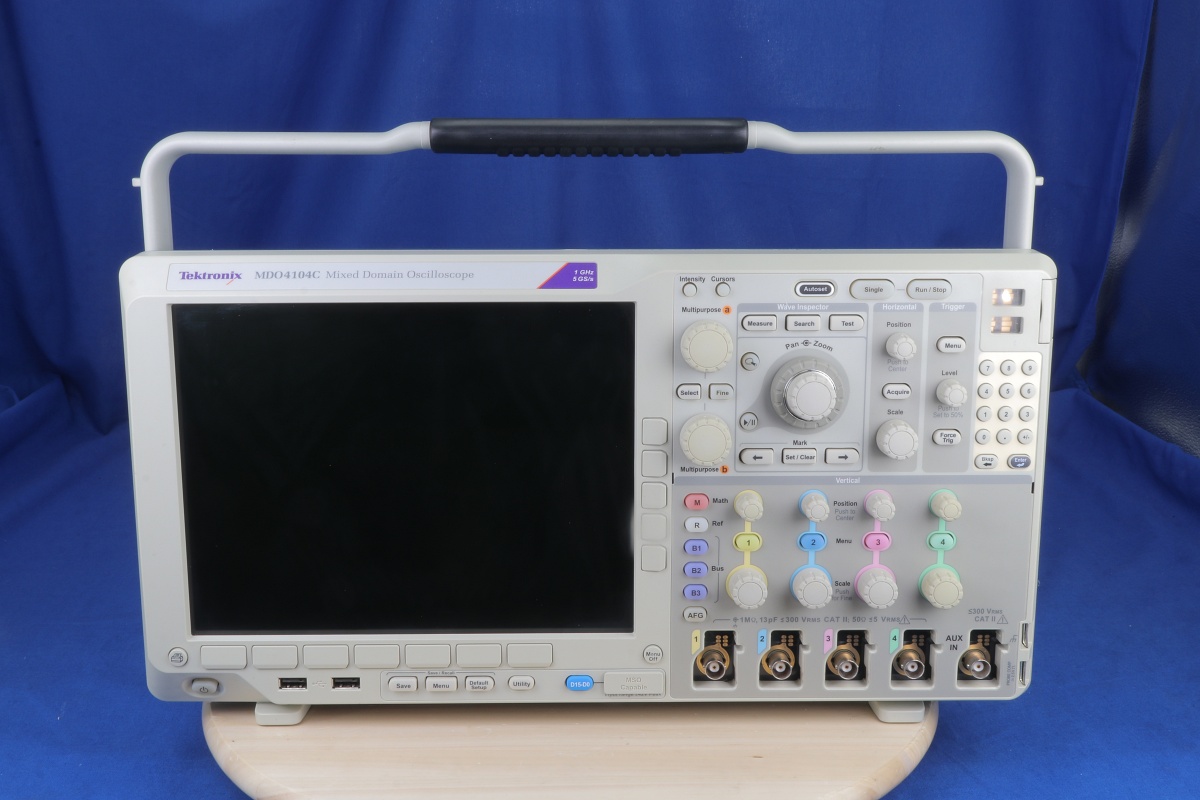

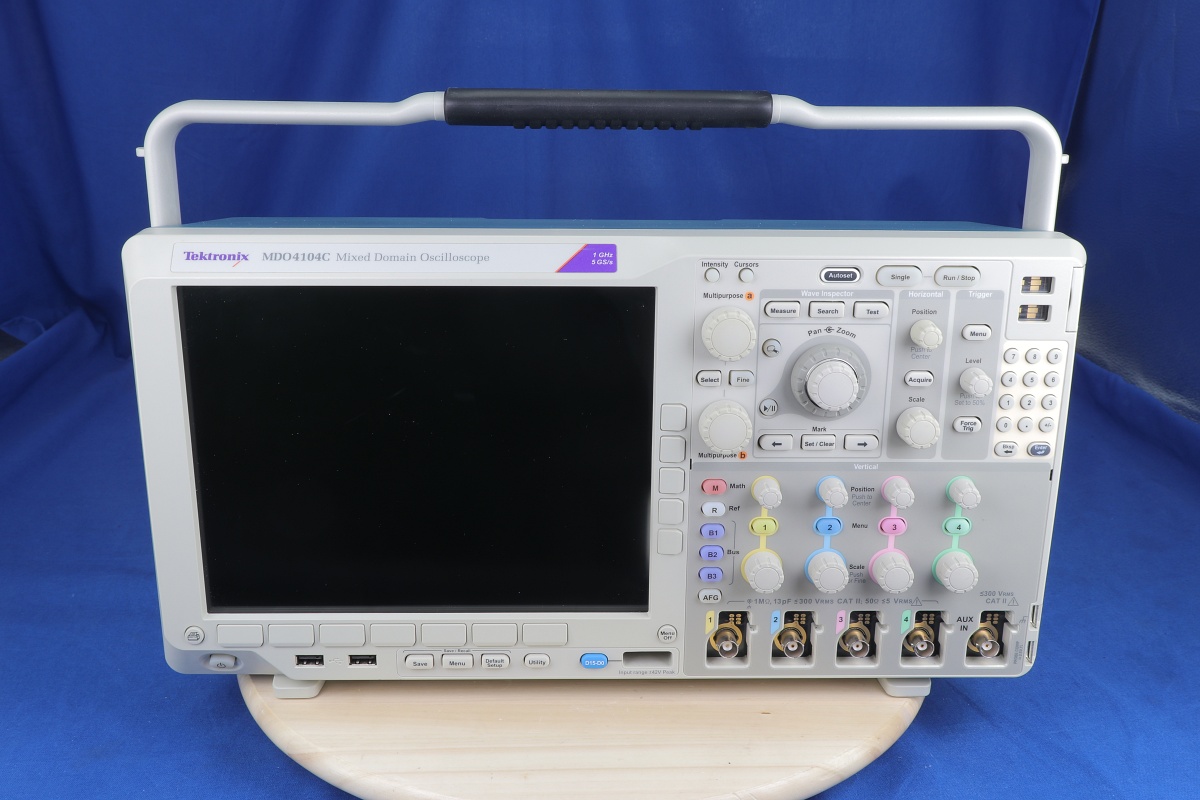

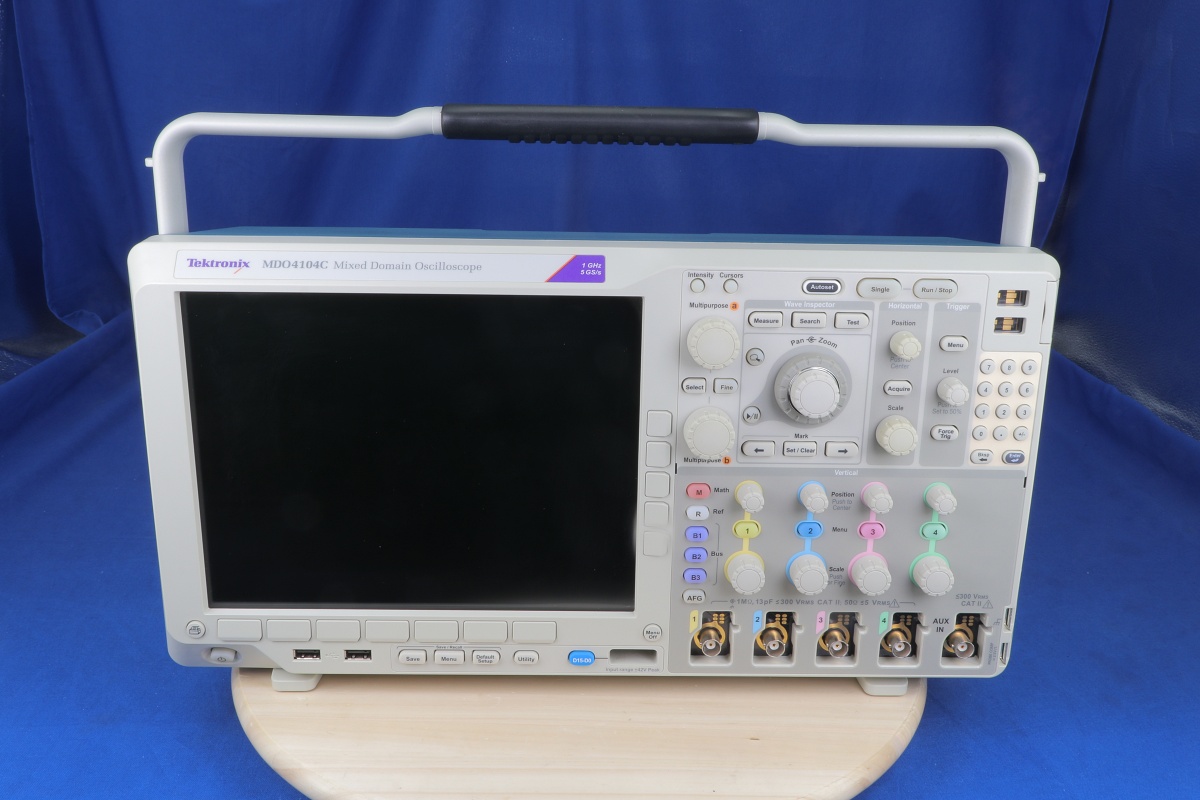

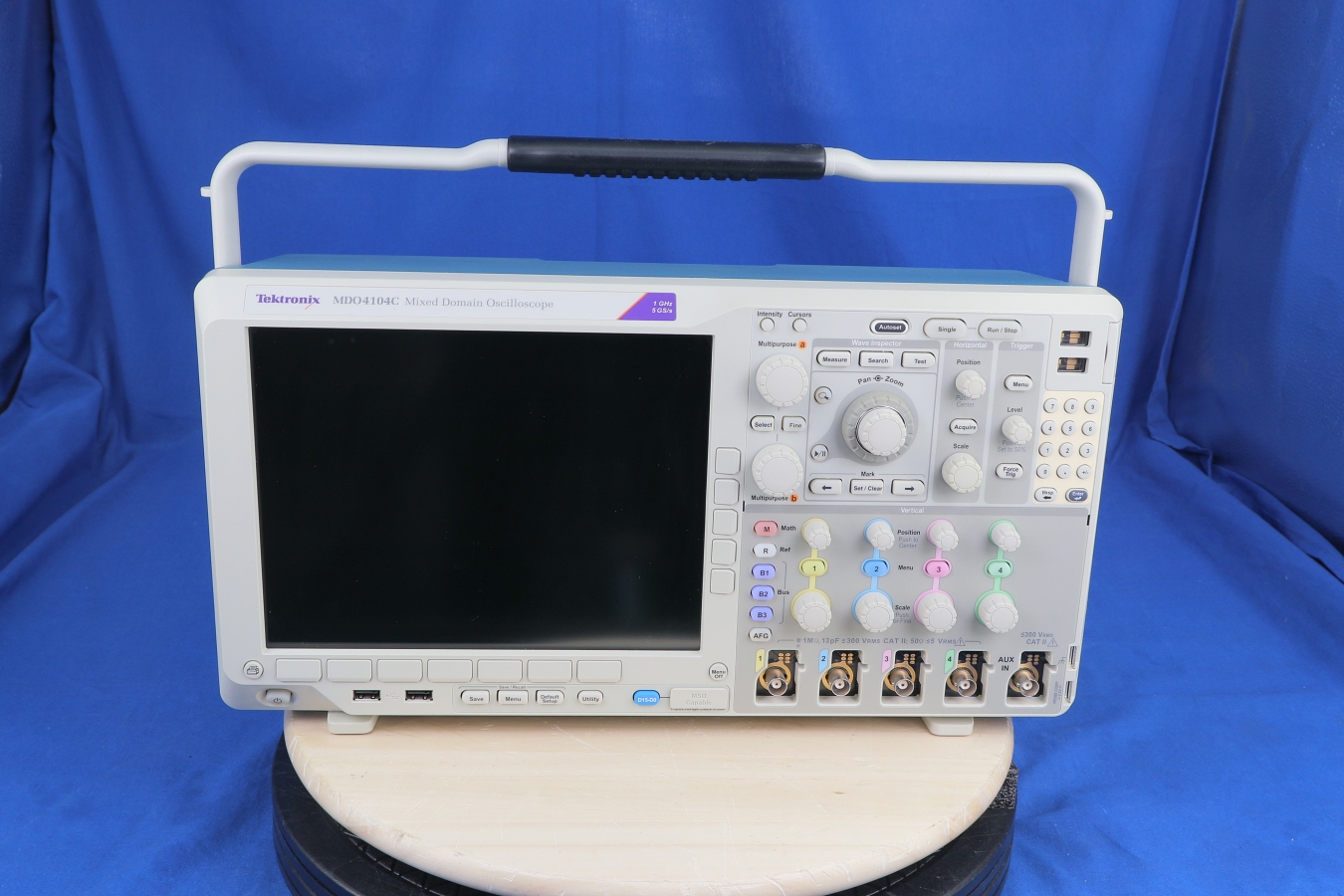

Additional Features: Bandwidth: 1 GHz  Channels: 4  Sample Rate: 5 GS/s  20 M record length on all channels > 340,000 wfm/s maximum waveform capture rate Performance 6-in-1 integrated oscilloscope with synchronized insights into analog, digital and spectral signals Digital Voltmeter / Frequency Counter (Free with product registration) TPP1000: 1 GHz bandwidth, 10X, 3.9 pF. One passive voltage probe per analog channel Warranty: Three-year warranty covering all parts and labor on the MDO4000C instrument. One-year warranty covering parts and labor on included probes Typical Applications: Embedded design Power design EMI troubleshooting Wireless troubleshooting Education Manufacturing Test and Troubleshooting Spectrum Analyzer (Optional) Frequency range of 9 kHz - 3 GHz or 9 kHz - 6 GHz Ultra-wide capture bandwidth ≥1 GHz Time-synchronized capture of spectrum analyzer with analog and digital acquisitions Frequency vs. time, amplitude vs. time, and phase vs. time waveforms Arbitrary/Function Generator (Optional) 13 predefined waveform types 50 MHz waveform generation 128 k arbitrary generator record length 250 MS/s arbitrary generator sample rate Logic Analyzer (Optional) 16 digital channels 20 M record length on all channels 60.6 ps timing resolution Protocol Analyzer (Optional) Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, Ethernet, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, and Audio standards Digital Voltmeter / Frequency Counter (Free with product registration) 4-digit AC RMS, DC, and AC+DC RMS voltage measurements 5-digit frequency measurements The MDO4104C has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting. The MDO4104C is completely customizable and fully upgradeable so you can add the instruments you need now–or later.

Option	Description
MDO4AFG	Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
MDO4MSO	16 digital channels; includes P6616 digital probe and accessories
MDO4SEC	Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
SA0	No Spectrum Analyzer
SA3	Integrated Spectrum Analyzer with frequency range of 9 kHz to 3 GHz

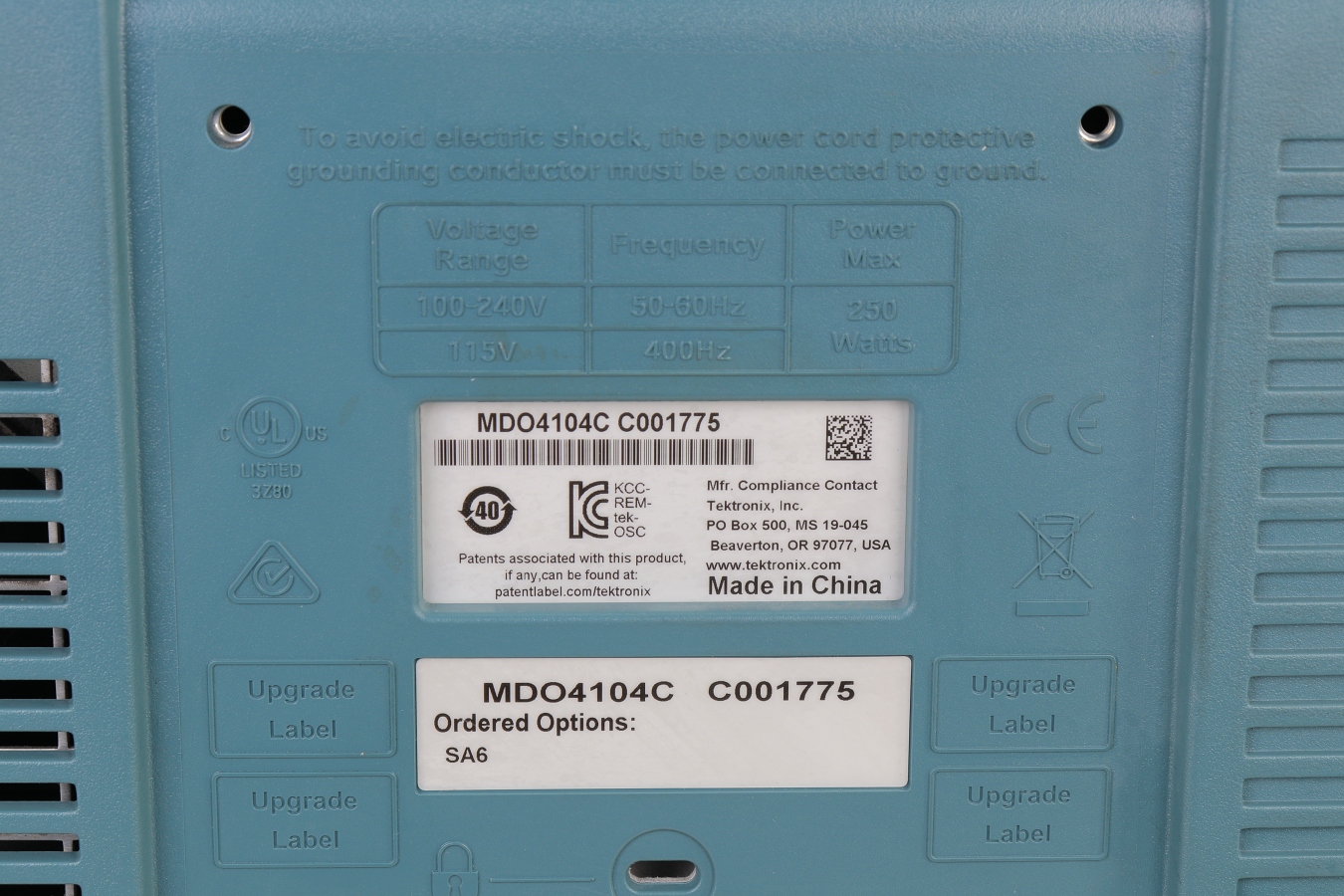

SA6	Integrated Spectrum Analyzer with frequency range of 9 kHz to 6 GHz
