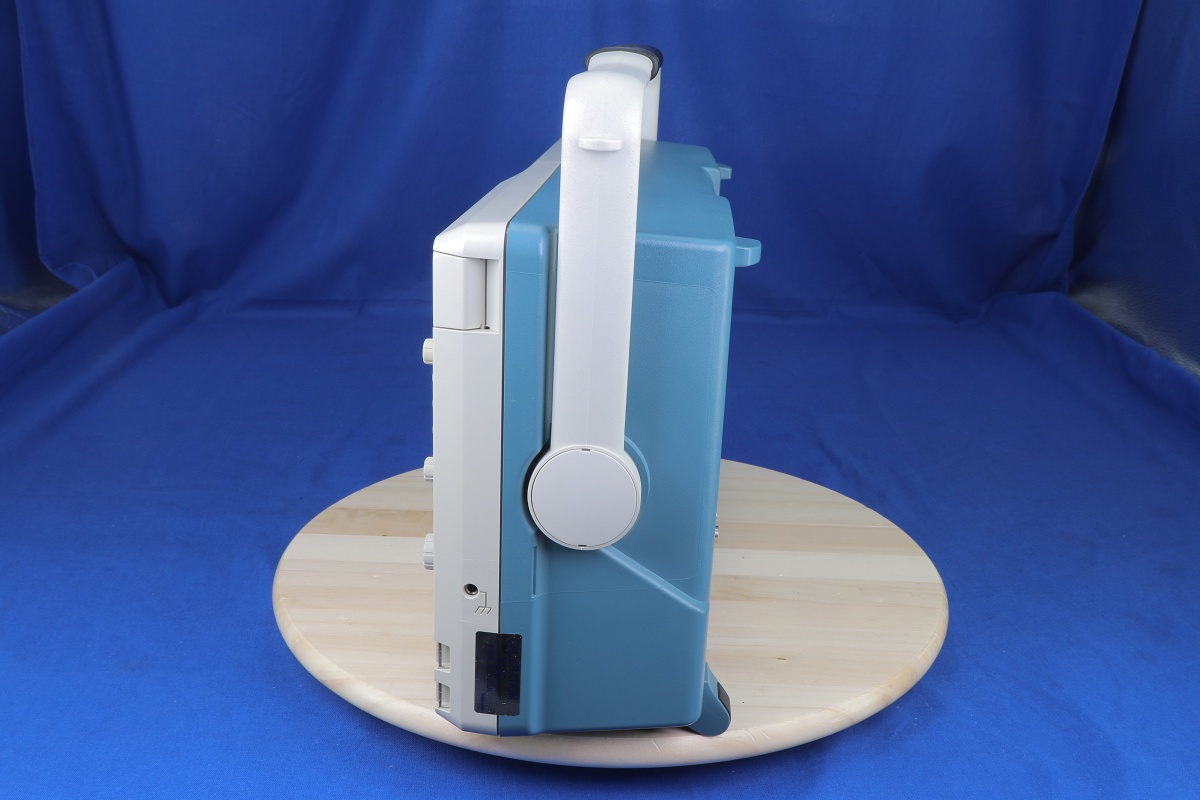

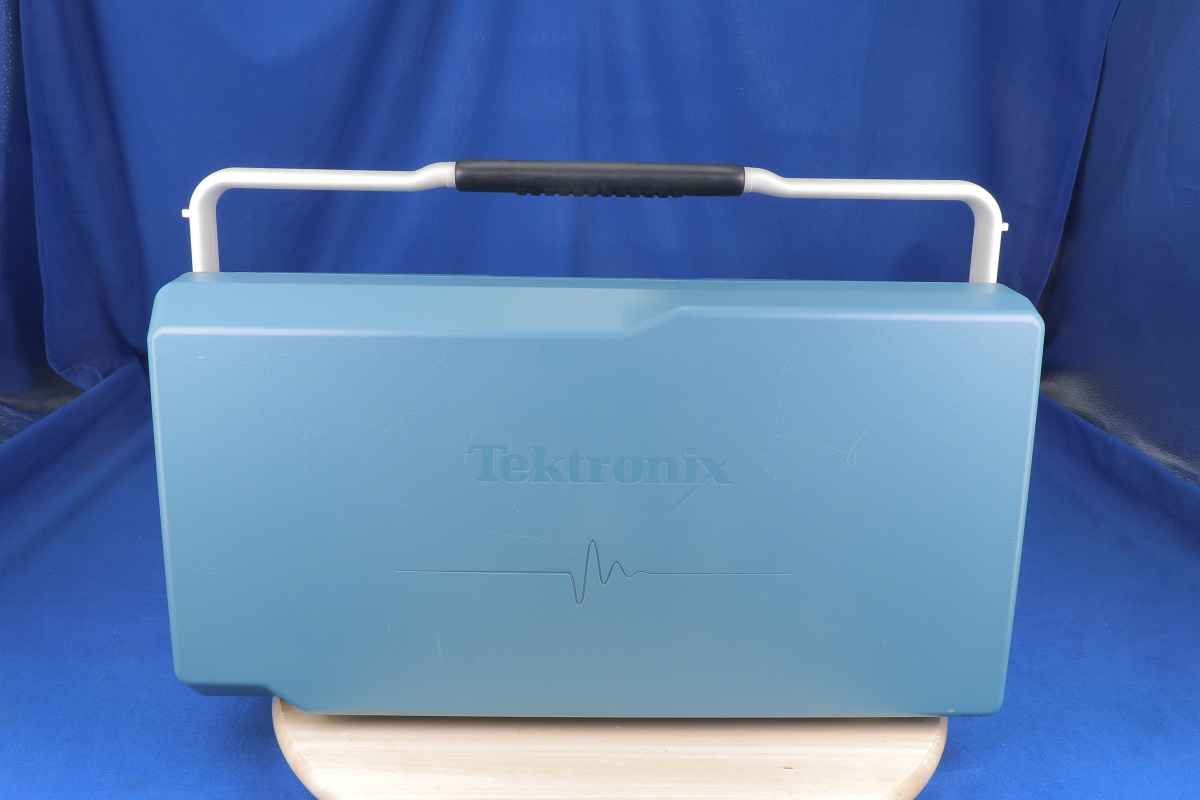

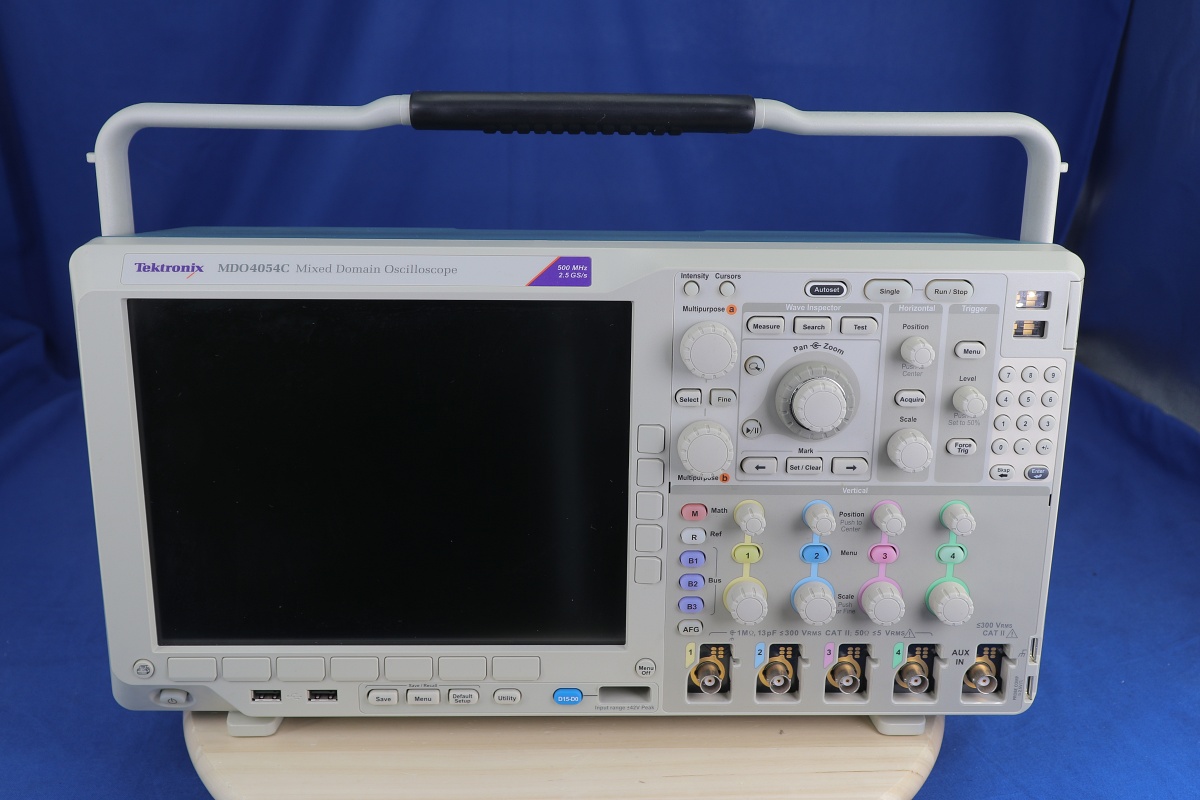

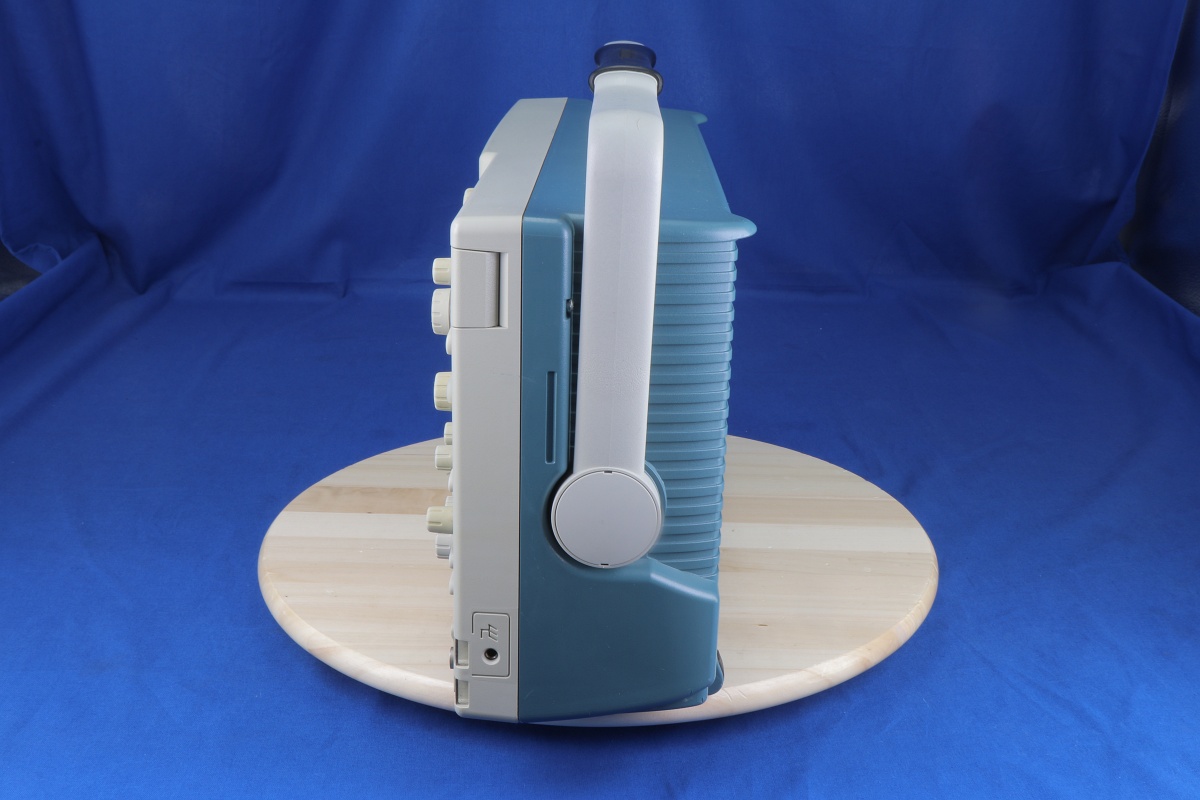

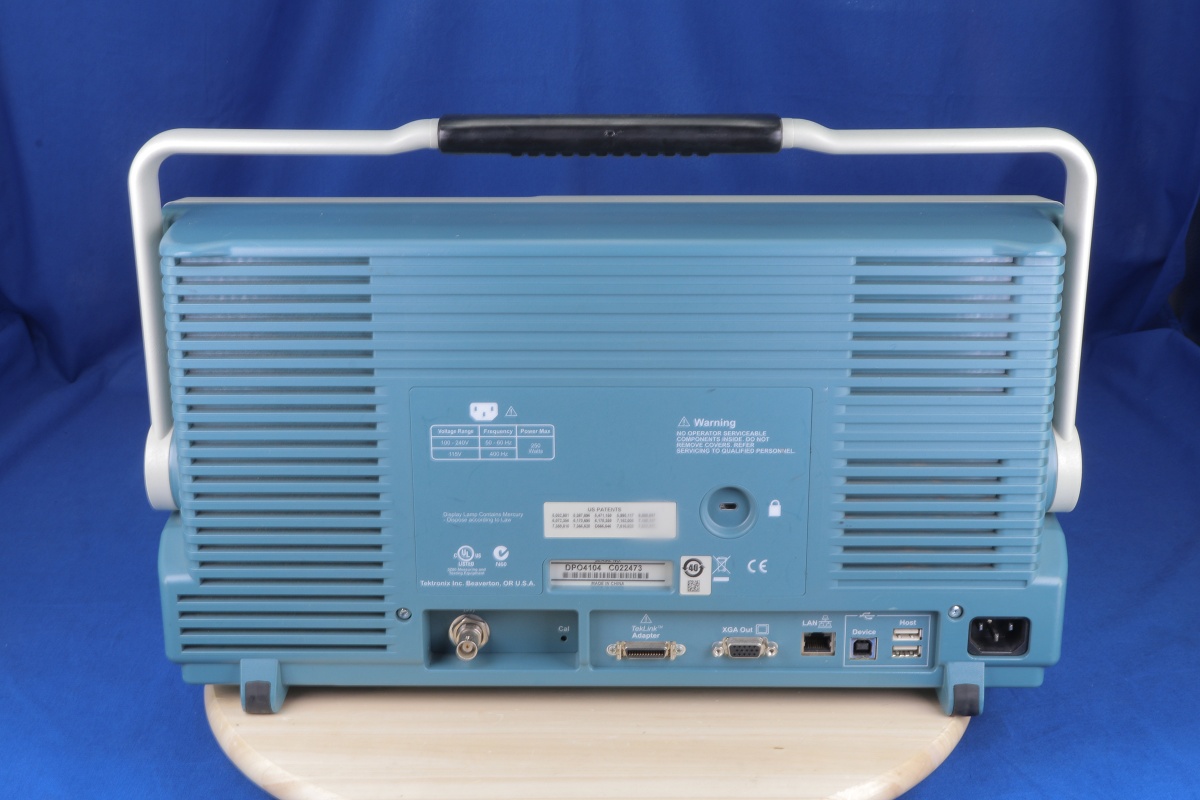

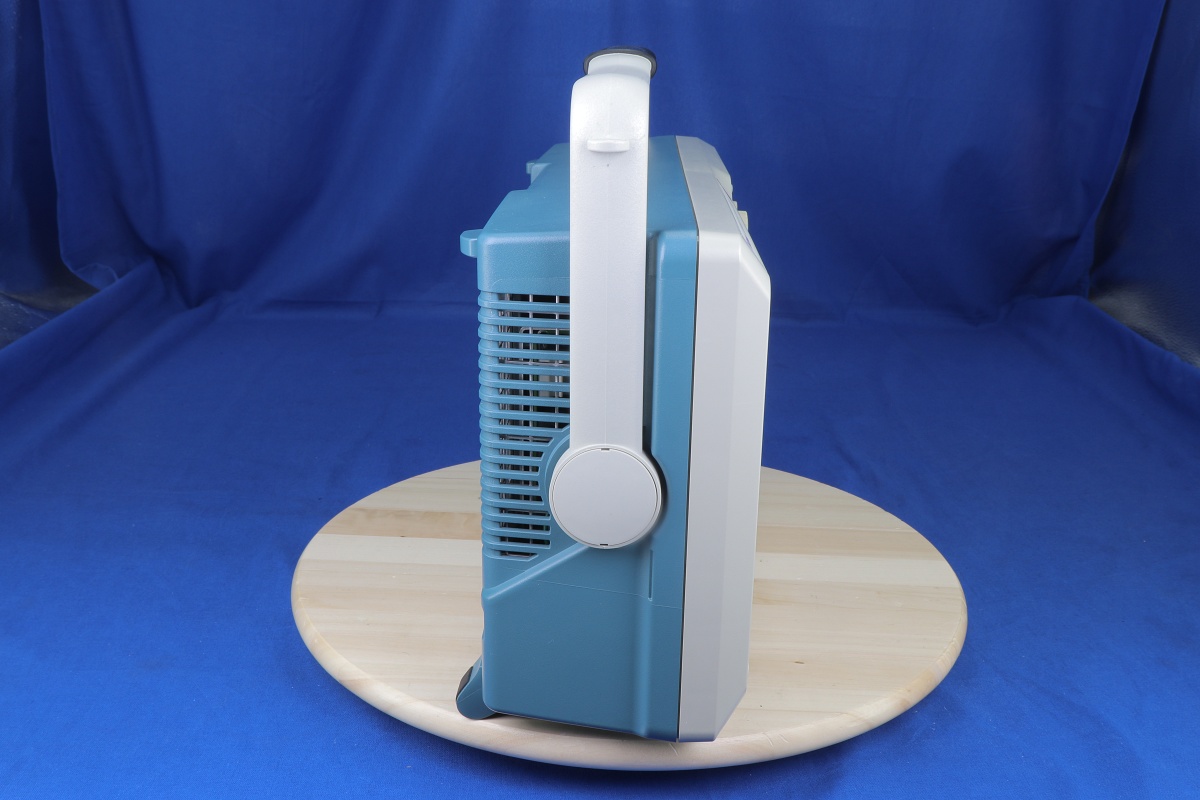

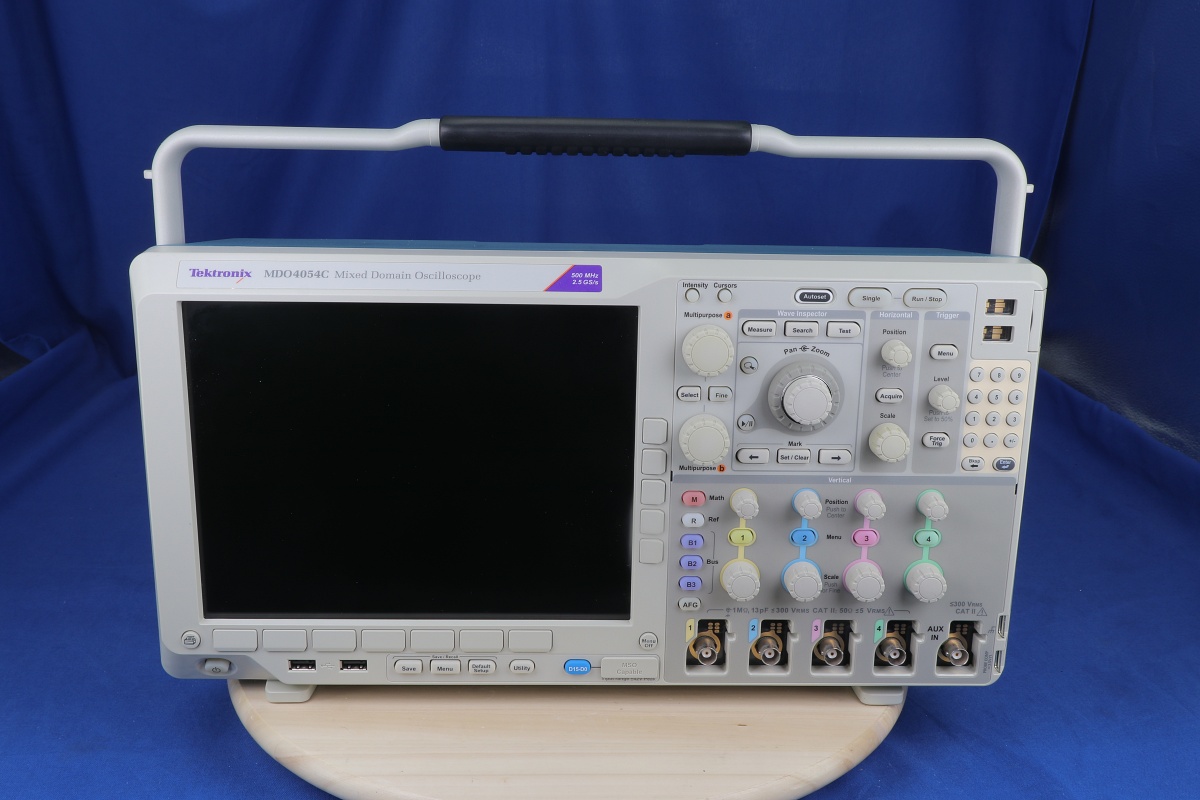

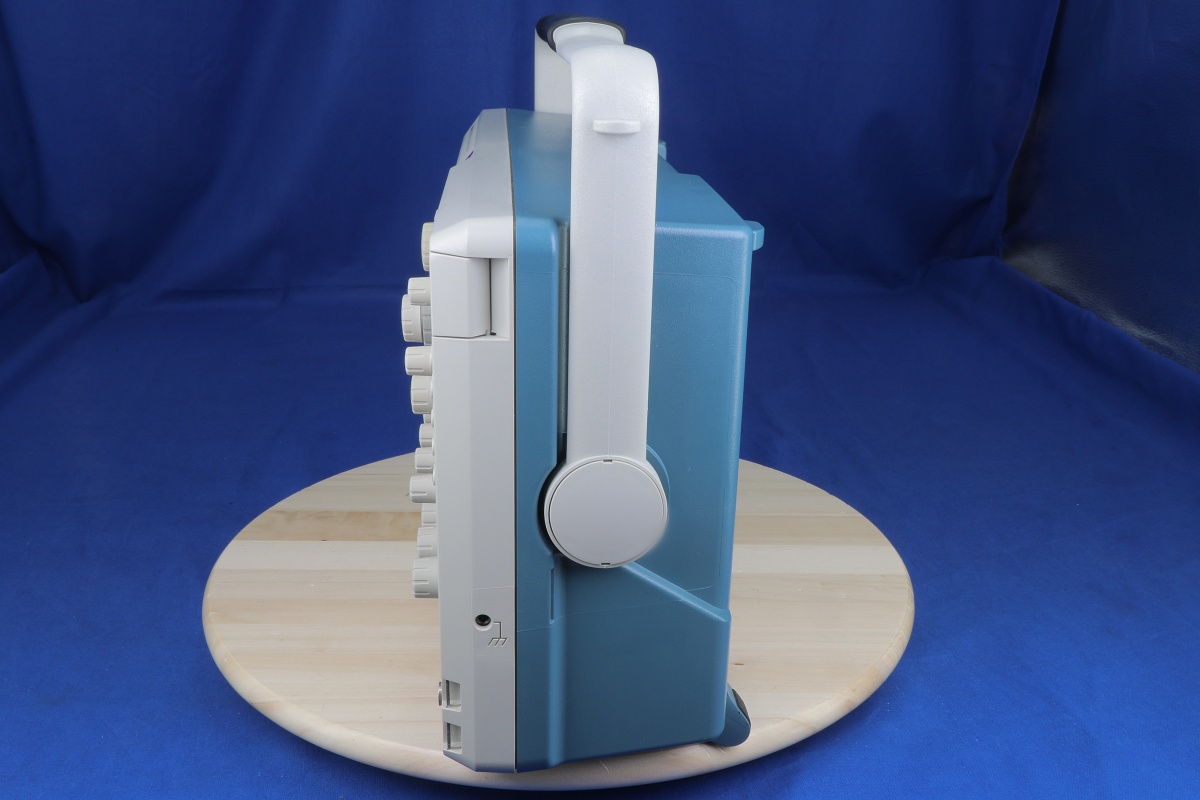

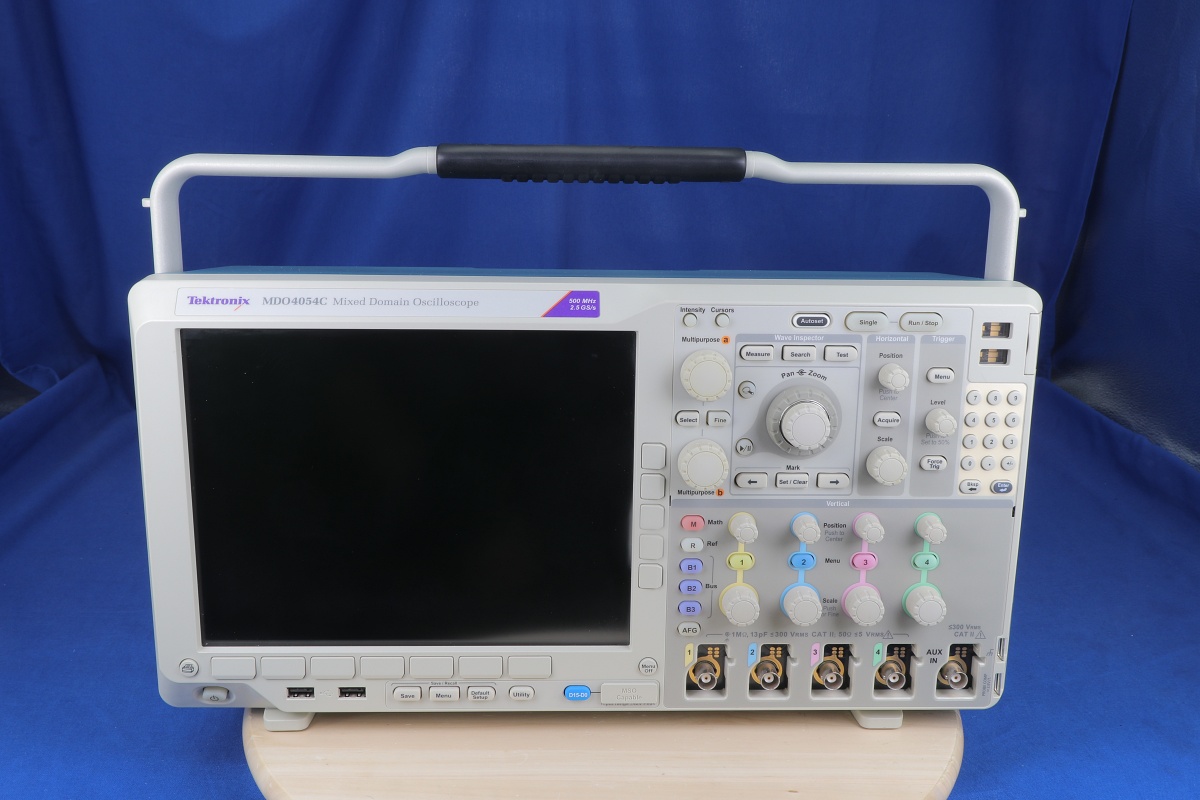

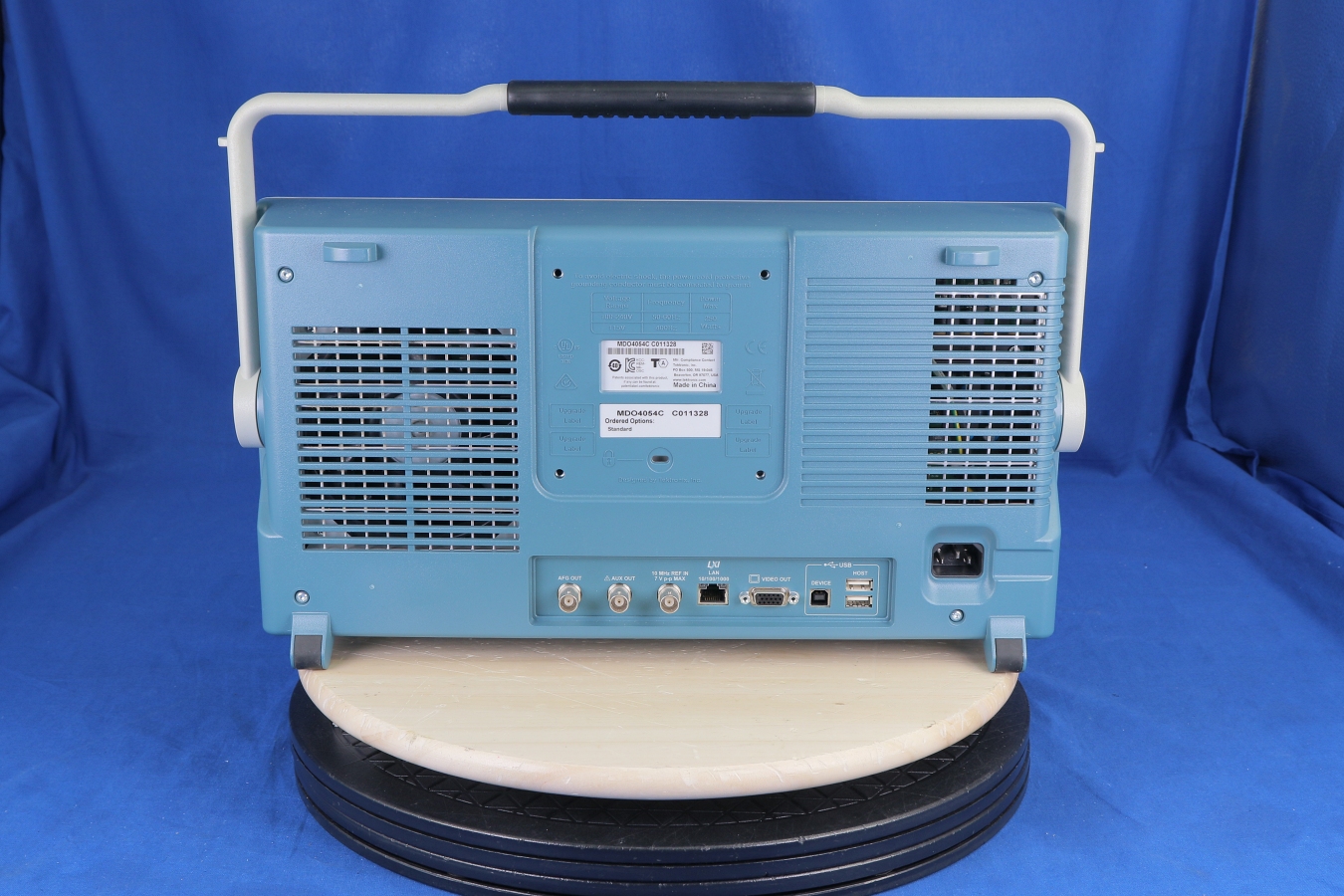

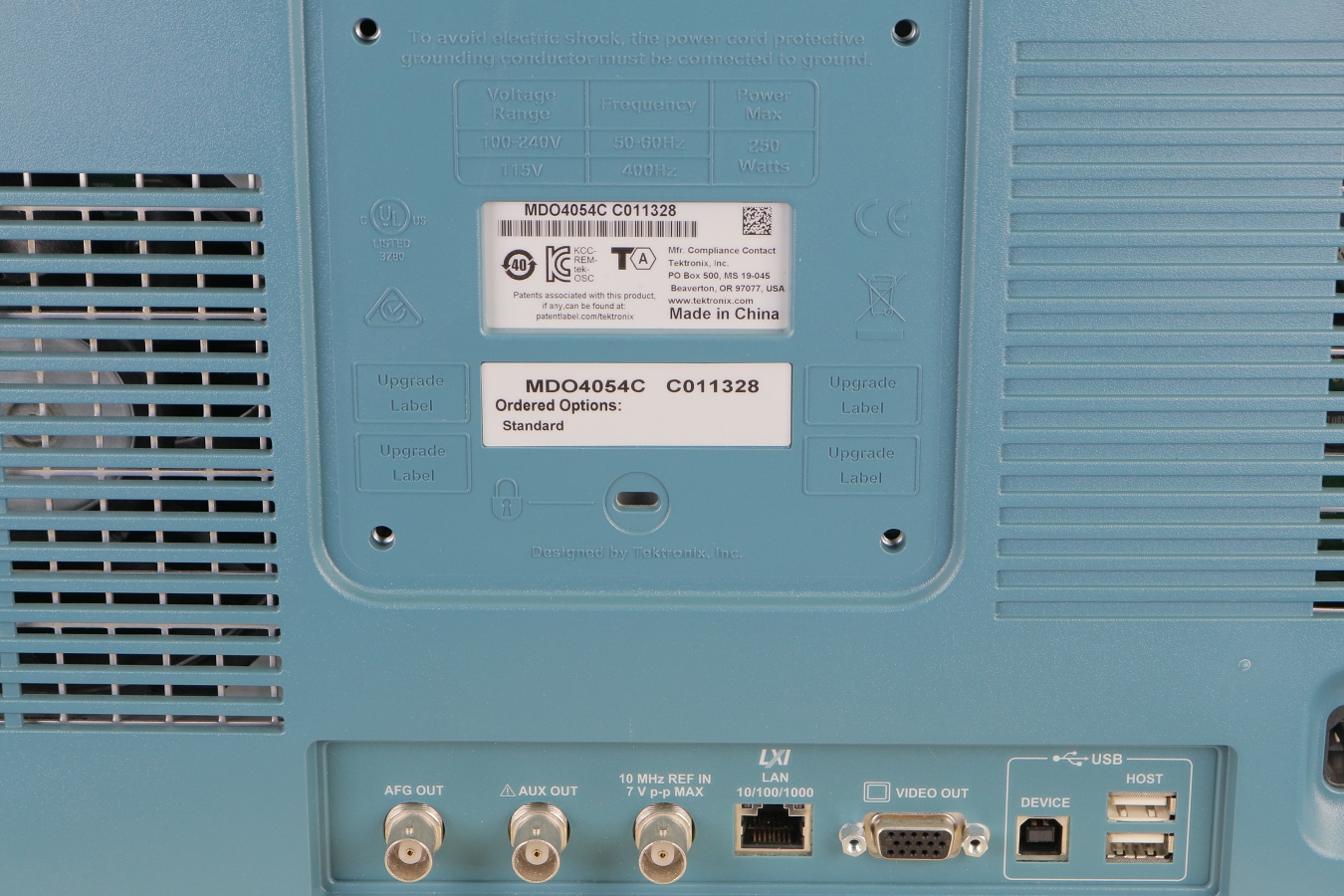

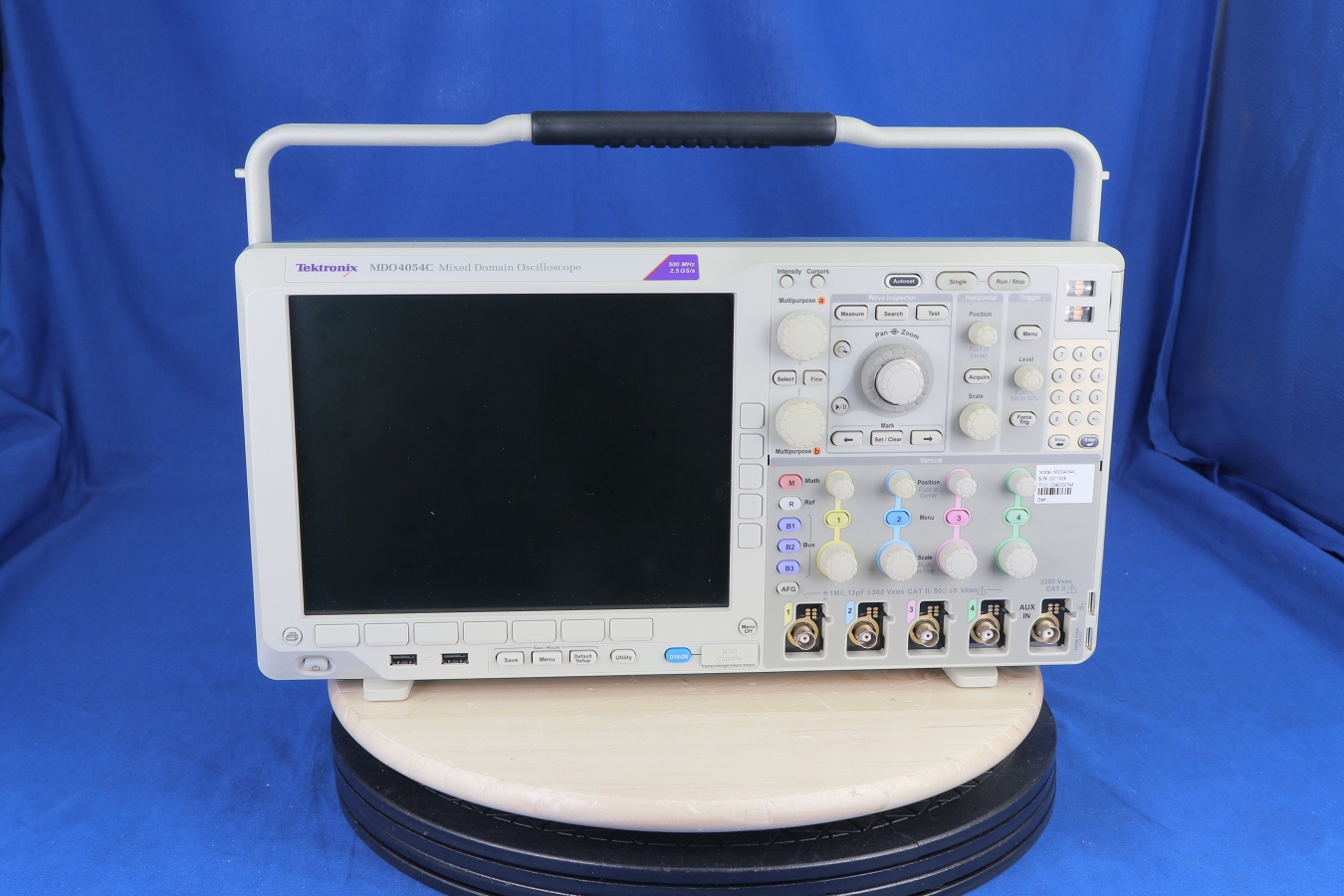

MDO4054C Tektronix Mixed Domain Oscilloscope
Bandwidth: 500 MHz
Bandwidth is upgradeable up to 1 GHz
Channels: 4
Sample Rate: 2.5 GS/s
20 M record length on all channels
REQUEST A QUOTE
MDO4054C Tektronix Mixed Domain Oscilloscope
MDO4MSO: 16 digital channels; includes P6616 digital probe and accessories /
MDO4AFG: Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation /
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
MDO4054C Tektronix Mixed Domain Oscilloscope
Price: CALL
Detail
Bandwidth: 500 MHz
Bandwidth is upgradeable up to 1 GHz
Channels: 4
Sample Rate: 2.5 GS/s
20 M record length on all channels
> 340,000 wfm/s maximum waveform capture rate
Digital Voltmeter / Frequency Counter (Free with product registration)
Performance 6-in-1 integrated oscilloscope with synchronized insights into analog, digital and spectral signals
Option
| Option | Description |
|---|---|
| MDO4AFG | Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation |
| MDO4MSO | 16 digital channels; includes P6616 digital probe and accessories |
| MDO4SEC | Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality |
| SA0 | No Spectrum Analyzer |
| SA3 | Integrated Spectrum Analyzer with frequency range of 9 kHz to 3 GHz |
| SA6 | Integrated Spectrum Analyzer with frequency range of 9 kHz to 6 GHz |
