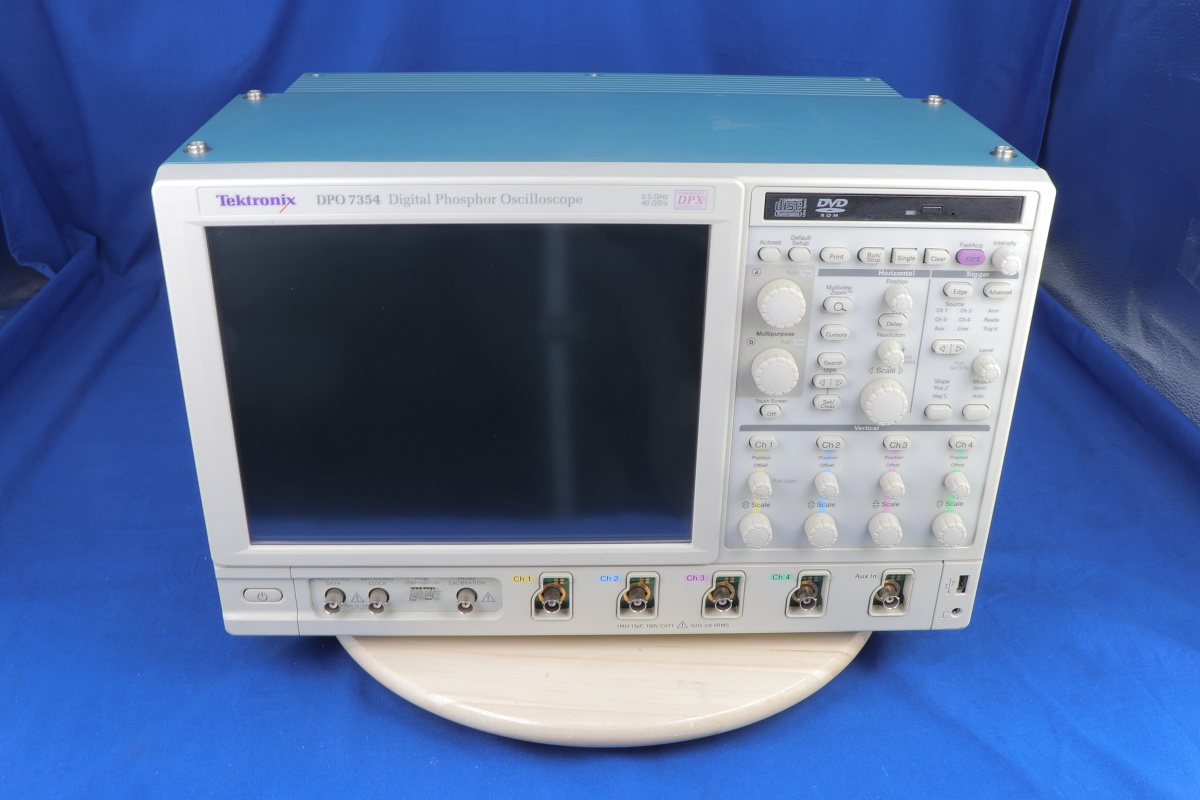

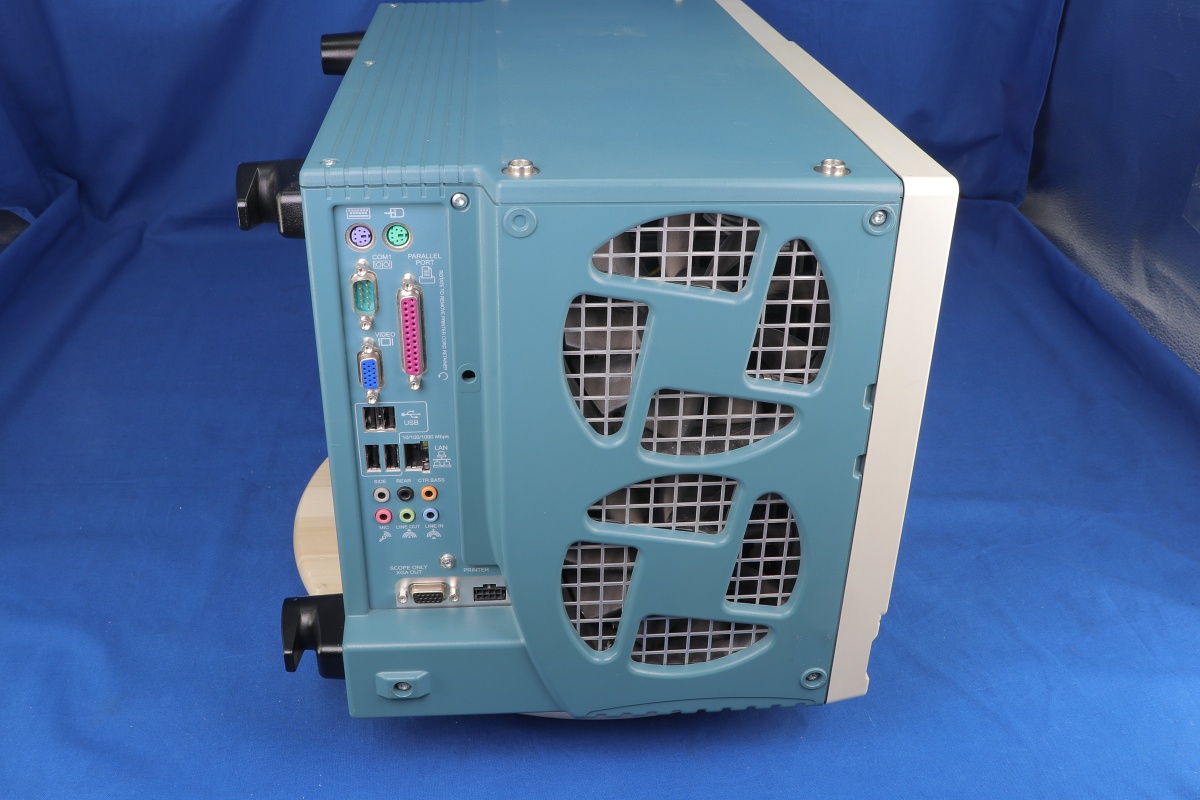

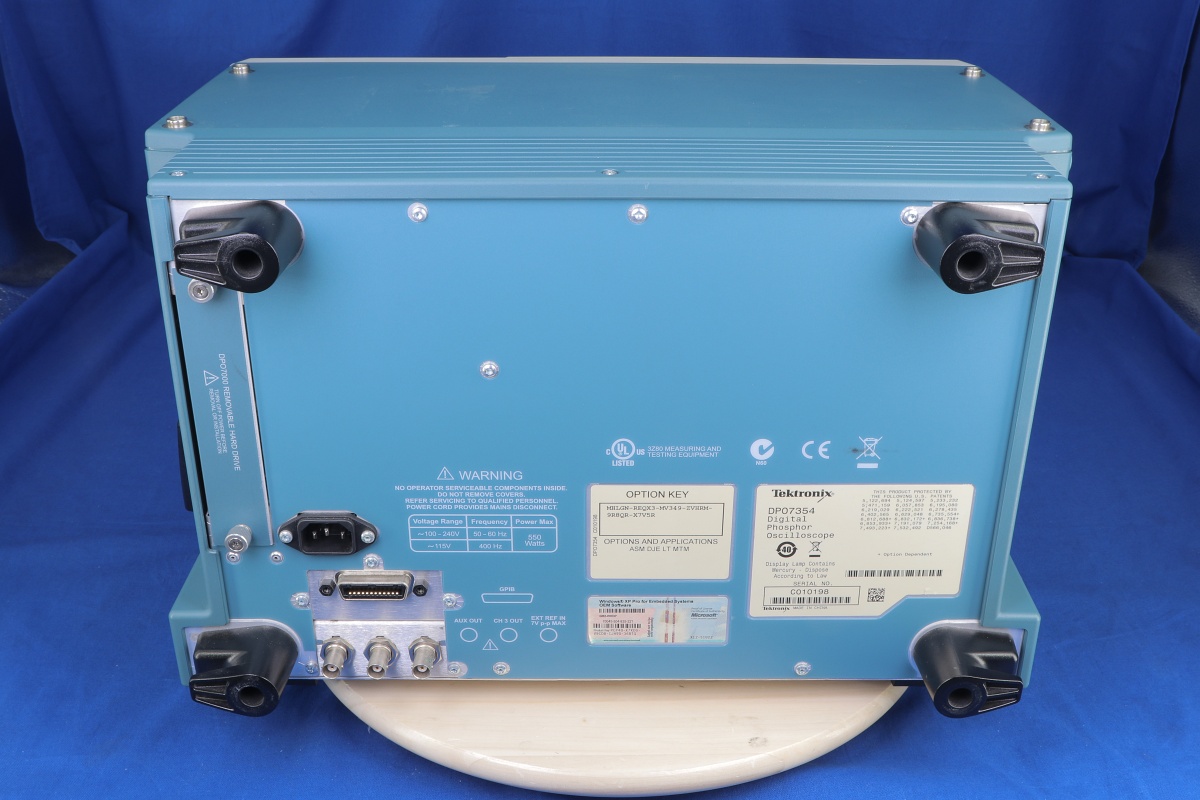

Bandwidth: 3.5 GHz 4 Channel Sample Rate: 40 GS/s Record Length: 40Mpts >250,000 wfms/s Maximum Waveform Capture Rate User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy Event Search and Mark to Find Specific Events in the Entire Waveform Applications: Signal Integrity, Jitter, and Timing Analysis Verification, Debug, and Characterization of Sophisticated Designs Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards Low-speed Serial Bus Design (I2C, SPI, RS-232, CAN, LIN, and Flexray) Investigation of Transient Phenomena Power Measurements and Analysis Spectral Analysis The DPO7354 is the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs. The DPO7354 oscilloscope includes as a standard feature a series of user-selectable bandwidth limit filters. These filters preserve the instrument’s bandwidth roll-off characteristics, flatness, and phase linearity within the new frequency range, thereby reducing the effects of out-of-band noise on measurements. Now, designers can purchase one instrument for their highest bandwidth needs and easily optimize it to handle lower-frequency measurements as well.

Option	Description
2RL	80 M max, 20 M/channel
5RL	250 M max, 50 M/channel
ASM	Advanced Event Search and Mark
DDRA	DDR Memory Bus Analysis
DJA	Jitter and Eye Analysis Tools – Advanced (DPOJET)
DJE	DPOJET Jitter and Eye-Diagram Analysis Essentials
JA3	Advanced Jitter Analysis Software
LSA	Low-speed Automotive Serial Analysis, includes CAN Trigger, CAN/LIN Decode and Analysis
LT	Limit Testing
MTM	Mask Testing for ITU-T, ANSI T1.102, Ethernet, SONET/SDH, Fibre Channel, USB 2.0, IEEE 1394b, Rapid I/O, OIF, CPRI, and Serial Video
ST	Serial Pattern Trigger
USB	USB 2.0 Serial Triggering and Analysis (LS, FS, HS)
VNM	TDSVNM CAN and LIN Timing and Protocol Decode (no CAN triggering included)
