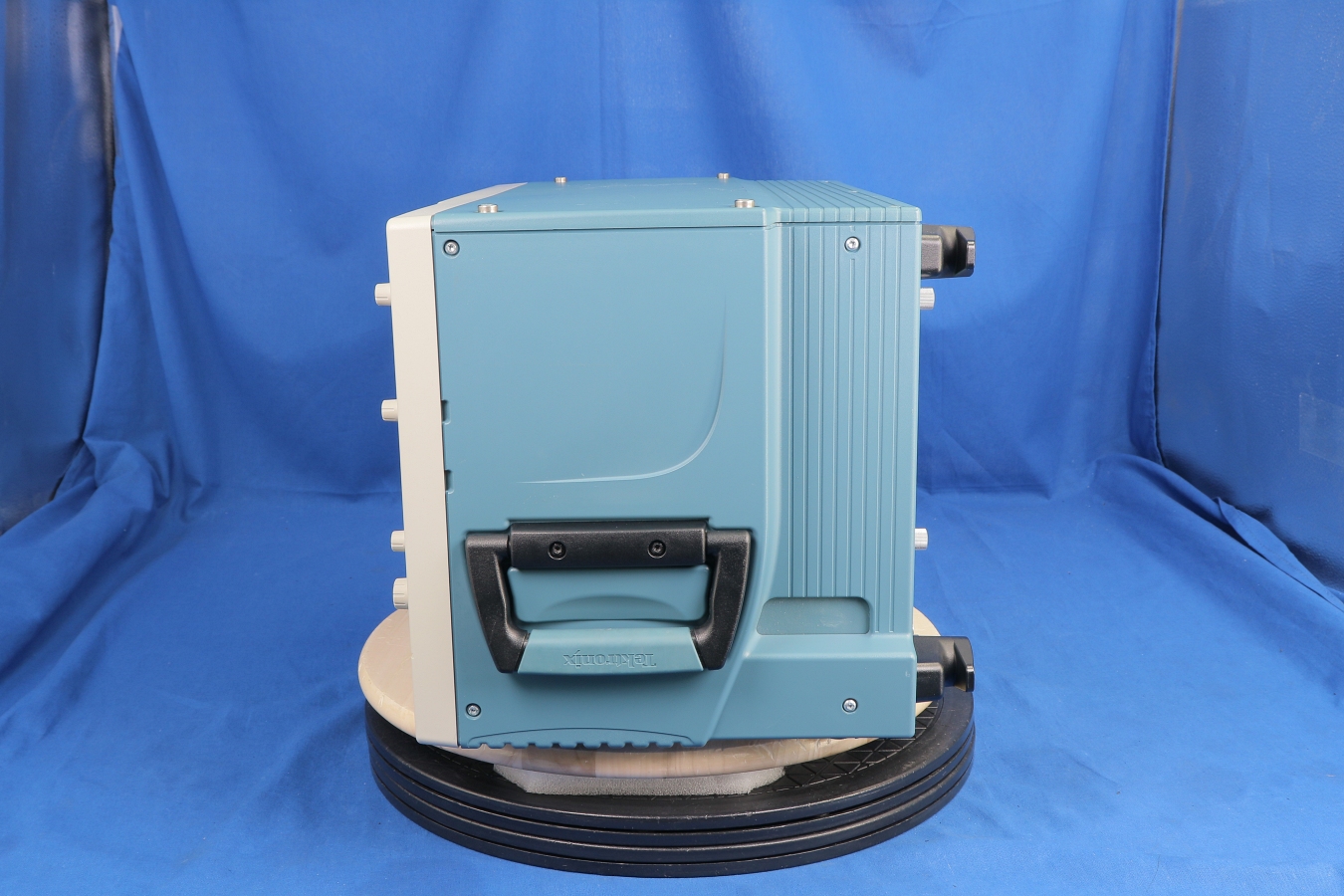

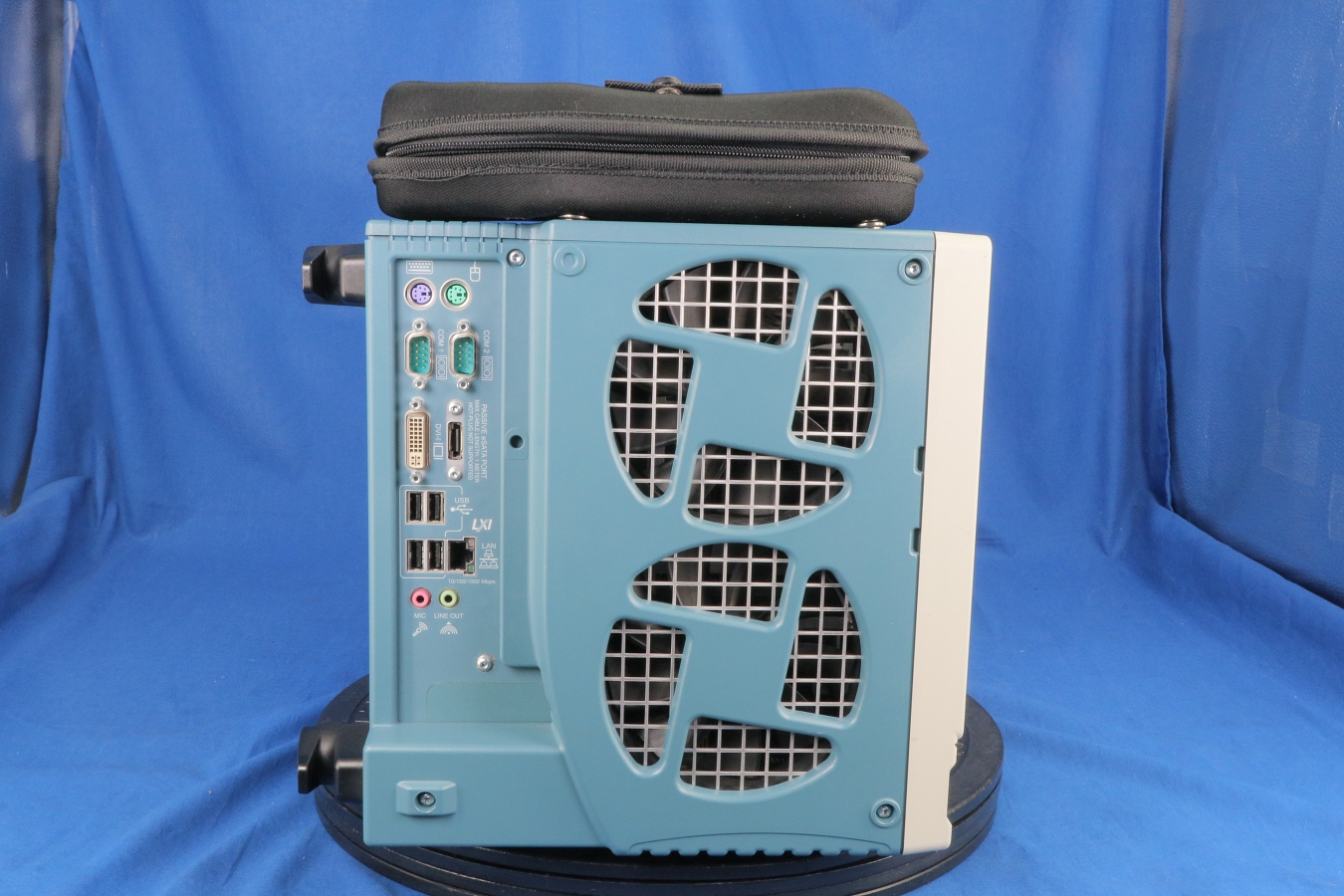

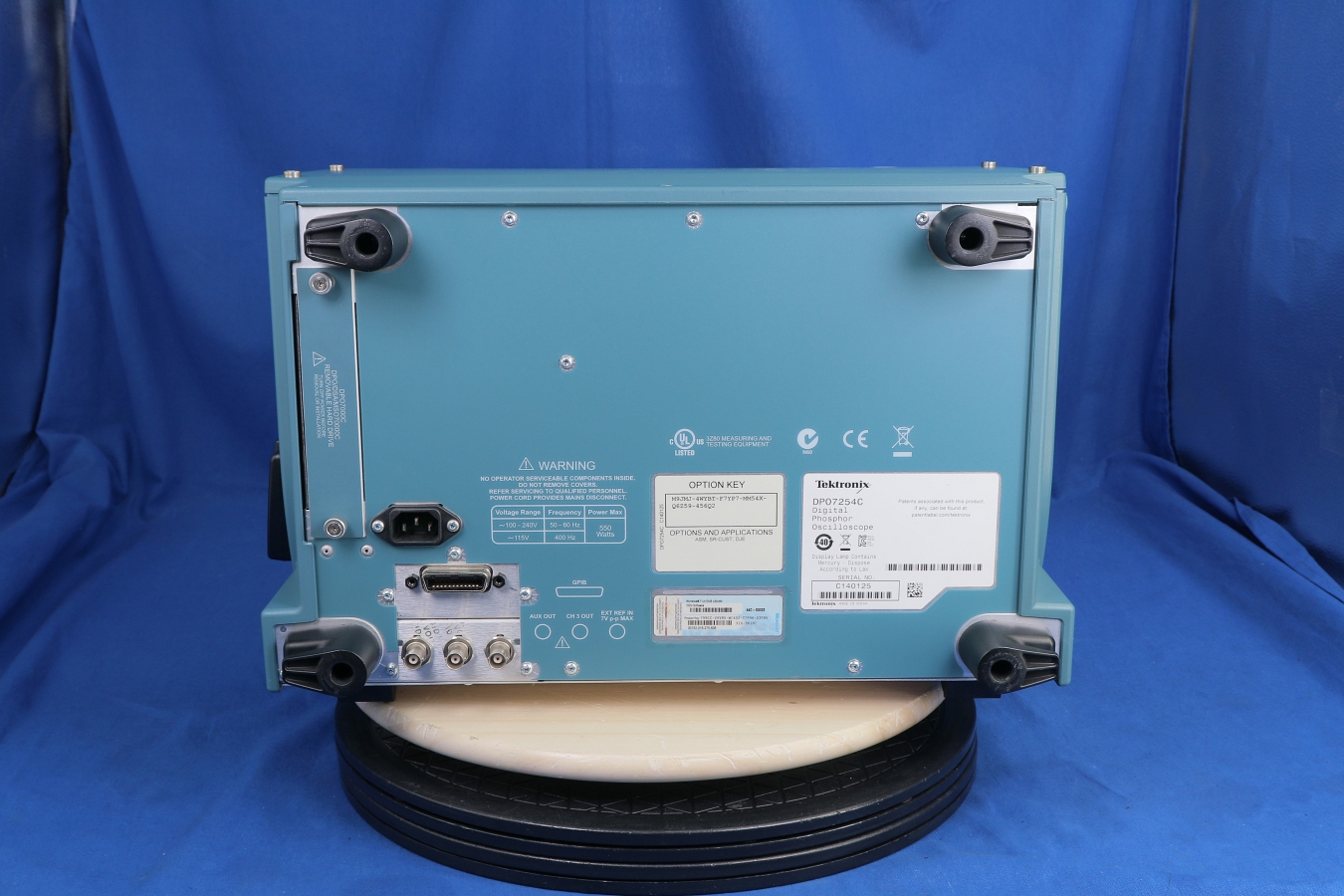

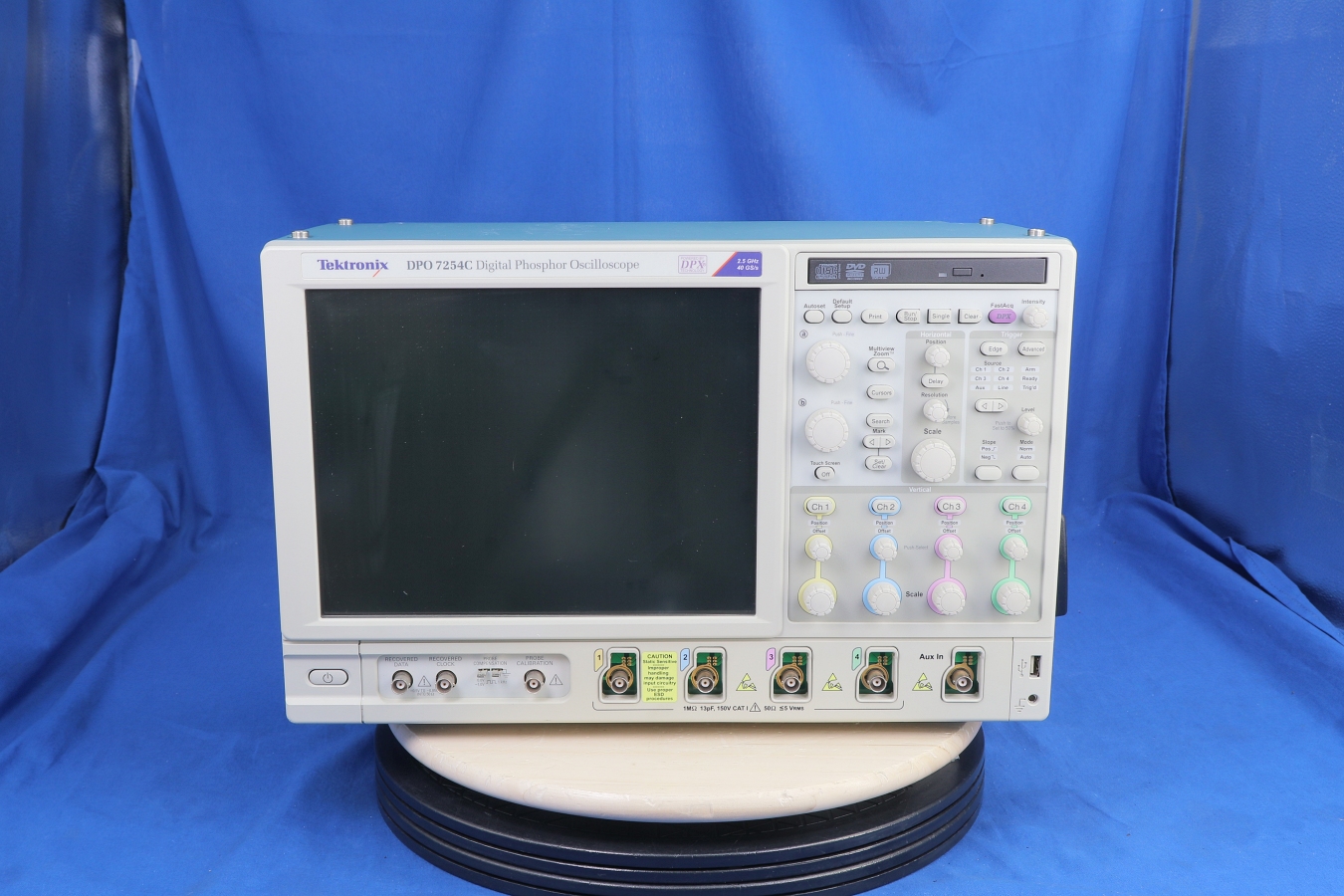

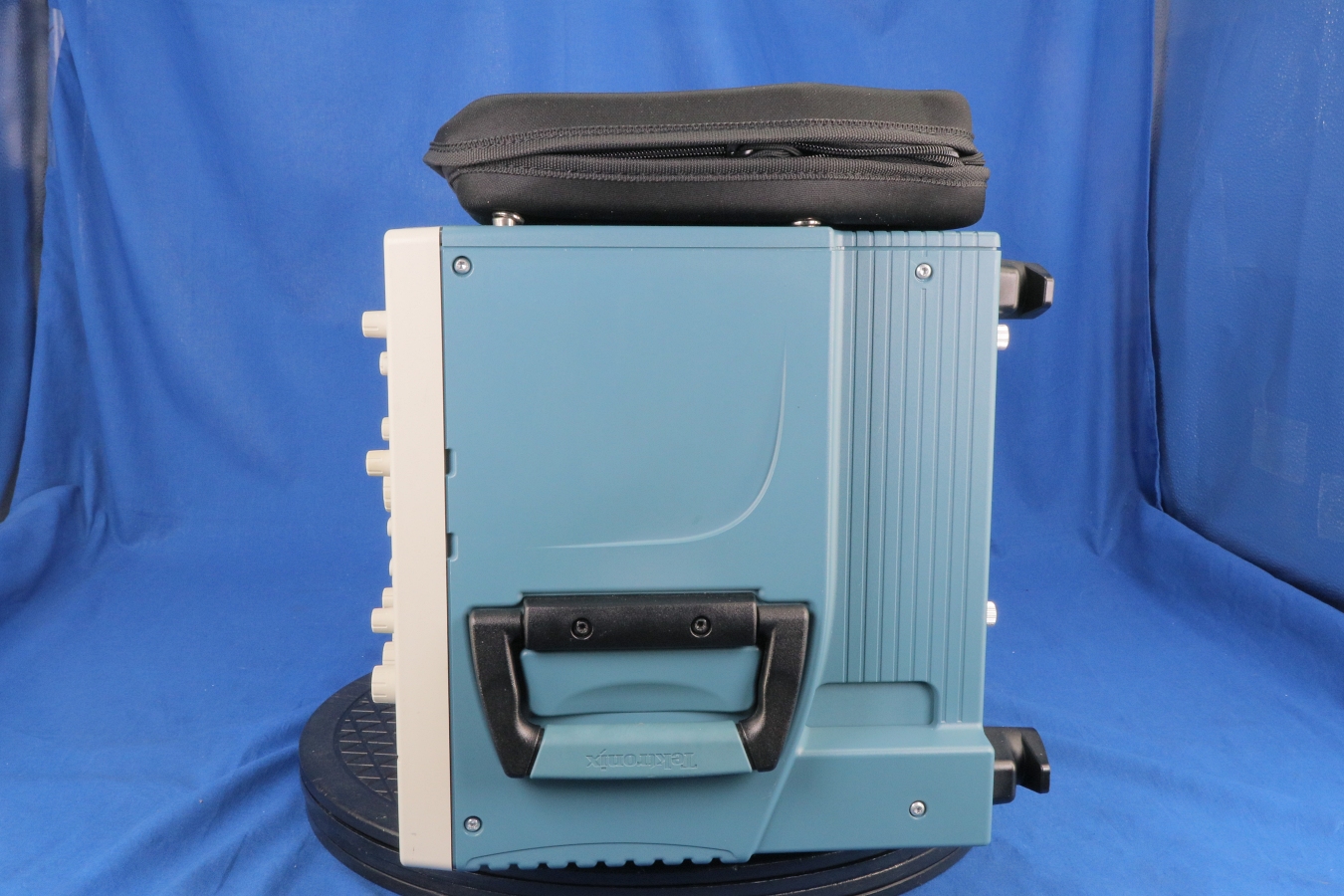

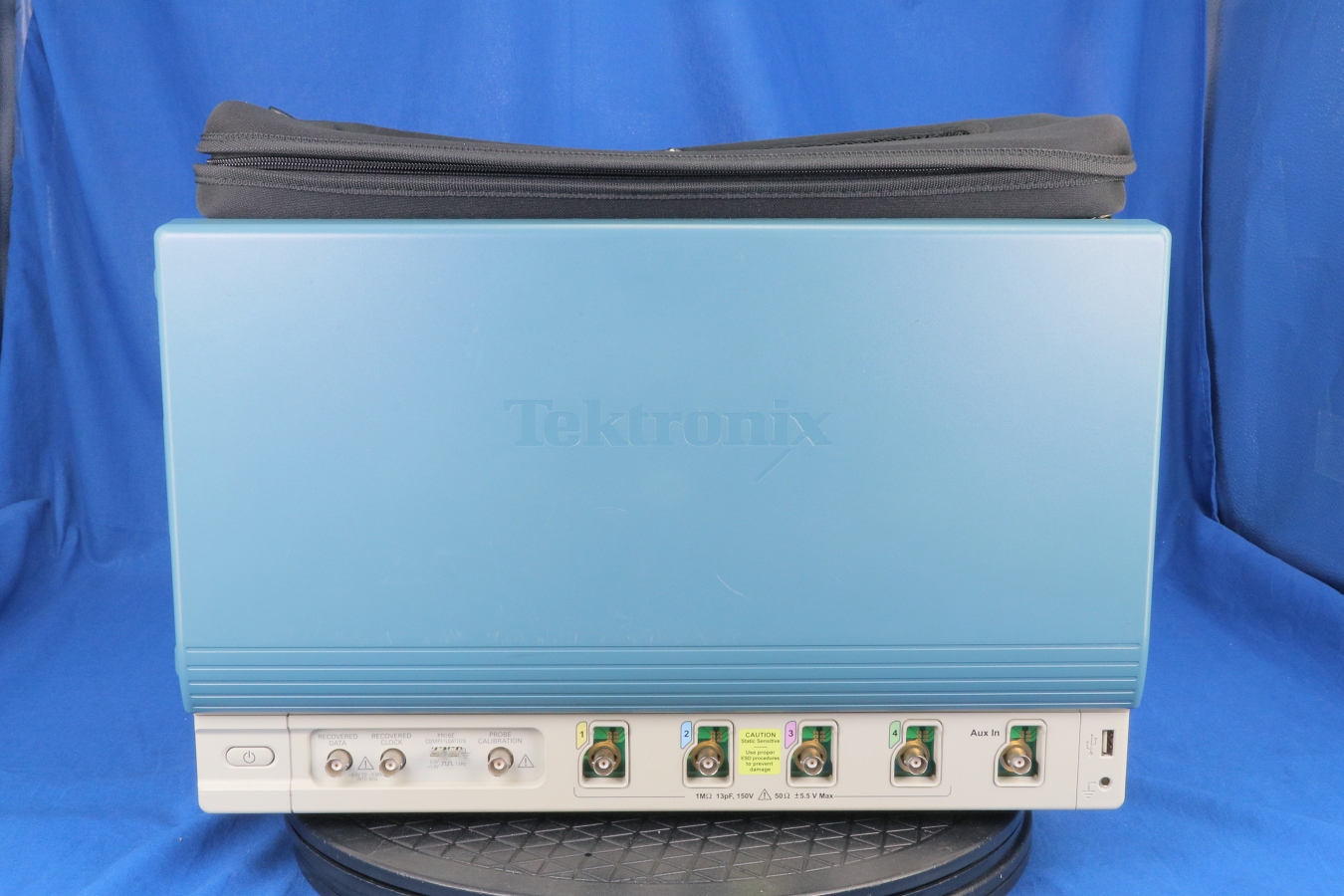

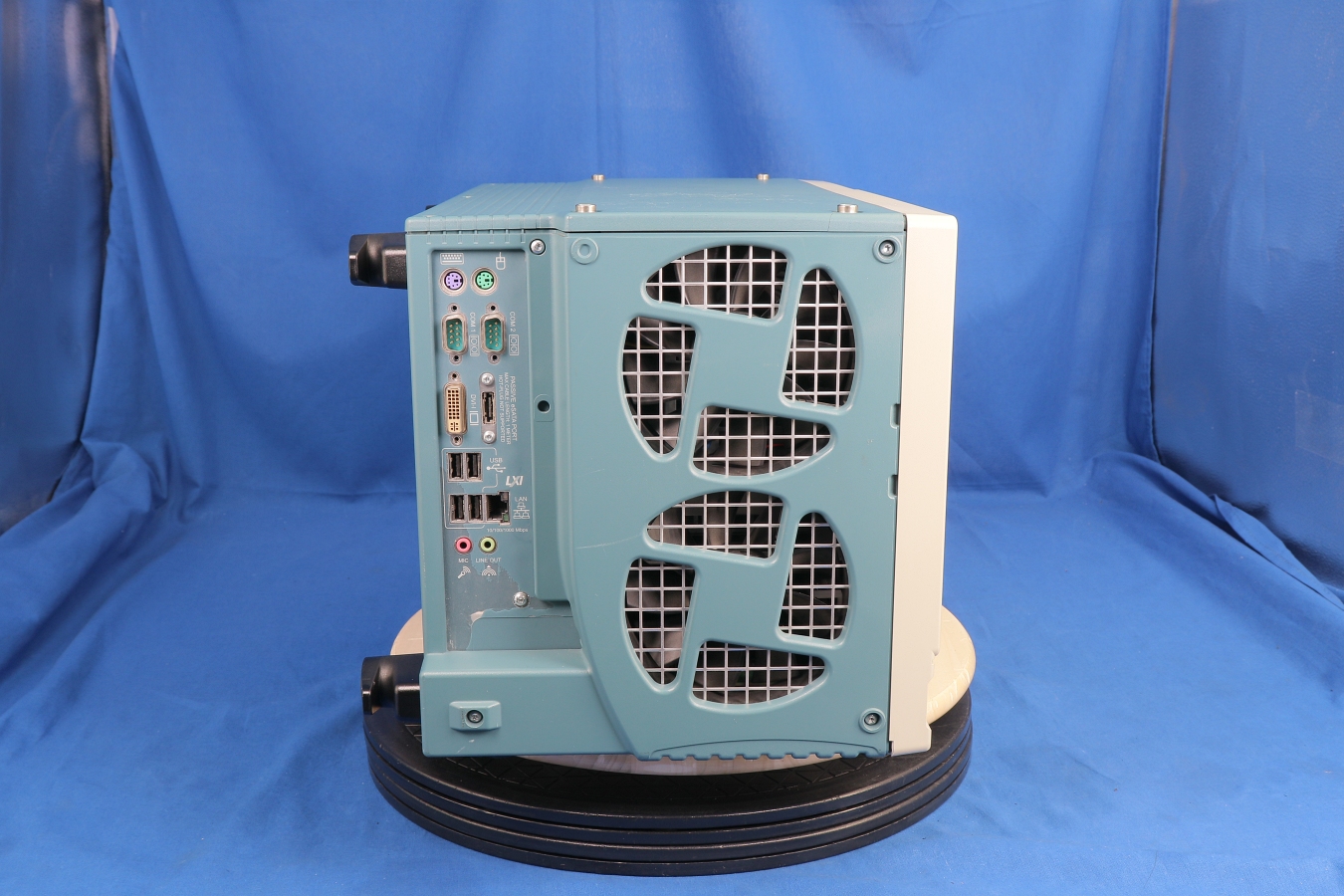

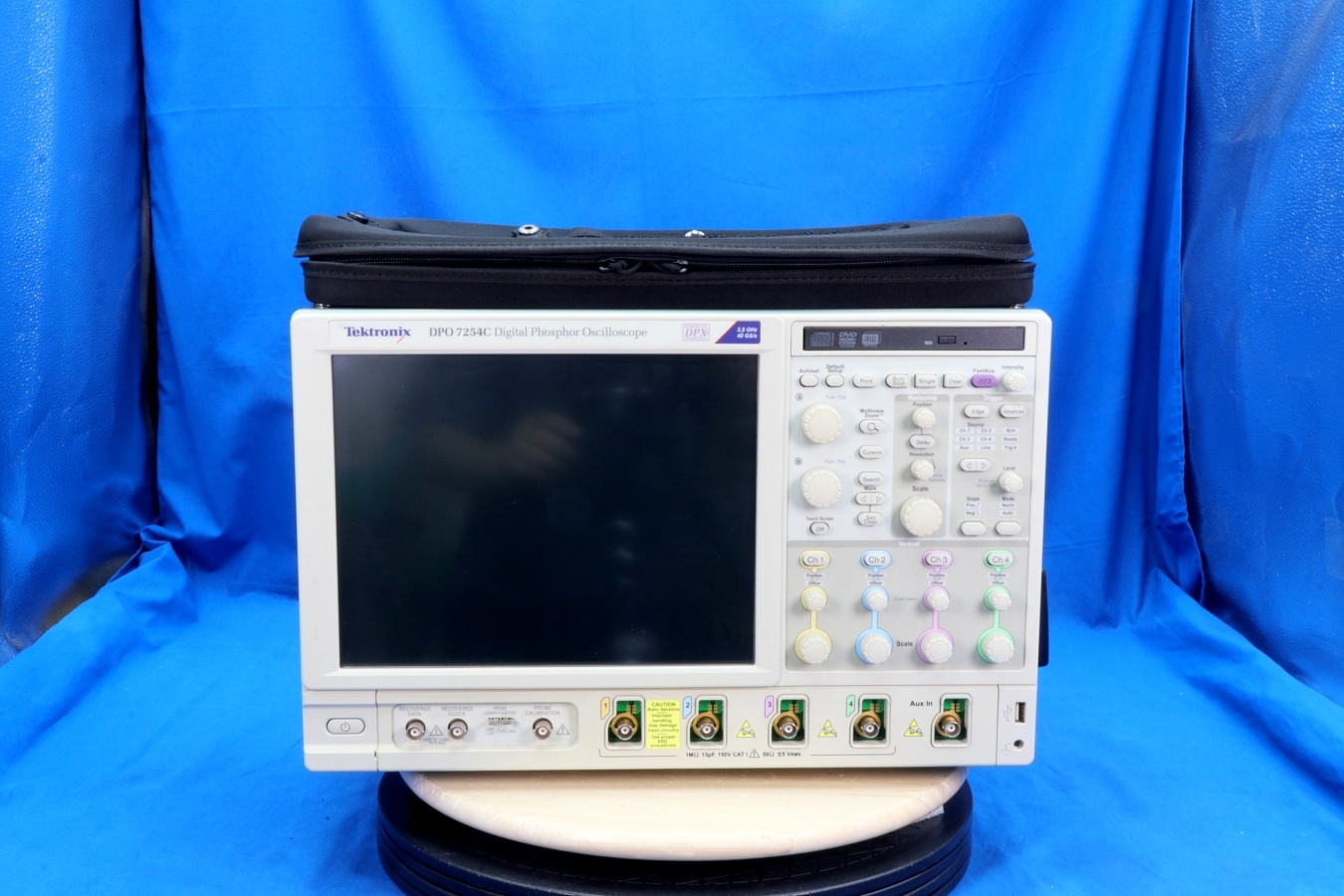

DPO7254C Tektronix Digital Oscilloscope
Bandwidth: 2.5 GHz
4 Channels
Sample Rate: 40 GS/s (1 channel)
Record Length: 125M (1 channel)
REQUEST A QUOTE
DPO7254C Tektronix Digital Oscilloscope
Price: CALL
DPO7254C Tektronix Digital Oscilloscope
Price: CALL
Detail
Bandwidth: 2.5 GHz 4 Channels Sample Rate: 40 GS/s (1 channel) Record Length: 125M (1 channel) Up to 500 megapoint record length with MultiView Zoom™ >250,000 wfms/s maximum waveform capture rate with FastAcq™ FastFrame™ segmented memory acquisition mode with >310,000 waveforms per second capture rate User-selectable bandwidth limit filters for better low-frequency measurement accuracy

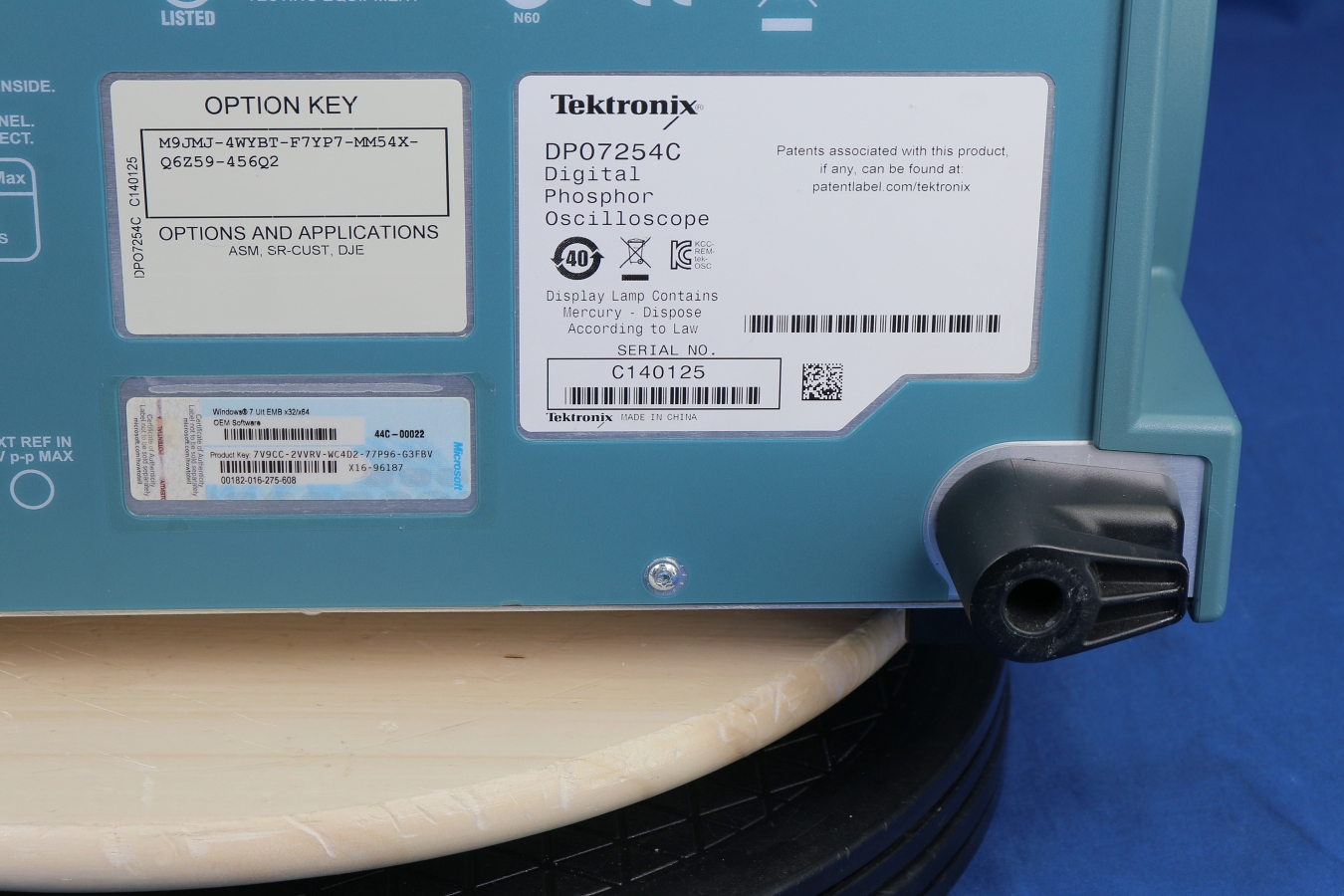

Option

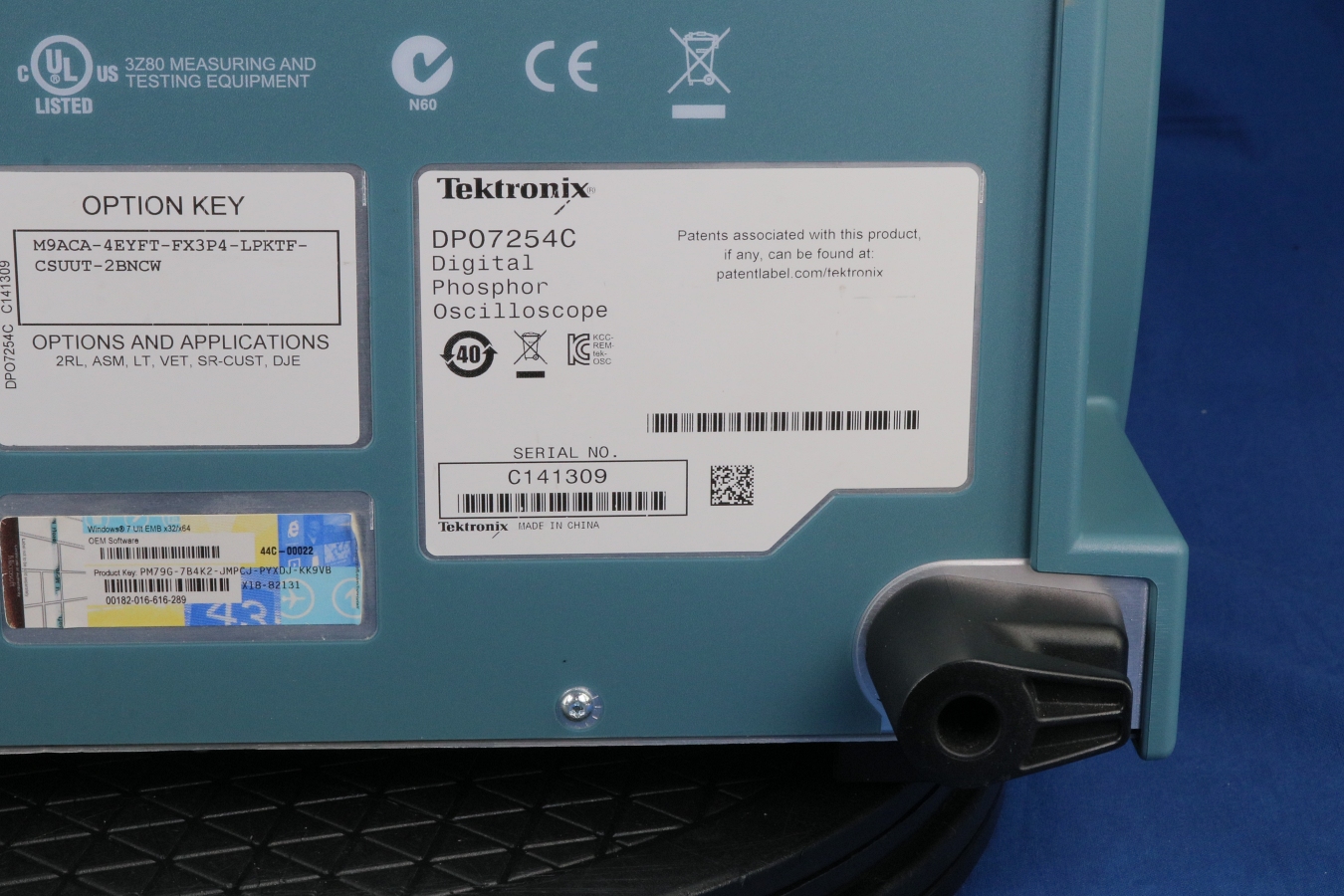

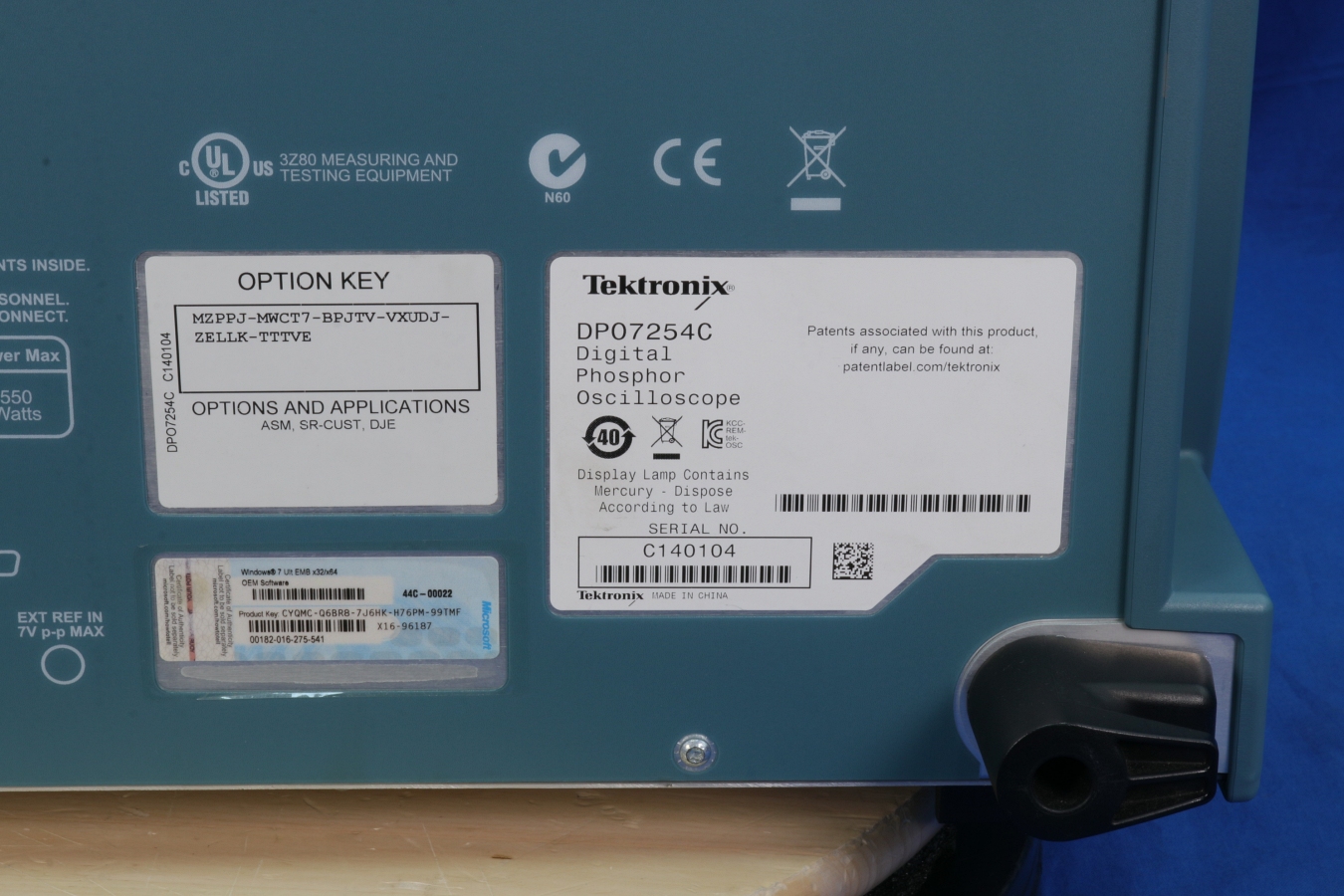

| Option | Description |
|---|---|
| 2RL | 80 Meg Max 20M/CH |
| ASM | Advanced Search & Mask |
| DJA | Jitter and Eye Diagram Tools - Advanced |
| DJE | Jitter and Eye Diagram Tools - Essentials |
| ET3 | Ethernet compliance test S/W |
| LT | Limit Test |
| PWR | Advanced Power Analysis |
| SR-COMP | Computer Serial Trigger & Analysis(RS232/422/485/UART) |
| SR-CUST | Custom Serial Analysis |
| SR-EMBD | Embedded Serial Triggering and Analysis (I2C, SPI) |
| SSD | |
| USB2 | |
| VET | Visual Trigger and Search |
