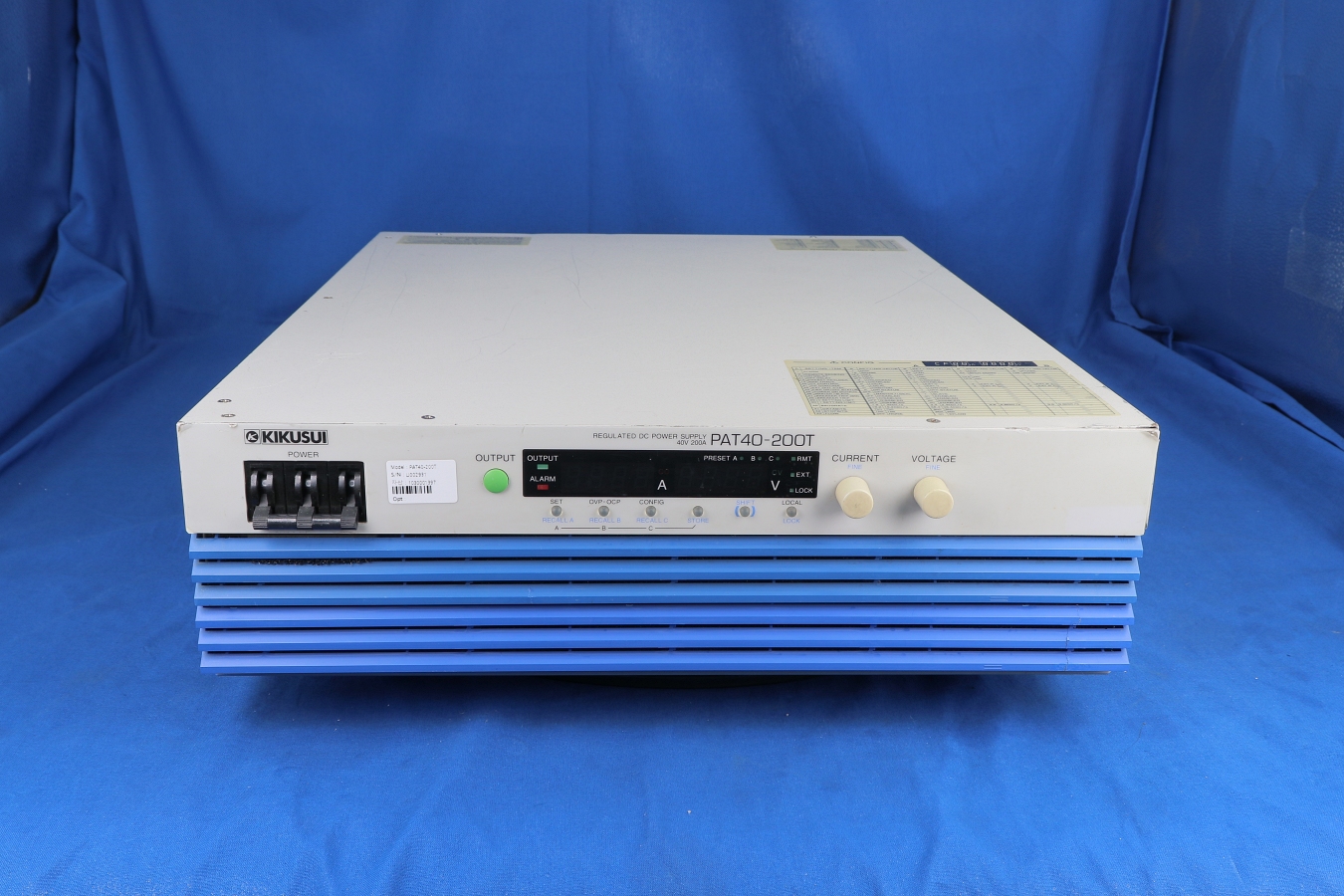

Additional Features: Output capacity of 8 kW from a unit of standard rack width (430 mm), a height of about 130 mm (3U), and a depth of about 550 mm. Incorporates a power factor correction circuit power to improve the environment and contribute to energy saving Capable of full-load, continuous operation even at an ambient temperature of 50 C. High noise resistance Can be configured in parallel with a master / slave setup to supply up to 40 kW Configuration memory feature lets you store and call three sets of voltage / current values Eight protective features to guard against overvoltage, overcurrent, etc. Capable of external analog control, monitor output (voltage outout and current output), and status output. Capable of setting a delay time (0.1 to 10.0 seconds) for current power output following the turning on of the output switch (OUTPUT ON / OFF delay). Full Version The trigger function more freedom when measuring timing. Equipped with an RS-232C interface is standard. IEEE 488.2 standard compliant interface and SCPI commands. The PAT-T Series is a constant voltage / constant current, auto-shifting DC Power Supply. It features a soft switching system that offers greater efficency and lower noise. At the same time, it makes full use of high-density packaging technology to reduce the units size and weight.
