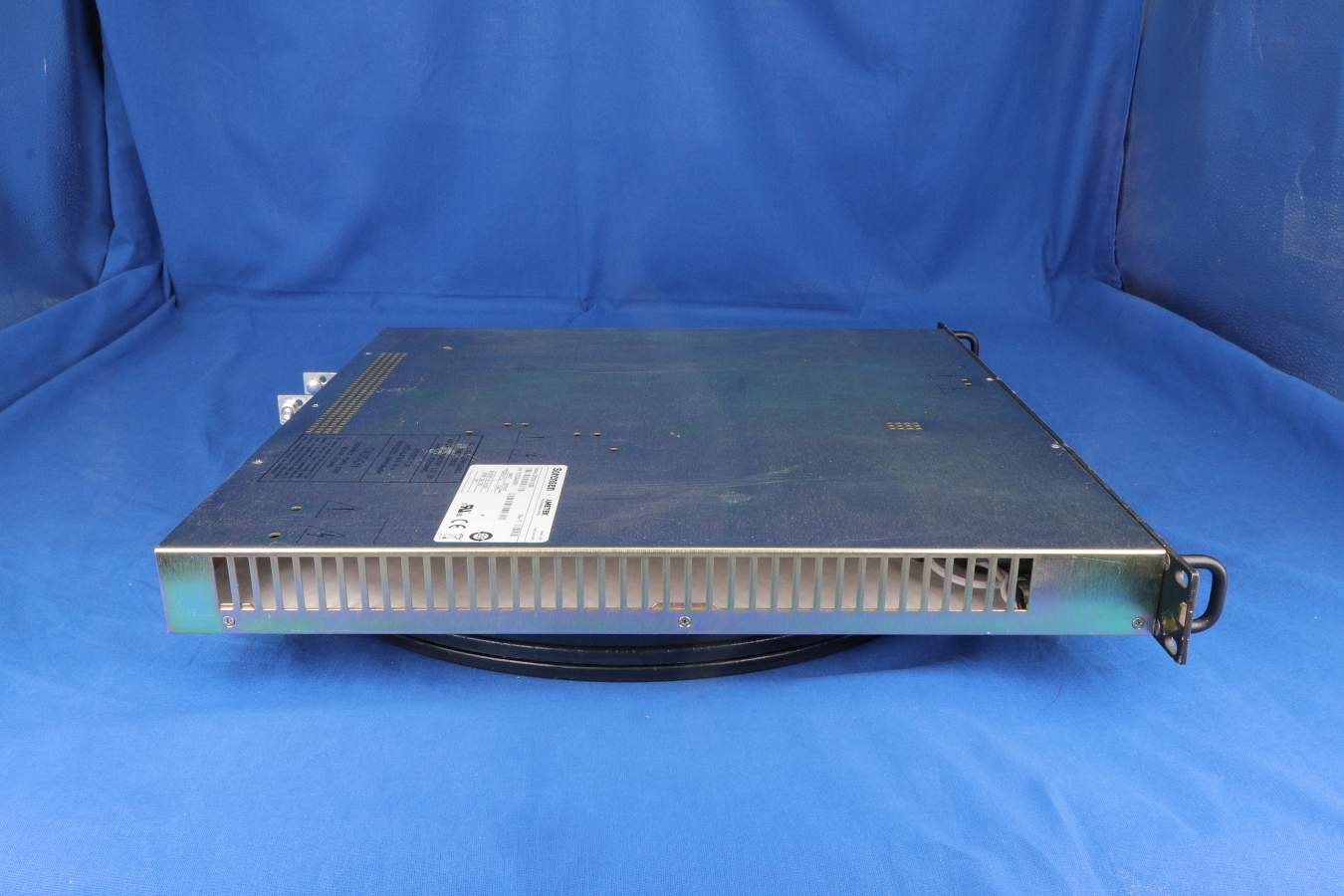

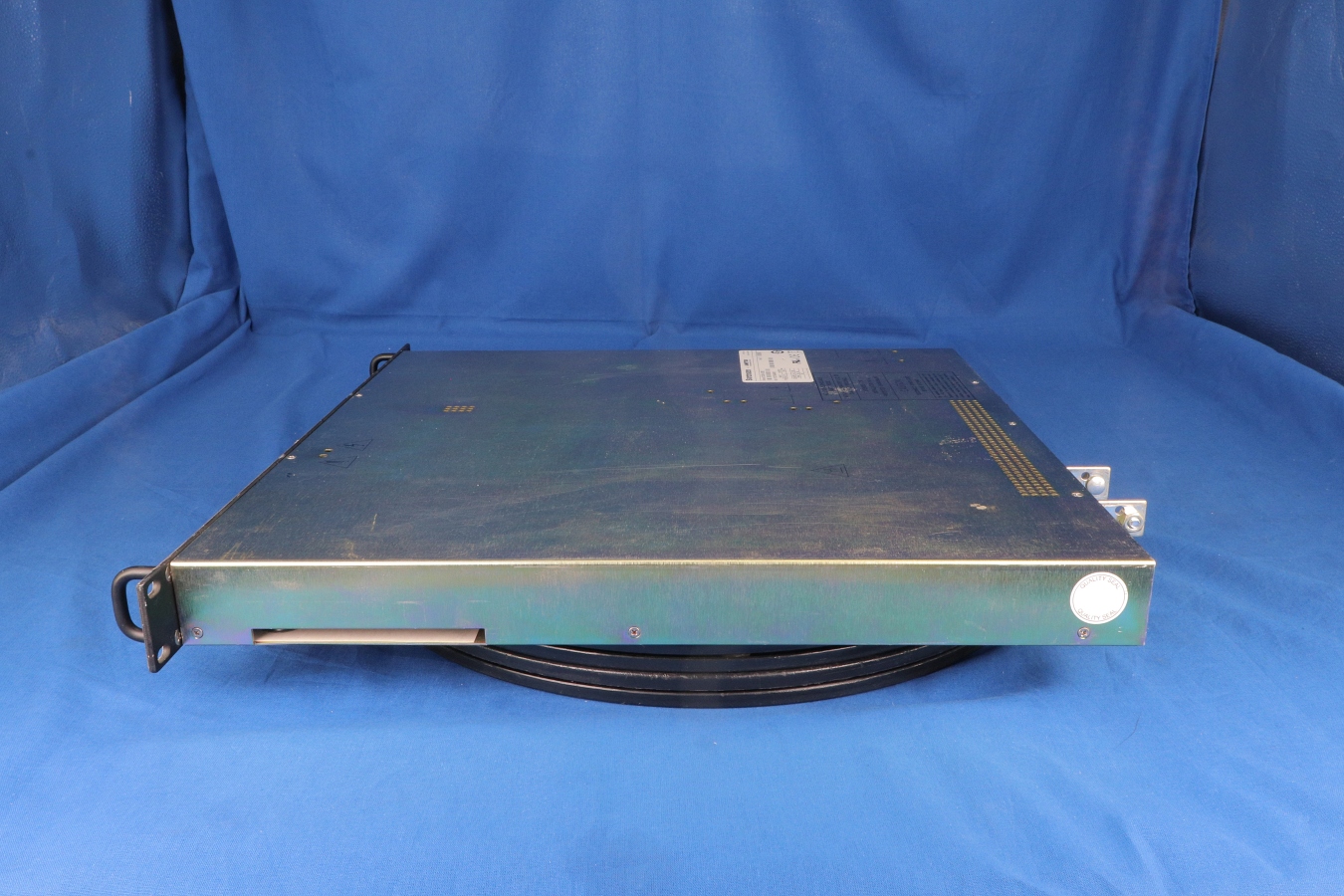

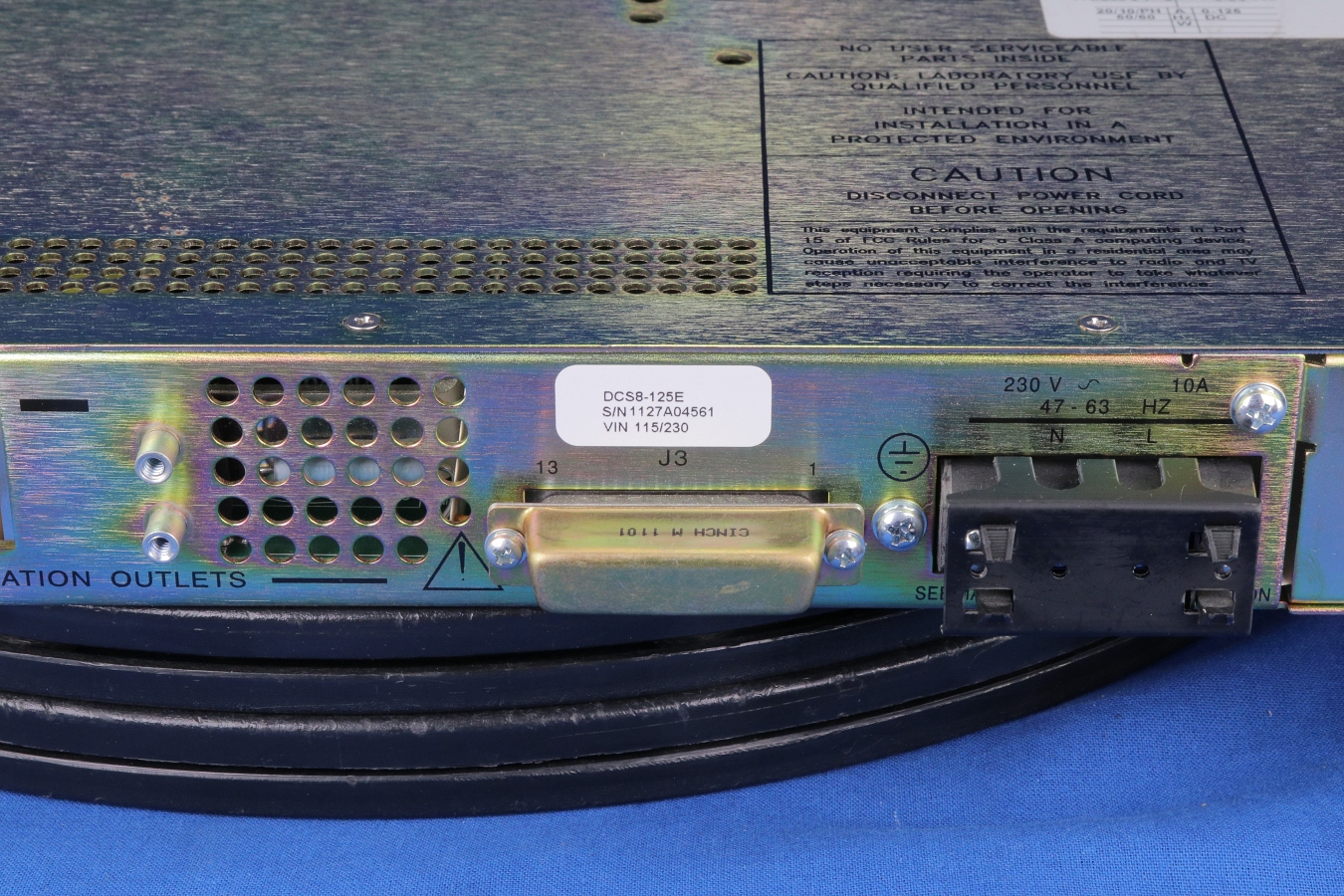

DCS8-125E Ametek-Sorensen DC Power Supply
Additional Features:
Voltage: 0-8V
Current: 0-125A
Power: 1000W
200-250 VAC/100-132 VAC
47-63 Hz
Line and Load regulation: 0.1%
High power density/low ripple and noise
High programming resolution with Ethernet interface
Constant voltage and current mode
Remote sensing
Isolated analog control and monitoring (optional)
The Sorensen DCS8-125E utilizes switchmode technology to achieve high power density in a low profile chassis. The design platform provides a highly reliable power supply for years of constant use.
The Sorensen DCS8-125E is ideally suited for a wide range of applications requiring DC power in a small form factor. Applications range from manufacturing test and burn-in of automotive components, avionics electronics, telecommunications and consumer products to beam steering, process control and laboratory R&D use.
