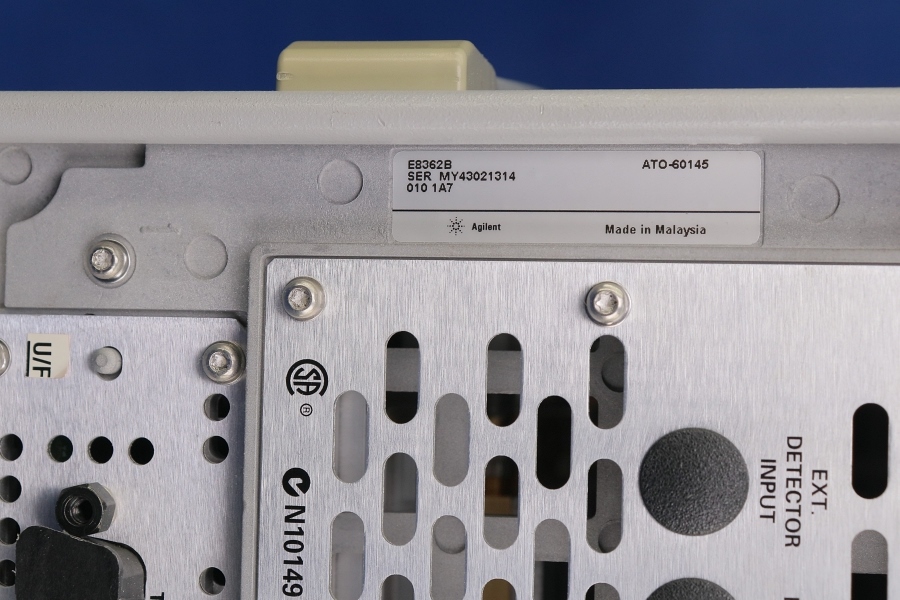

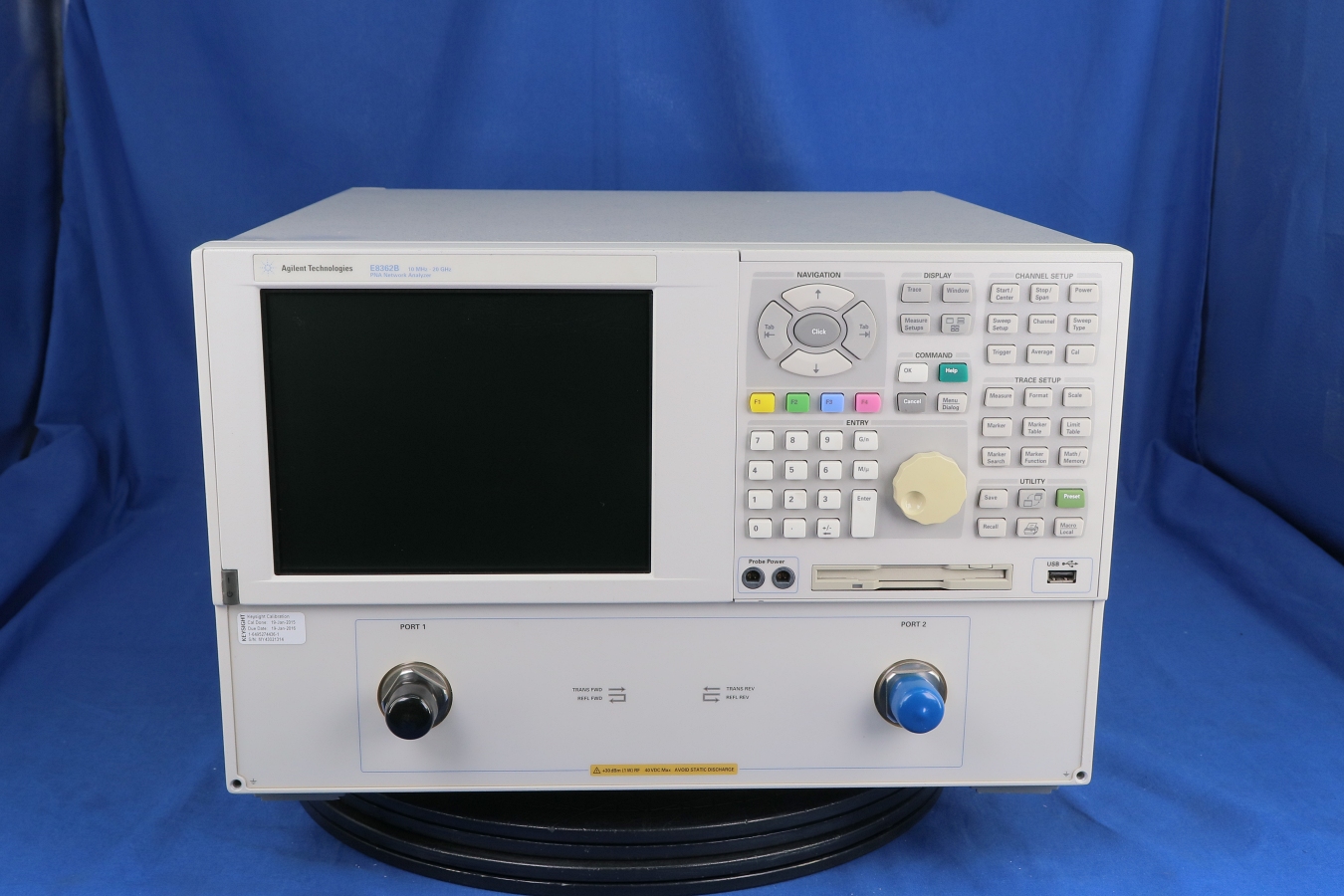

E8362B Agilent Network Analyzer
010: Time-Domain Capability /
1A7 /
Price: CALL
Detail
- 123 dB dynamic range and <0.006 dB trace noise
- <26 usec/point measurement speed, 32 channels, 16,001 points
- TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements
- Mixer conversion loss, return loss, isolation, and absolute group delay
- Amplifier gain compression, harmonic, IMD, and pulsed-RF .
Option
| Option | Description |
|---|---|
| 010 | Time-Domain Capability |
| 014 | 2-port Bias Tee |
| 016 | Direct Generator/Receiver Access |
| 080 | Frequency Offset Measurement |
| 081 | Frequency Offset Mode (Enhanced Mixer Measurements) |
| 083 | Harmonic Measurement |
| 1A7 | |
| UNL | Extended Time-Domain / Enhanced Display |
