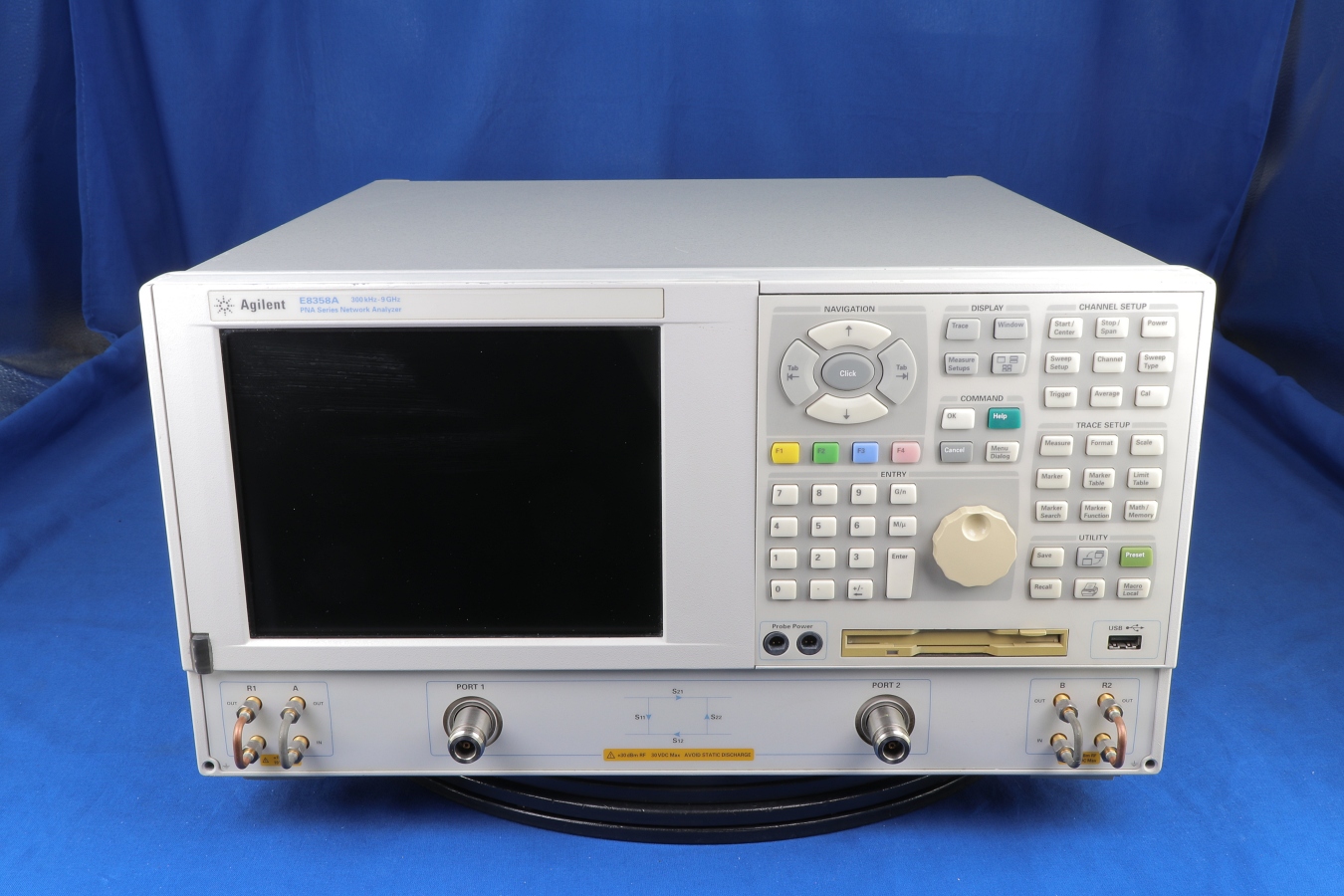

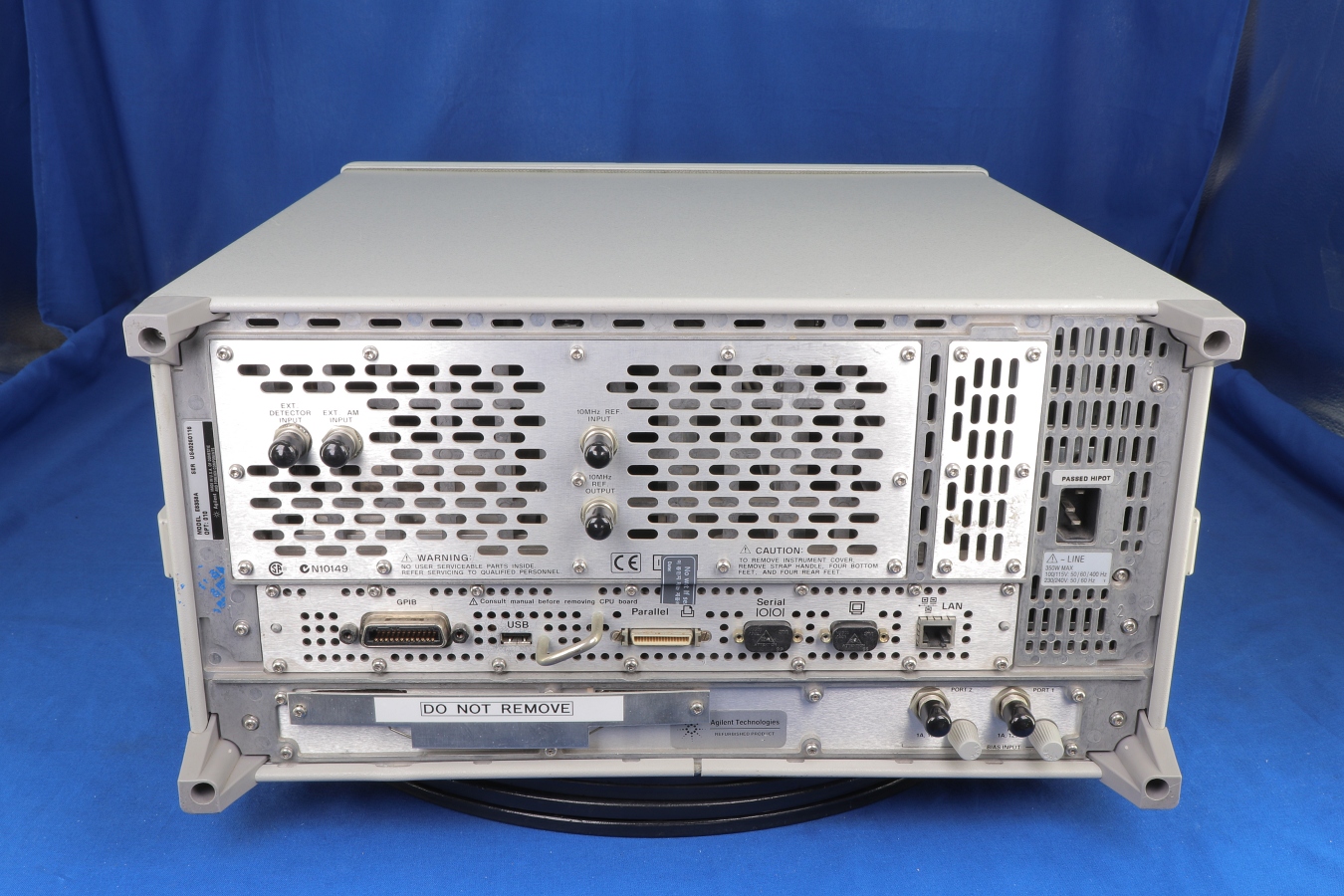

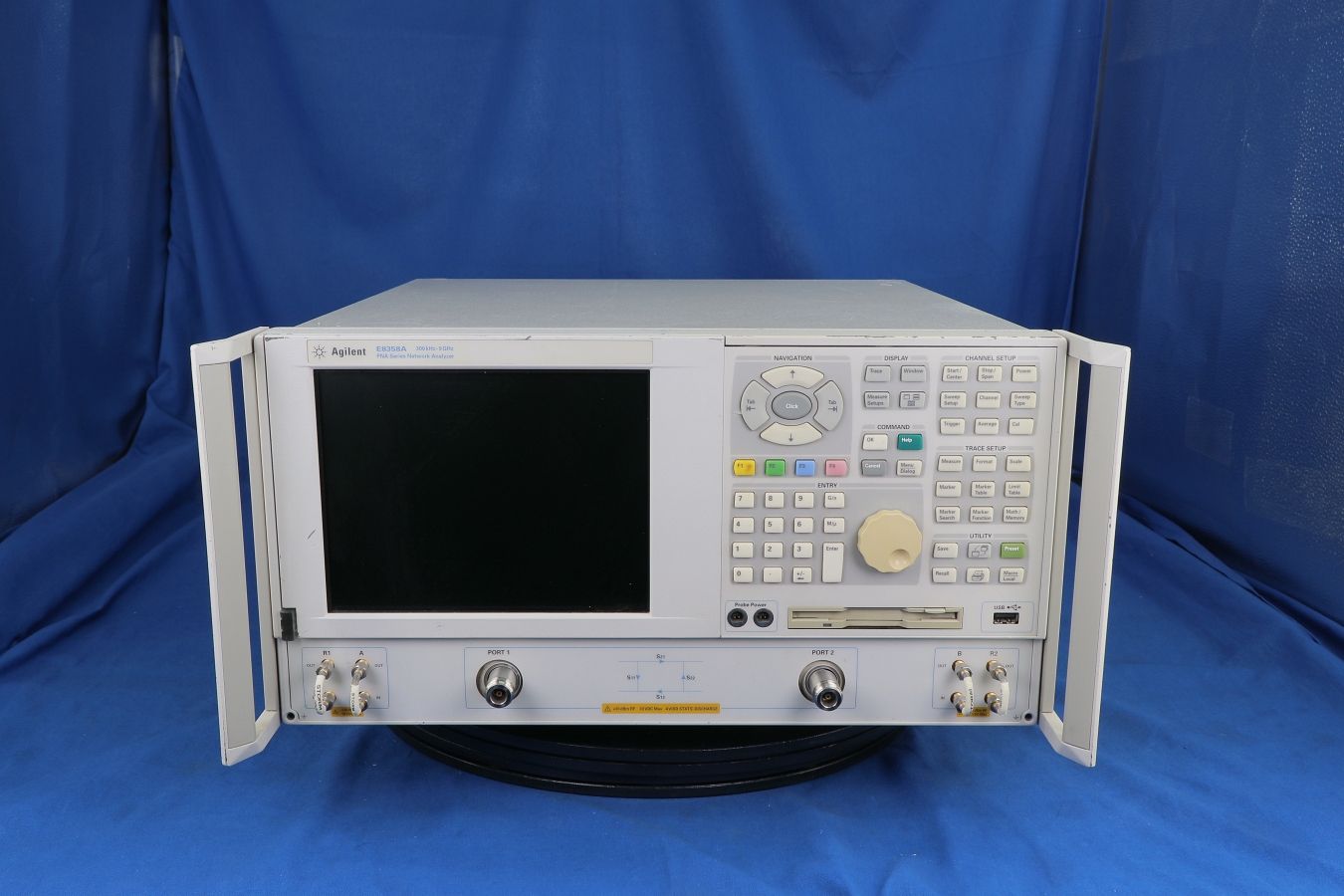

300 kHz to 9 GHz 128 dB dynamic range at test port 143 dB dynamic range with direct receiver access 35 µs/point sweep speed COM/DCOM and SCPI programming TRL/LRM calibration supported USB controlled electronic calibration (ECal) Source attenuators, bias-tees and direct receiver access standard Compatible with Keysight Agilent HP's Balanced Component Measurement and Noise-Parameter Systems Windows 2000™ operating system The Agilent E8358A network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest. This network analyzer utilizes synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. The Agilent E8358A network analyzer can also perform ratioed measurements (including phase), which require multiple receivers. It can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.

Option	Description

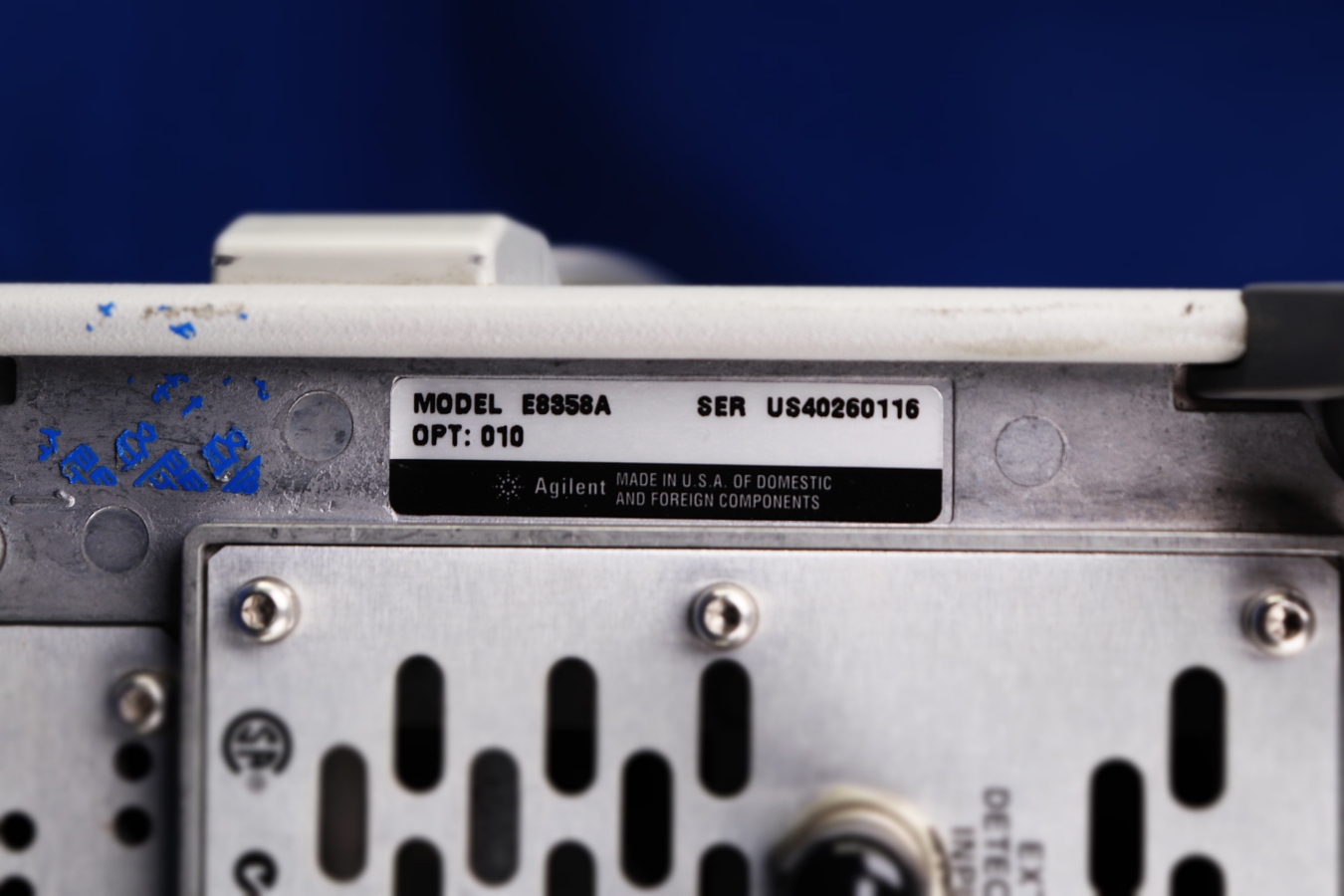

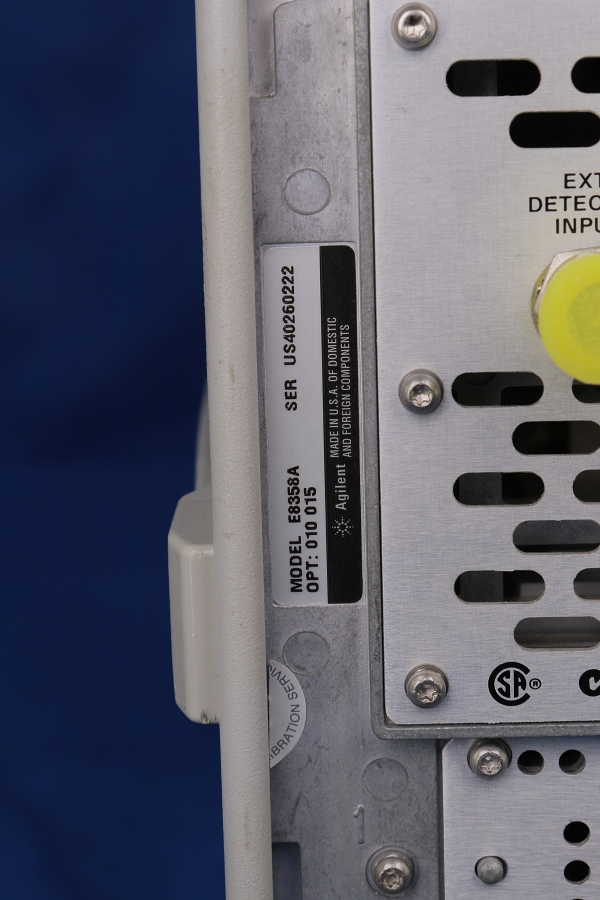

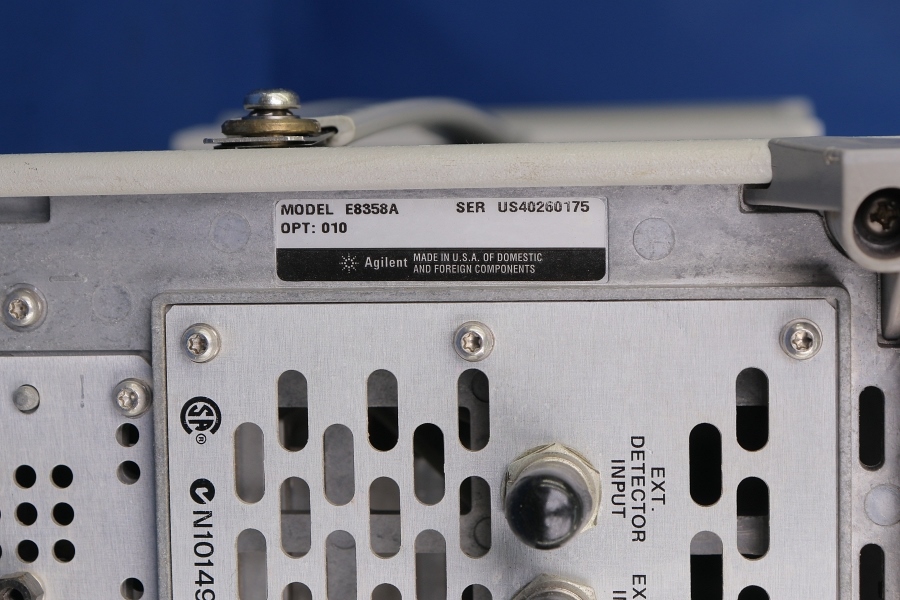

010	Add time domain capability
015	Configurable test set
P02
