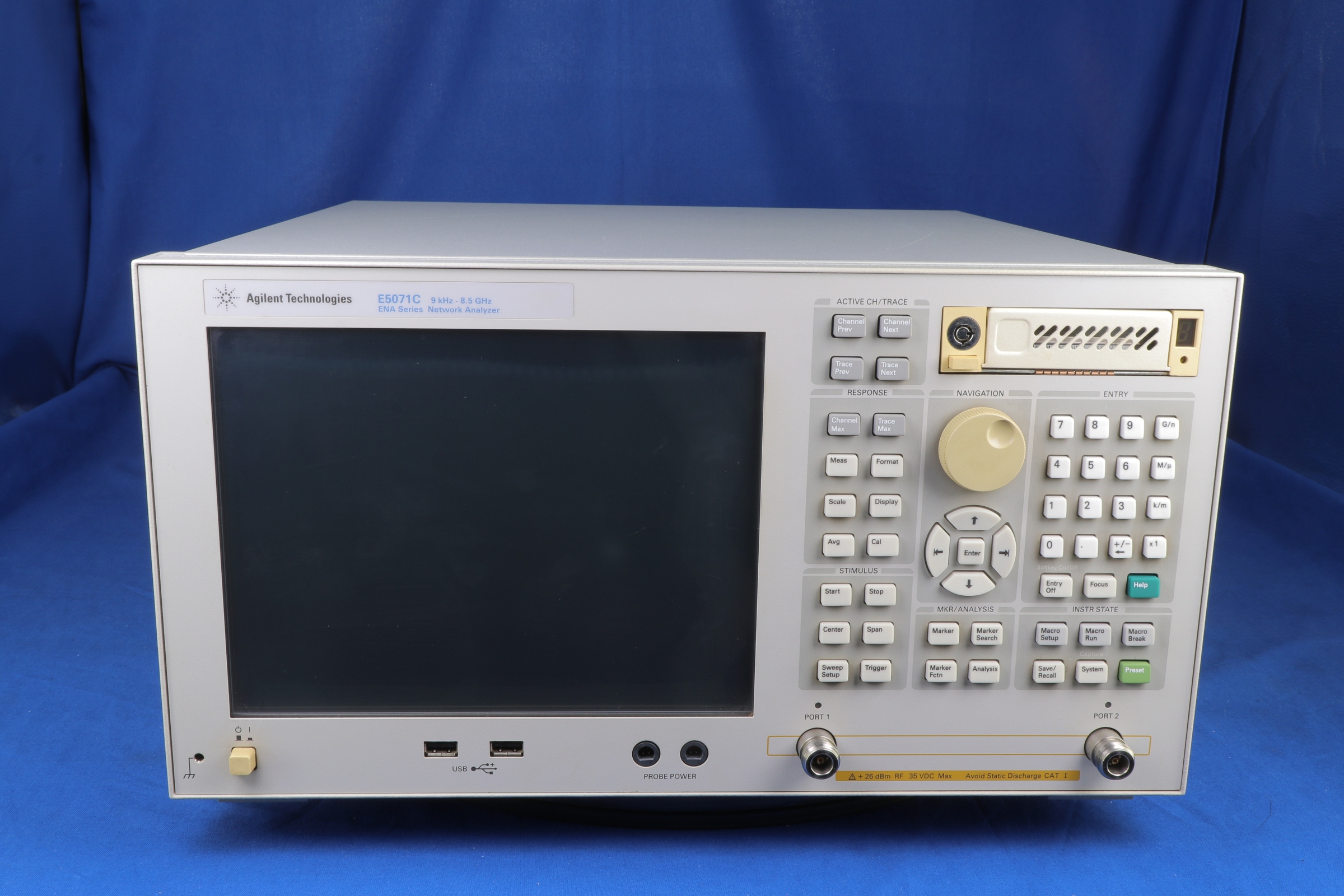

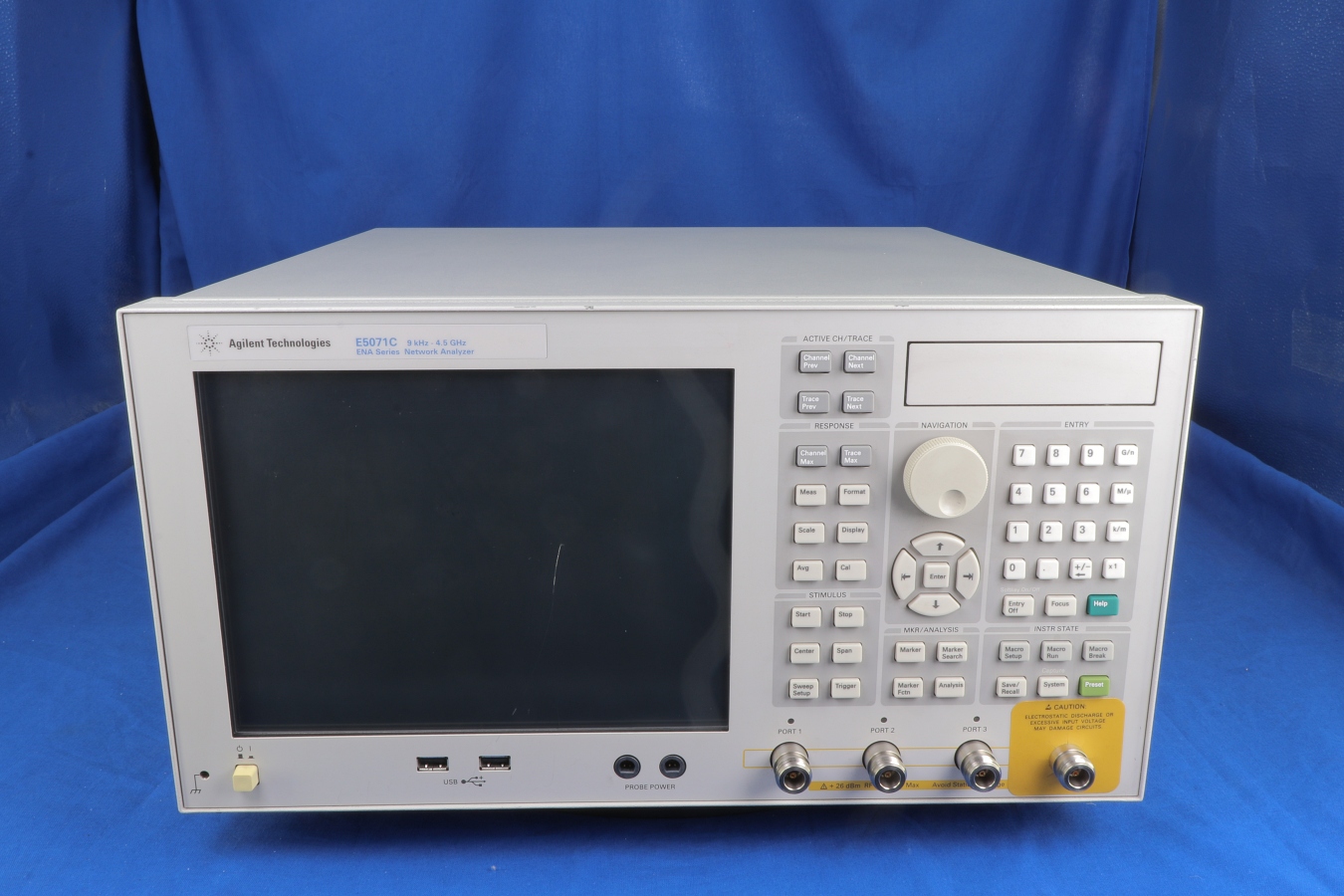

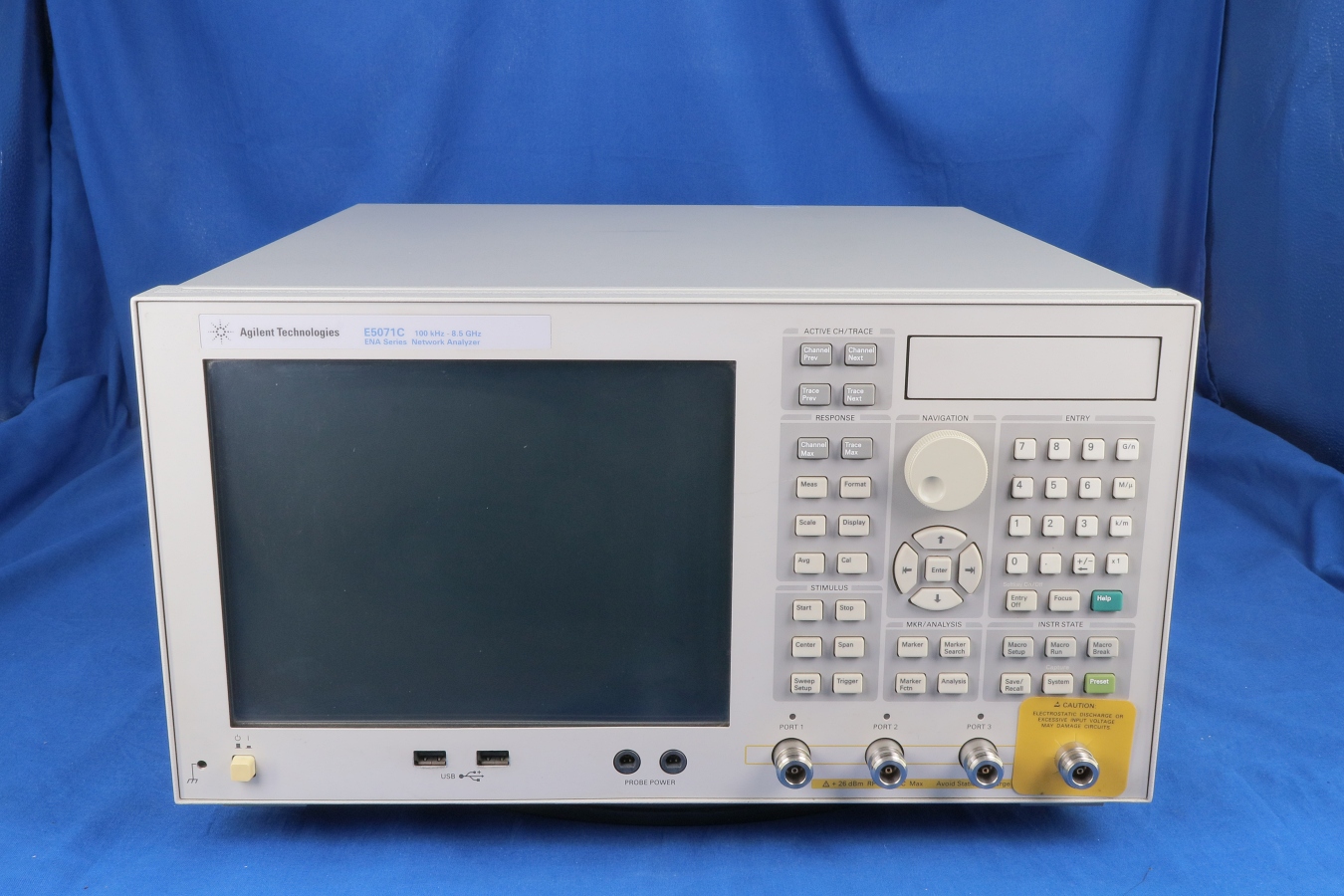

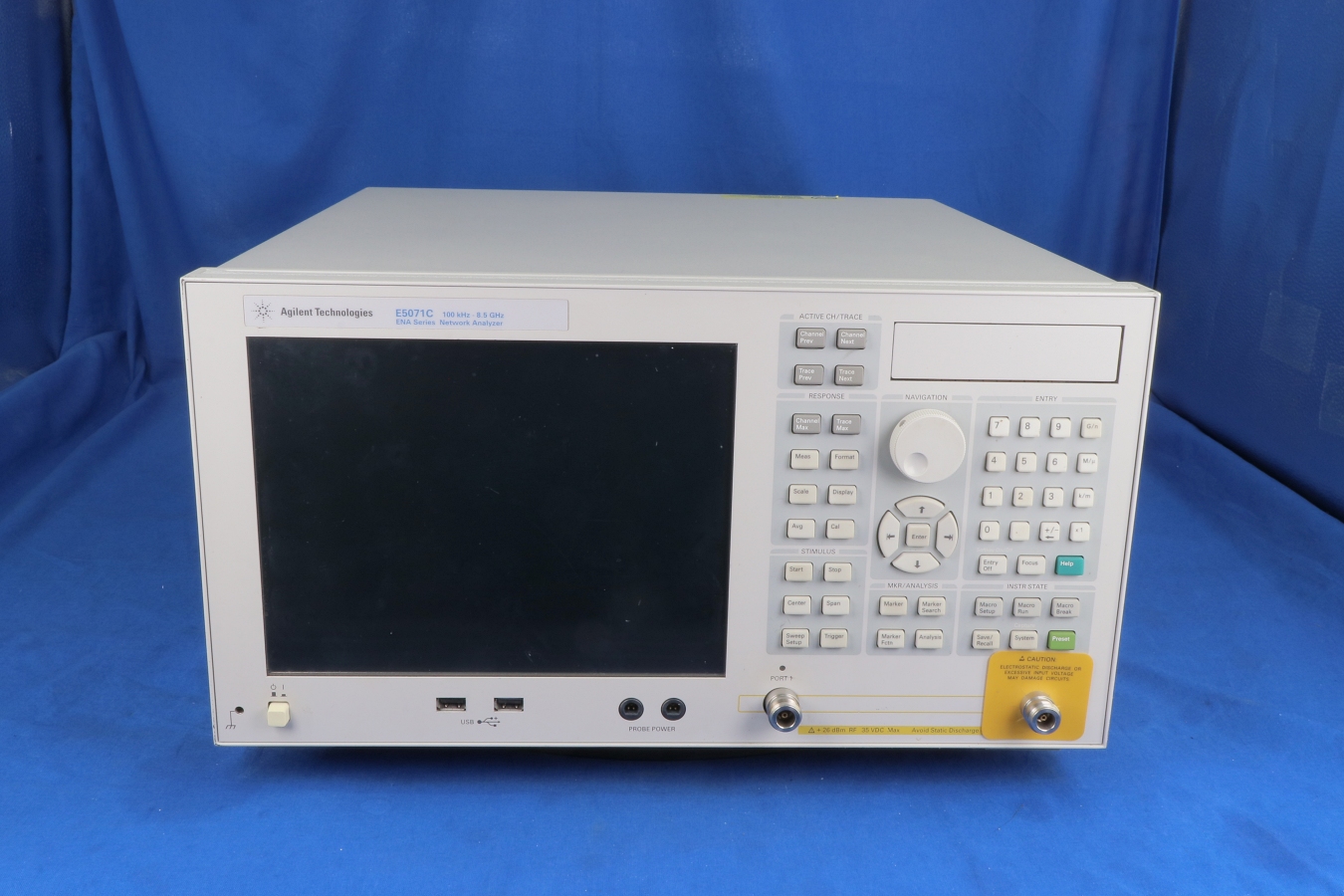

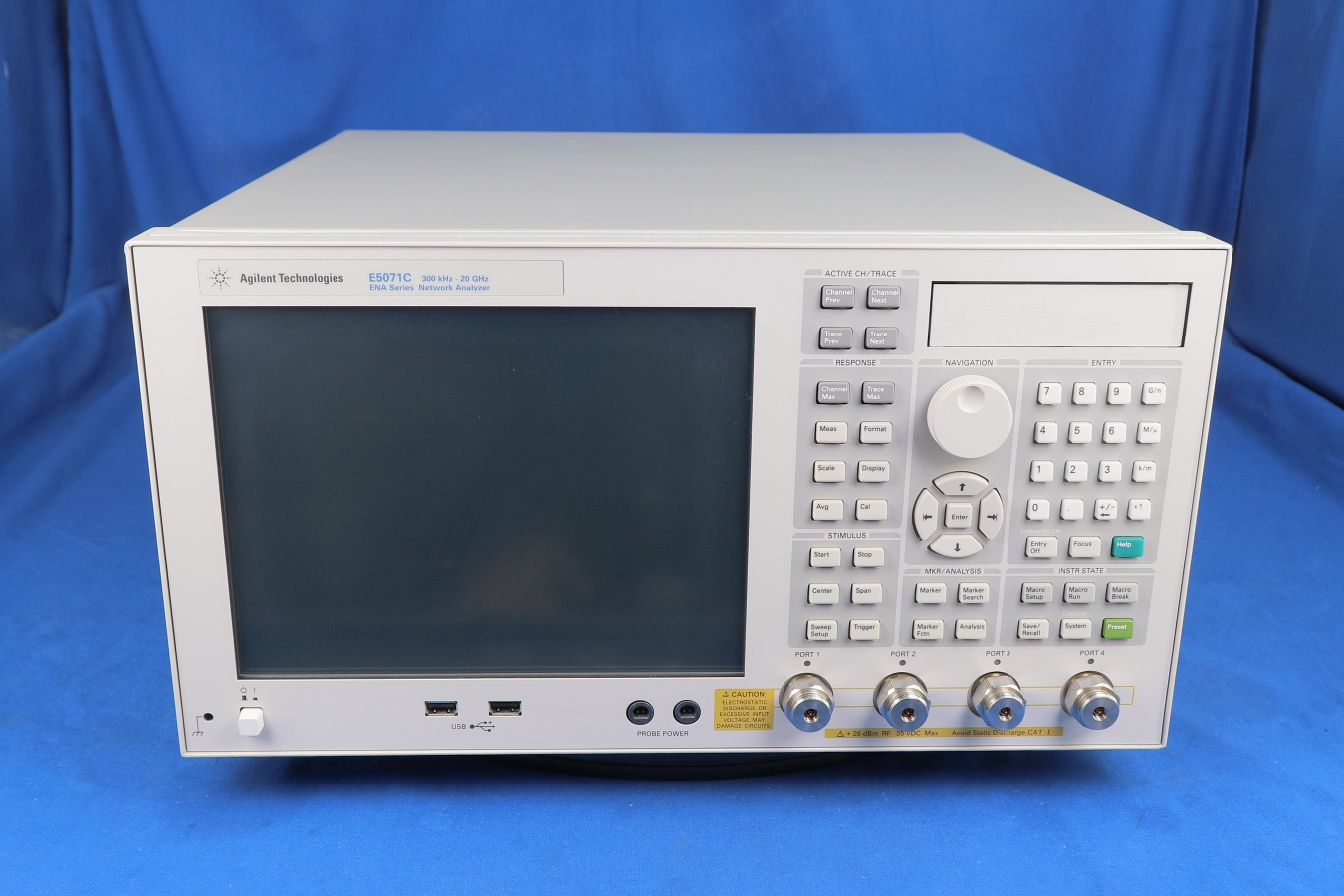

2- or 4-port, 50 ohm, S-parameter test set Protect your investment with upgradability across all of the options Wide dynamic range: > 123 dB dynamic range at test port (typical) Fast measurement speed: 39 ms @ full 2-port cal, 1601 points High temperature stability: 0.005 dB/°C Low trace noise: 0.004 dB RMS @ 70 kHz IFBW Output Power: 10 dBm Harmonics: -25 dBc Noise Floor: -131 dBm Best Speed at 201 Point, 1 Sweep: 5 ms Integrated 2- and 4-ports with balanced measurements Improve accuracy, yield and margins with wide dynamic range 130 dB, fast measurement speed 8 ms and excellent temperature stability 0.005 dB/°C Applications S-Parameters Multiport Balance Measurements Components Cables Mixers/Frequency Converters Amplifiers Resonators The Agilent E5071C ENA Series Network Analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The Agilent E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency range up to 20 GHz. The Agilent E5071C ENA Series Network Analyzer has flexible configurations and you can select the number or ports, frequency and bias teas to fit your application. And the Agilent E5071C provides upgradability across all of the options at any time without changing serial number, for both software and hardware options. The Agilent E5071C network analyzer provides flexibility as you plan for future investments. Agilent’s E5071C ENA network analyzers deliver new standards in speed, accuracy and versatility for RF network analysis. Designed with a wide range of measurement capability to meet multiple network analysis needs, the ENA offers efficiency and flexibility for both manufacturing and R&D applications in industries such as wireless communication, automotive, semiconductor, and medical.

Option	Description
008	Frequency offset mode
010	Time Domain Analysis
017	Removable Data Storage
019	Standard Data Storage
1CM	Rack mount kit
1CN	Front handle kit
1CP	Rack mount and front handle kit
1E5	High stability timebase
240	2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
245	2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
260	2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
265	2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
280	2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
285	2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
2D5	2-port Test Set, 300 kHz to 14 GHz with Bias Tees
2K5	2-port Test Set, 300 kHz to 20 GHz with Bias Tees
440	4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
445	4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
460	4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
465	4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
480	4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
485	4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
4D5	4-port Test Set, 300 kHz to 14 GHz with Bias Tees
4K5	4-port Test Set, 300 kHz to 20 GHz with Bias Tees
790	Measurement Wizard Assistant software
810	Add keyboard
820	Add mouse
A6J	ANSI Z540-1-1994 Calibration
TDR
UNQ	Standard stability timebase
