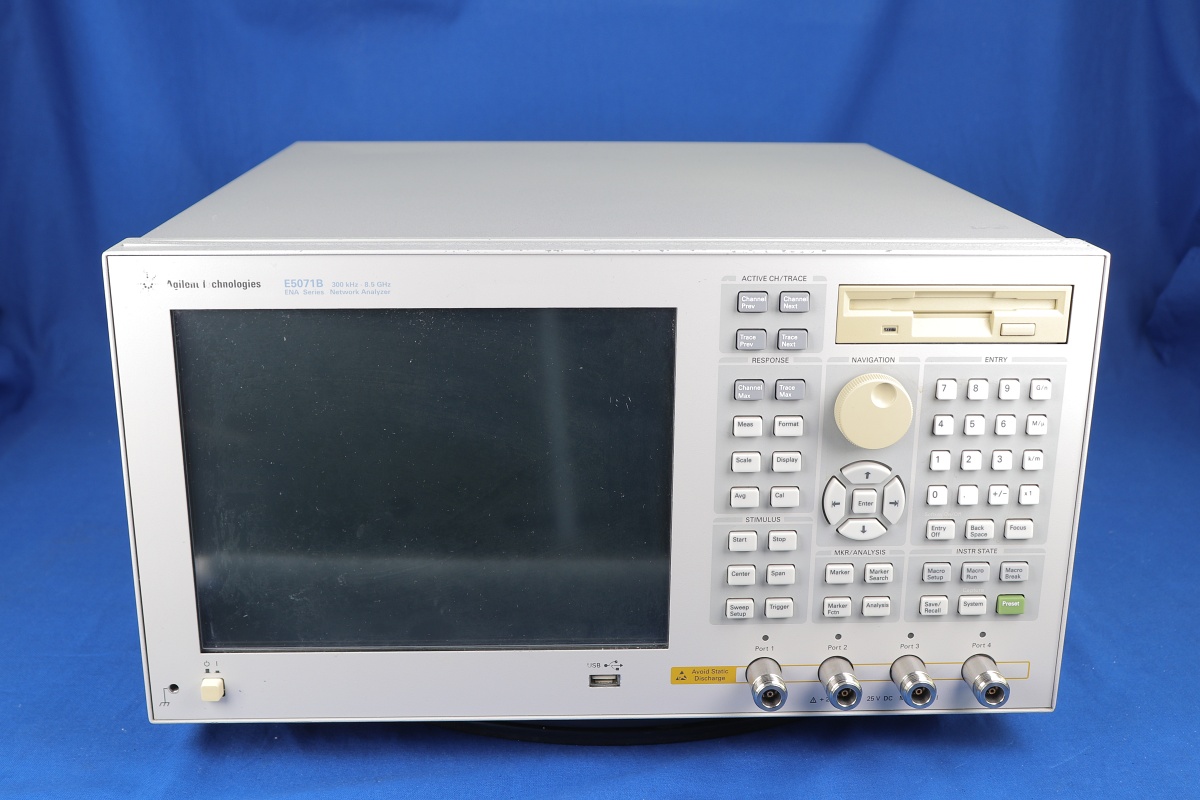

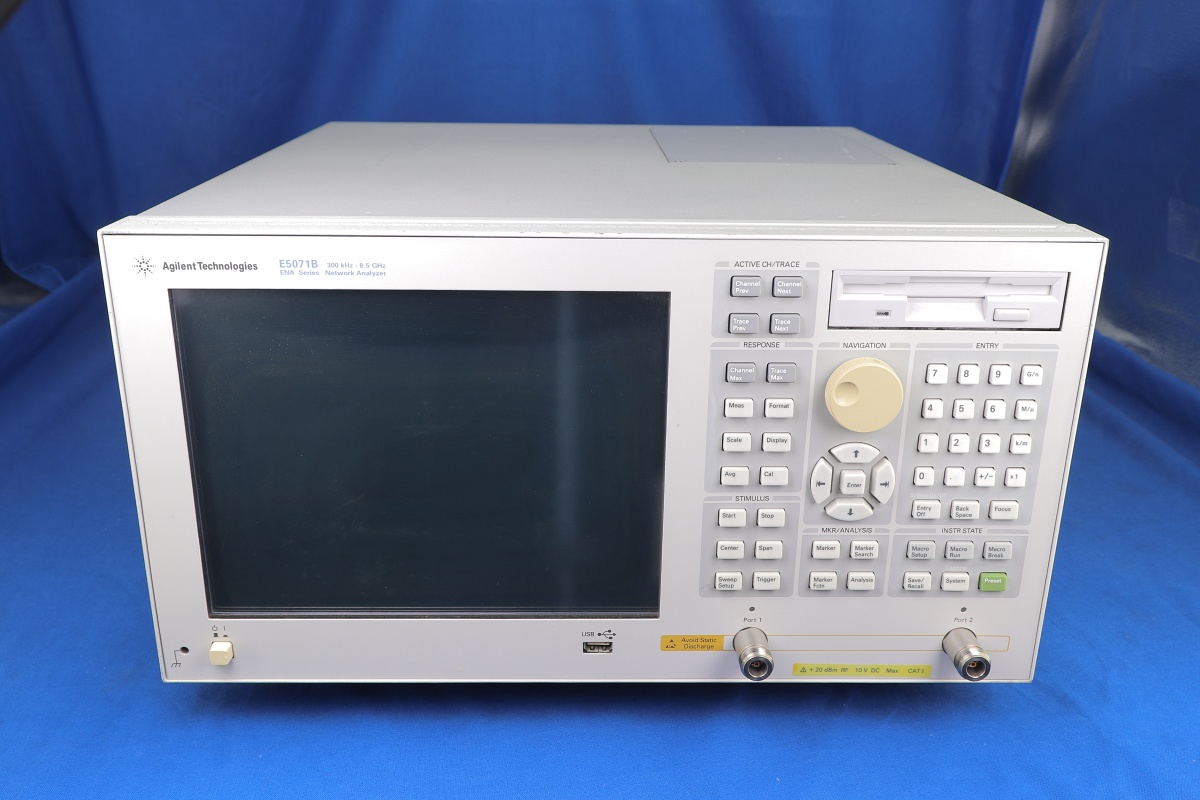

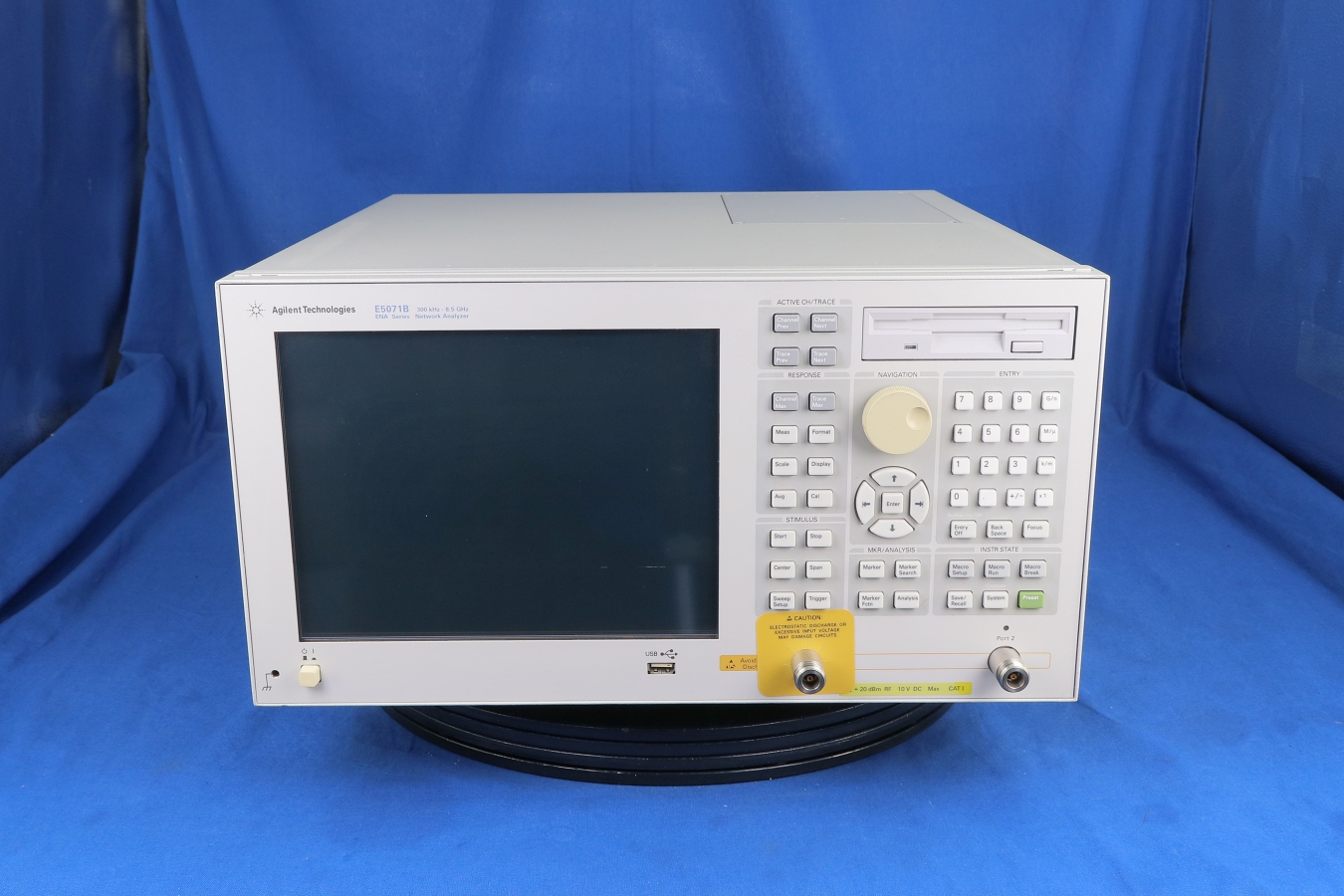

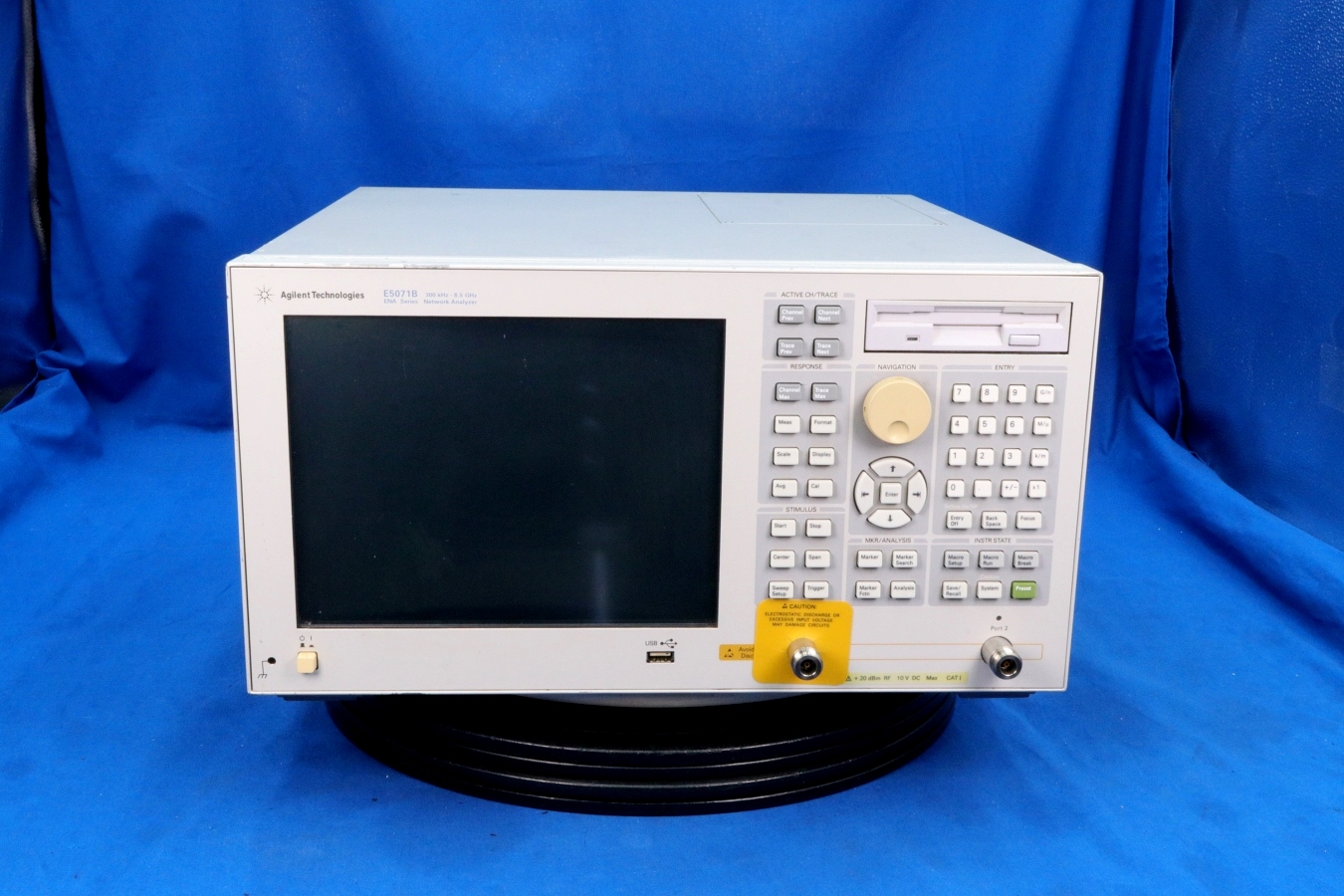

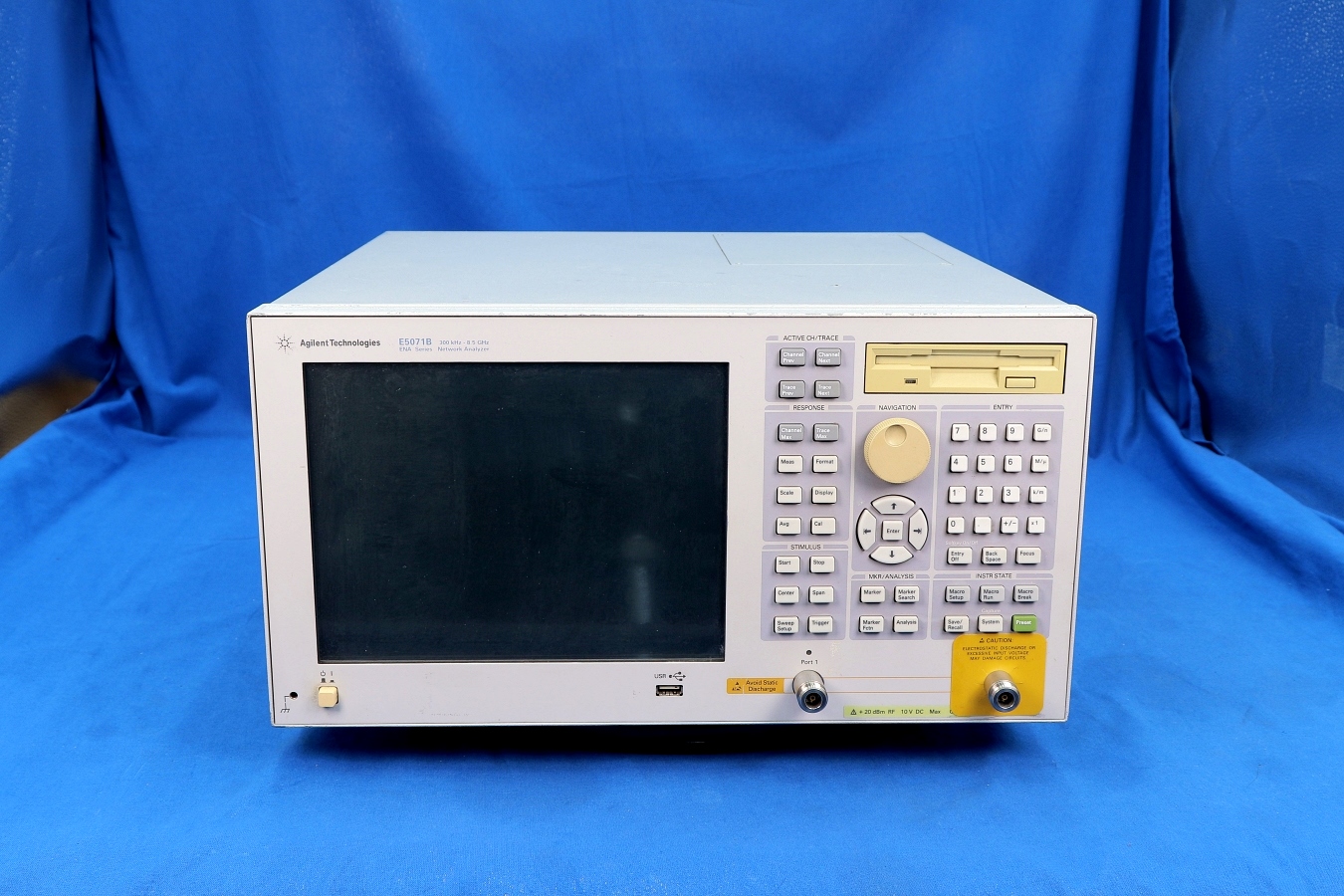

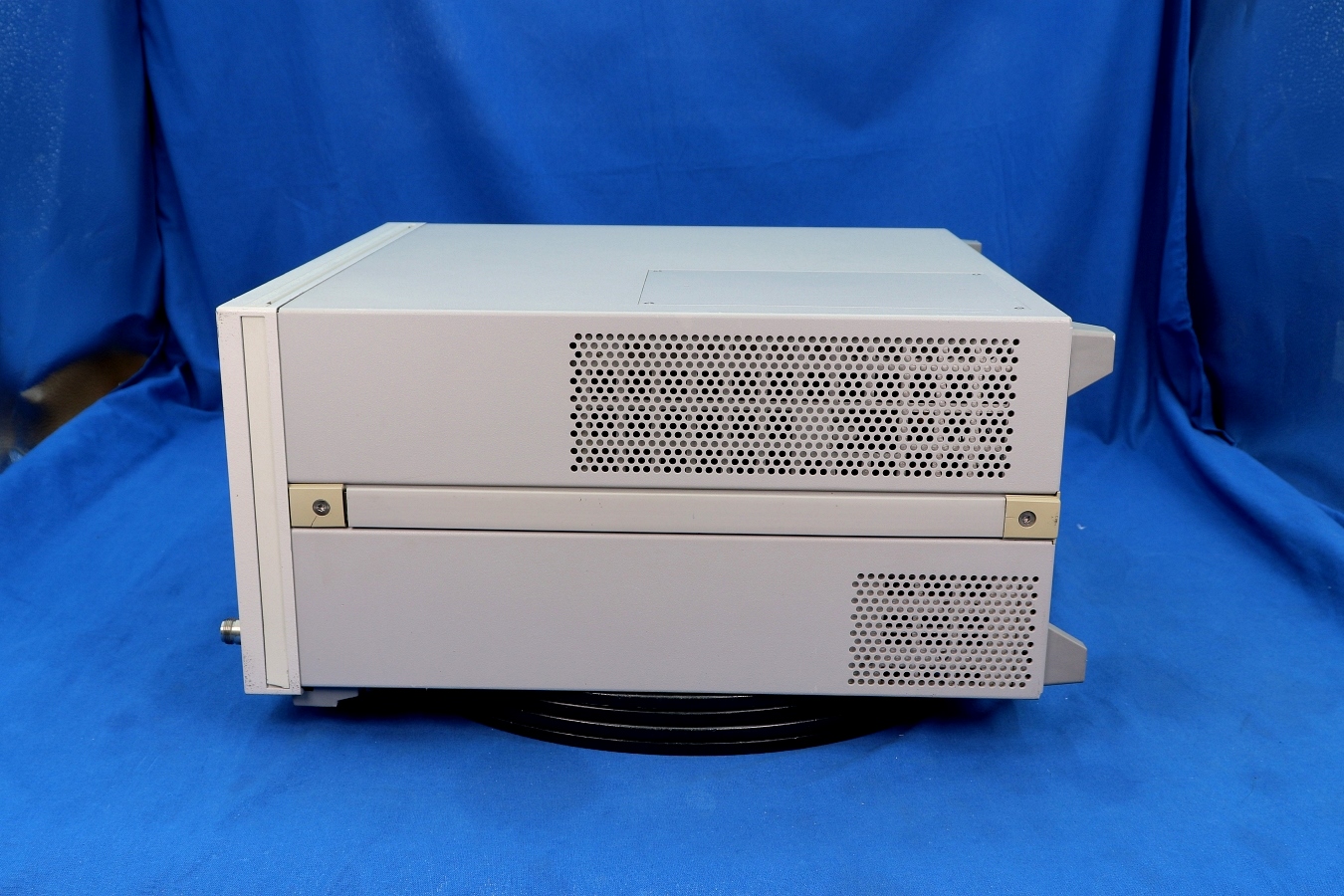

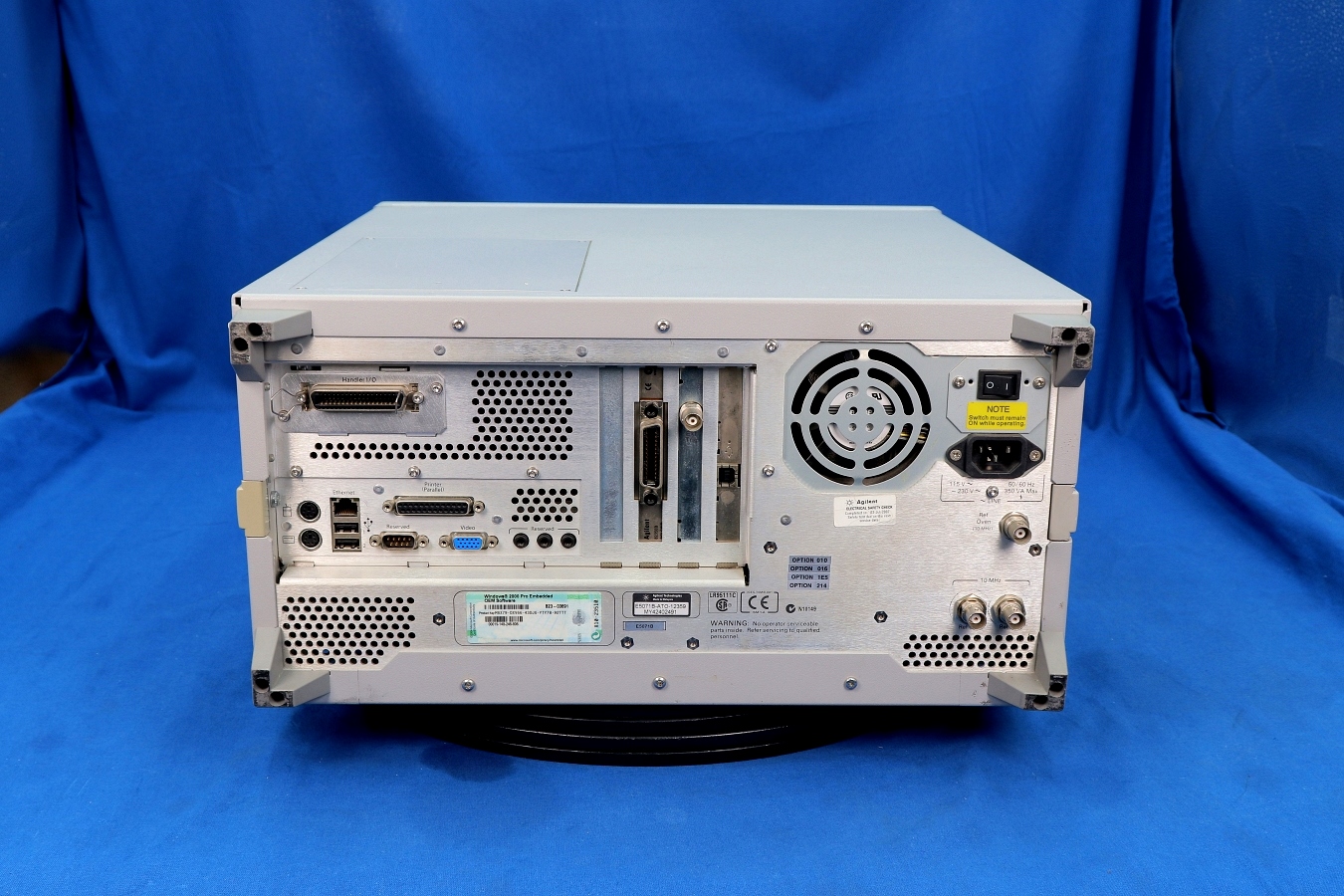

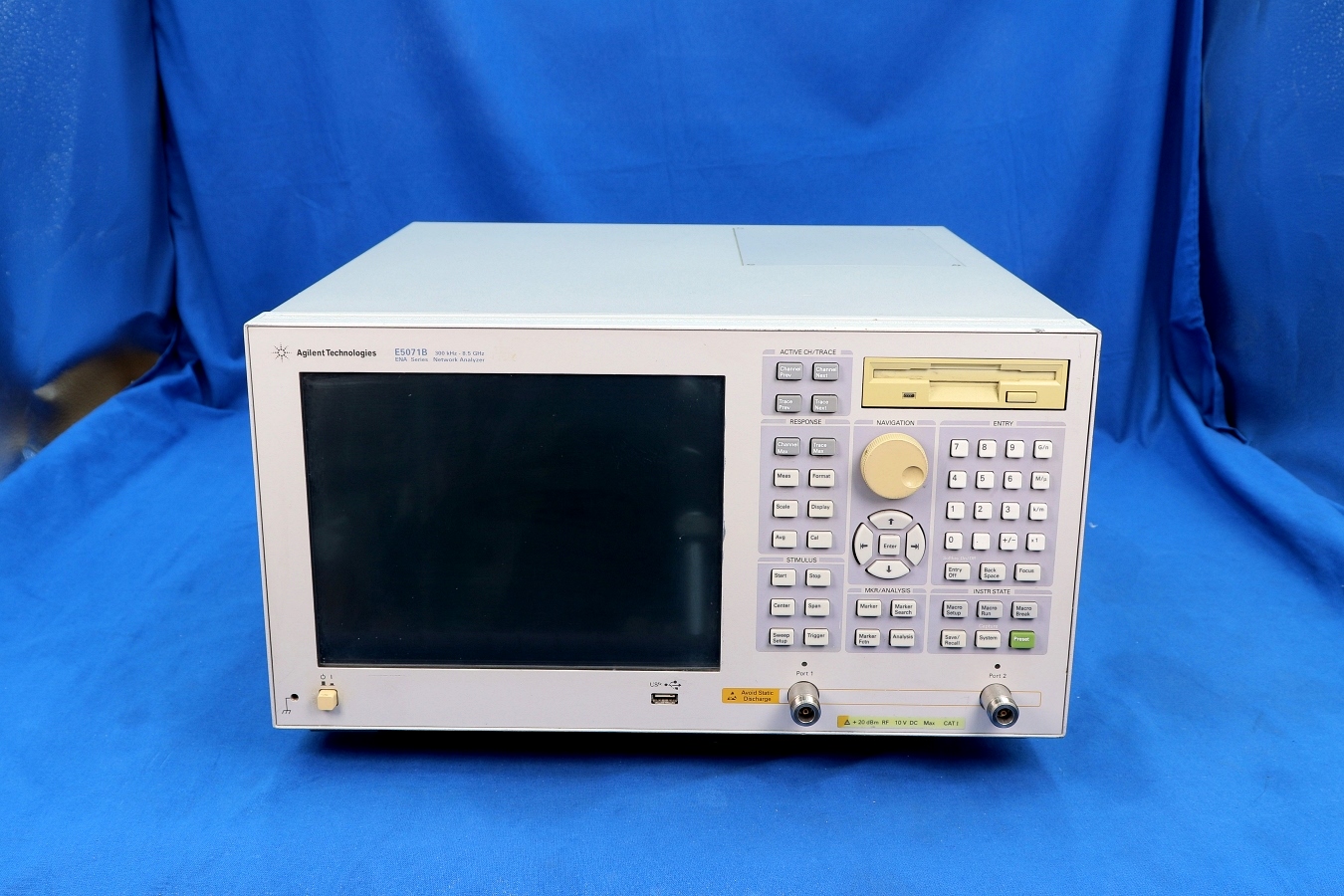

Additional Features: 300 kHz to 8.5 GHz 125 dB dynamic range at test port (typical) 9.6 us/point sweep speed 0.001 dB RMS trace noise Integrated 2-, 3- and 4-ports with balanced measurements Fixture embedding/de-embedding and port characteristic impedance conversion Frequency-offset mode for frequency translated devices. Built-in Visual Basic for Applications (VBA) Measurement Wizard Assistant (MWA) software The Agilent E5071B, 300 kHz to 8.5 GHz, ENA RF Network Analyzer offers fast and accurate measurements for RF components. The advanced architecture minimizes the number of sweeps to complete a multiport measurement and further improves test throughput. The E5070B's wide dynamic range of up to 125dB allows high rejection filters to be easily measured and the low trace noise 0.001dBrms at 3 kHz makes it easy to evaluate a filters passband ripple accurately.

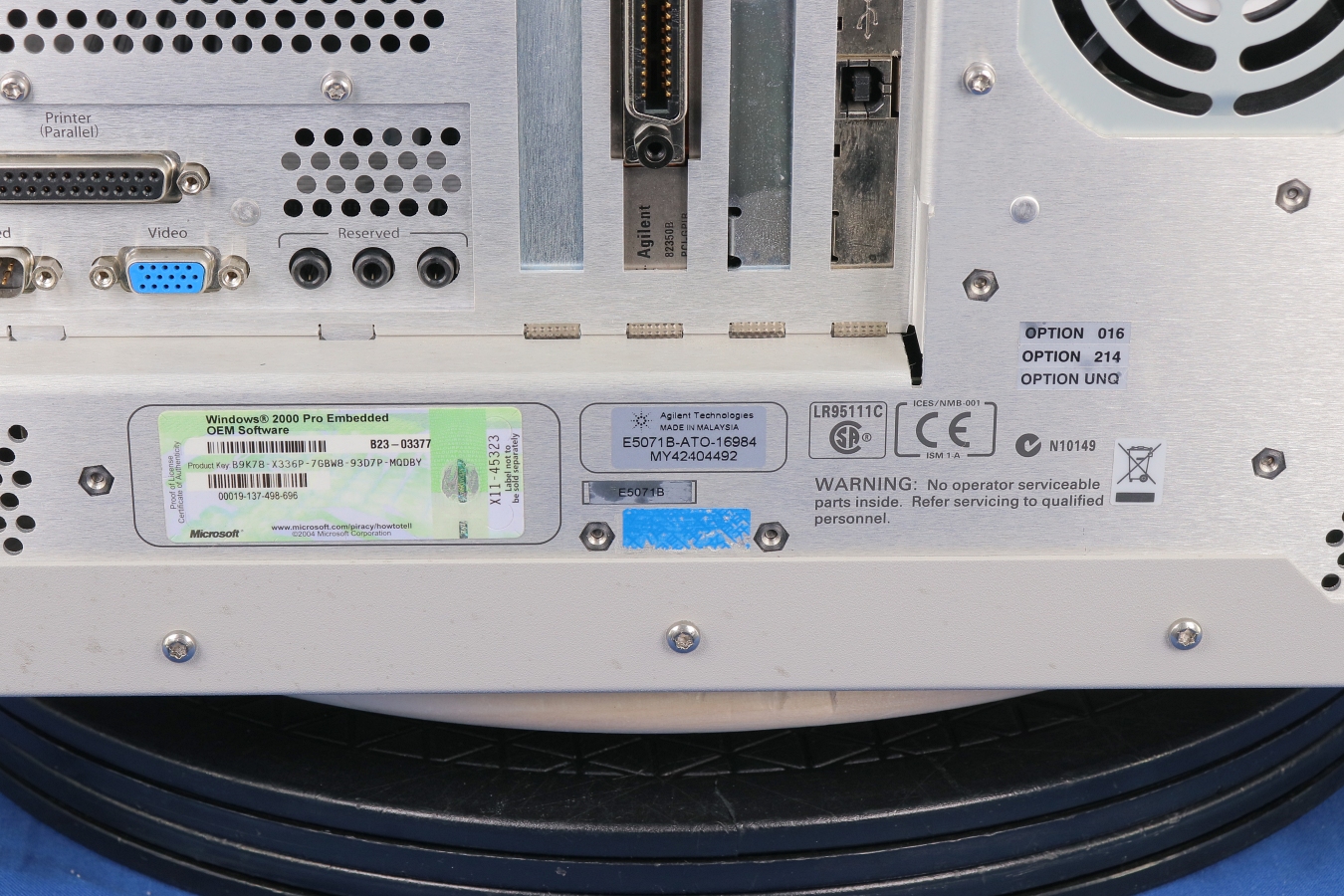

Option	Description
008
010	Time domain analysis capability

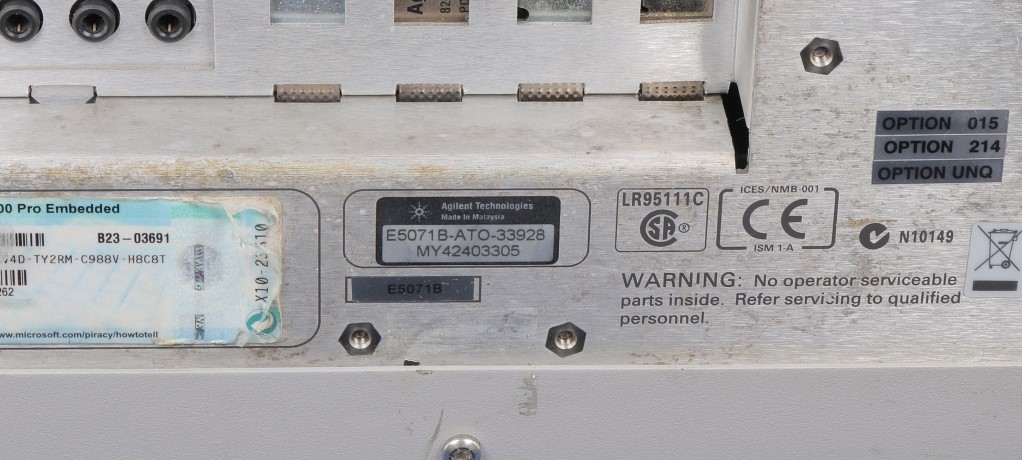

015

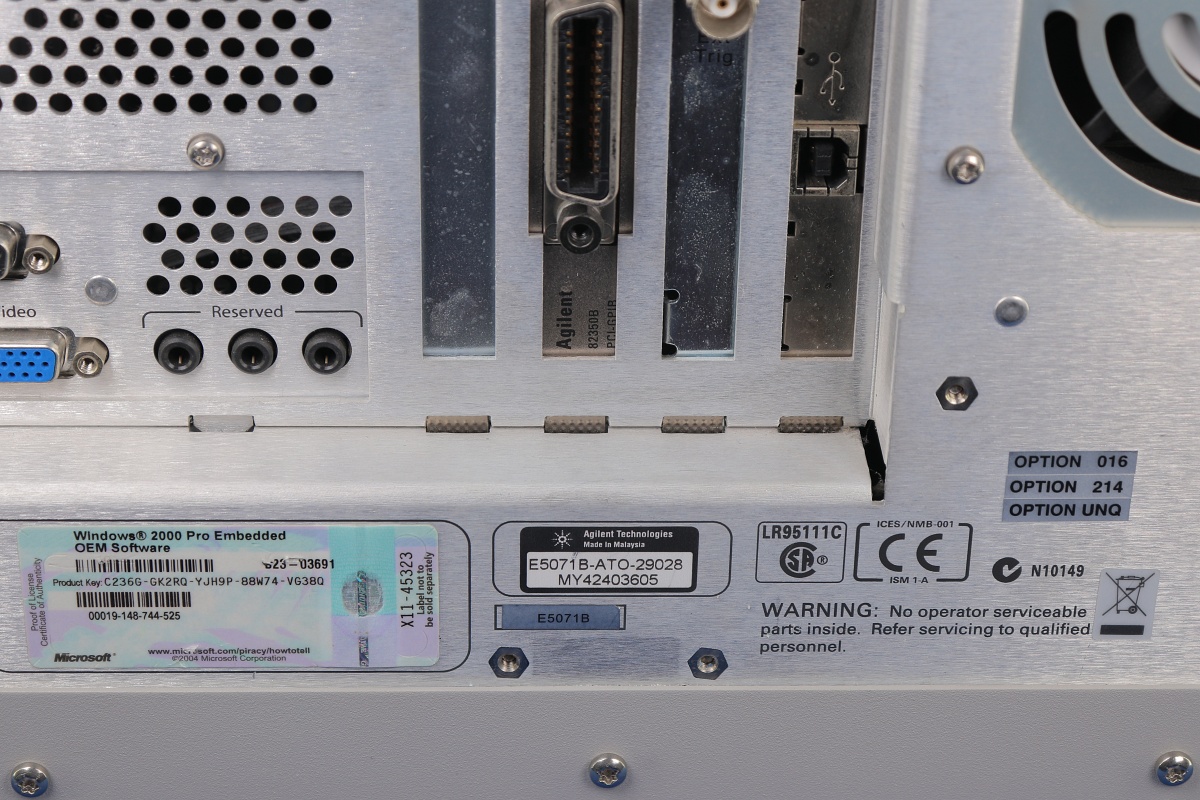

016	Touch screen color LCD
1E5	high stability timebase
213	2-port S-parameter test set, standard power range (-15 dBm to 10 dBm)
214	2-port S-parameter test set, extended power range (-50 dBm to 10 dBm)
313	3-port S-parameter test set, standard power range (-15 dBm to 10 dBm)
314	3-port S-parameter test set, extended power range (-50 dBm to 10 dBm
413	4-port S-parameter test set, standard power range (-15 dBm to 10 dBm)
414	4-port S-parameter test set, extended power range (-50 dBm to 10 dBm)
UNQ	Standard stability timebase
