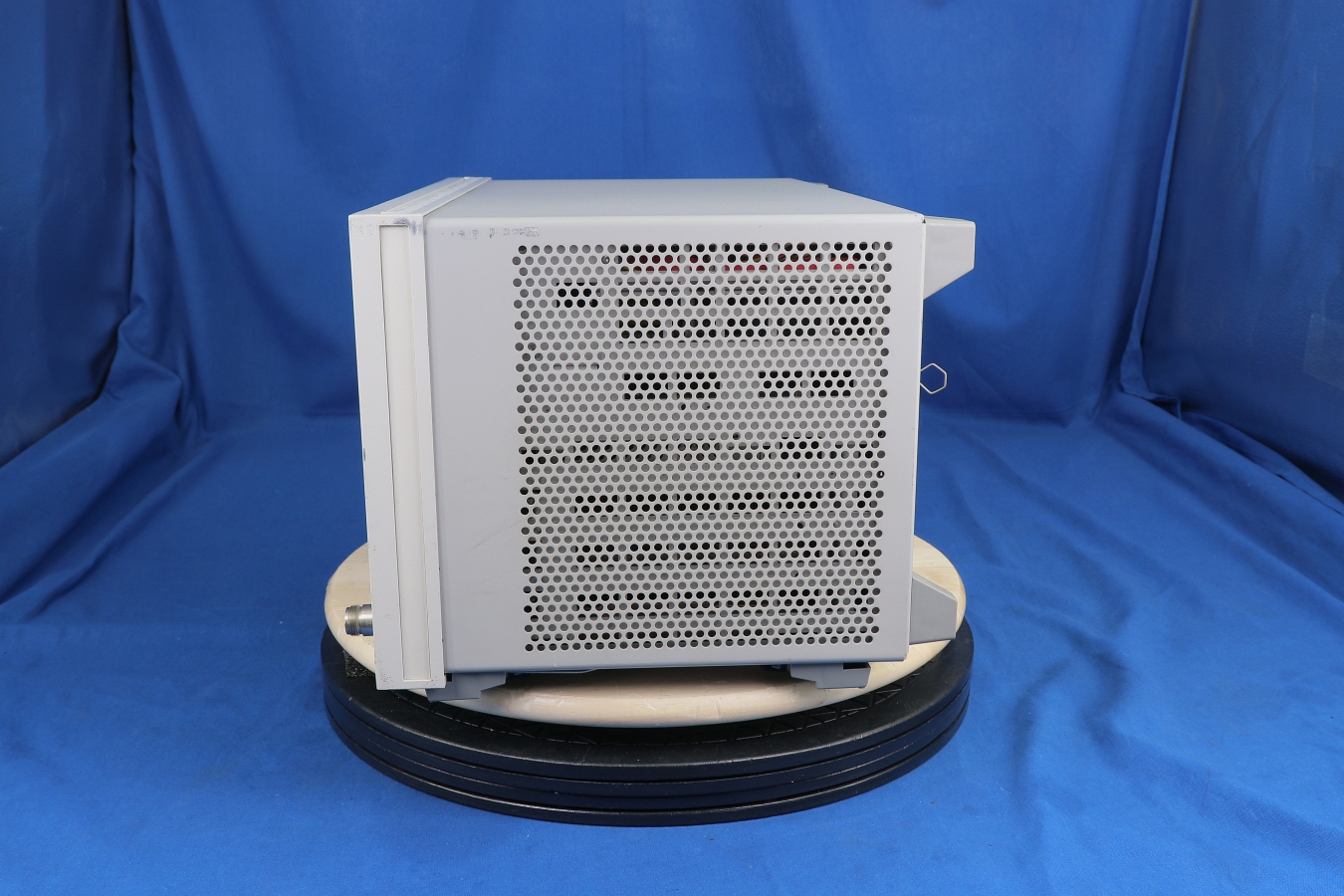

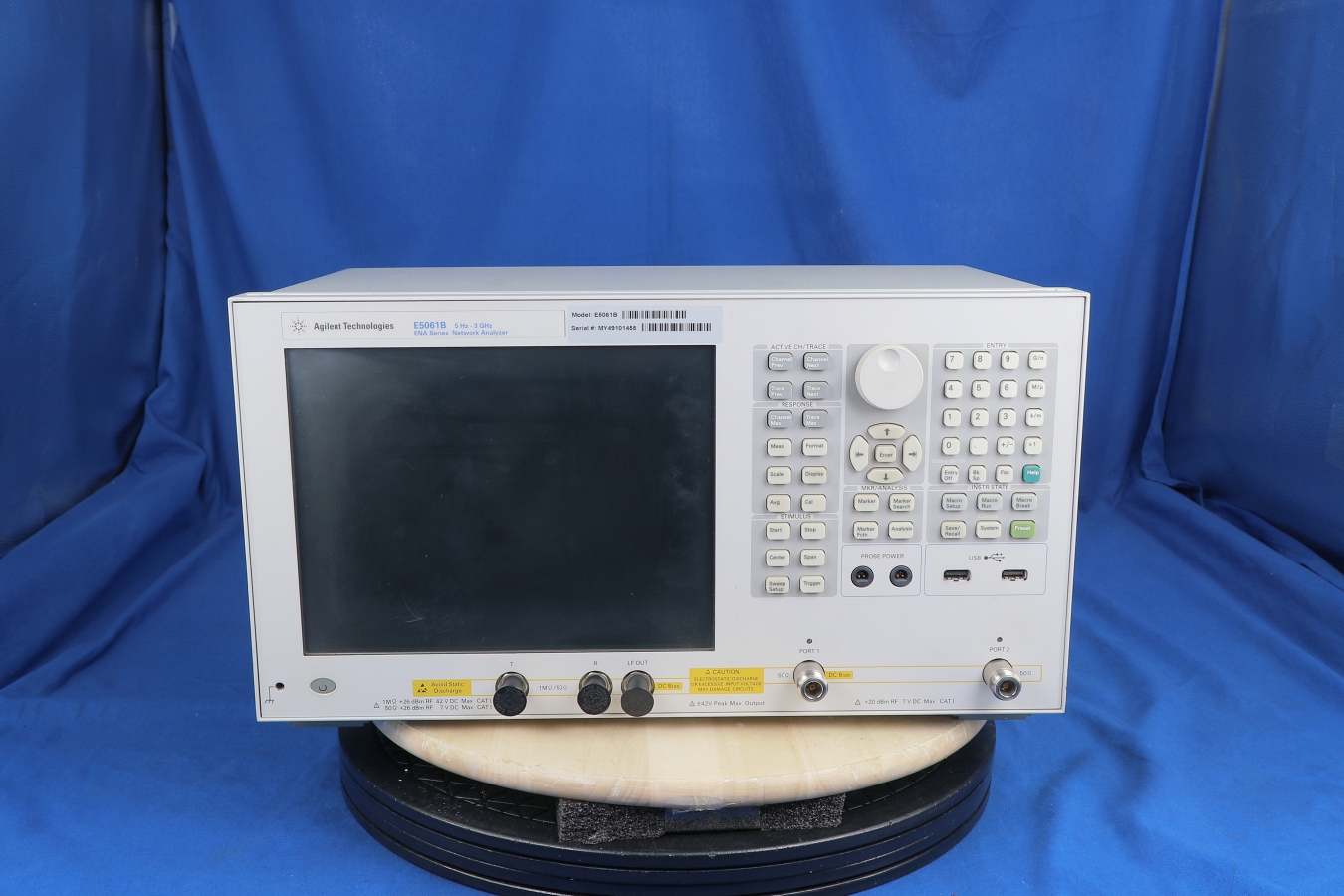

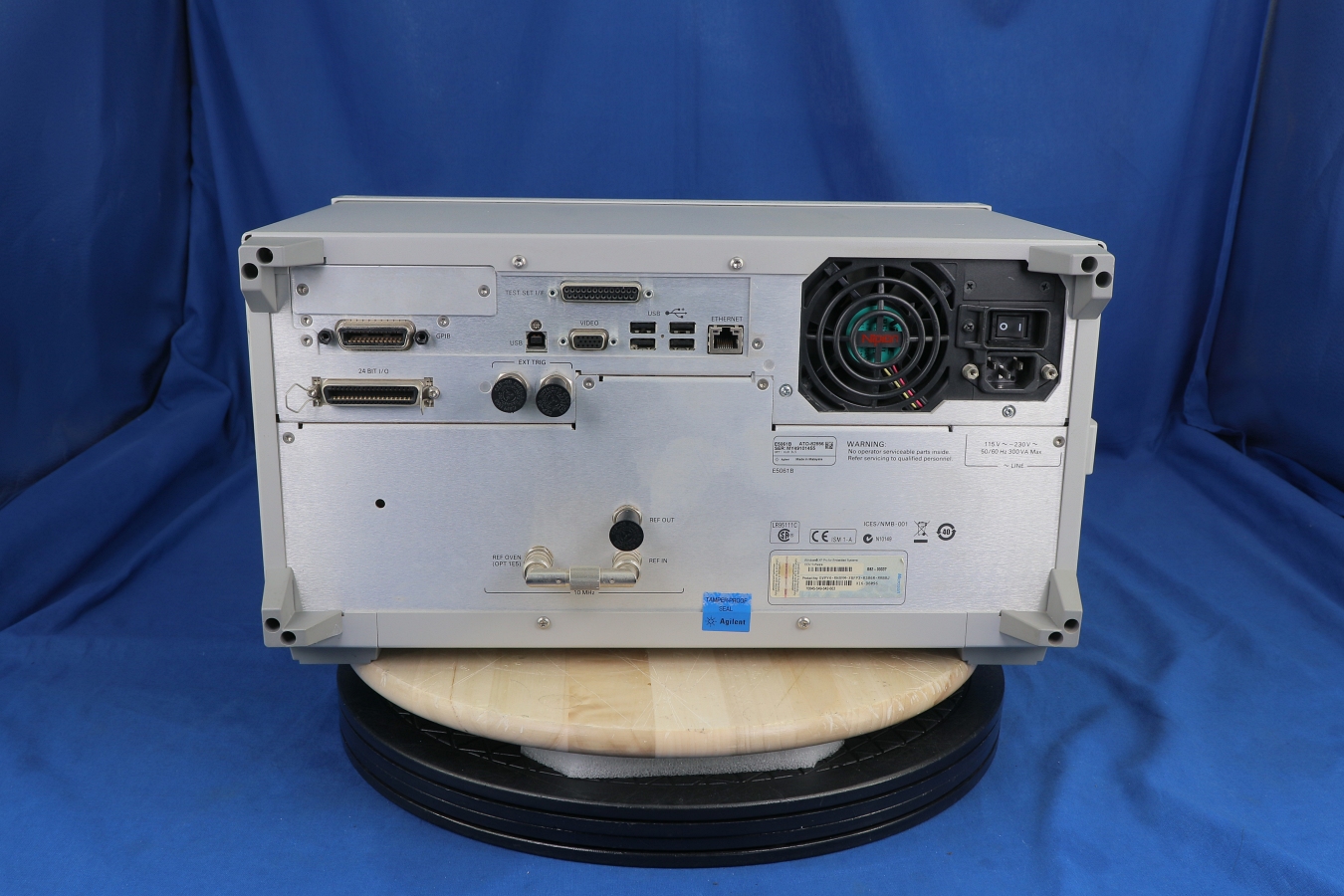

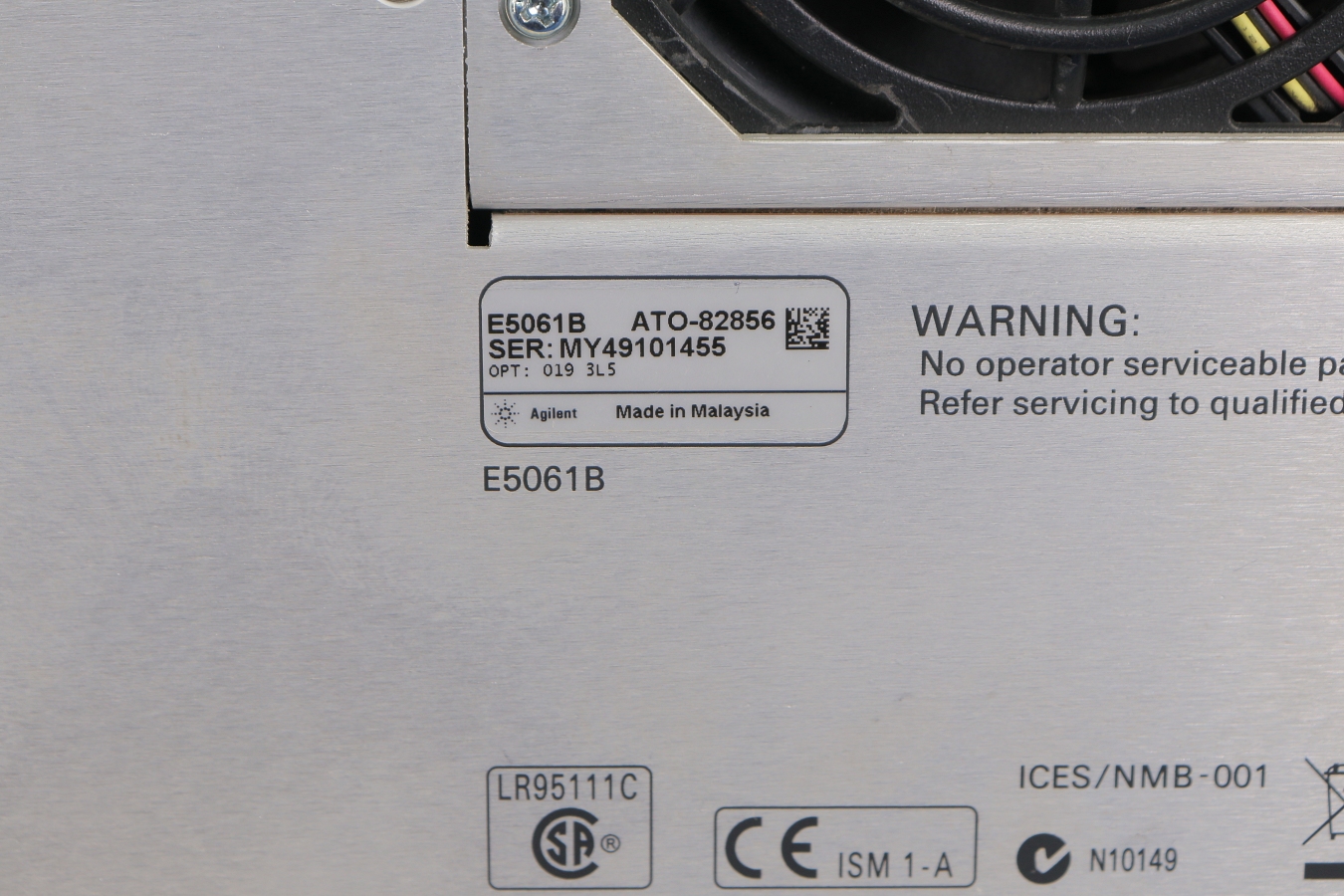

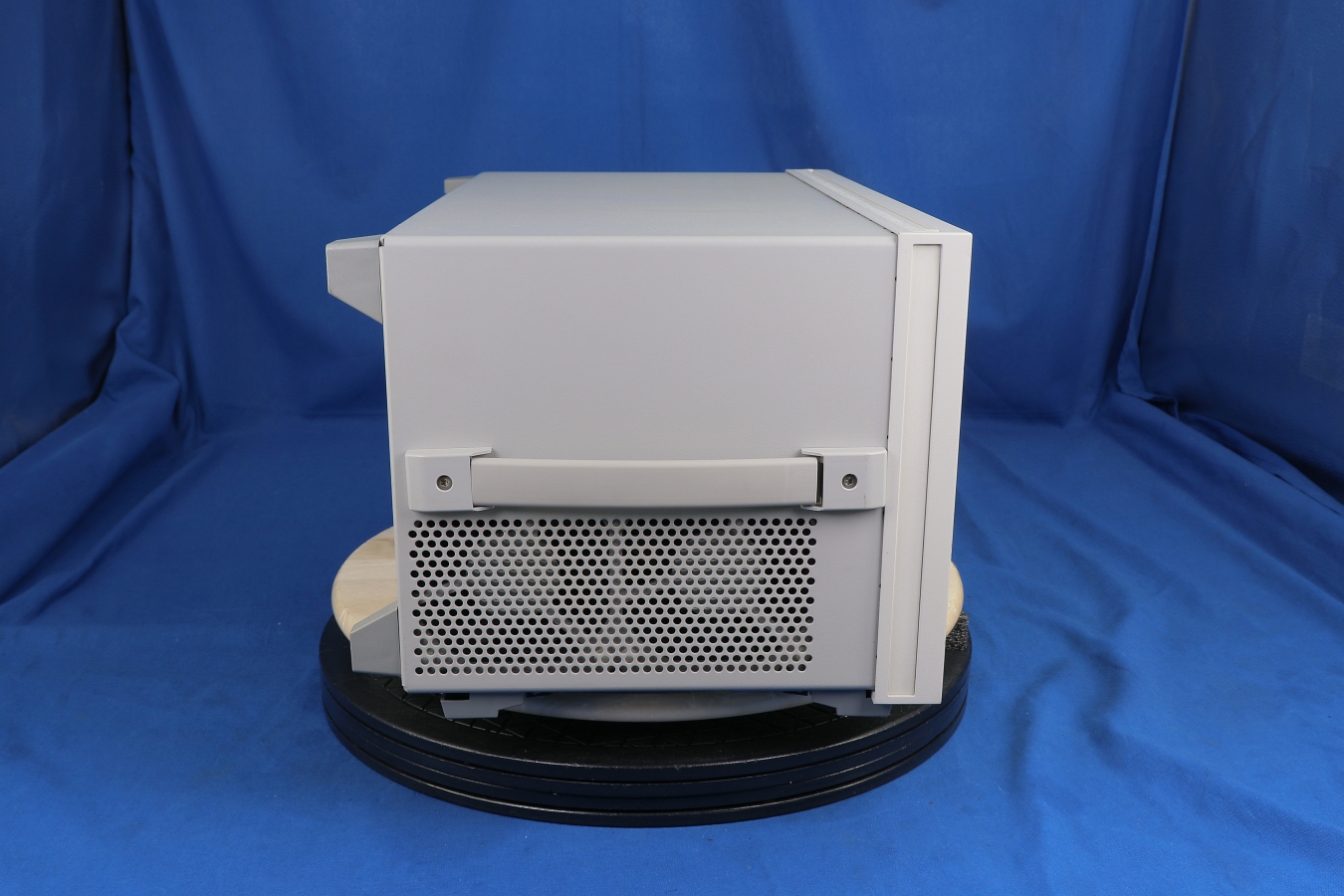

Frequency range: 100 kHz to 3 GHz Transmission / Reflection test set and S-parameter test set 50 Ω and 75 Ω system impedance Dynamic Range: 120 dB Output Power: 10 dBm Trace Noise: 0.005 dBrms Number of Built-In Ports: 2 ports Harmonics: -25 dBc Noise Floorl: -110 dBm Best Speed at 201 Point, 1 Sweep: 9 ms Operating System: Windows 10 Applications S-Parameters Distance-To-Fault Return Loss Insertion Loss/Gain LF Circuits (5 Hz) Components Cables Amplifiers Resonators DC-DC Converters/PDNs Antenna/Coil/RFIDs Filters LCR Components The Agilent E5061B is a member of the ENA Series network analyzers. The Agilent E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies.

Option	Description
005	Impedance measurement analysis
019	Standard (non-removable) Hard Disk Drive
020	Standard hard disk drive
1E5	High stability option
215	S-parameter test set, 100 kHz to 1.5GHz, 50 Ω system impedance
235	S-parameter test set, 100 kHz to 3GHz, 50 Ω system impedance
237	S-parameter test set, 100 kHz to 3GHz, 75 Ω system impedance
3L3	LF-RF network analyzer with DC bias source, 5 Hz to 500MHz
3L4	LF-RF network analyzer with DC bias source, 5 Hz to 1.5GHz
3L5	LF-RF network analyzer with DC bias source, 5 Hz to 3GHz
721	GPIB
731	Handler I/O
810
820	WIN7
A6J
