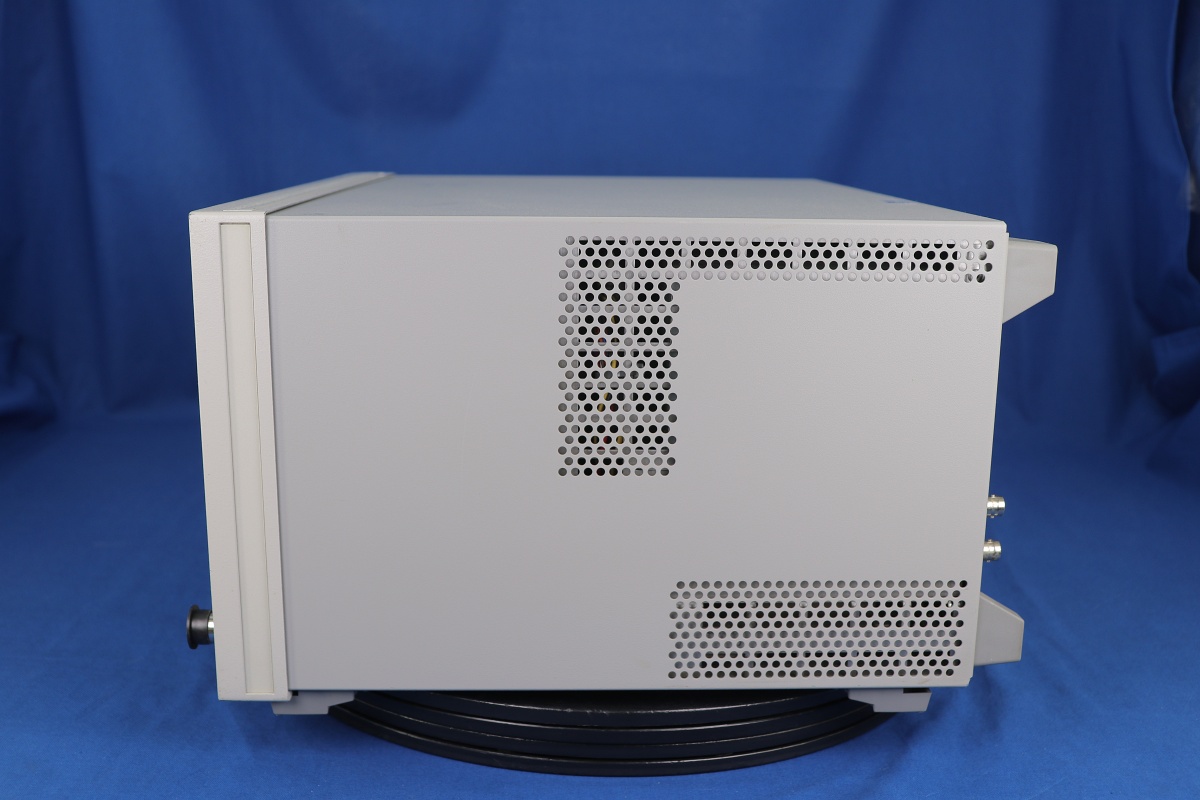

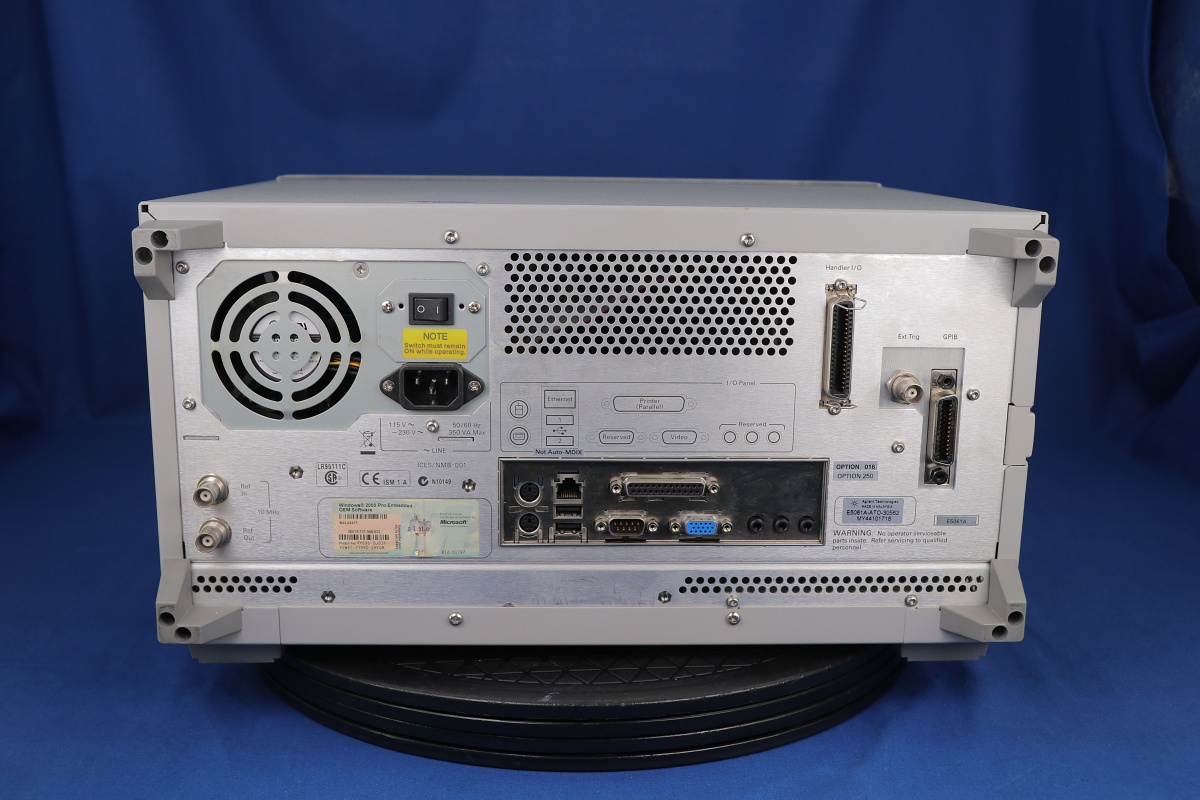

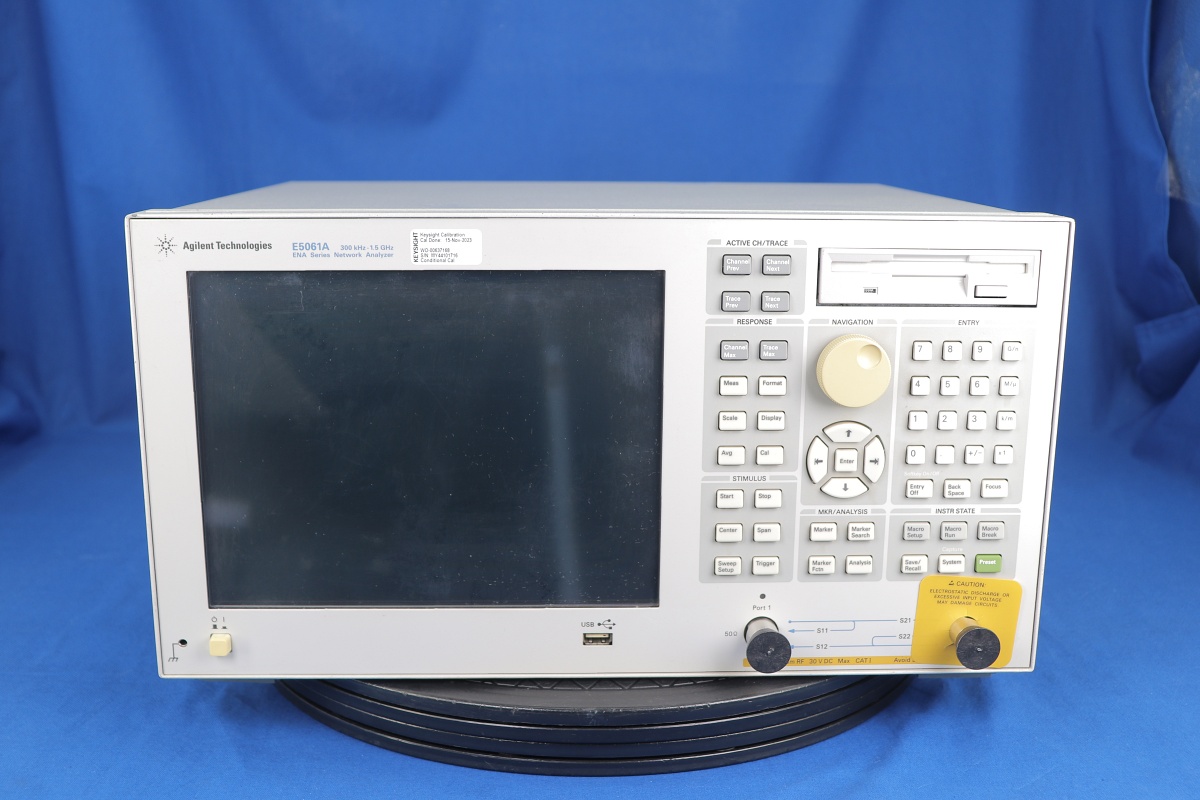

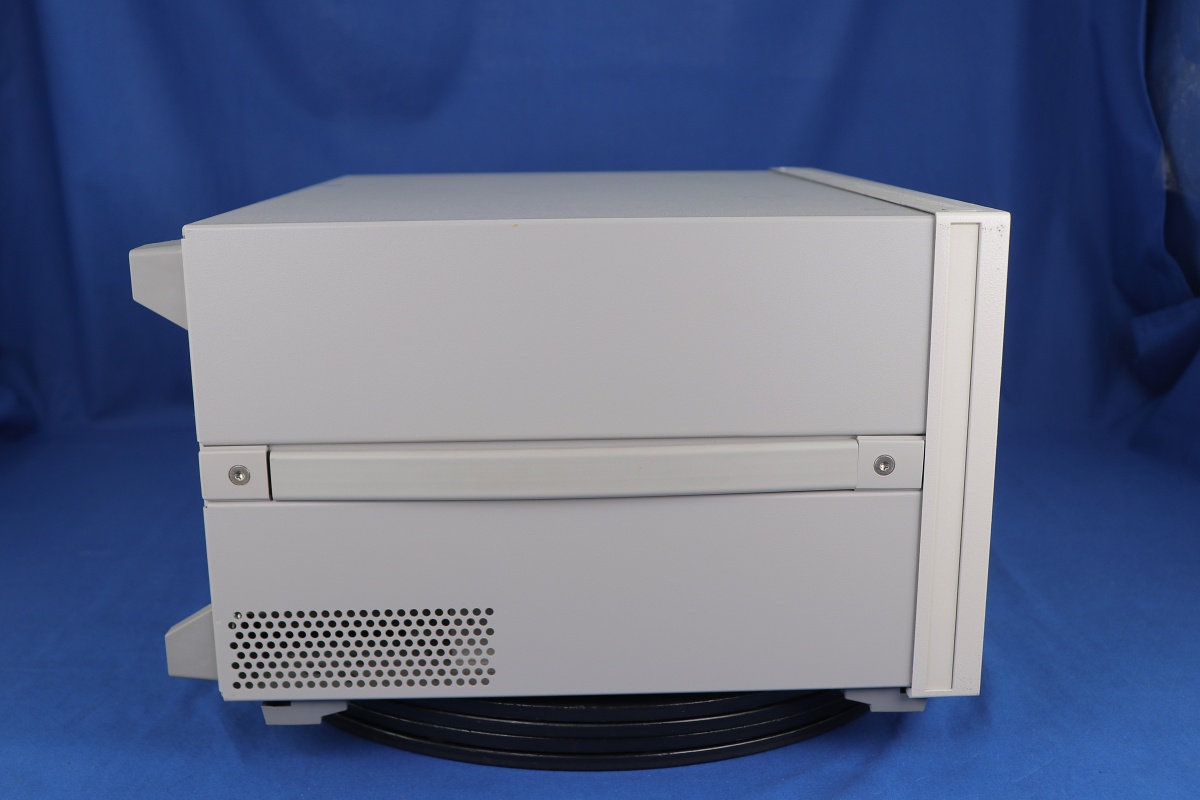

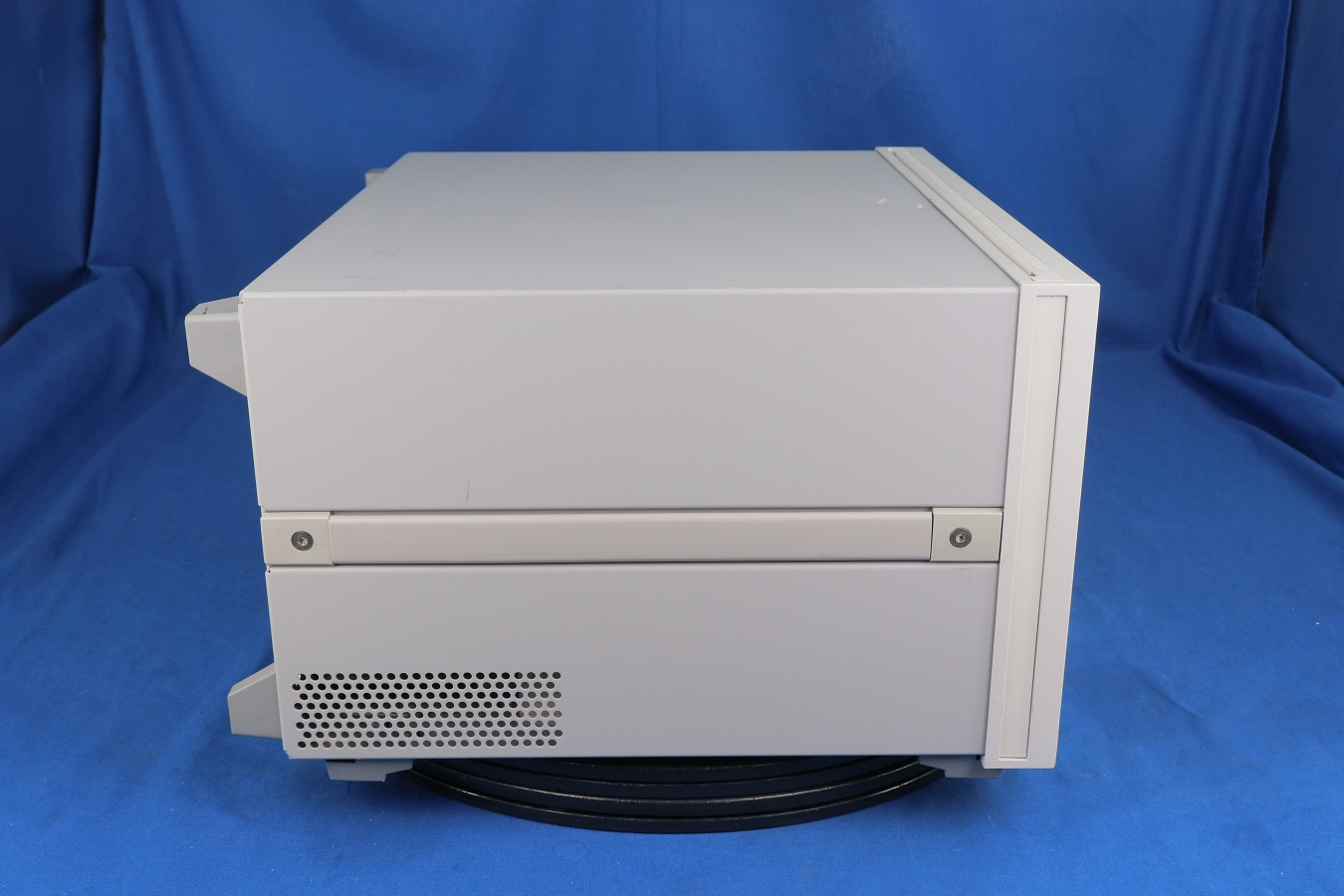

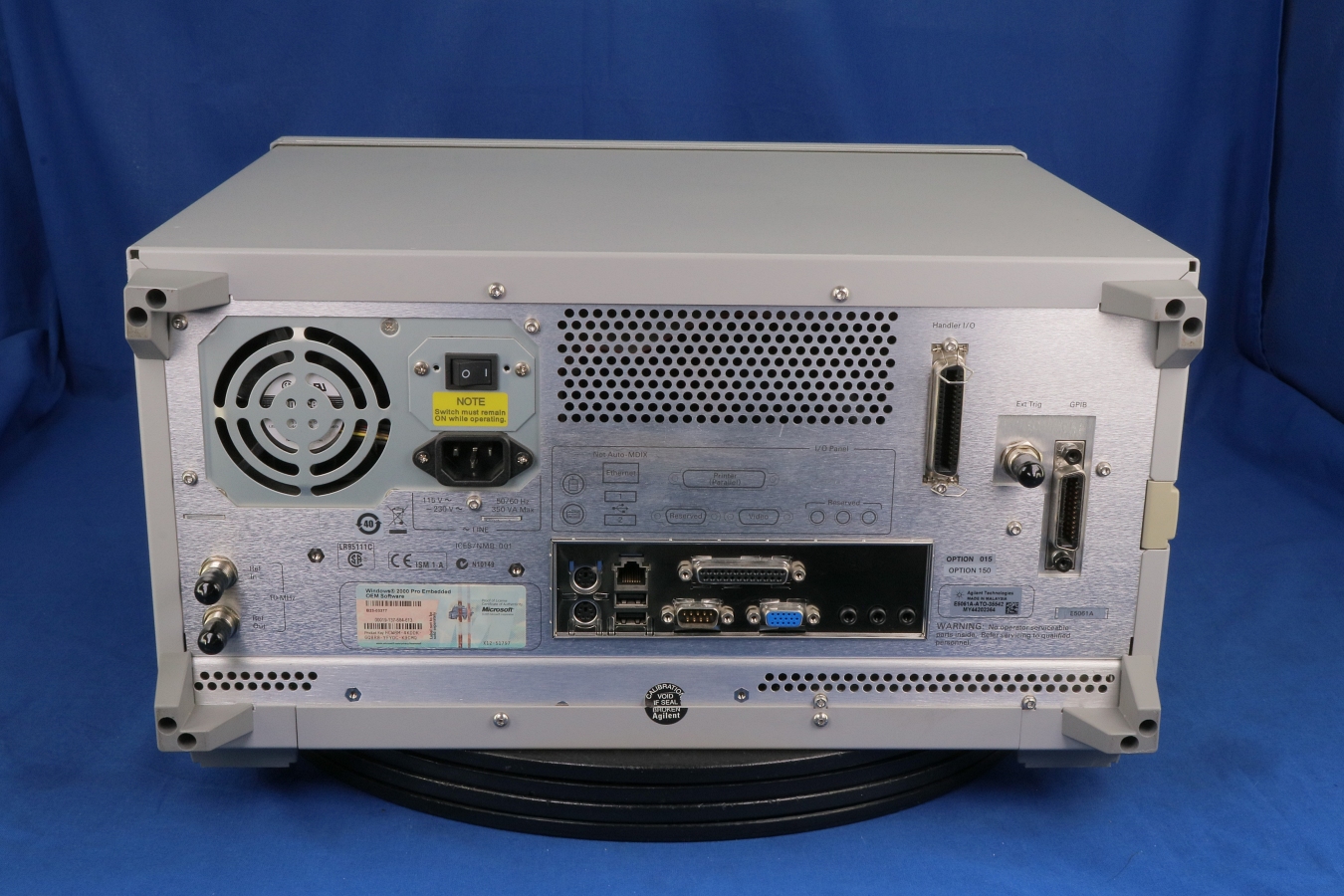

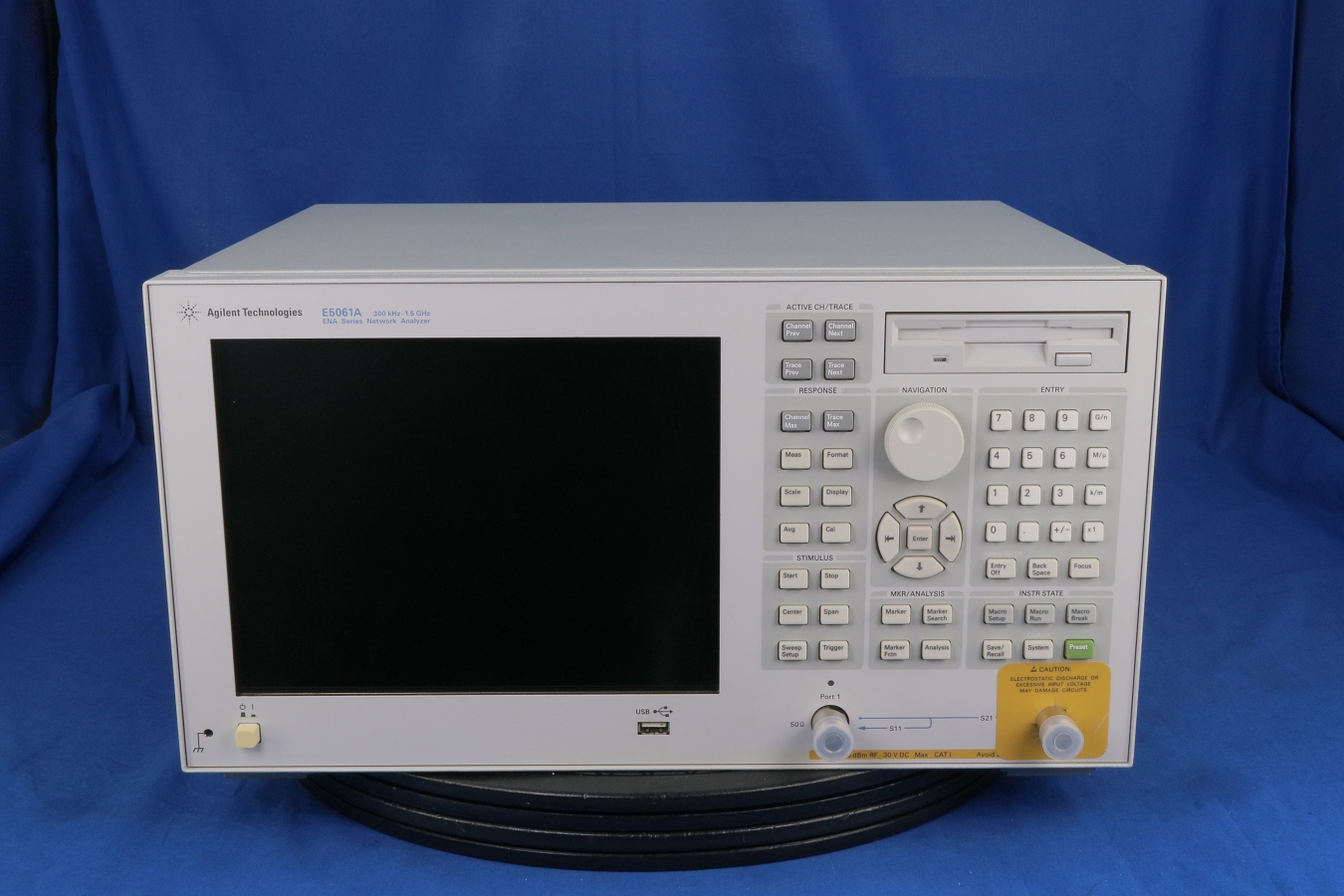

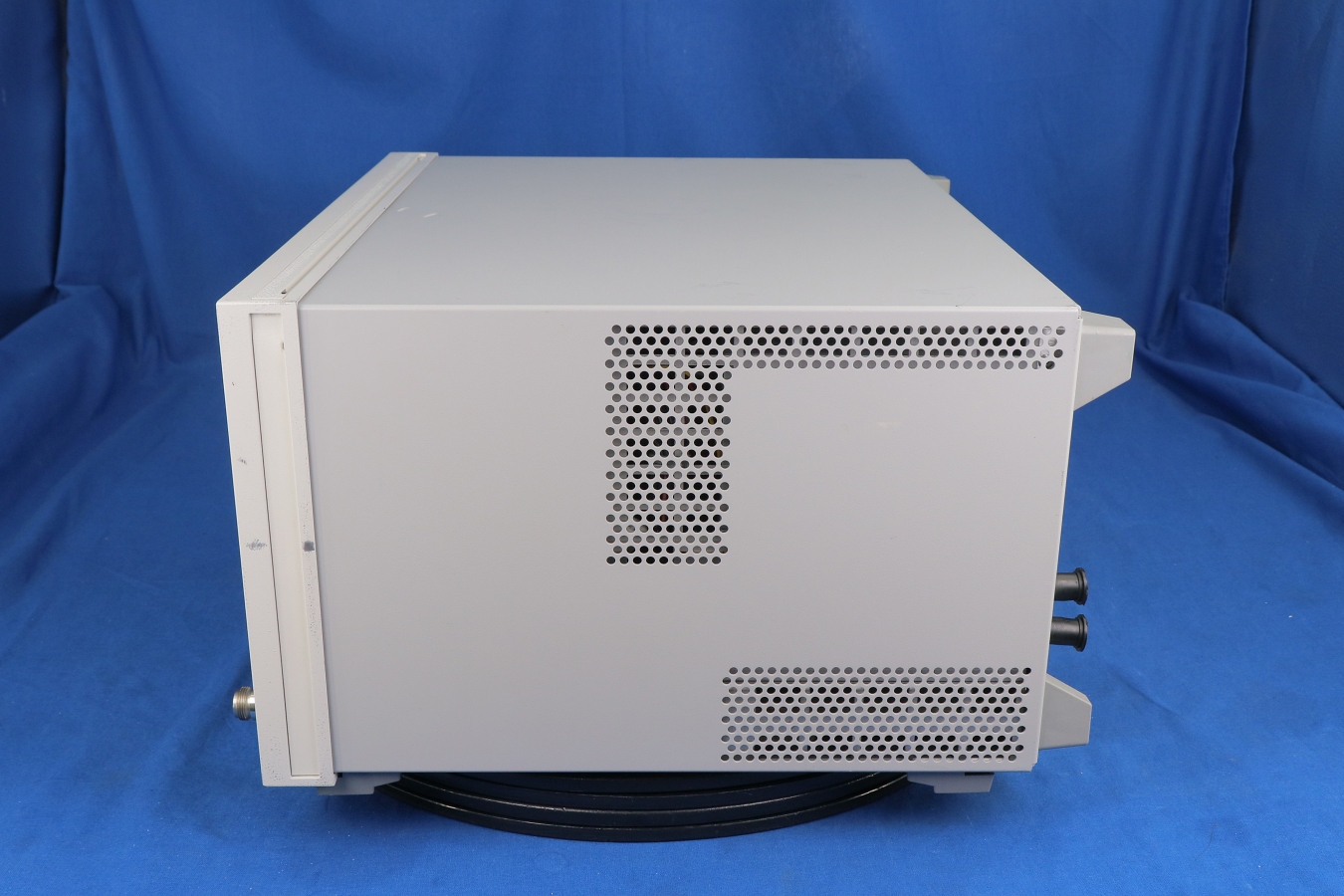

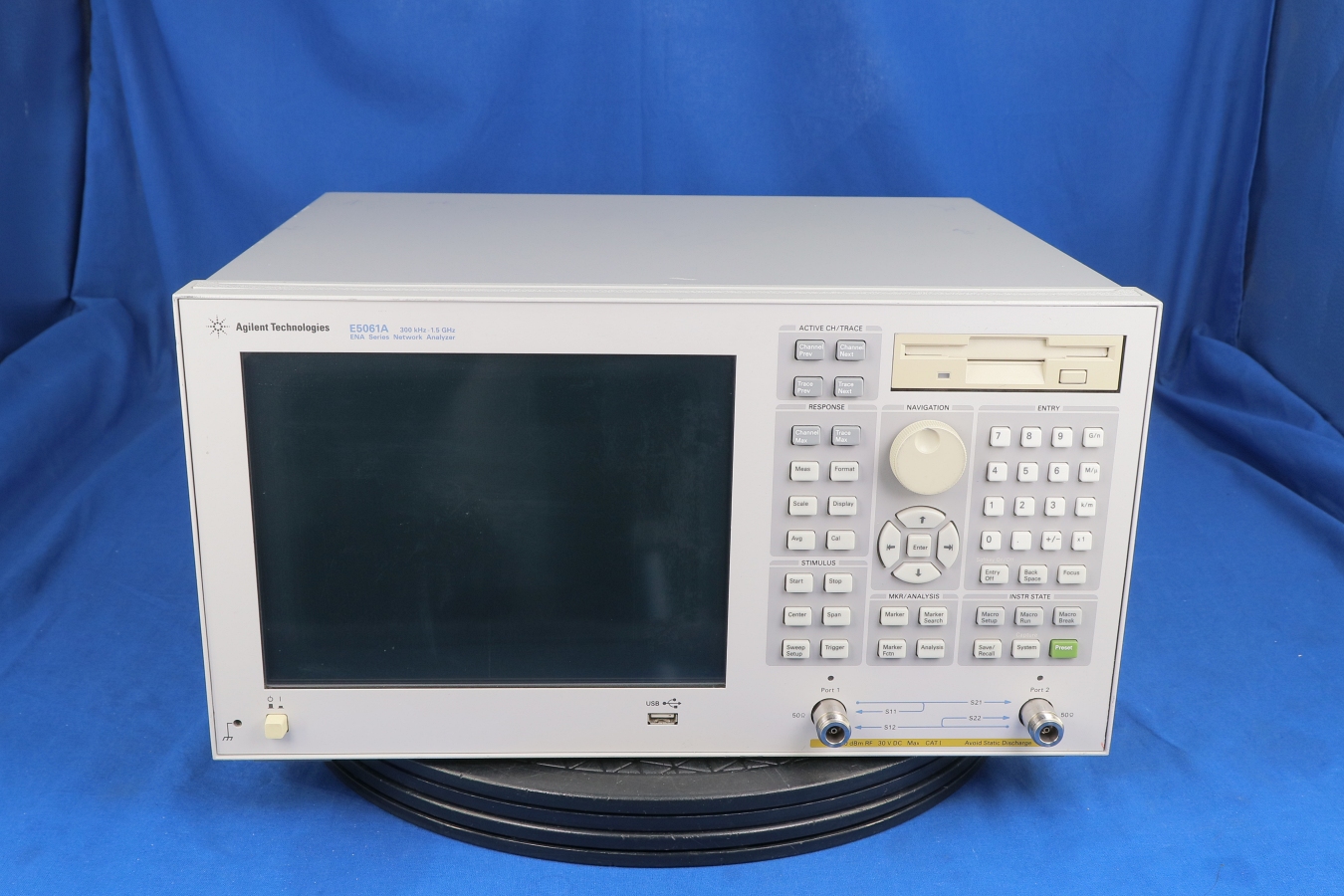

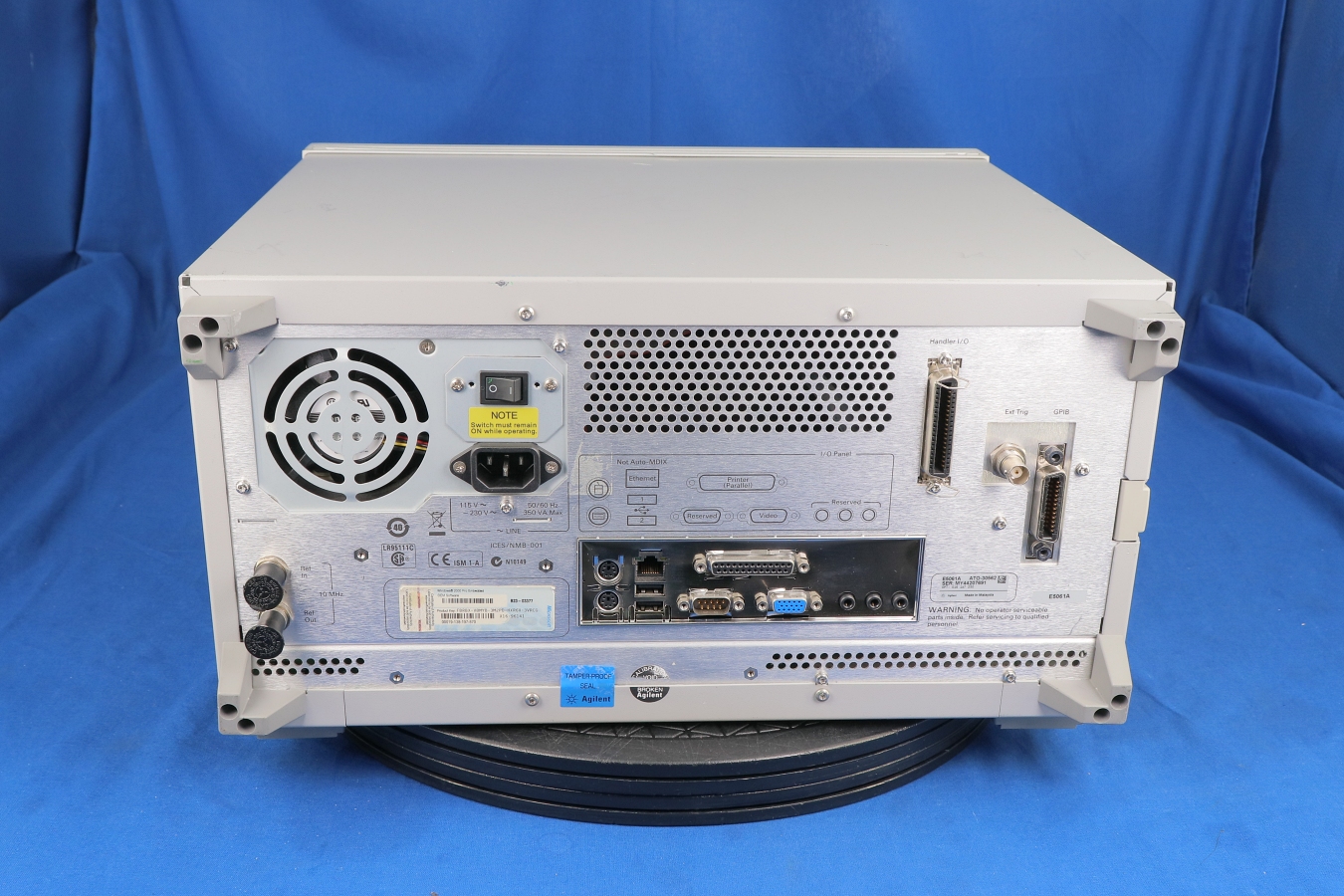

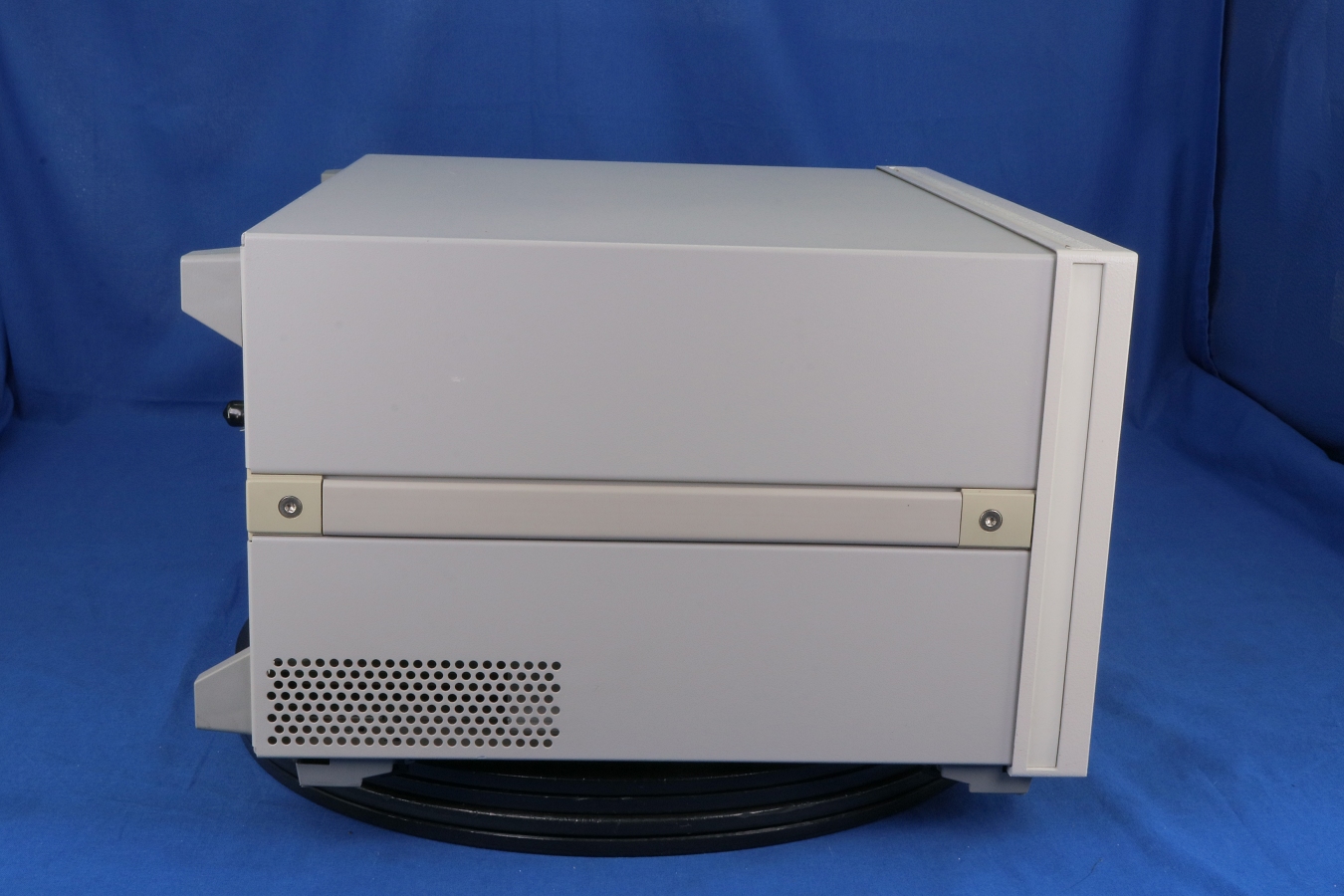

E5061A Agilent Network Analyzer
Additional Features: 300 kHz to 1.5 GHz Integrated T/R or S-parameter test set 50 or 75 ohm test port impedance 120 dB dynamic range and 0.005 dB RMS trace noise Built-in Visual Basic® for Applications (VBA) The Agilent E5061A general purpose network analyzer provides reliable basic S-parameter measurements with easy-to-use features and solid performance based on the latest in modern technologies.  The Transmission/Reflection (T/R) test set options offer lower cost solutions, while the S-parameter test set options provide more accurate measurements with full two-port calibration. 75 ohm options, as well as 50 ohm, are available for CATV component measurements.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
Detail
Additional Features: 300 kHz to 1.5 GHz Integrated T/R or S-parameter test set 50 or 75 ohm test port impedance 120 dB dynamic range and 0.005 dB RMS trace noise Built-in Visual Basic® for Applications (VBA) The Agilent E5061A general purpose network analyzer provides reliable basic S-parameter measurements with easy-to-use features and solid performance based on the latest in modern technologies.  The Transmission/Reflection (T/R) test set options offer lower cost solutions, while the S-parameter test set options provide more accurate measurements with full two-port calibration. 75 ohm options, as well as 50 ohm, are available for CATV component measurements.
Option
Option Description

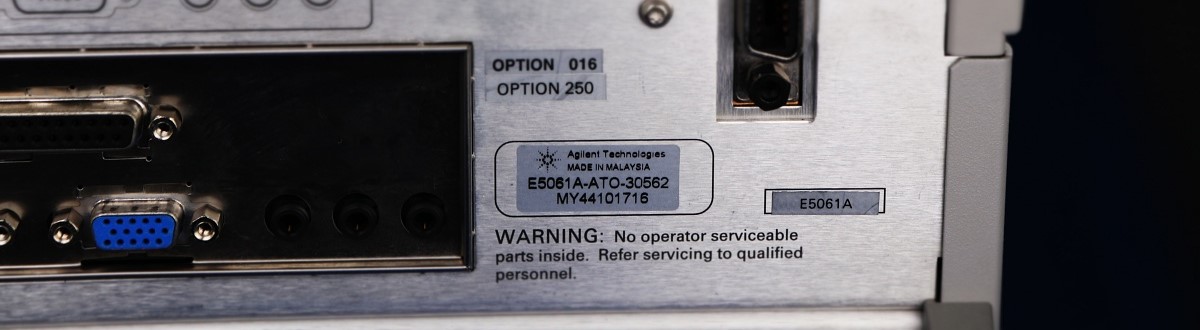

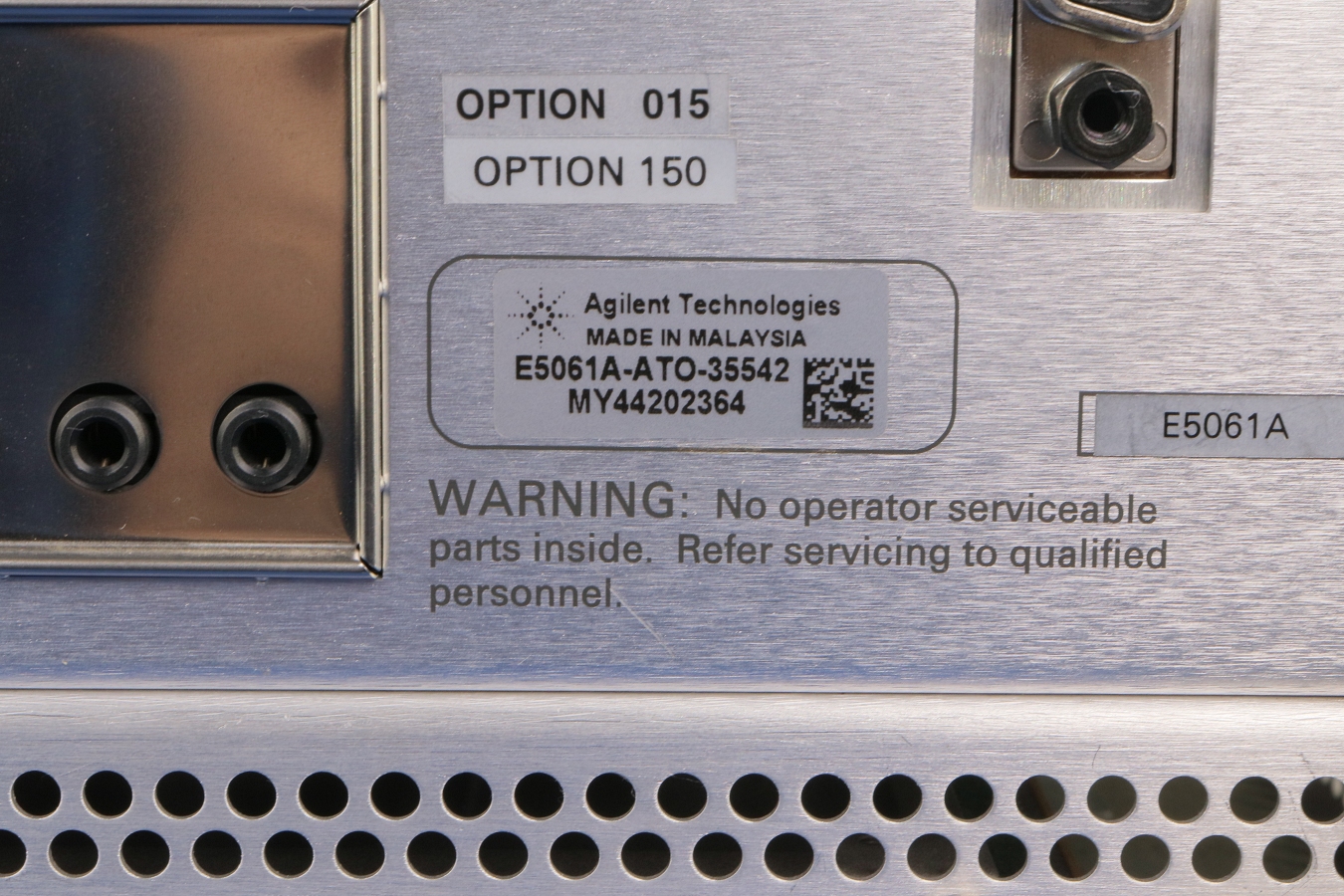

015

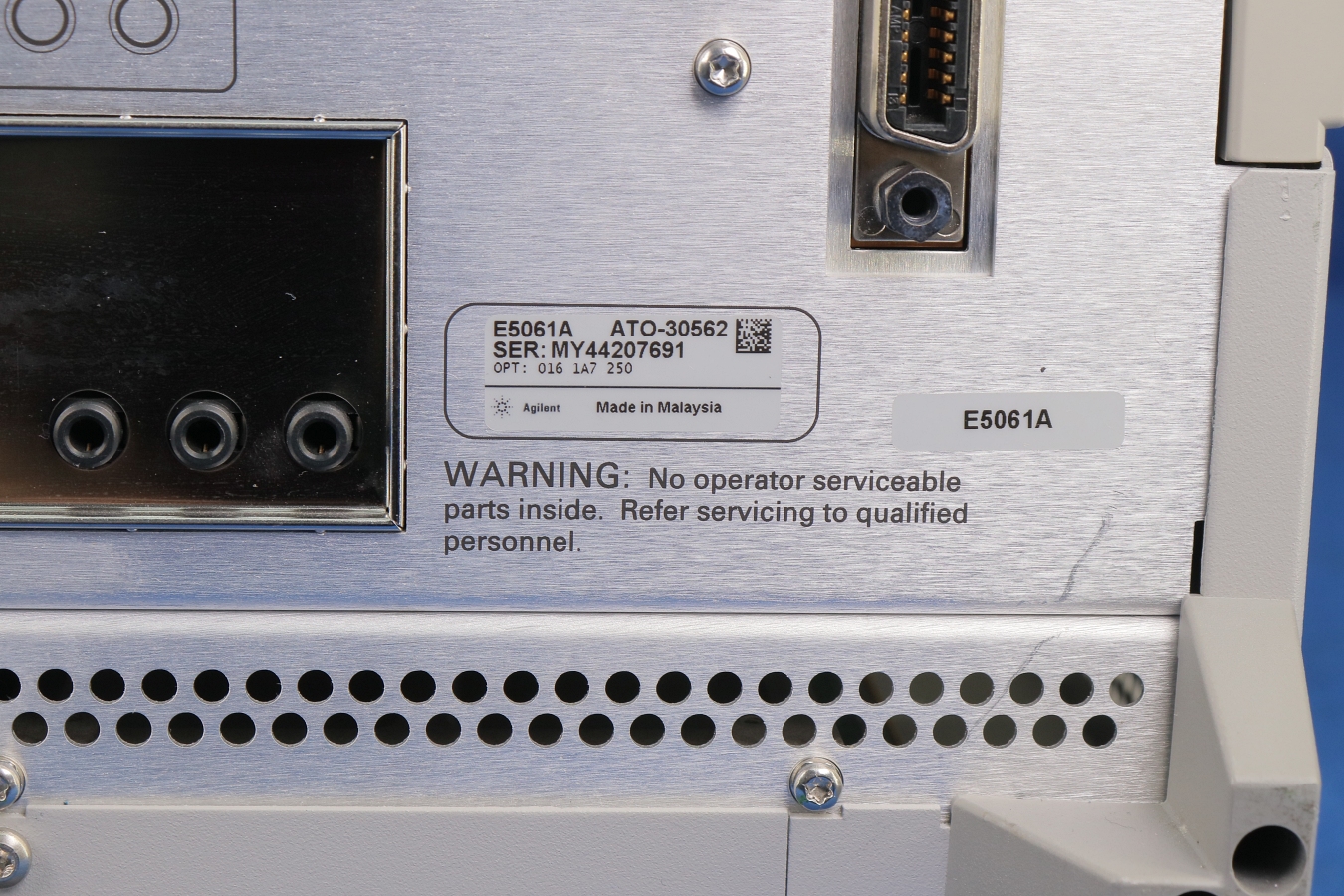

016 Touchscreen
150
1A7 ISO 17025 Compliant Calibration Certificate
250 S-Parameter test set 50 ohm, with extended power range
E5061B-020 Standard Data Storage
E5061B-115 Transmission/Reflection test set, 100 kHz to 1.5 GHz, 50 ohm system impedance
E5061B-117 Transmission/Reflection test set, 100 kHz to 1.5 GHz, 75 ohm system impedance
E5061B-135 Transmission/Reflection test set, 100 kHz to 3 GHz, 50 ohm system impedance
E5061B-137 Transmission/Reflection test set, 100 kHz to 3 GHz, 75 ohm system impedance
E5061B-1CM Rack mount kit
E5061B-1CN Front handle kit
E5061B-1CP Rack mount and front handle kit
E5061B-1E5 High stability timebase
E5061B-215 S-parameter test set, 100 kHz to 1.5 GHz, 50 ohm system impedance
E5061B-217 S-parameter test set, 100 kHz to 1.5 GHz, 75 ohm system impedance
E5061B-235 S-parameter test set, 100 kHz to 3 GHz, 50 ohm system impedance
E5061B-237 S-parameter test set, 100 kHz to 3 GHz, 75 ohm system impedance
E5061B-3L3 LF-RF network analyzer with DC bias source, 5 Hz to 500 MHz
E5061B-3L4 LF-RF network analyzer with DC bias source, 5 Hz to 1.5 GHz
E5061B-3L5 LF-RF network analyzer with DC bias source, 5 Hz to 3 GHz
E5061B-720 Add 50 ohm resistor set
E5061B-810 Add keyboard
E5061B-820 Add mouse
