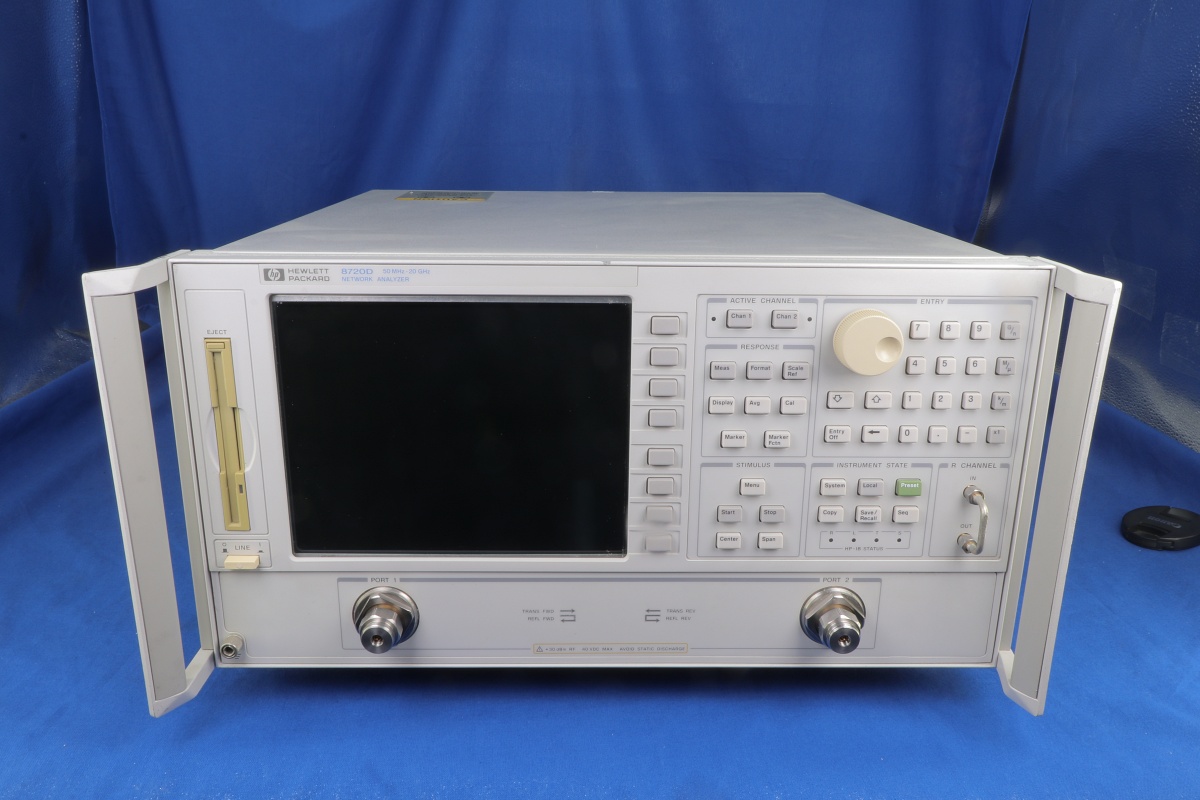

8720D HP Network Analyzer
50 MHz to 13.5, 20, or 40 GHz frequency coverage
New processor makes measurements and data transfers up to seven times faster
Fast-sweeping, built-in synthesized source
REQUEST A QUOTE
8720D HP Network Analyzer
010: Time Domain Analysis /
085: High power S parameter test set modification up to +43dBm(20W) /
8720D HP Network Analyzer

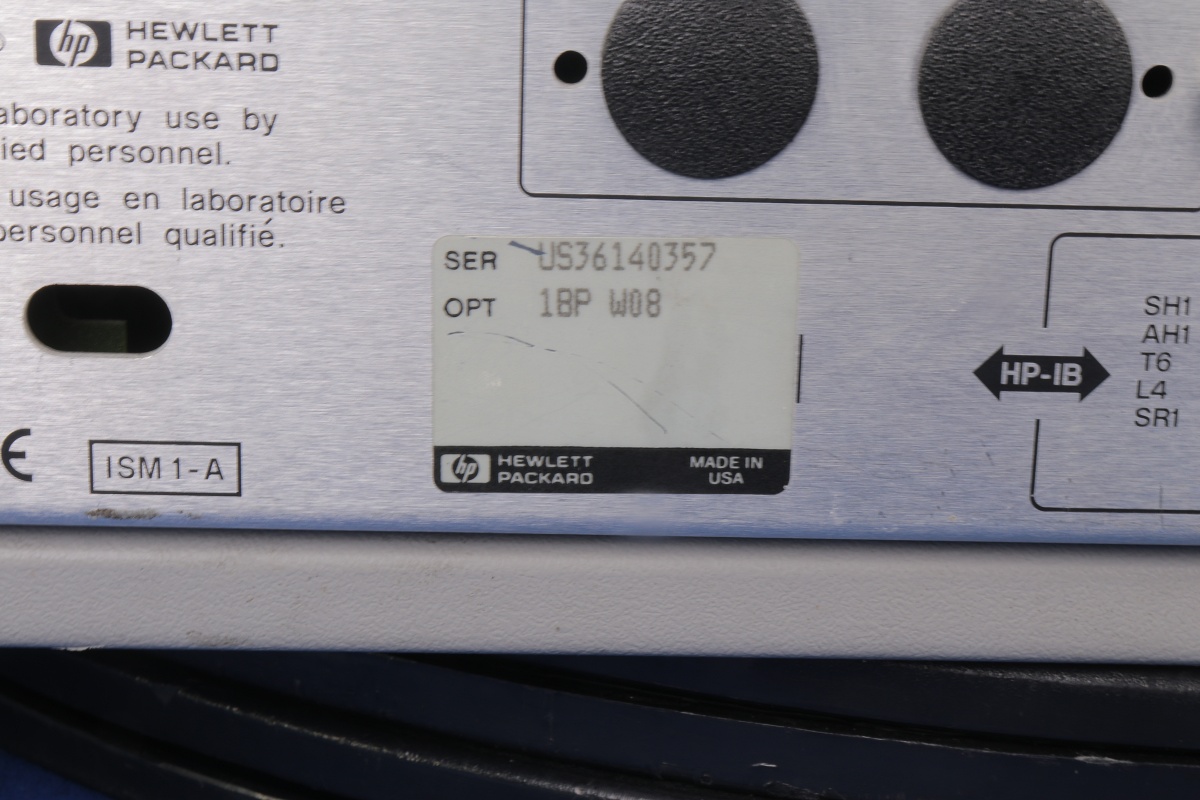

1BP /
W08 /
Detail
Additional Features:
50 MHz to 13.5, 20, or 40 GHz frequency coverage
New processor makes measurements and data transfers up to seven times faster
Fast-sweeping, built-in synthesized source
Integrated solid-state switching S-parameter test set
Vecter receiver, error correcton, time domain
Up to 105 dB dynamic range
The Agilent 8720D is a Network Analyzer.
Option
| Option |
Description |
| 001 |
1 Hz Frequency Resolution |
| 003 |
High Forward Dynamic Range |
| 007 |
Mechanical Transfer Switch |
| 009 |
|
| 010 |
Time Domain Analysis |
| 085 |
High power S parameter test set modification up to +43dBm(20W) |
| 1BP |
|
| 1D5 |
High-stability frequency reference output |
| W08 |
|
