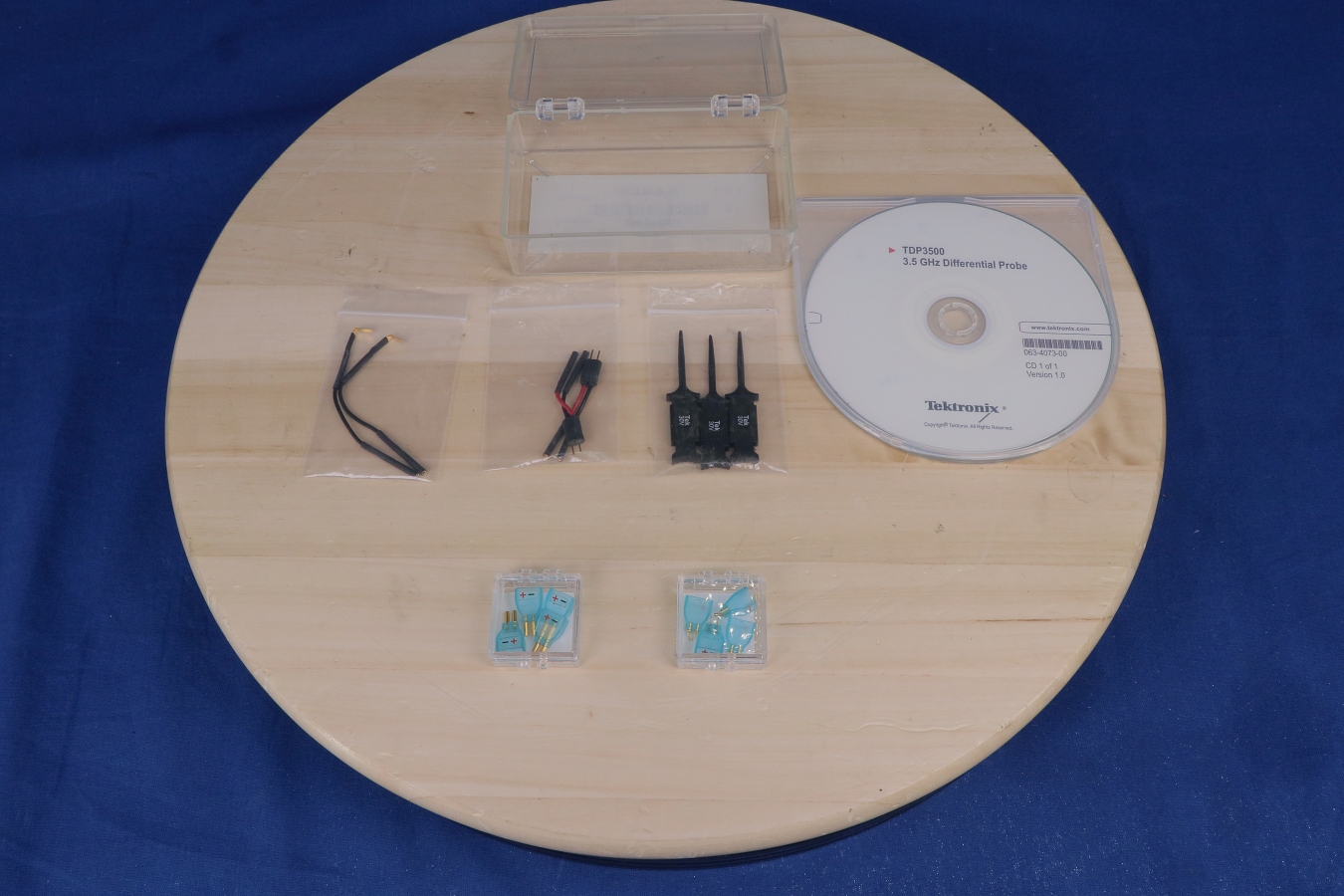

Features: Bandwidth: 3.5 GHz Differential input capacitance: ≤0.3 pF Differential input resistance: 100 kΩ DC + pk AC input voltage: ±15 V >60 dB at 1 MHz and >25 dB at 1 GHz CMRR Excellent common mode rejection – reduces measurement errors in higher common environments Low capacitive and resistive loading – maintains signal fidelity and reduces DC biasing interactions Compact probe head size for probing small geometry circuit elements DUT attachment accessories enable connection to fine-spaced SMDs Robust design for reliability Connects directly to oscilloscopes with the TekVPI™ probe interface Provides automatic units scaling and readout on the oscilloscopes display Easy access to probe comp box controls or oscilloscope probe menu display for probe status, setup control, and diagnostic information Direct connection to and powered from the TekVPI™ oscilloscope interface (Connects directly to TekVPI scopes without the need of an external power supply, like many competitors require) Single-button oscilloscope probe menu access Setup and control from probe comp box or oscilloscope user interface AutoZero - zeros out output offset Remote GPIB/USB probe control through the oscilloscope Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP3500 Differential-ended Active probes provide excellent high-speed electrical and mechanical performance required for today's digital system designs.
