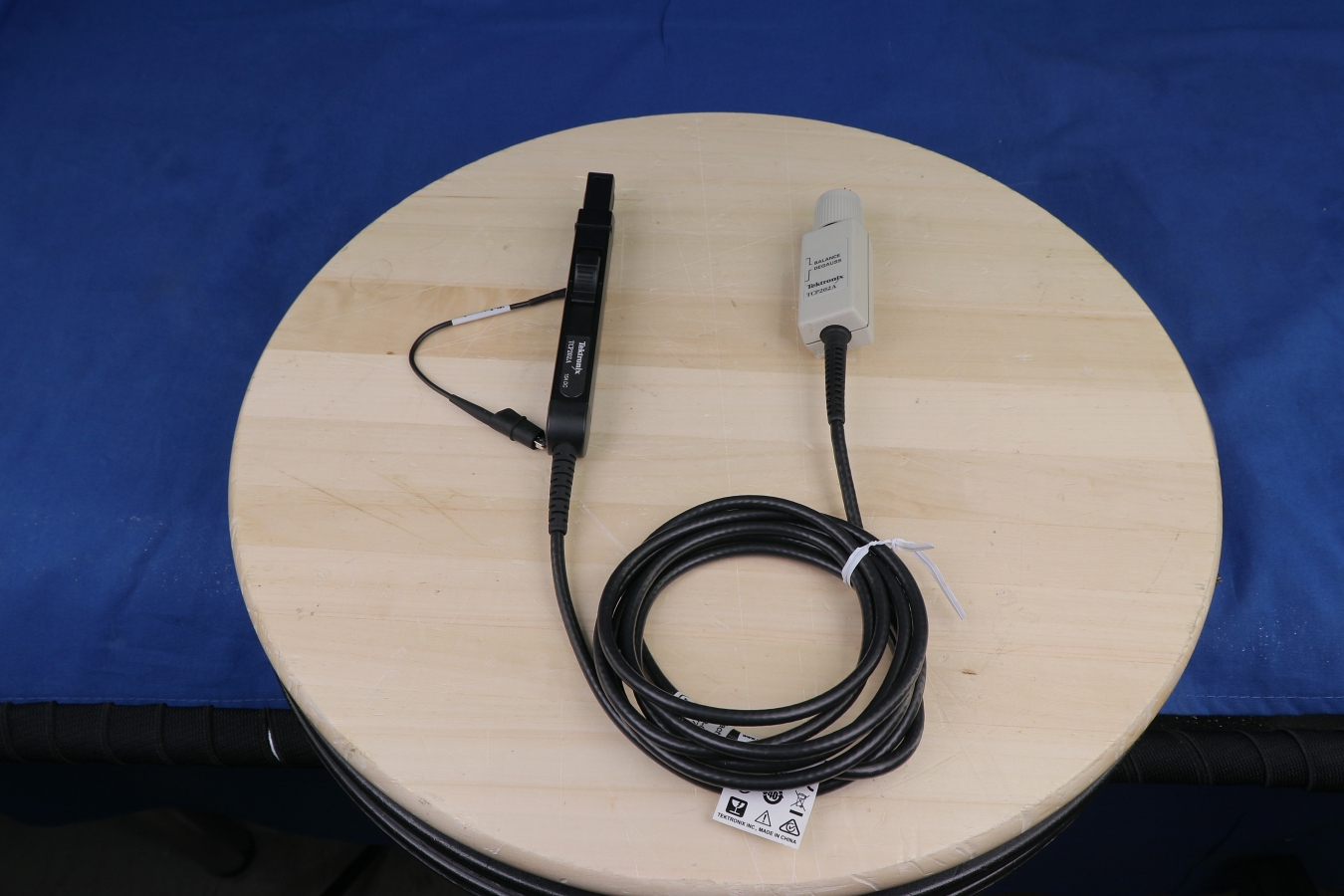

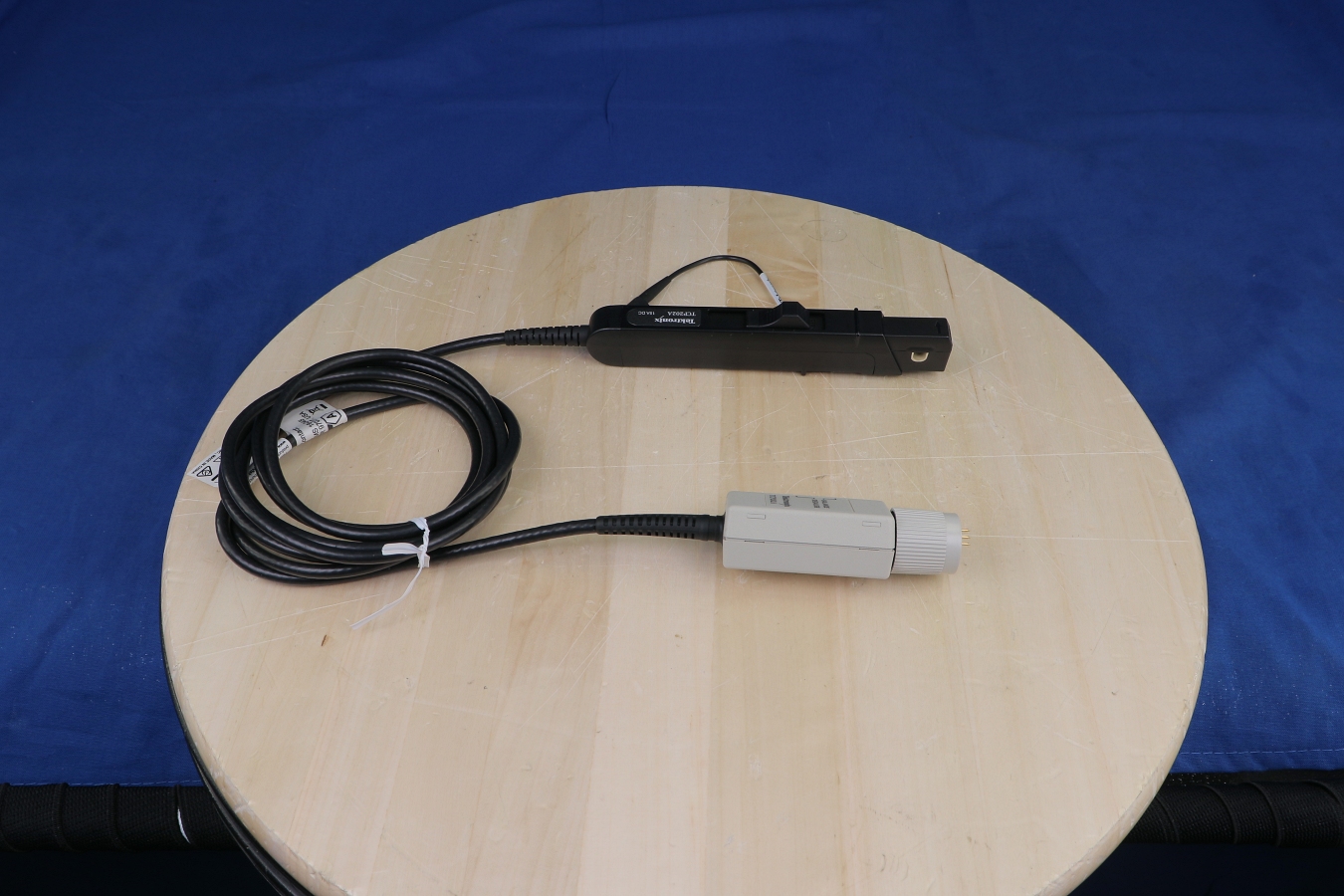

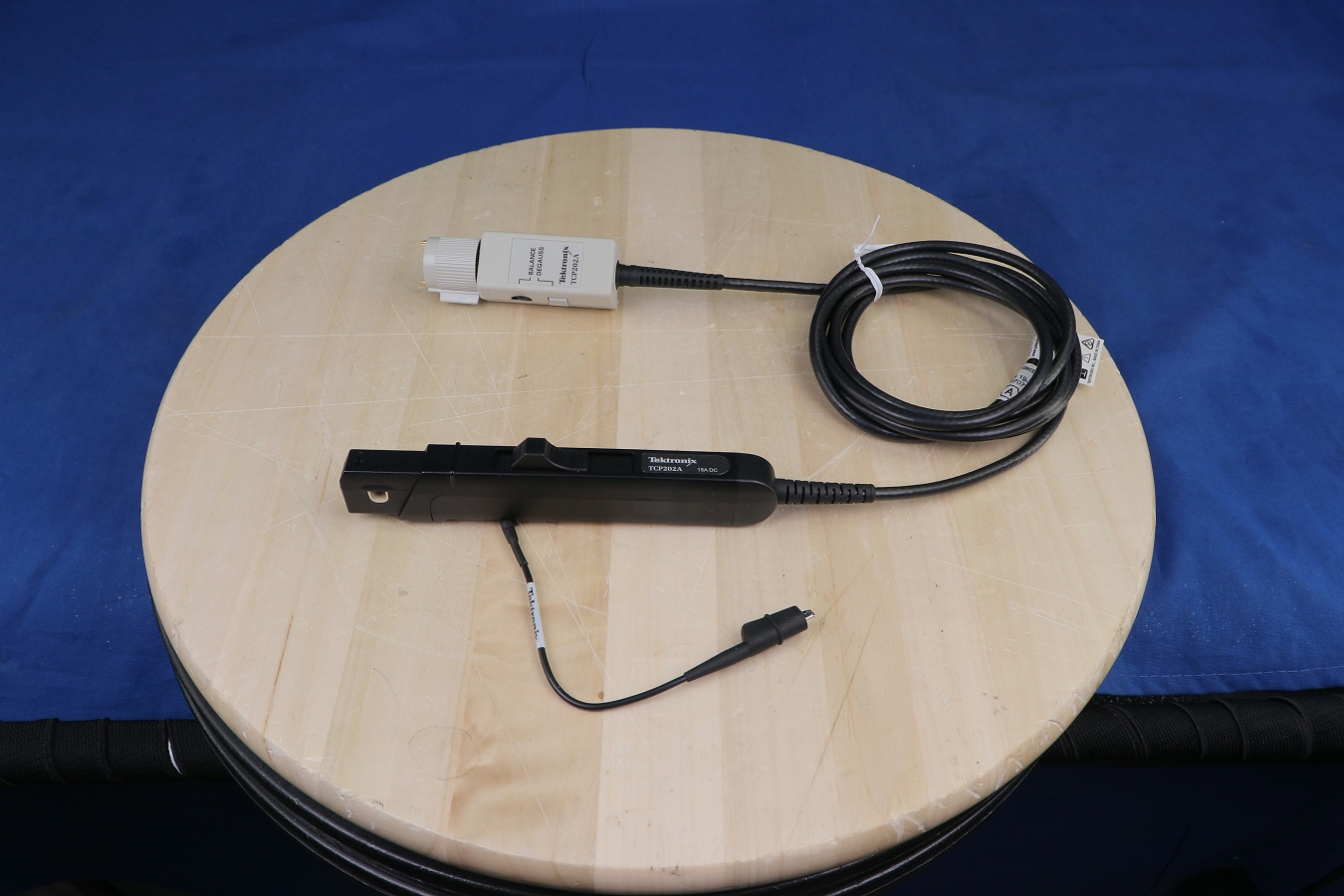

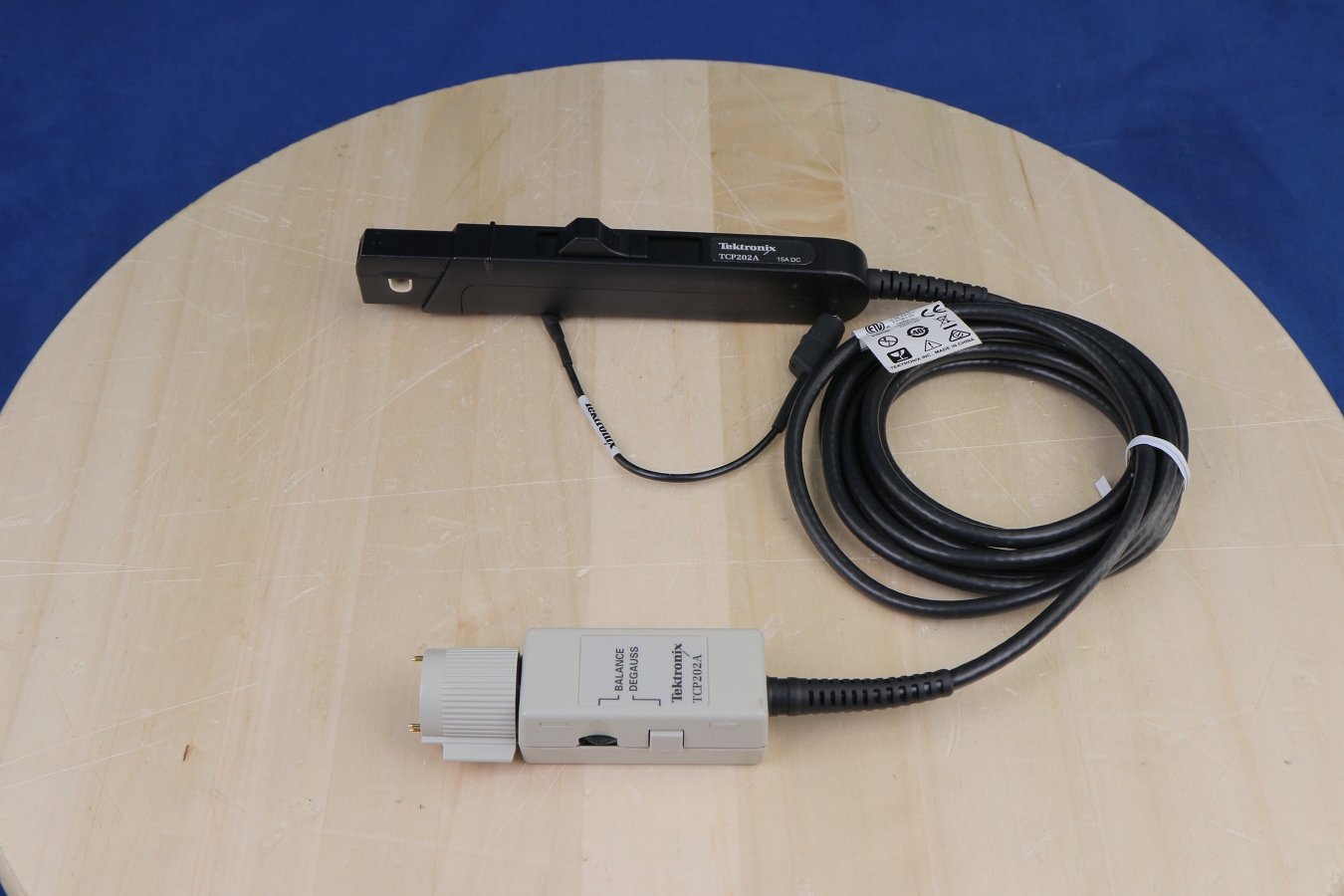

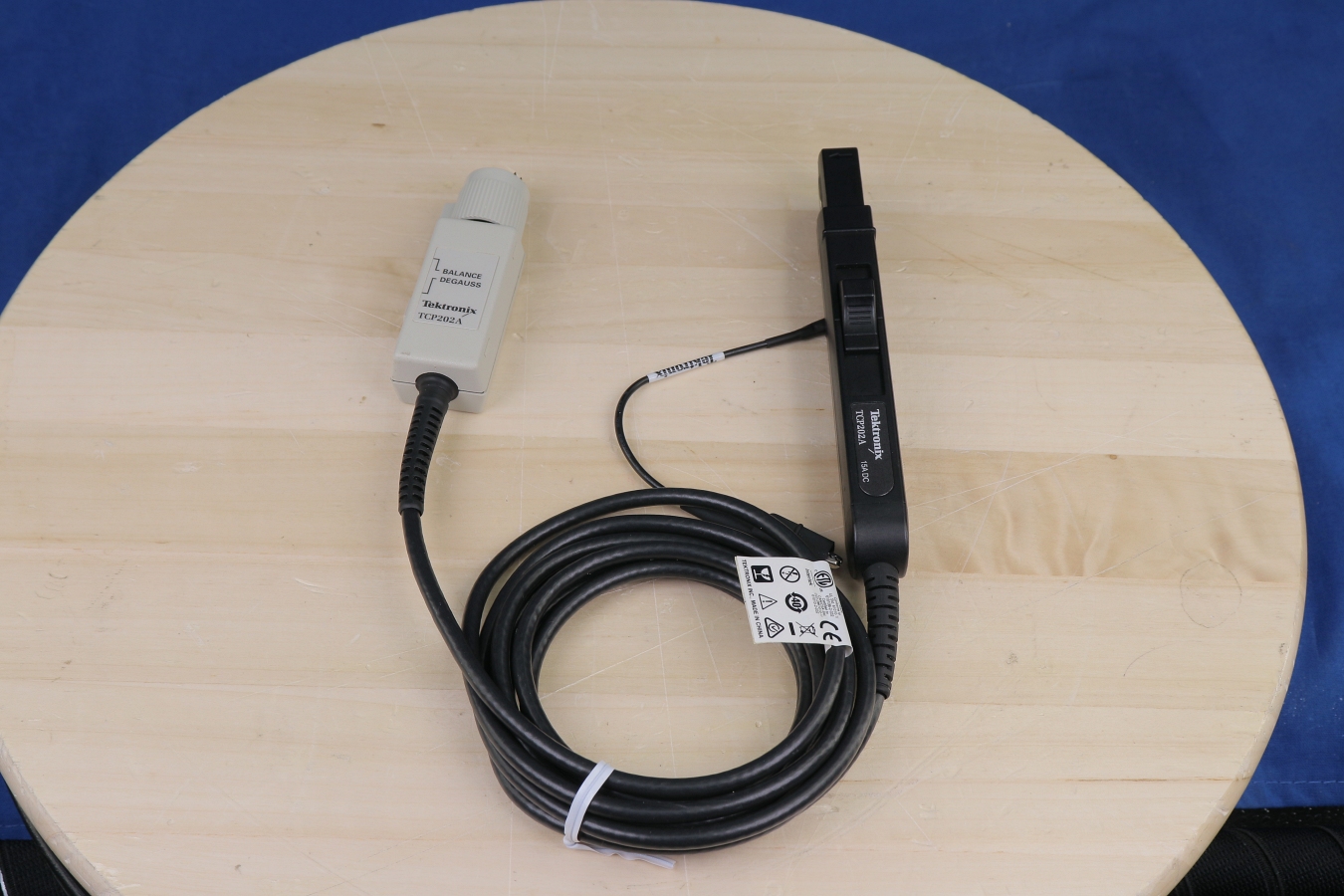

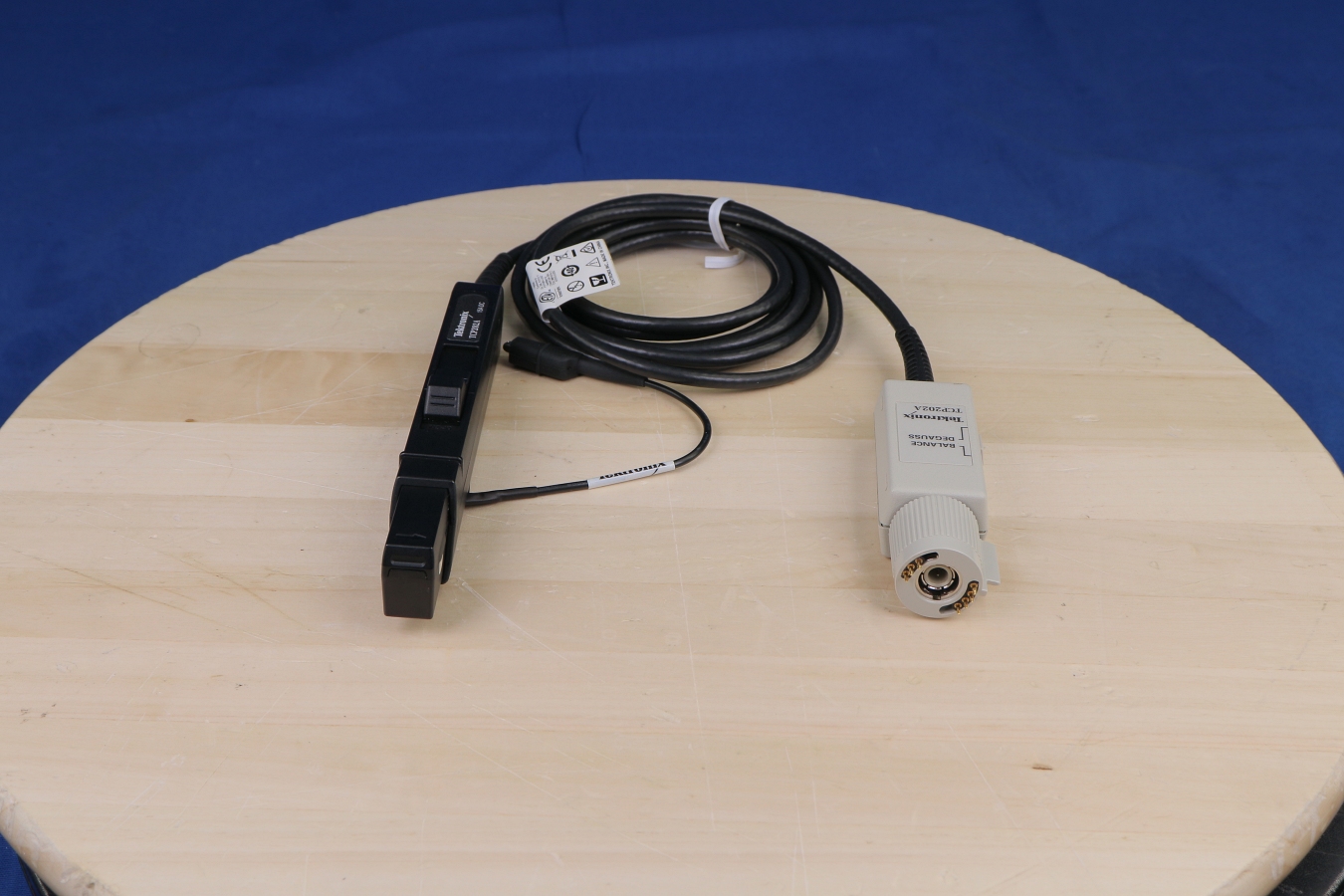

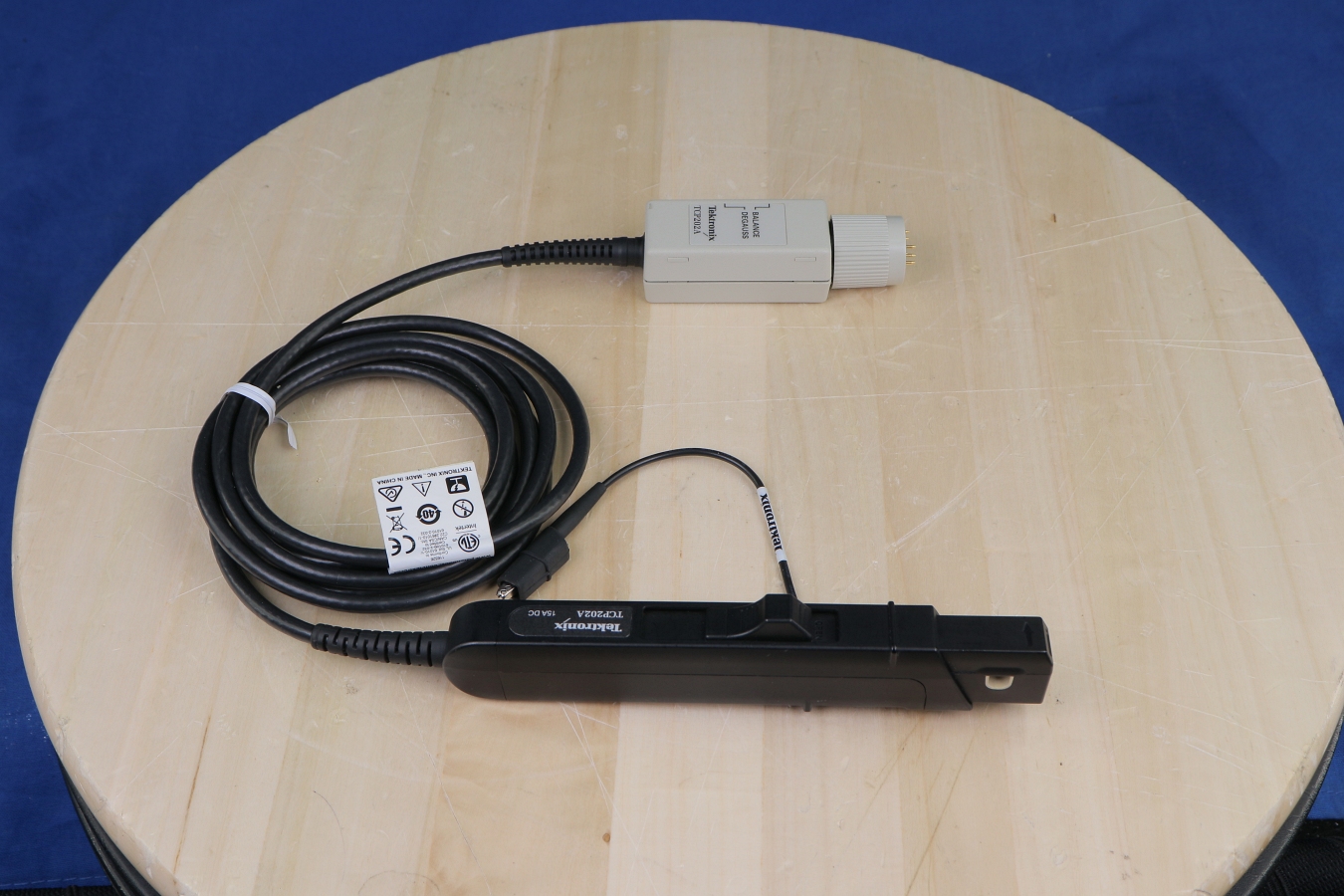

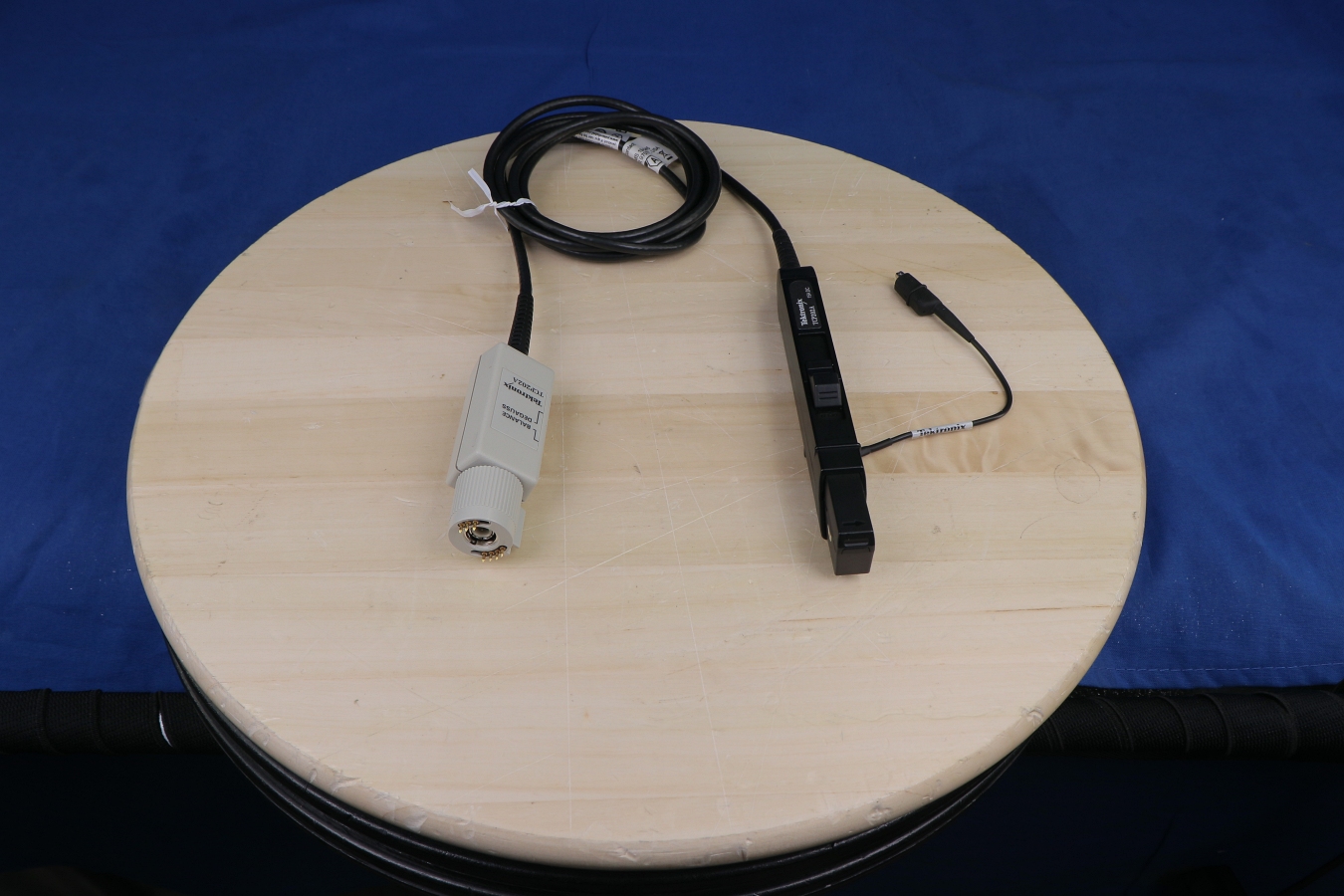

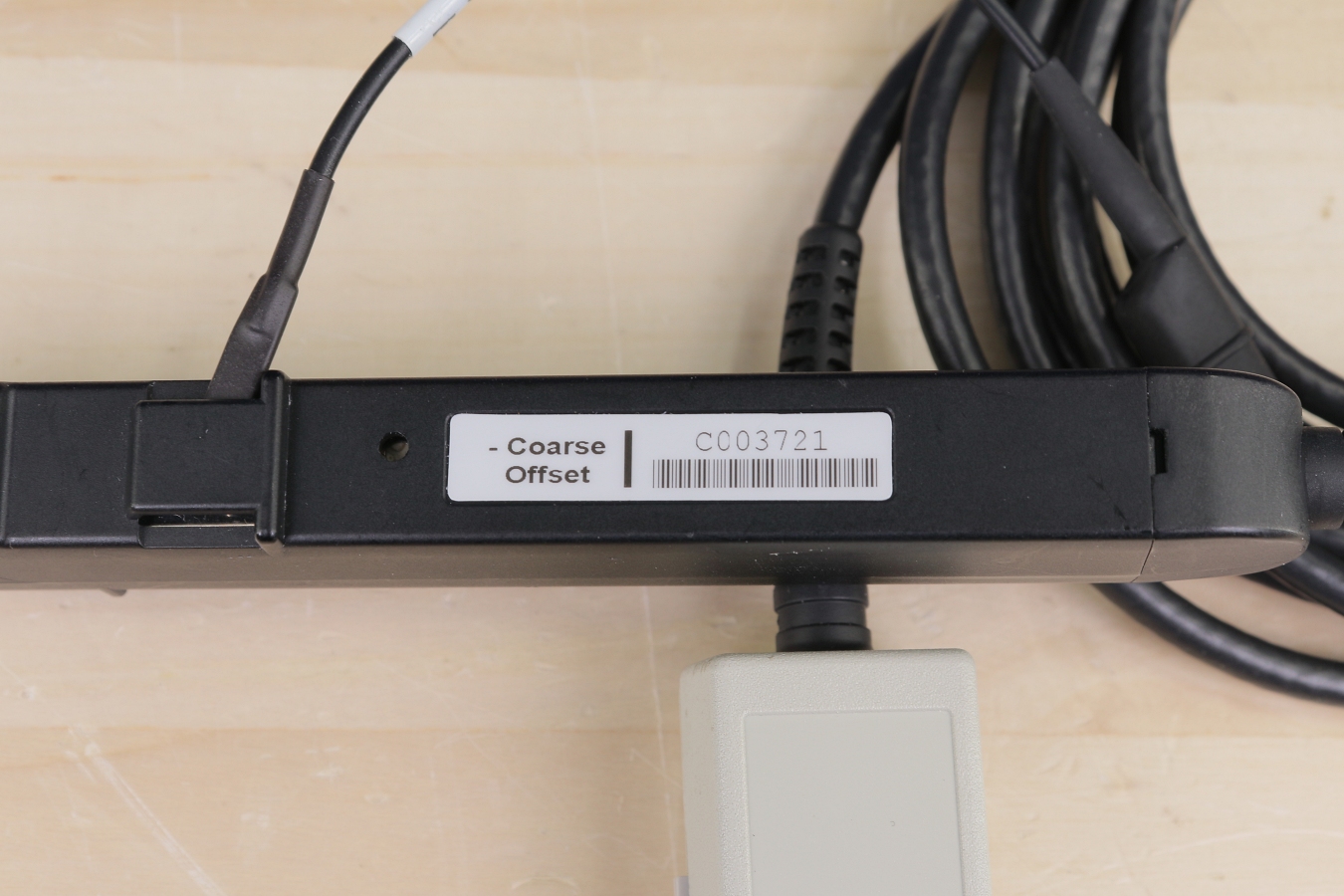

Additional Features: 15 ADC + Peak AC Maximum Current Capability 50 A Peak Pulse Current Capability Connects Directly to Oscilloscopes with the TekProbe™ Interface Provides Automatic Units Scaling and Readout on the Oscilloscope Display Degauss Button and Thumbwheel for DC Offset Adjustment Easy-to-Use and Accurate AC/DC Current Measurements DC to >50 MHz Bandwidth Core Jaw Diameter of 5 mm (0.2 in.) Accurately Measures Current Levels as Low as 10 mA per Division High Accuracy with Typically Less than 1% DC Gain Error Split-core Construction allows Easy Circuit Connection Low Noise and DC Drift Safety Certified Includes: Instruction Manual (English), Probe Ground Lead – 6 in. length, Nylon Carrying Case Standard Warranty: One-year parts and labor Applications: Power Supplies Semiconductor Devices Power Inverter/Converters Electronic Ballasts Industrial/Consumer Electronics Mobile Communications Motor Drives Transportation Systems The TCP202A is from a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
