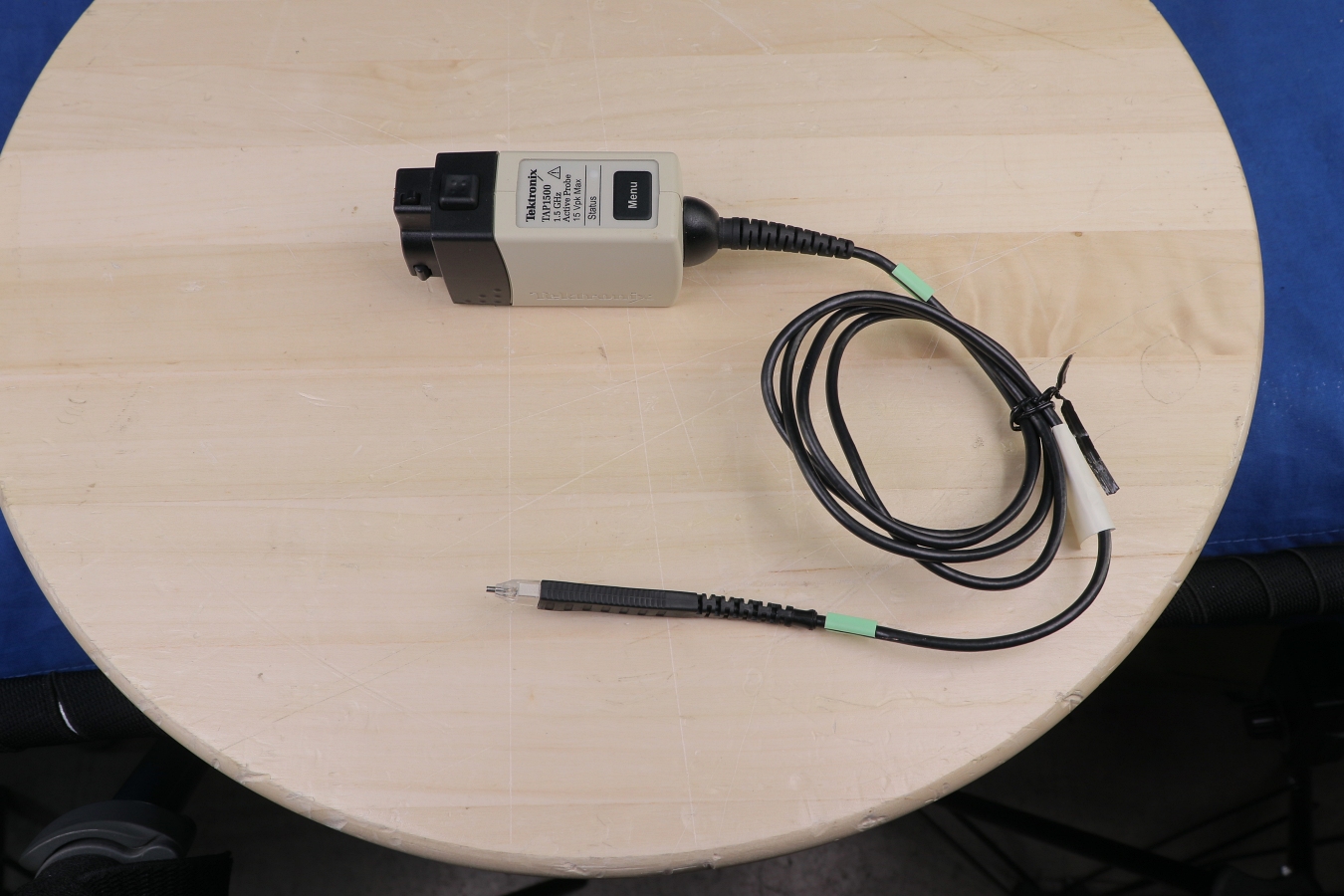

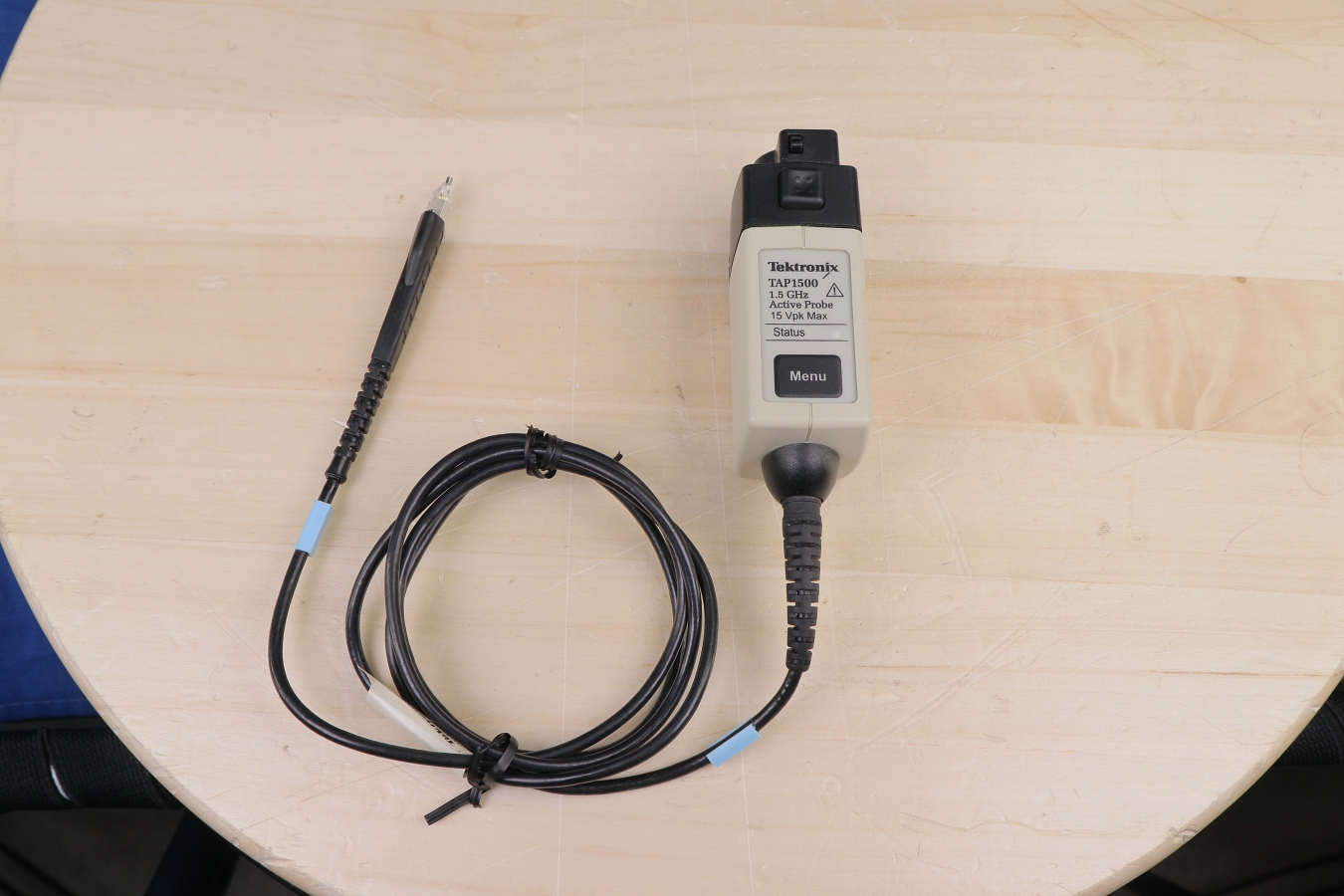

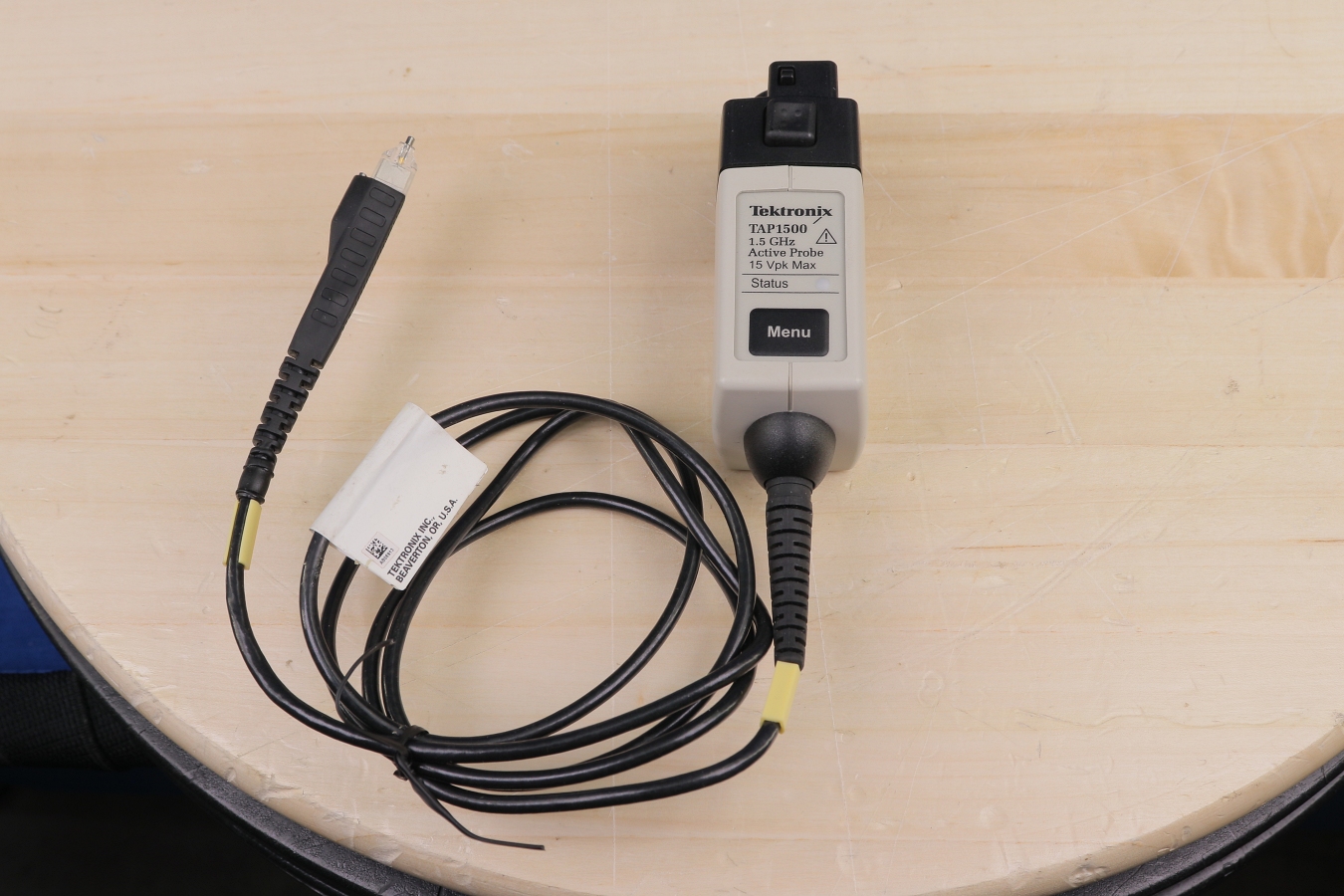

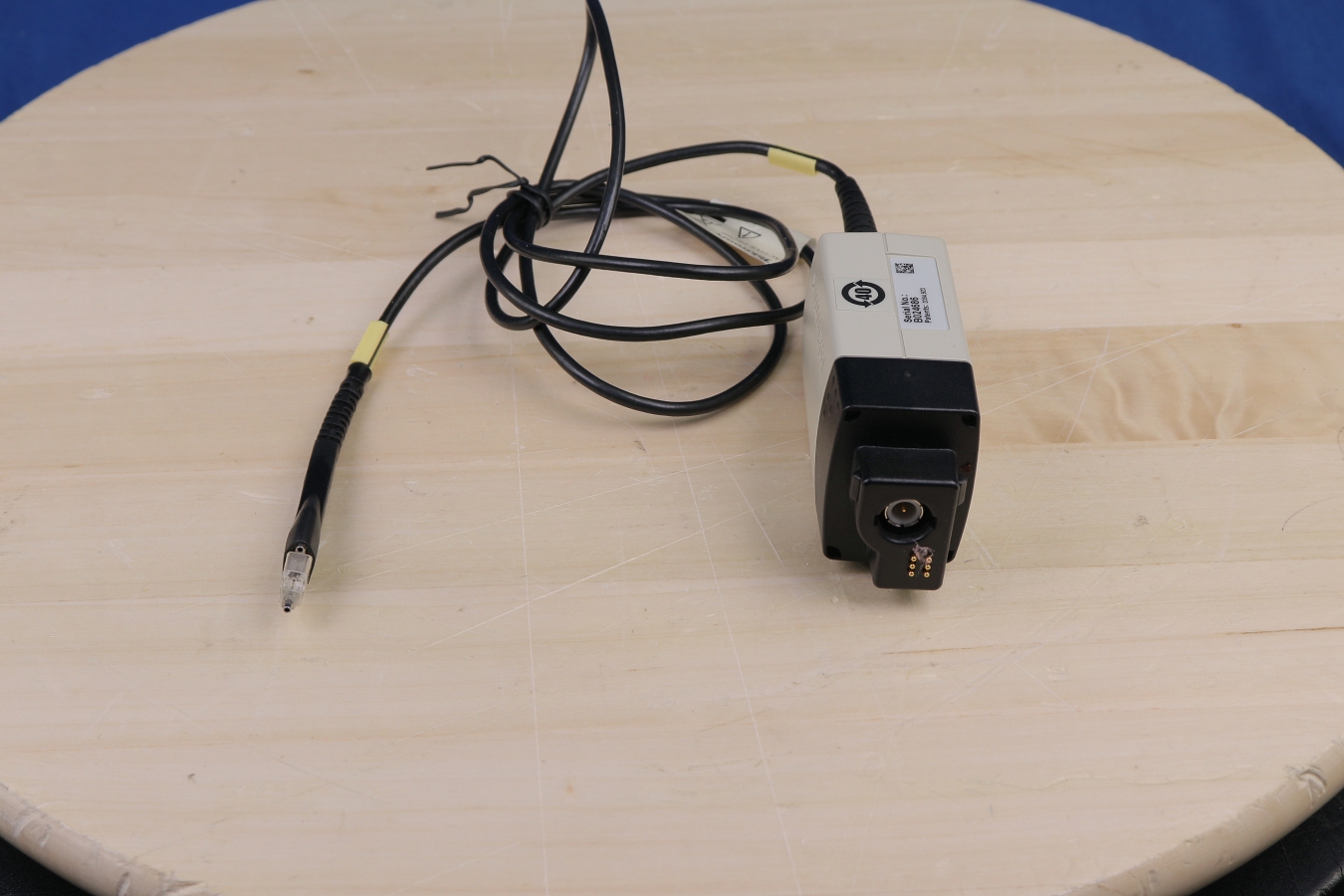

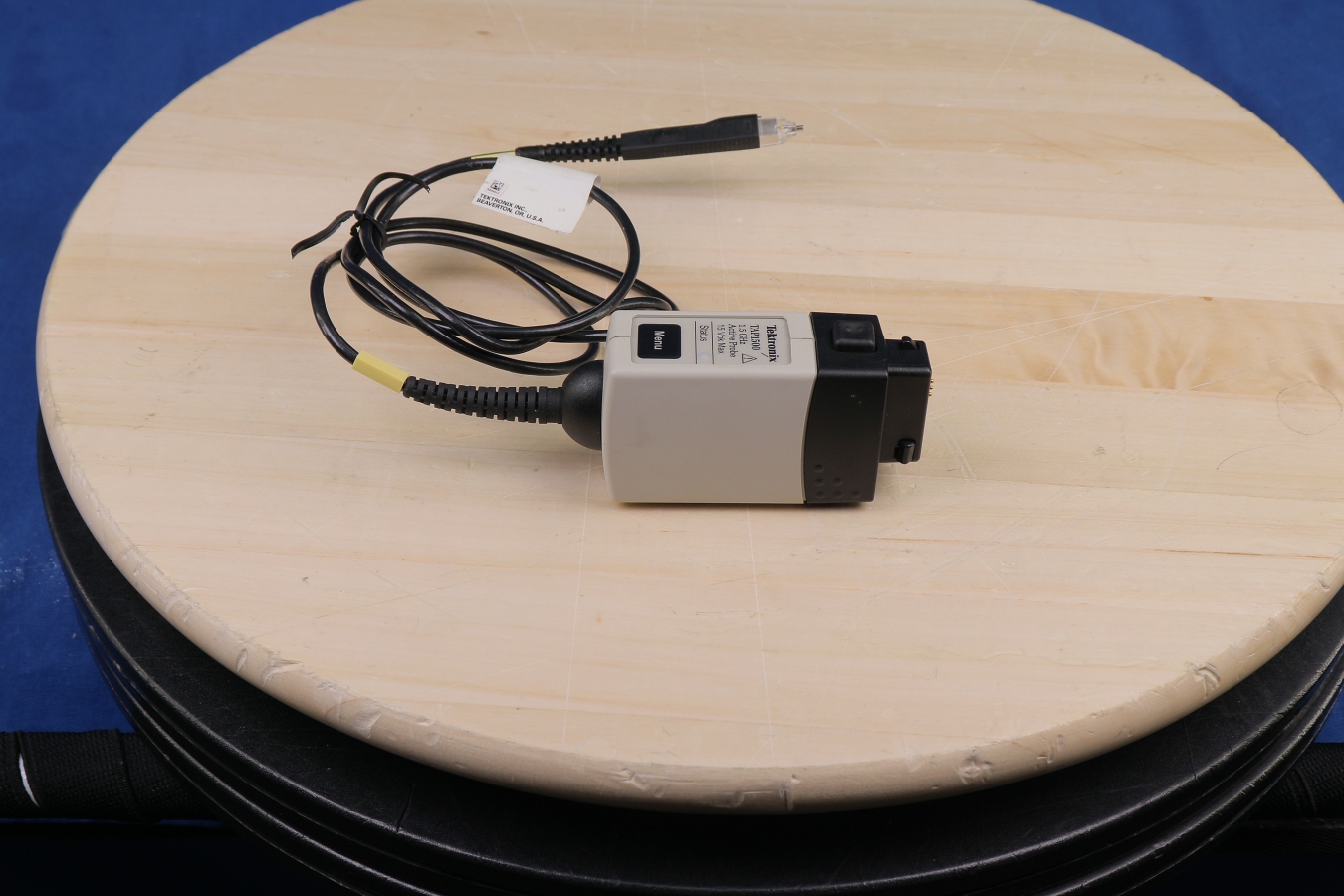

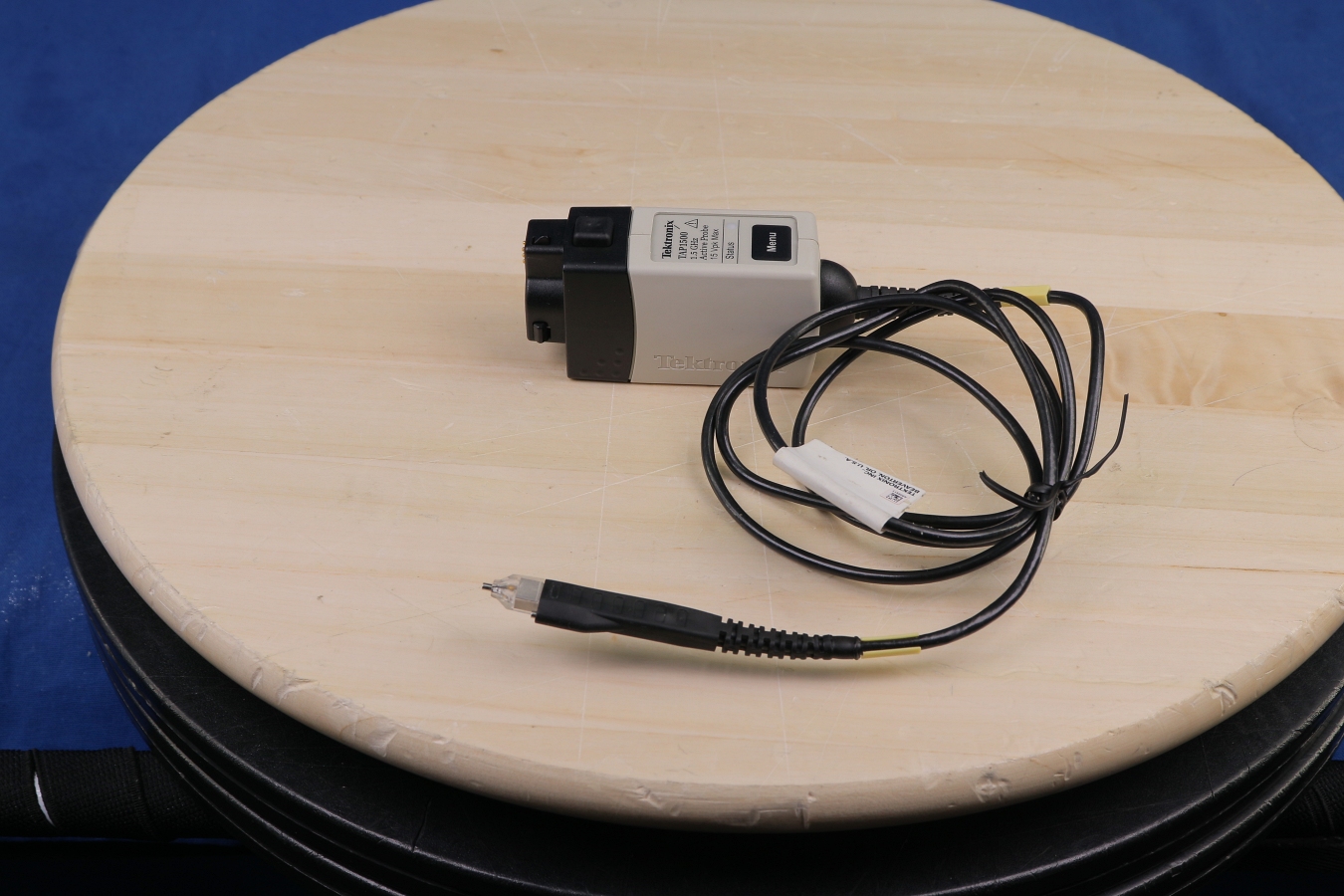

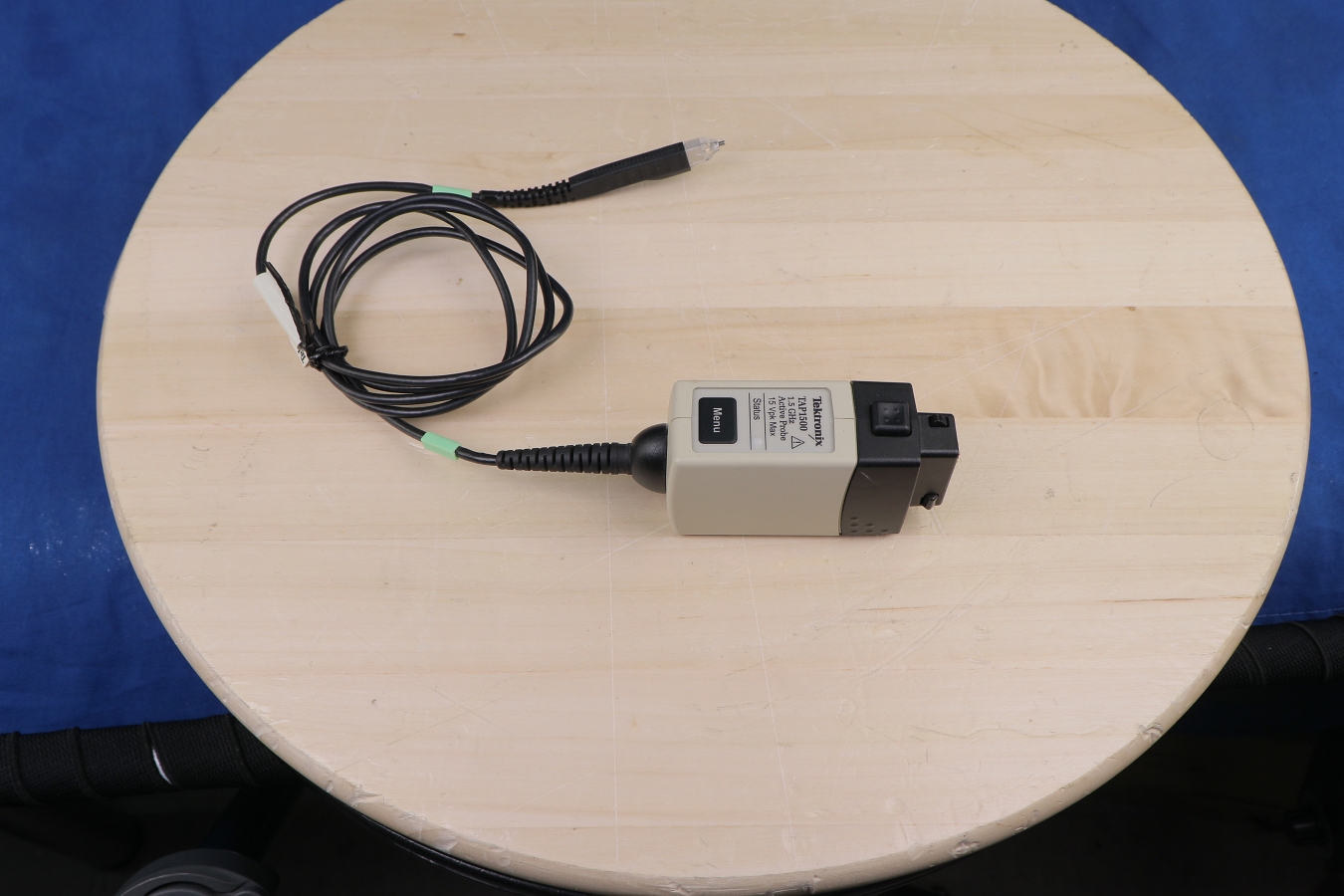

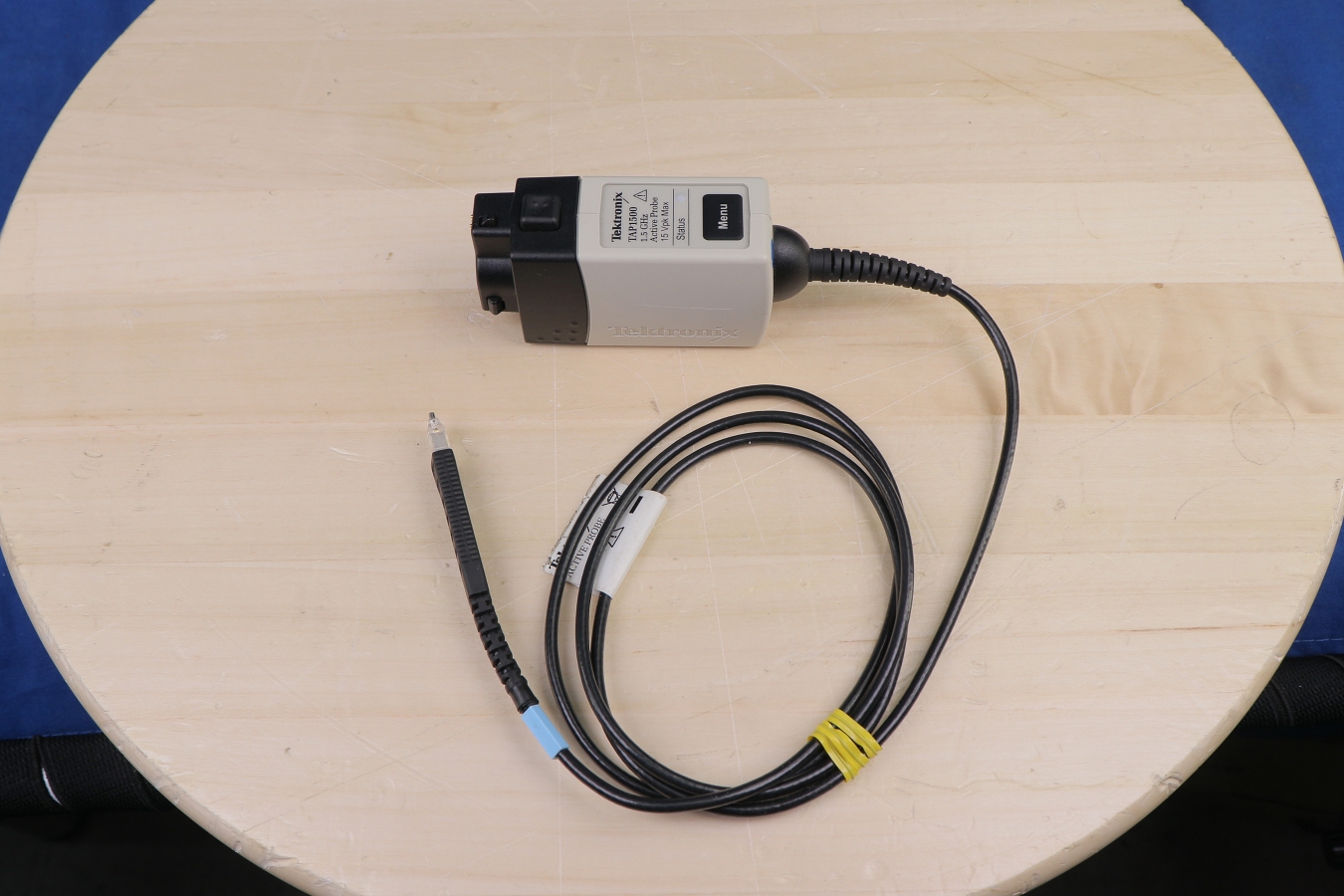

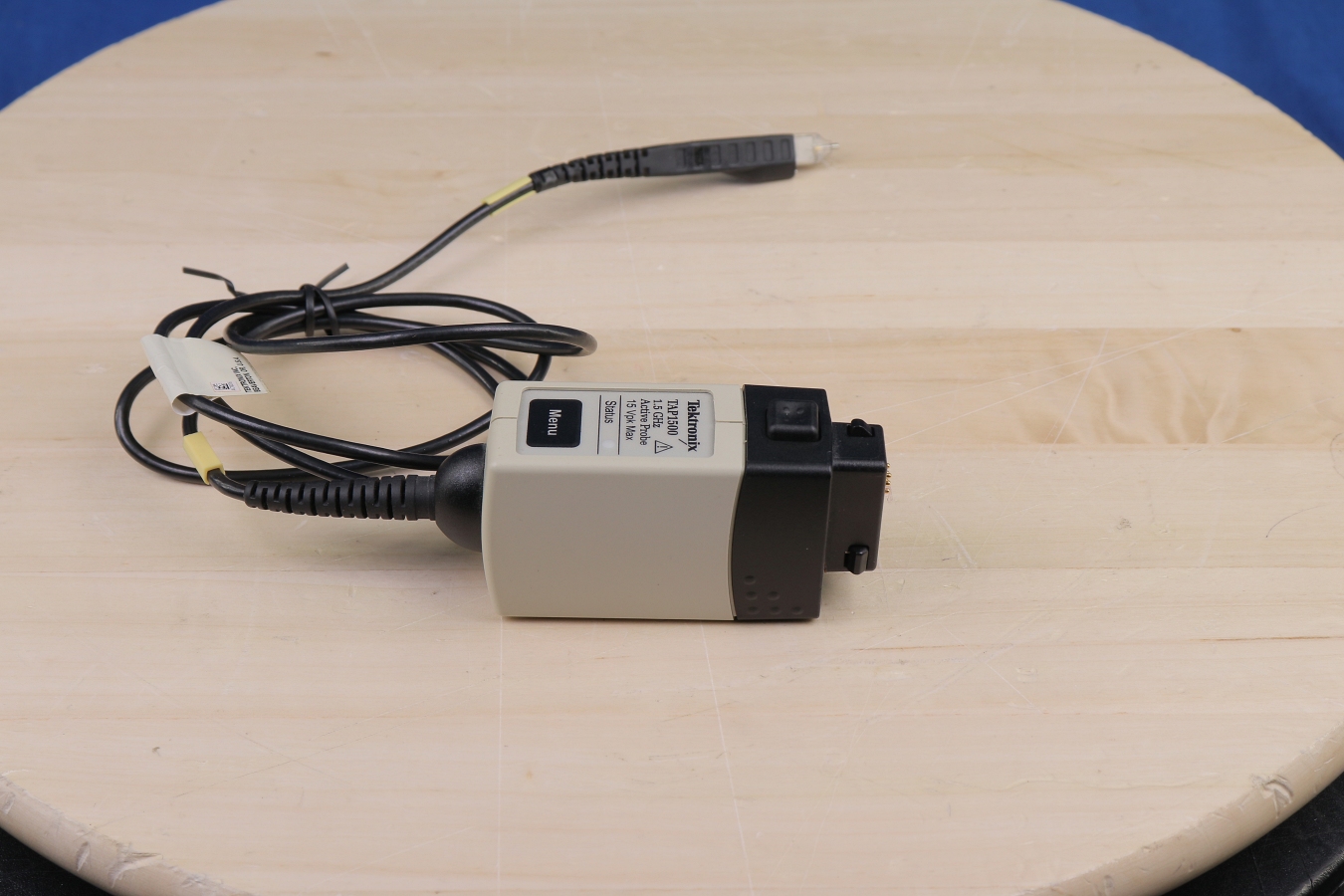

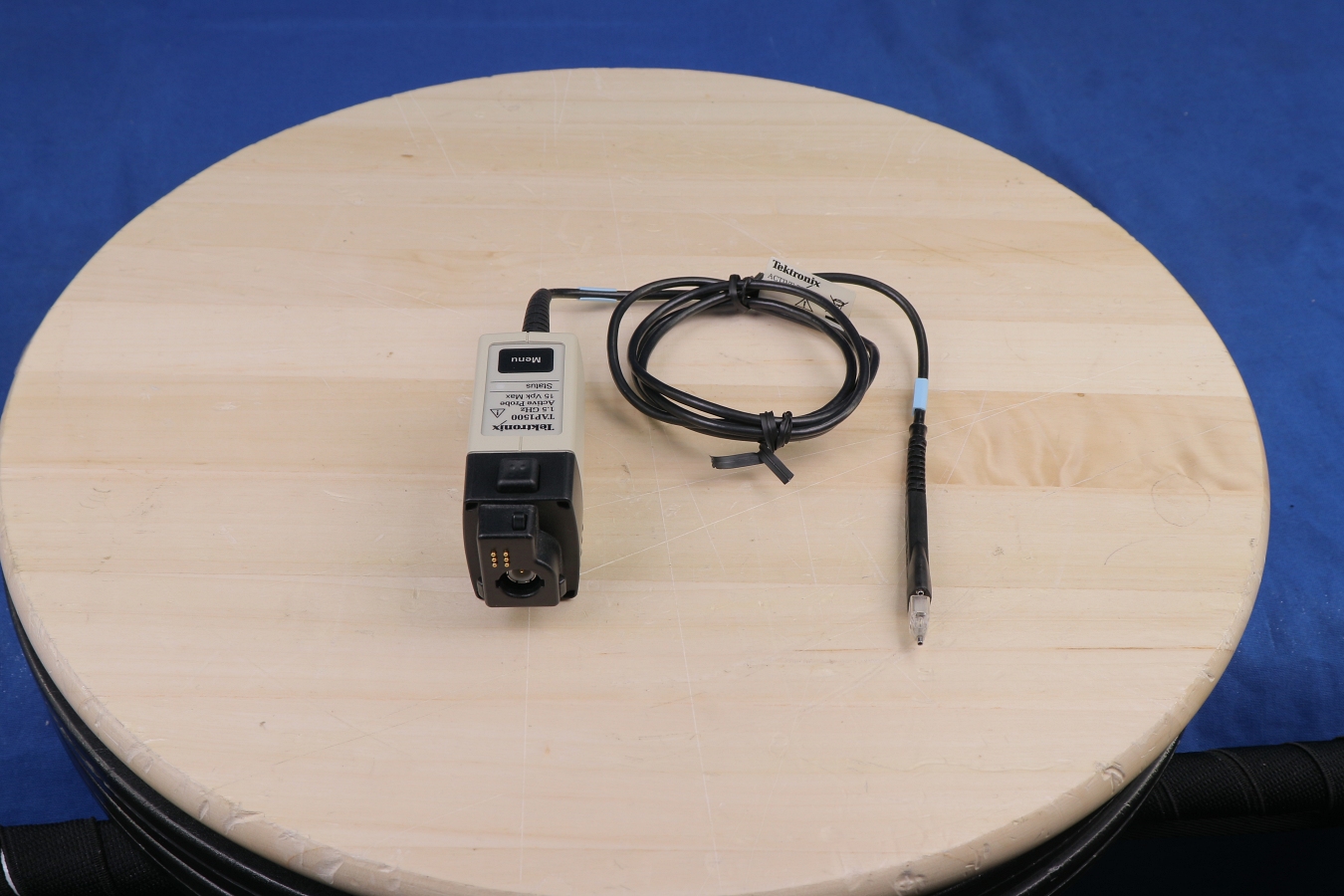

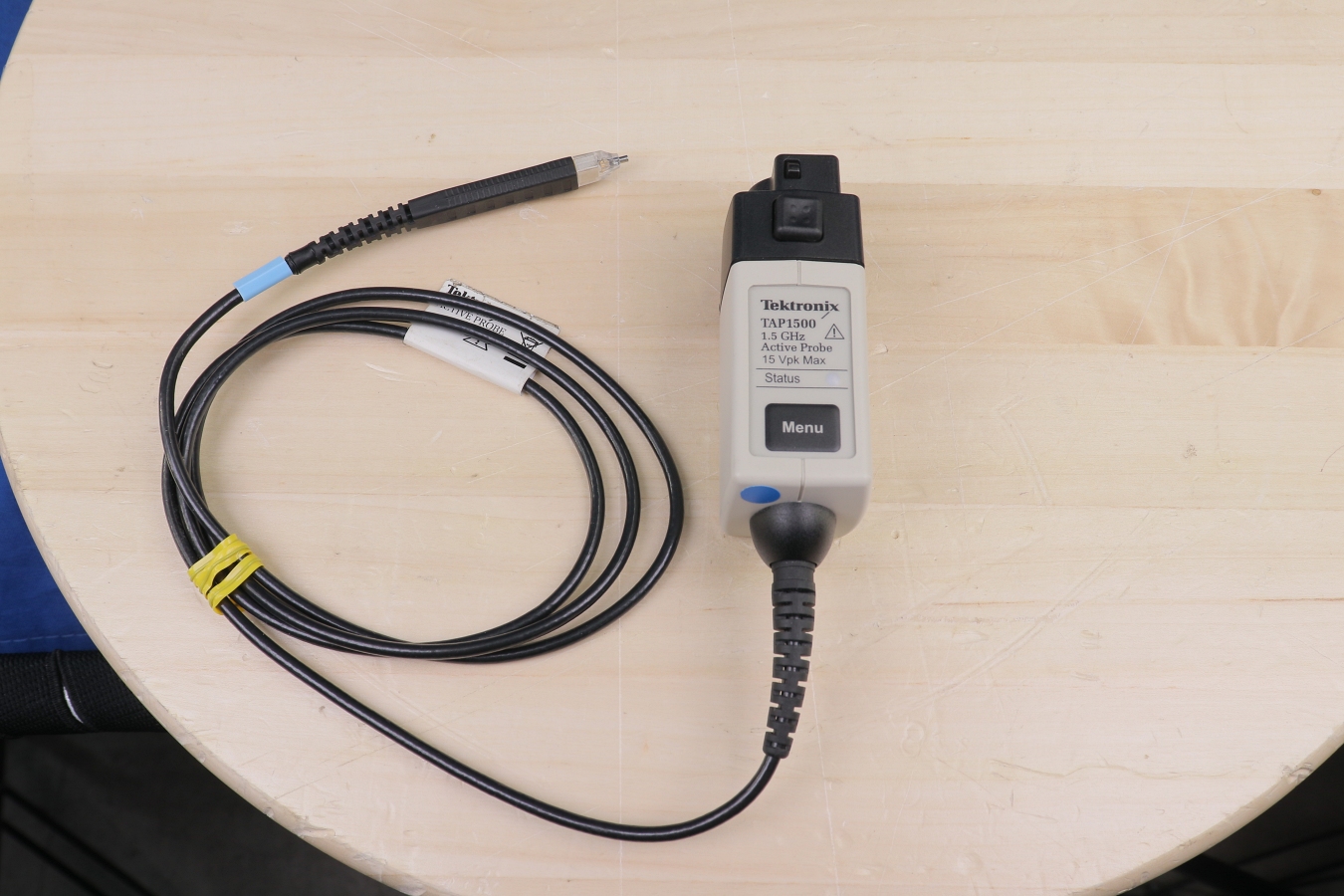

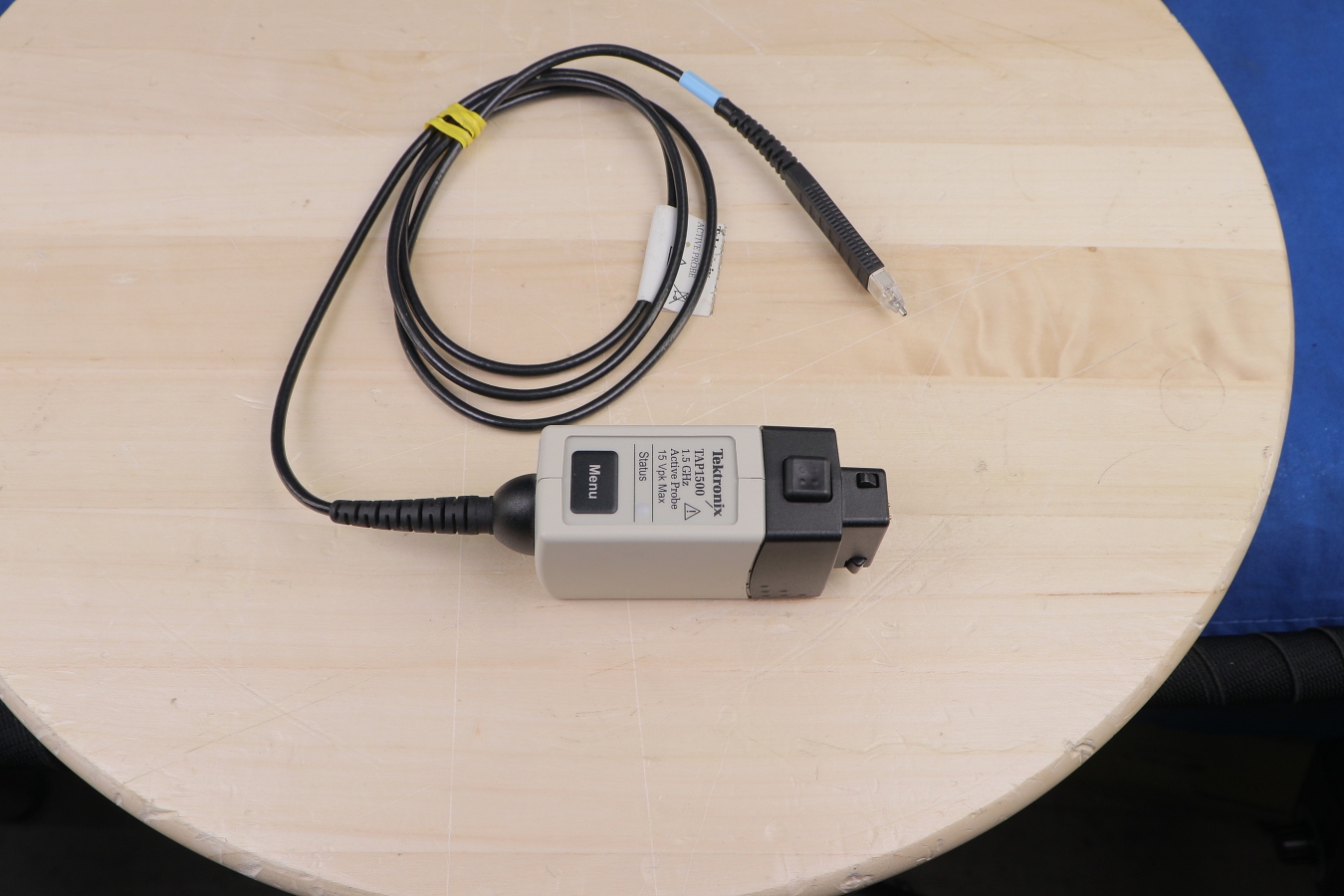

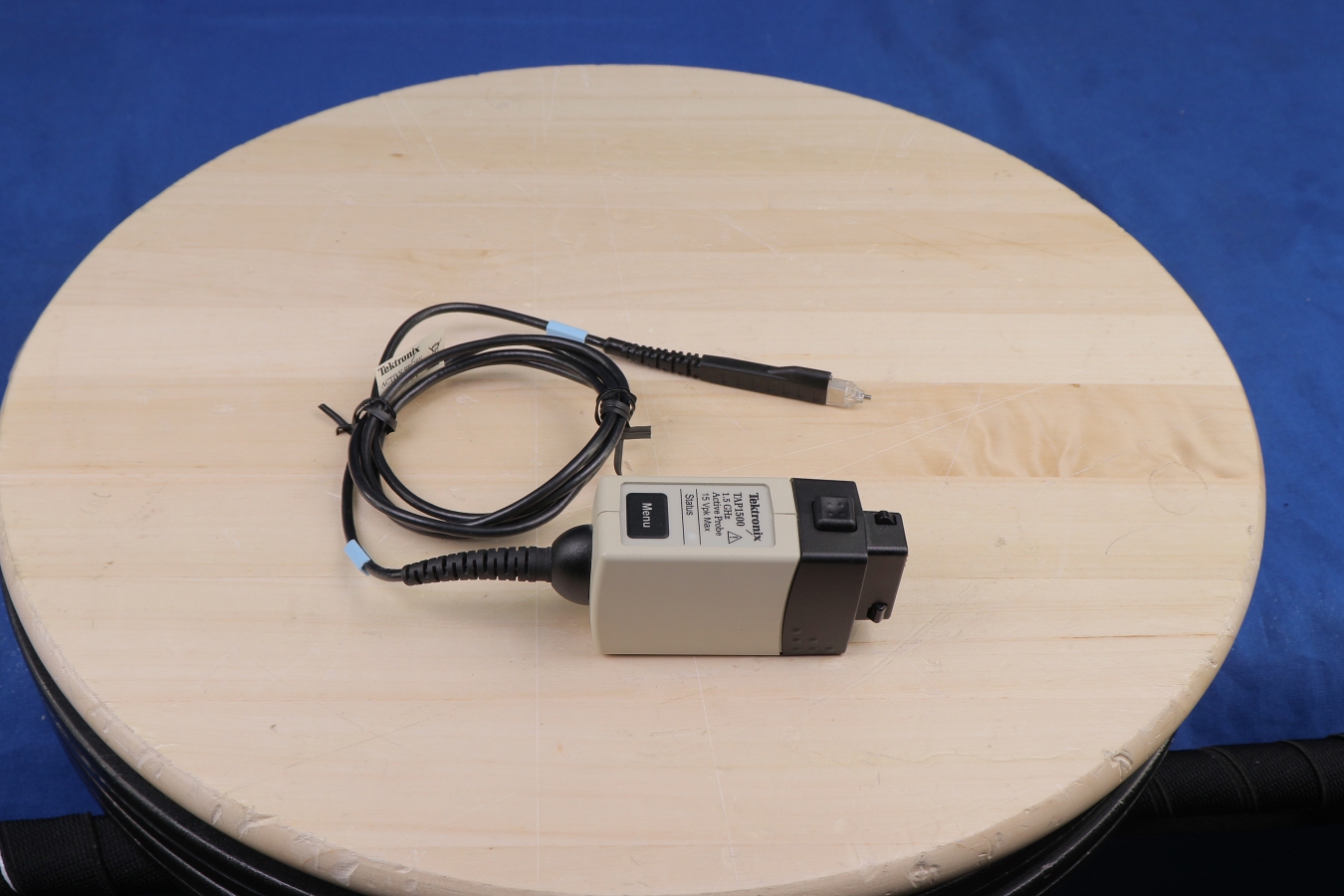

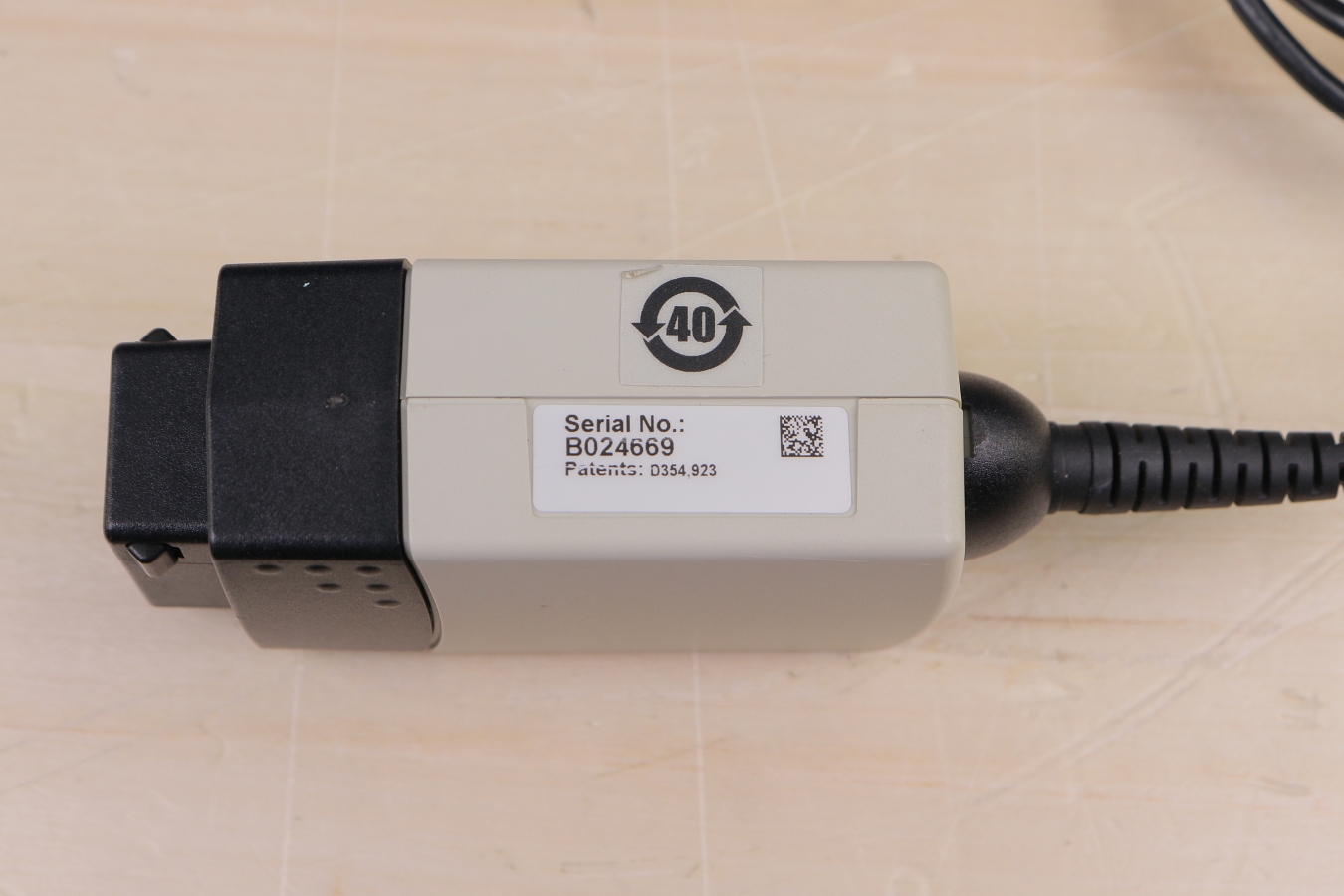

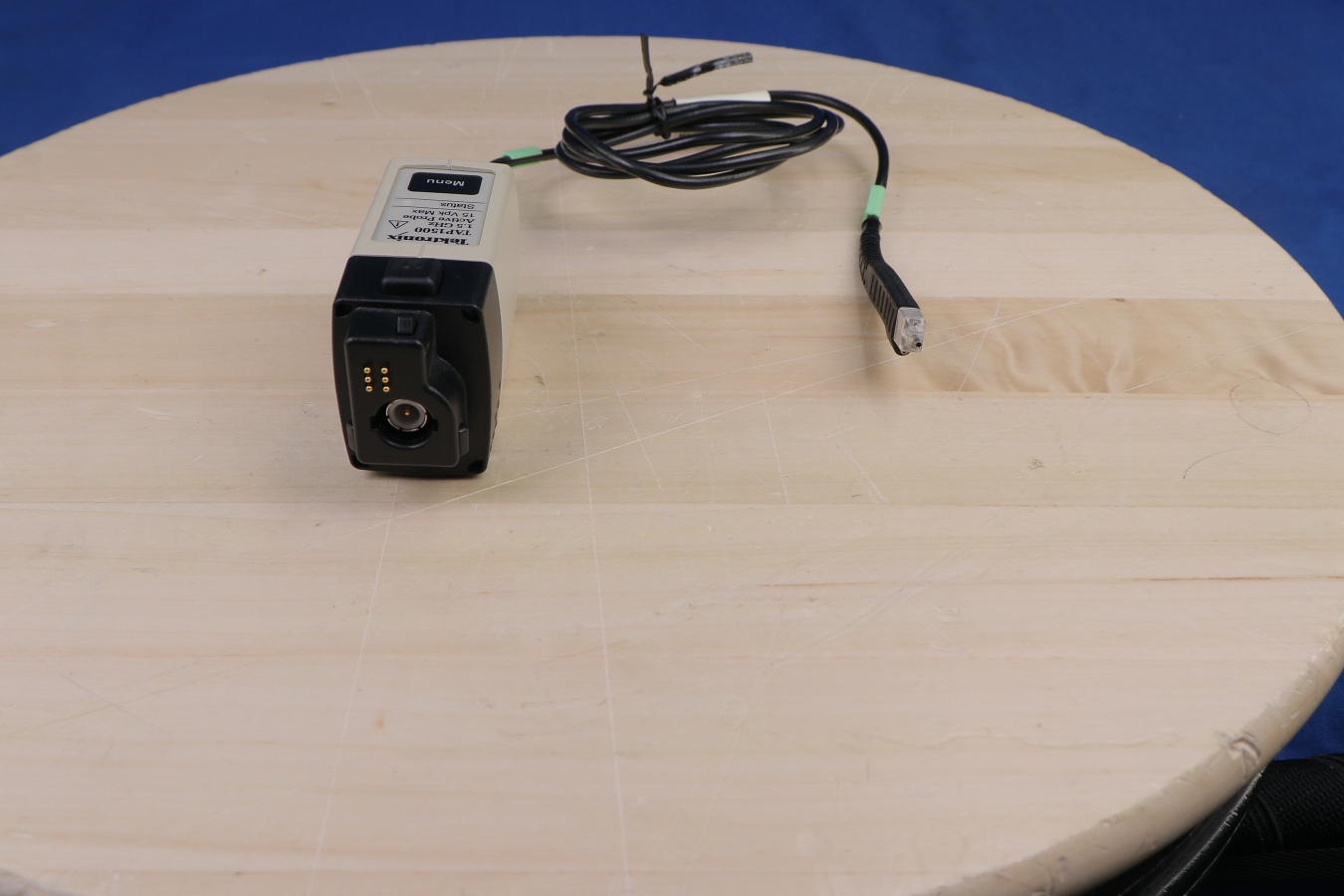

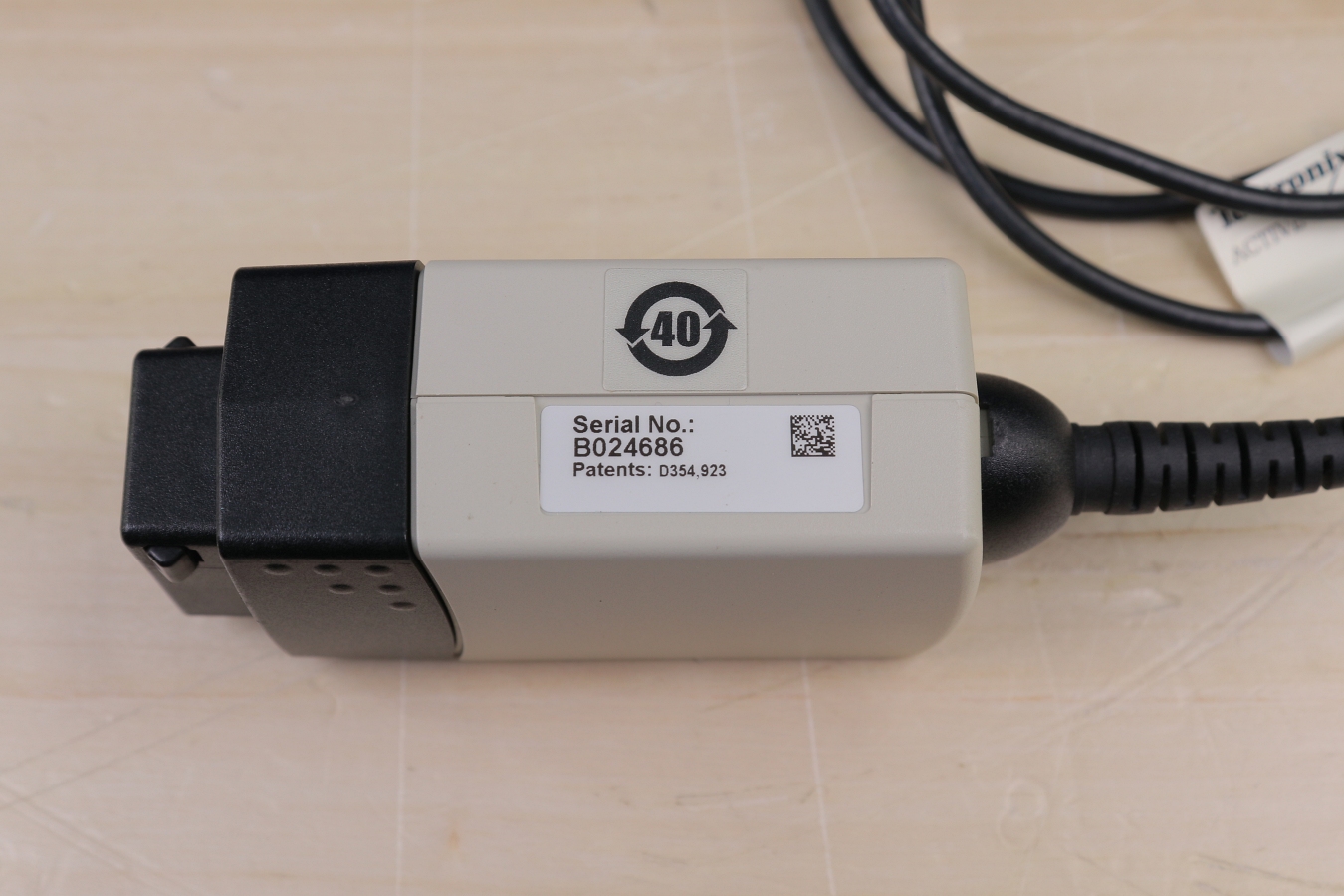

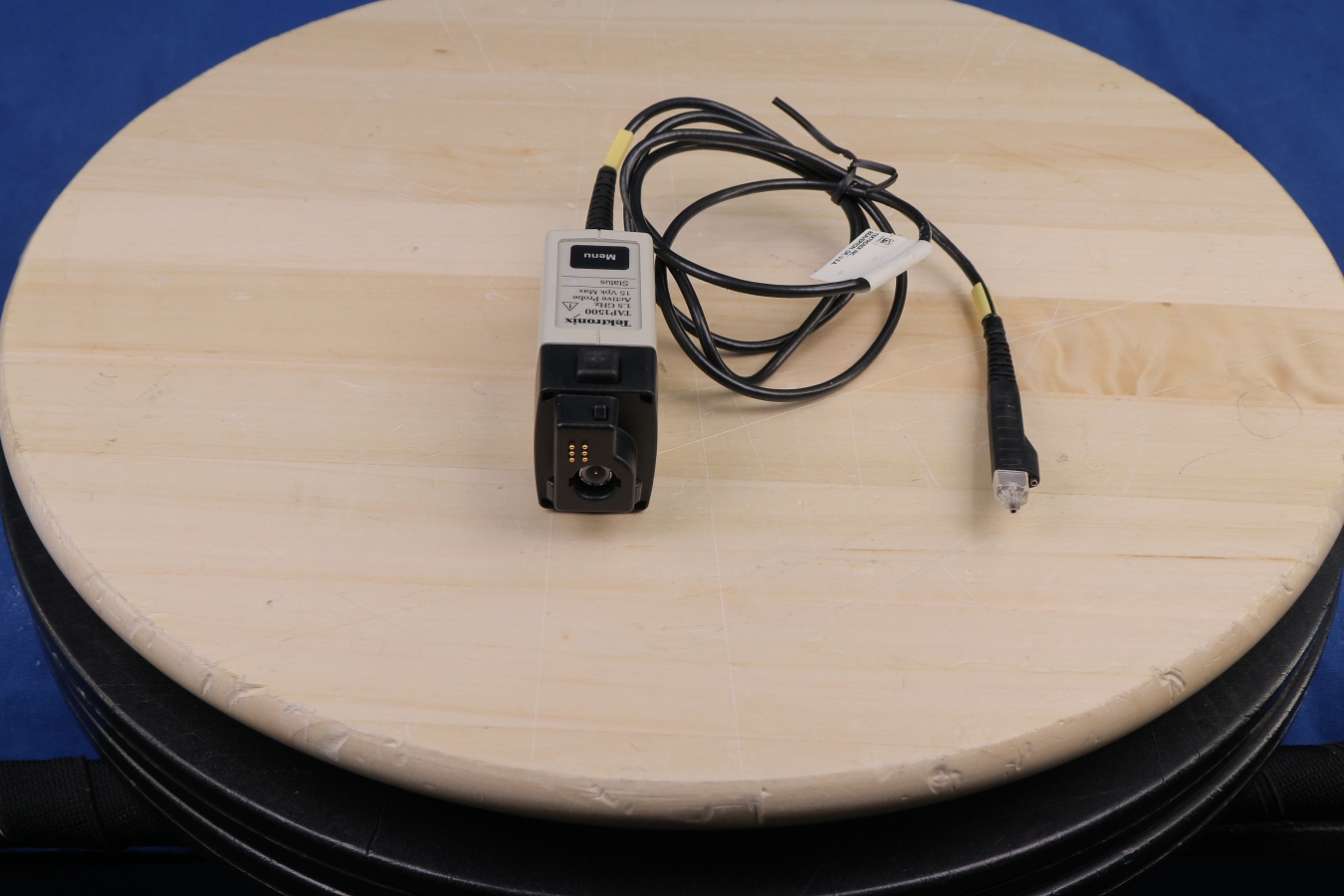

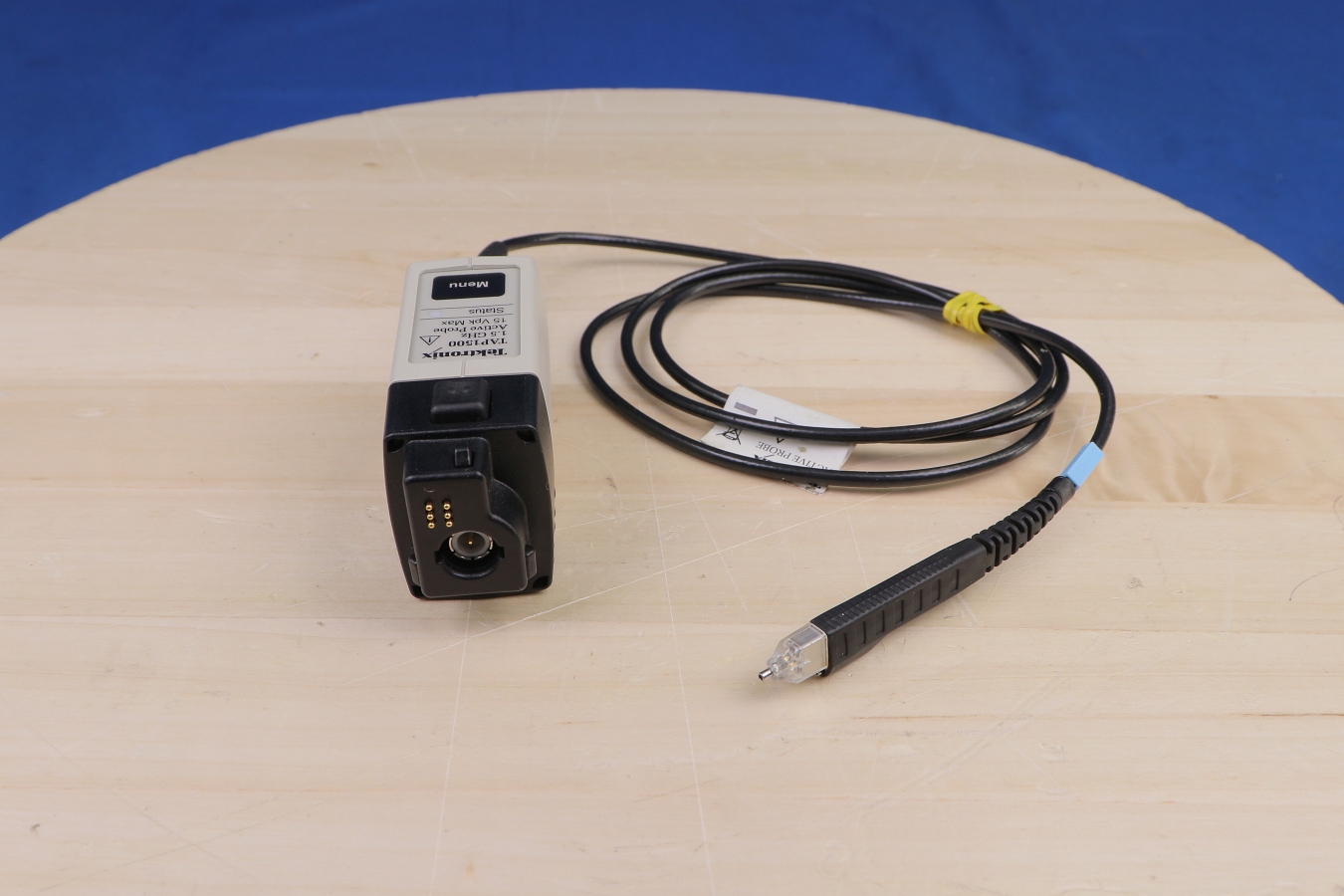

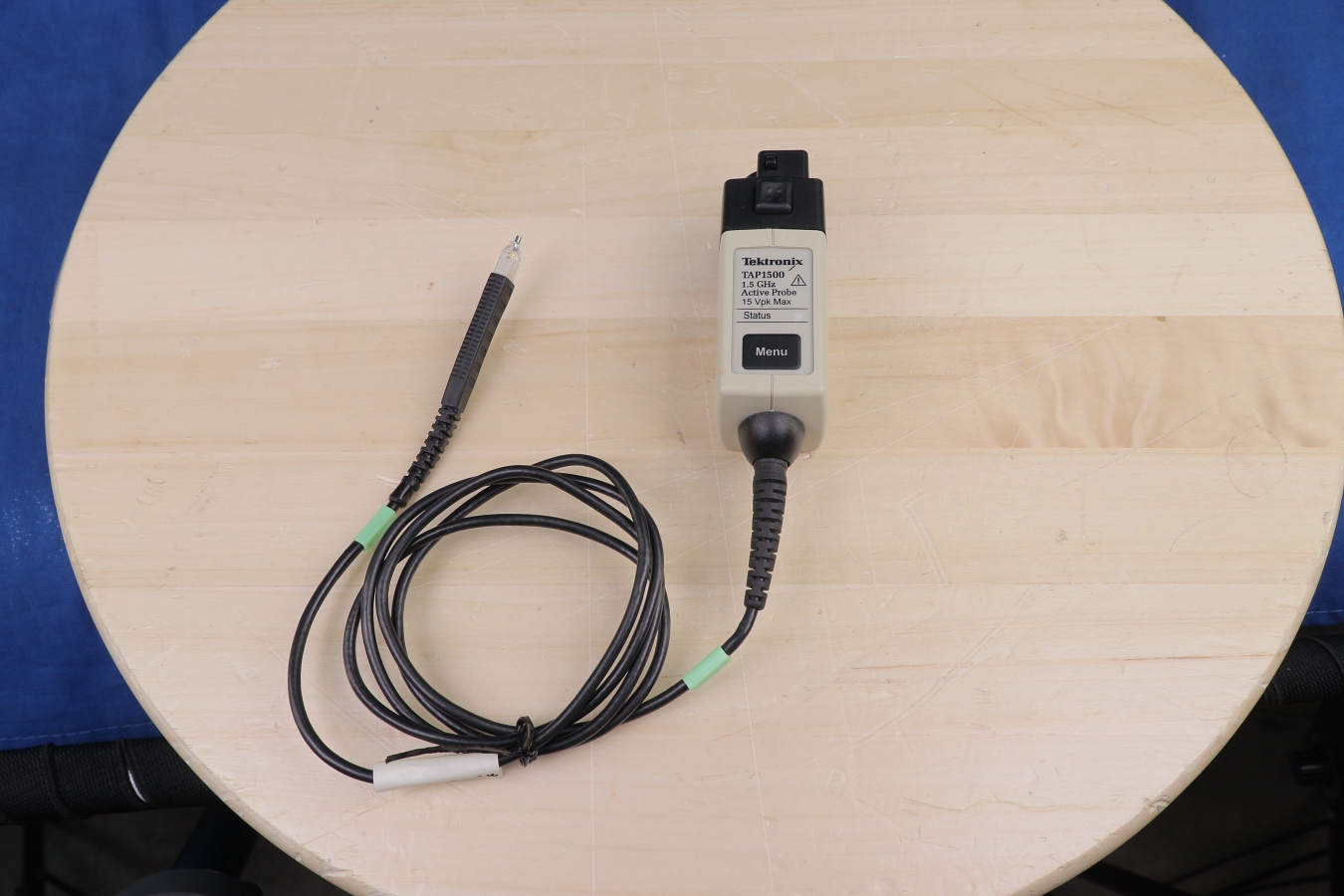

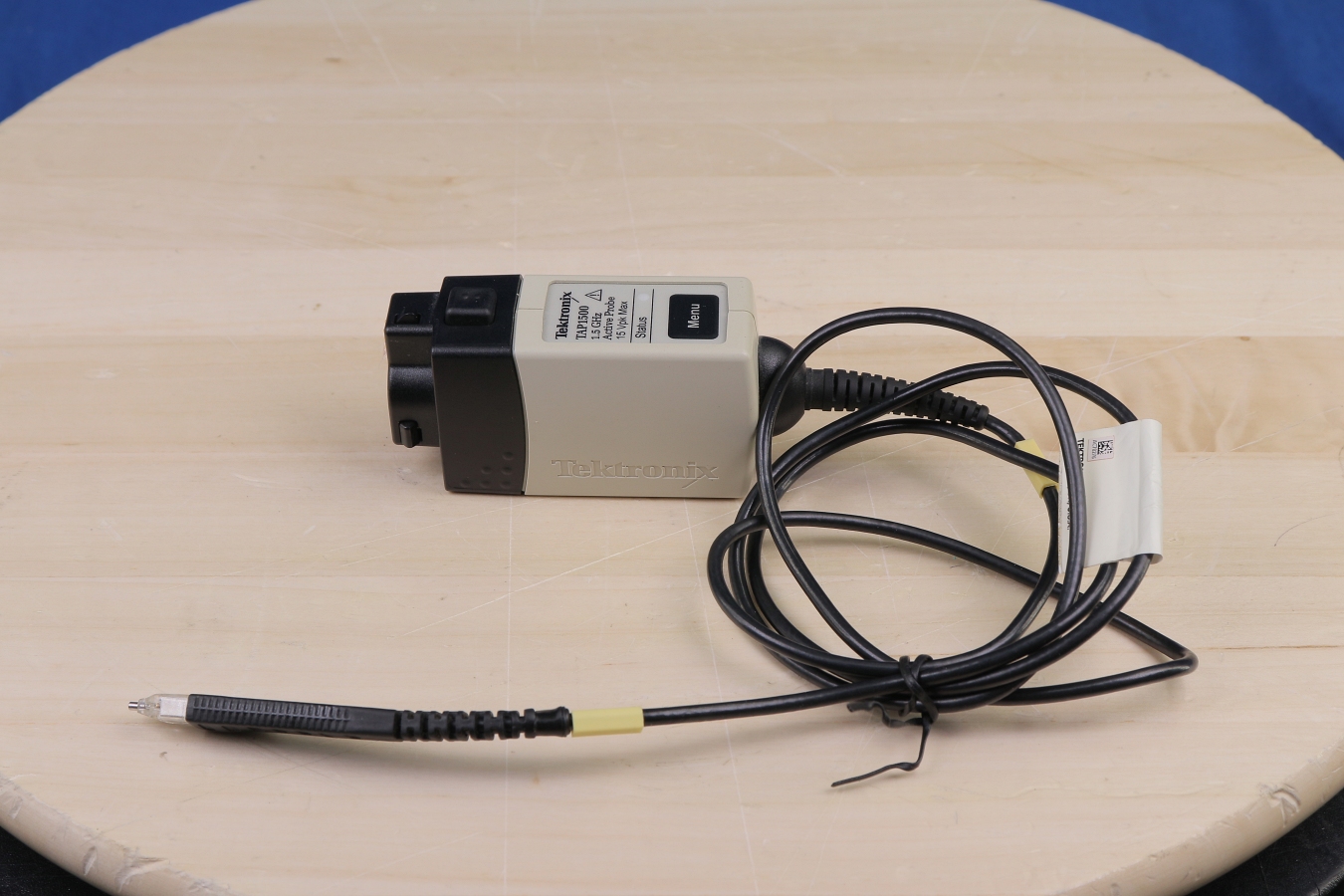

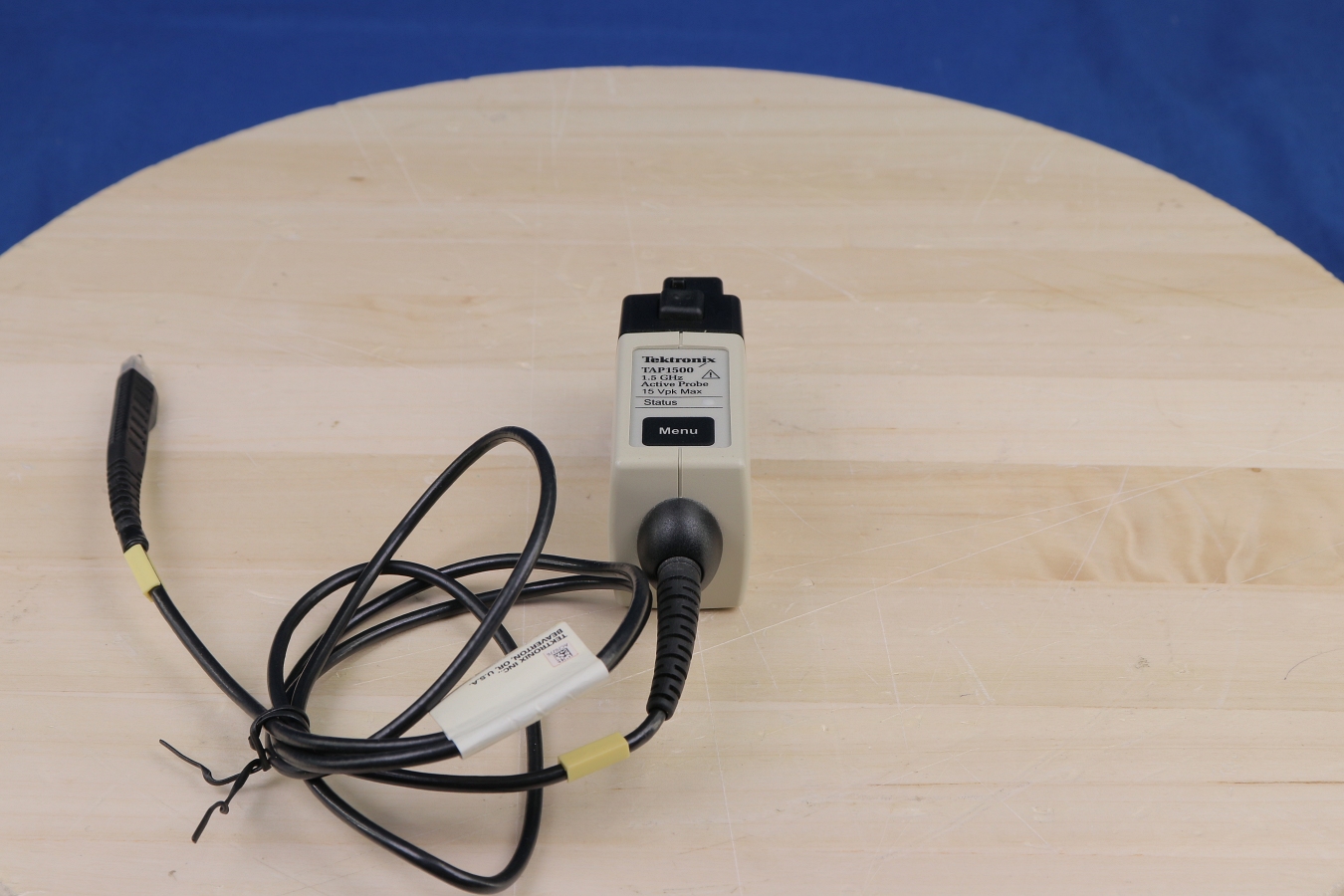

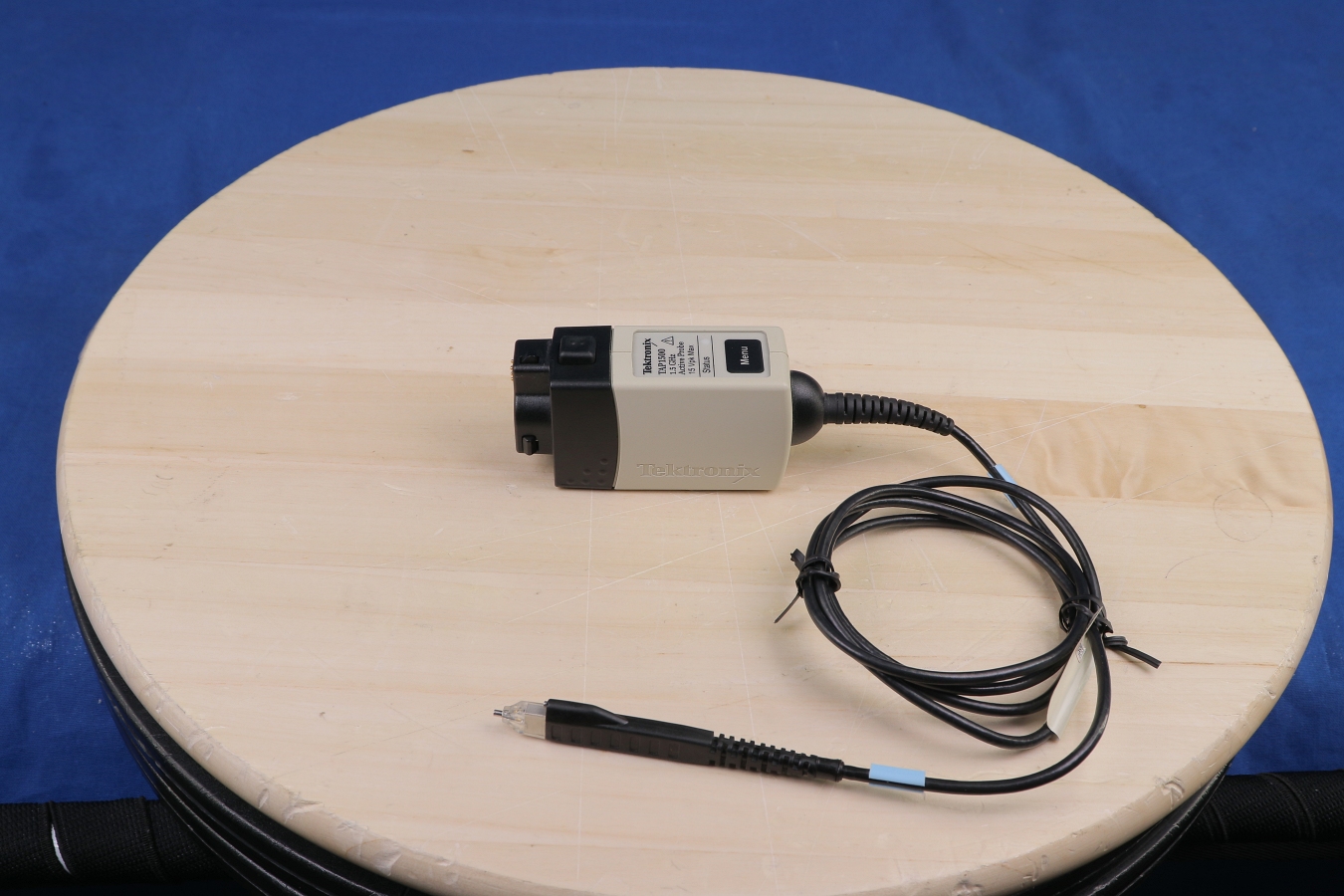

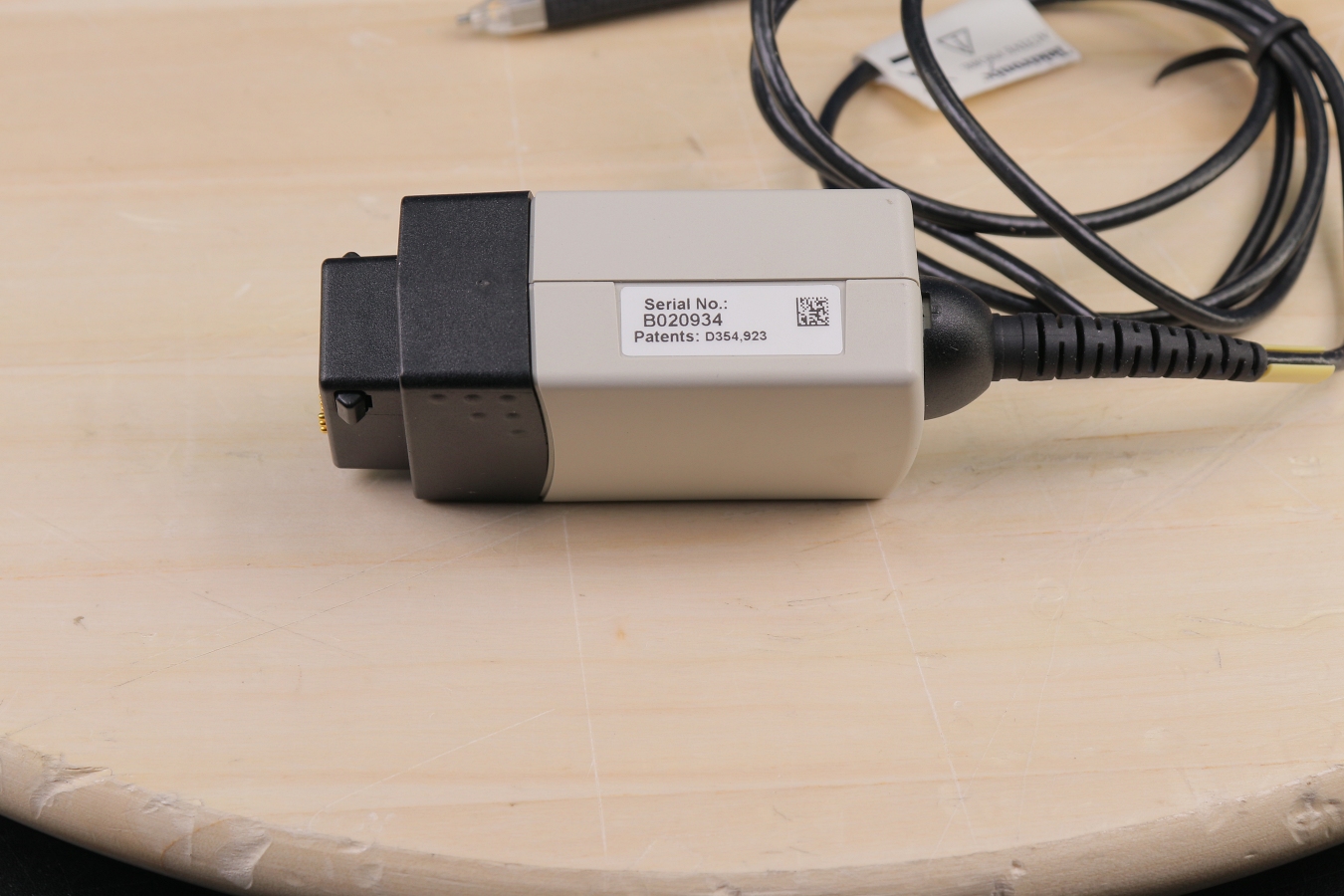

Additional Features: ≥1.5 GHz Probe Bandwidth <267 ps Rise Time ≤1 pF Input Capacitance 1 MΩ Input Resistance –8 V to +8 V Input Dynamic Range –10 V to +10 V DC Input Offset Range Versatile Mechanical Performance Small for Reliability Easy-to-Use Connects Directly to DPO7000 and DPO4000 Series Oscilloscopes Using the New TekVPI™ Probe Interface Provides Automatic Units Scaling and Readout on the Oscilloscope Display Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information, and to Control Probe DC Offset Applications: High-speed Digital Systems Design Component Design and Characterization Manufacturing Engineering and Test Educational Research Accessories Included with New Probes: One-year warranty covering all parts and labor on New Probes Low-inductance 1 in. Z-Ground lead: 2 each 3 in. Ground lead: 2 each 6 in. Ground lead: 2 each Y-Lead adapter: 2 each Color-coding clips: 2 each of 5 colors Solderable probe tips: 10 each Micro CKT test tip: 4 each Right angle square pin adapter: 2 each 100 mm square pin ground adapter: 2 each User manual Nylon carrying case The Tektronix TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today’s digital system designs. Specifically designed for use and direct connection to the TekVPI™ probe interface used on Tektronix' new DPO7000 and DPO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems: Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance Versatile DUT connectivity for attaching to small SMDs Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO4000 Series Oscilloscope models, up to ≤1 GHz
