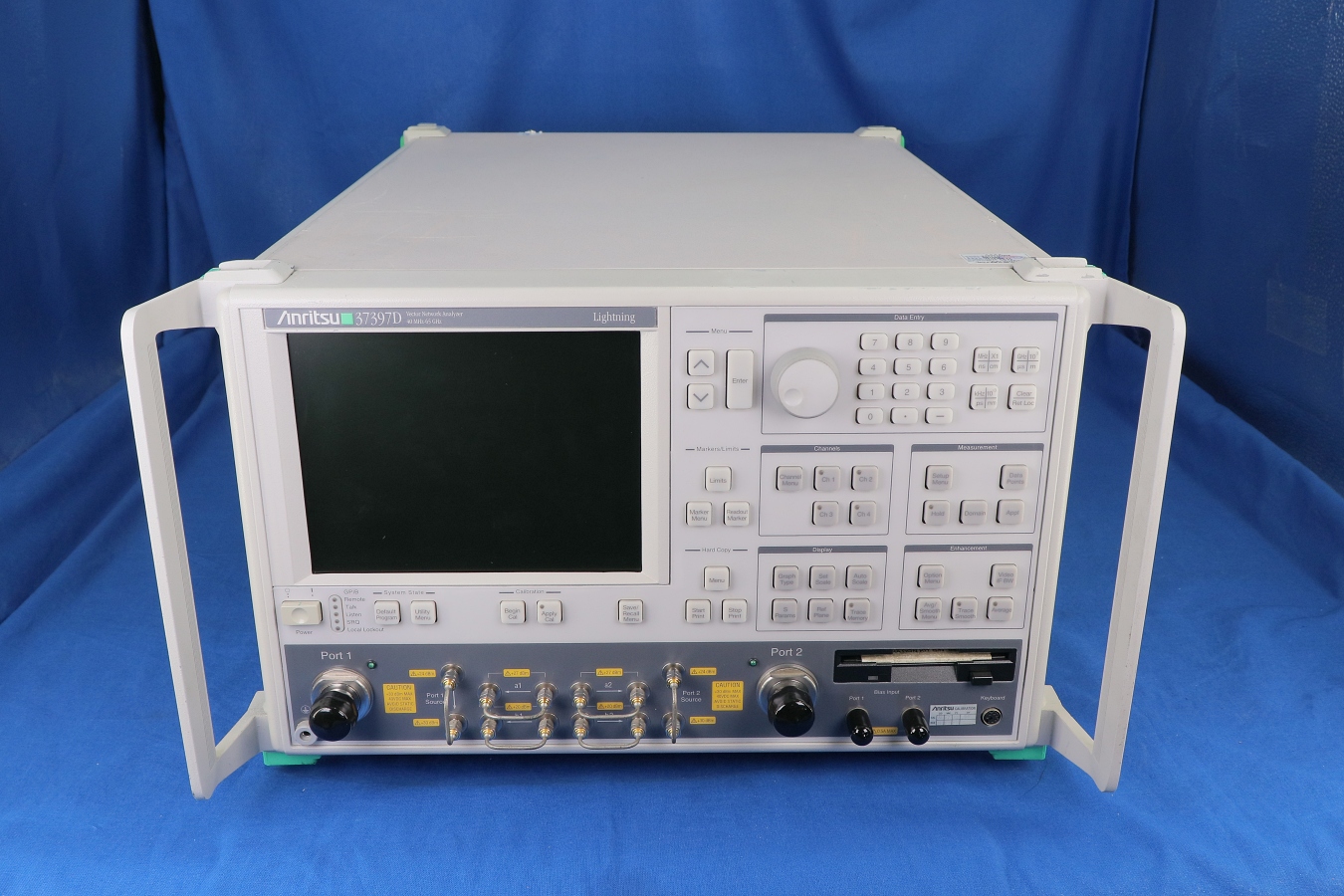

37397D Anritsu Network Analyzer
High end freq limit: 65.00GHz
Instrument Type: Vector, S-Parameter
Vector Network Analyzer
REQUEST A QUOTE

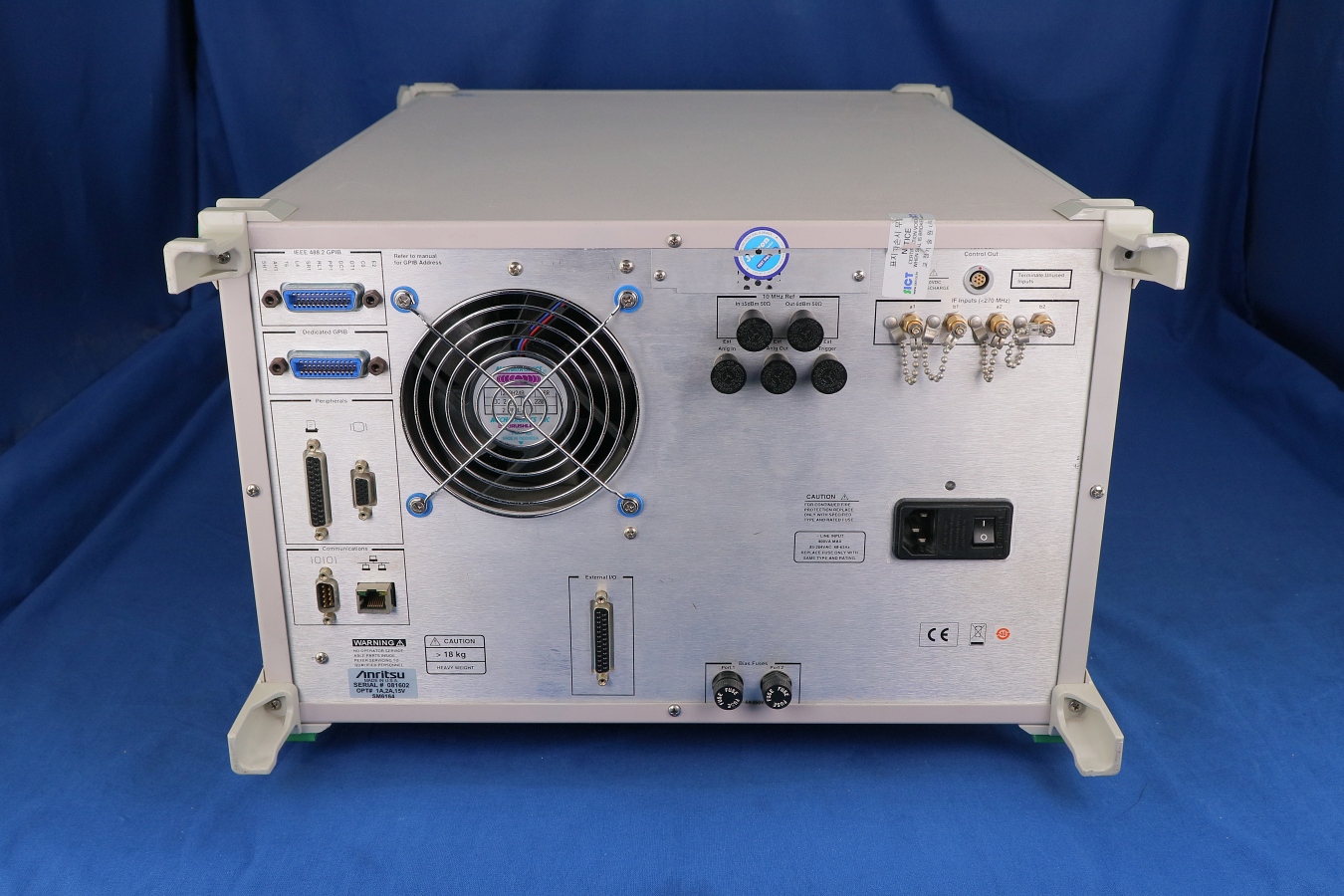

37397D Anritsu Network Analyzer
Detail
Multiple Source Control mode and Frequency Offset
Amplifier Testing: Automatically perform swept power gain compression or swept frequency gain compression
Optoelectronic Devices: Measure E/O and O/E devices
Gain Compression application
Internal Bias tees
Extended Power Range (Source Step Attenuator and test port attenuator)
Multiport Testing
Rear Panel IF inputs
NxN Calibration Utility for Mixer Measurements
Embed/De-Embed Application
High Stability Frequency Reference
1 Hz Frequency Resolution
Calibration Choices from SOLT, offset short, waveguide and Multiple line kit
"Virtual Adapter Removal" Calibration
Multiple Source Control
Power Meter Correction
The Anritsu 37397D network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
The Anritsu 37397D network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. This network analyzer also can perform ratioed measurements (including phase), which require multiple receivers. The Anritsu 37397D can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.

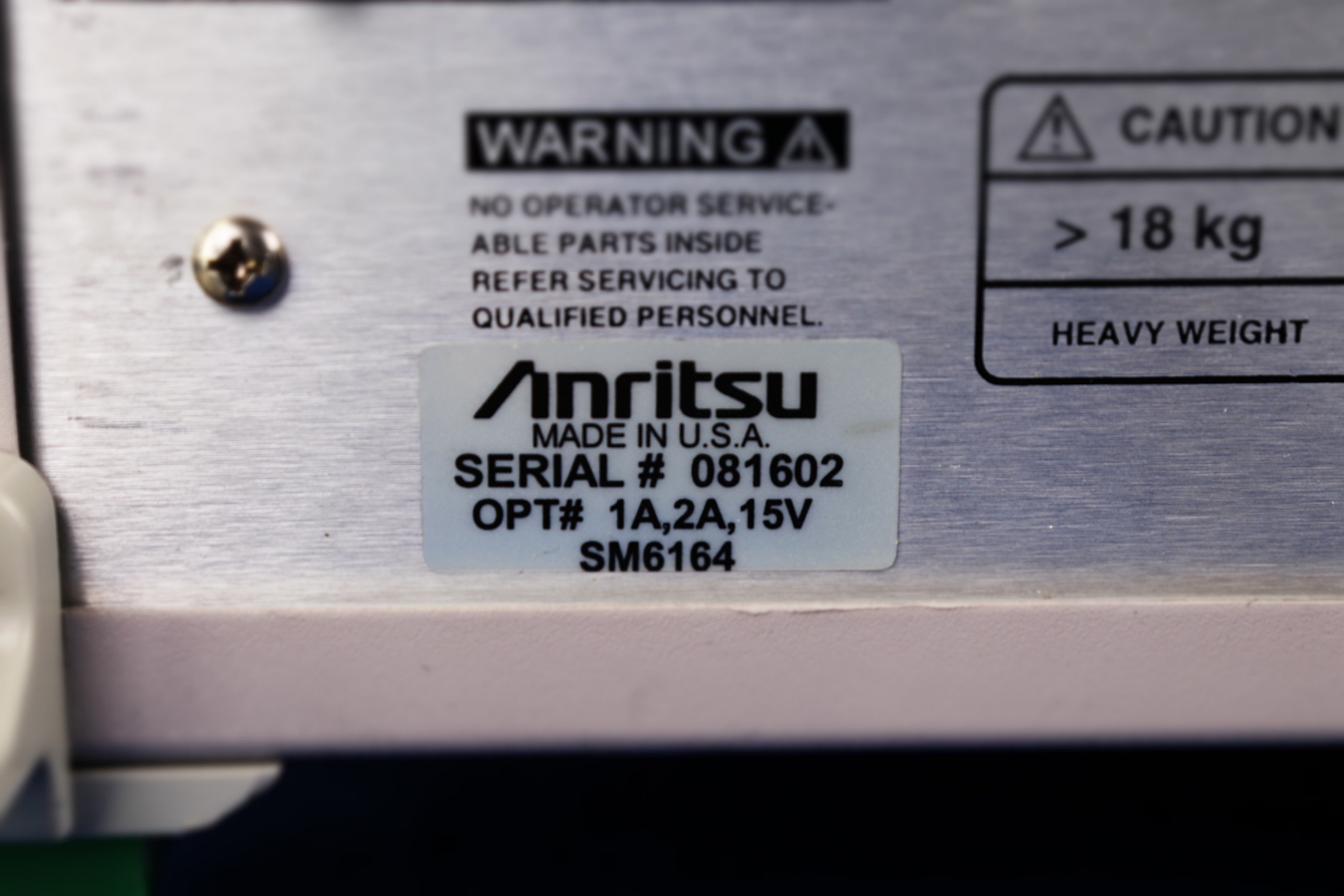

Option
Option |
Description |
10 |
Ovenized Timebase |
10A |
High Stability Time Base |
11 |
Reference loop extension cables |
12 |
Rear Panel I.F. Inputs |
15 |
Flexible test set Provides direct access to all four reference and test channels and adds two auxiliary source loops for each port for connecting amplifiers etc |
15K |
Front Panel Access Connections for Samplers (K connectors only) |
1A |
Rack mount kit with handles only (no slides) |
2 |
High-speed time (distance) domain capability |
2A |
Time (Distance) Domain Measurement Capability |
3 |
1 Hz Frequency Resolution |
6 |
Port 2 Test Step Attenuator |
