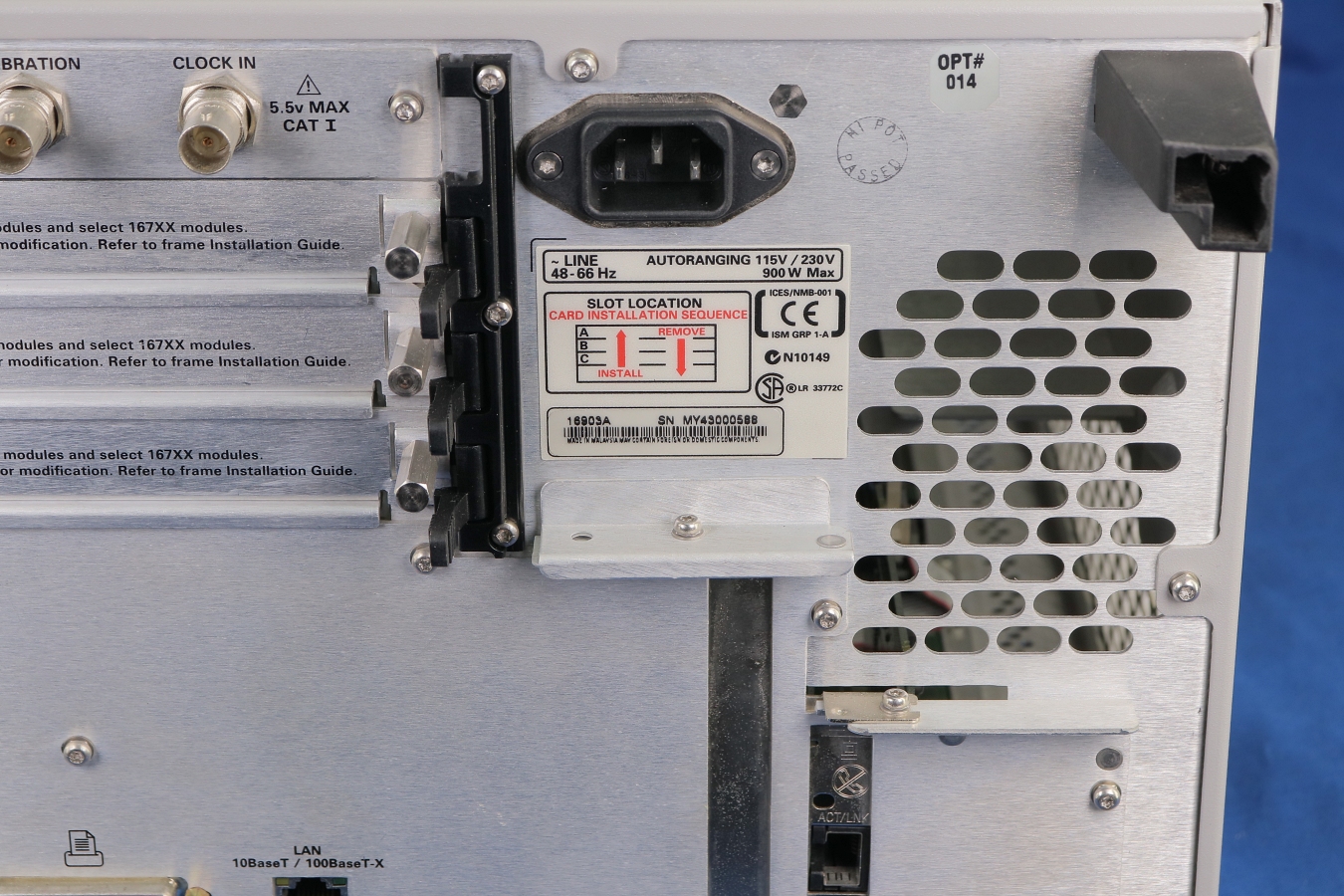

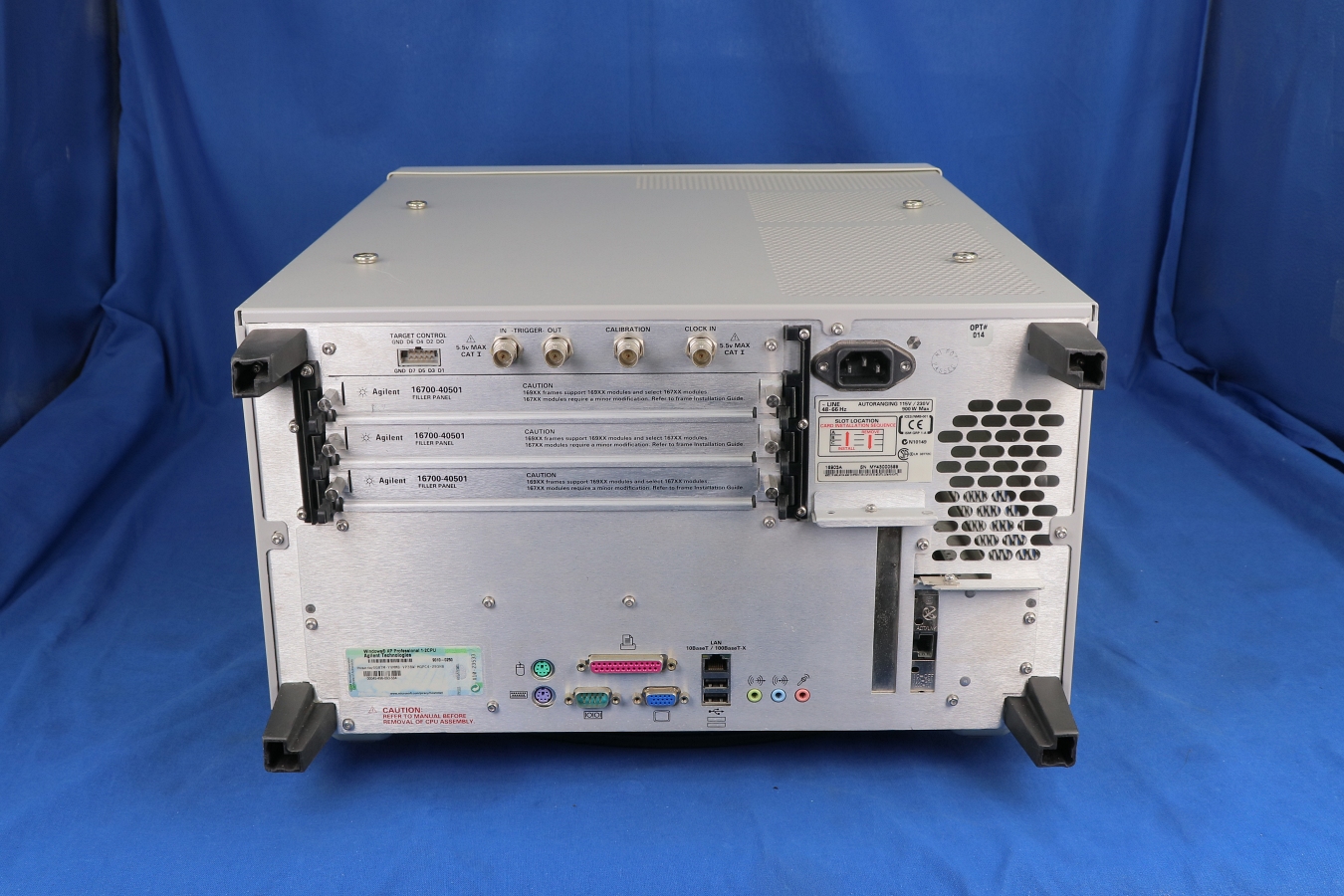

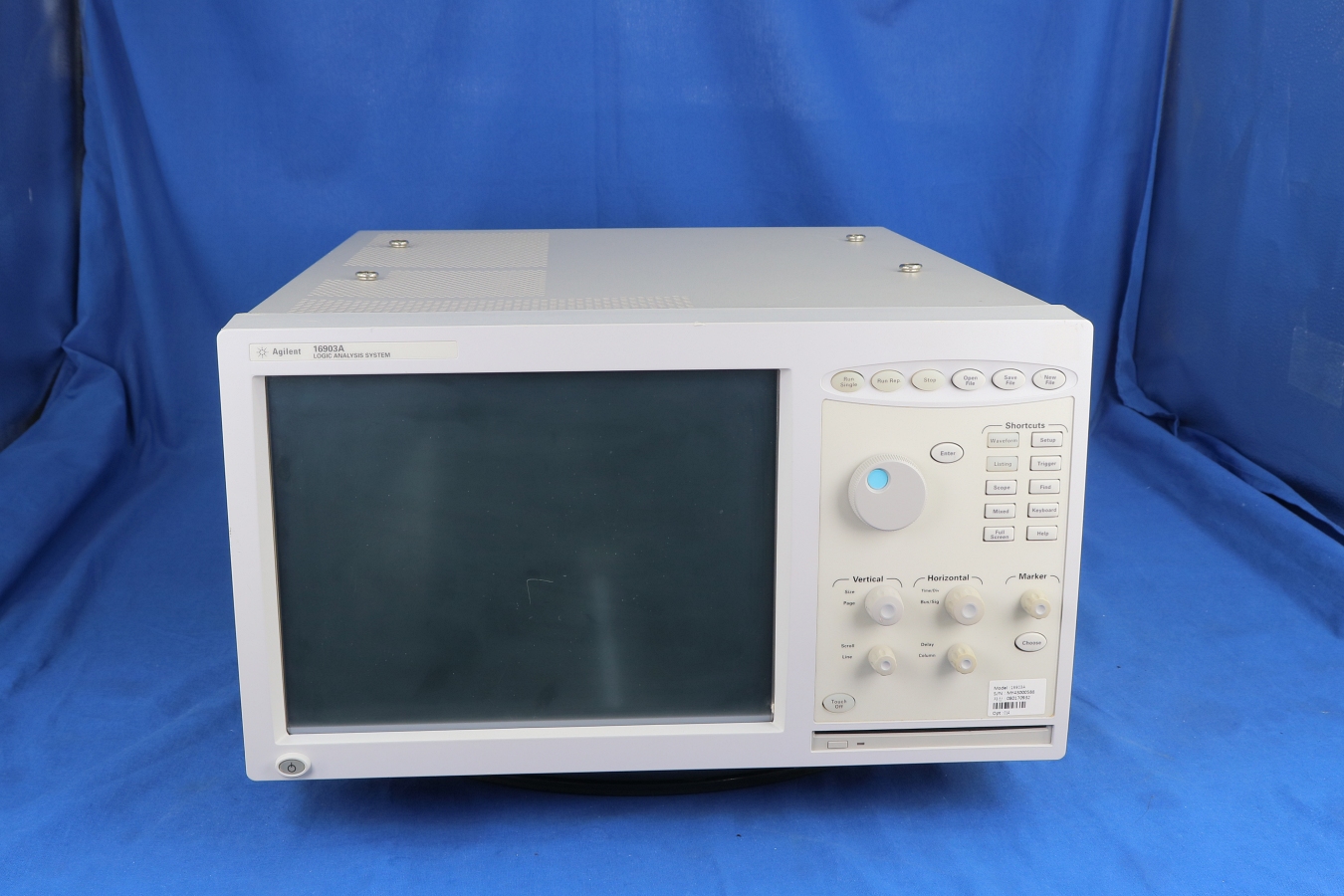

115/230 V, 48 to 66 Hz, 900 W max 3-slot modular system Mainframe Supports timing/state analyzers and pattern generator PCI expansion slots: 1 full profile, 1 low profile 12.1 inch color touch screen display, 800 x 600 resolution Intuitive user interface and familiarity of Windows XP Pro Data views: waveform/chart, listing, packet viewer, source code, compare Dedicated hot keys, knobs, keyboard and mouse LAN: 10/100 BaseT (optional Gbit LAN) E5860A Gbit LAN Card I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC Interface to other instruments: Trigger In/Out, Target control port View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display The Agilent 16903A logic analysis system provides high-performance, system-level debugging of digital designs. Expandability is the key to the system´s long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.

Option	Description
014
16910A	1M memory
