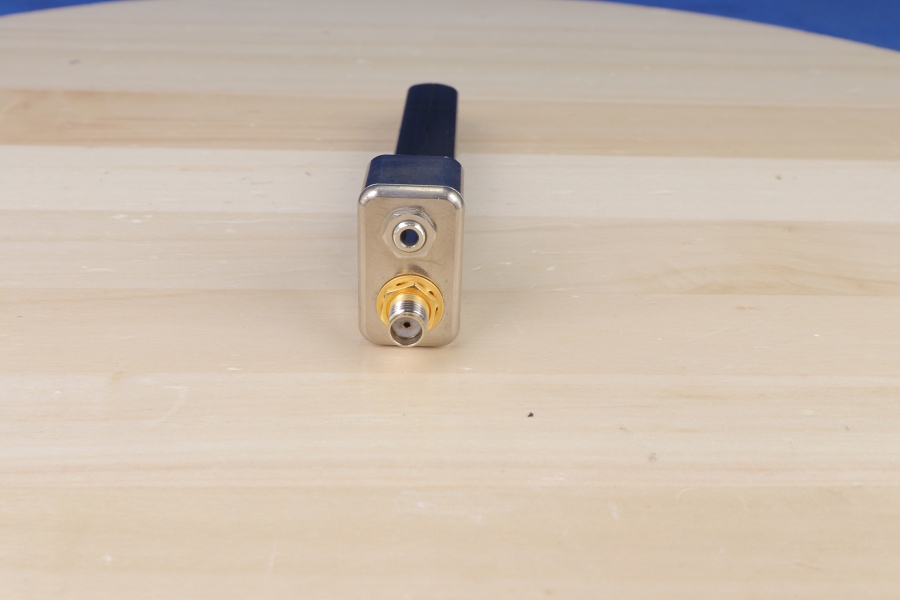

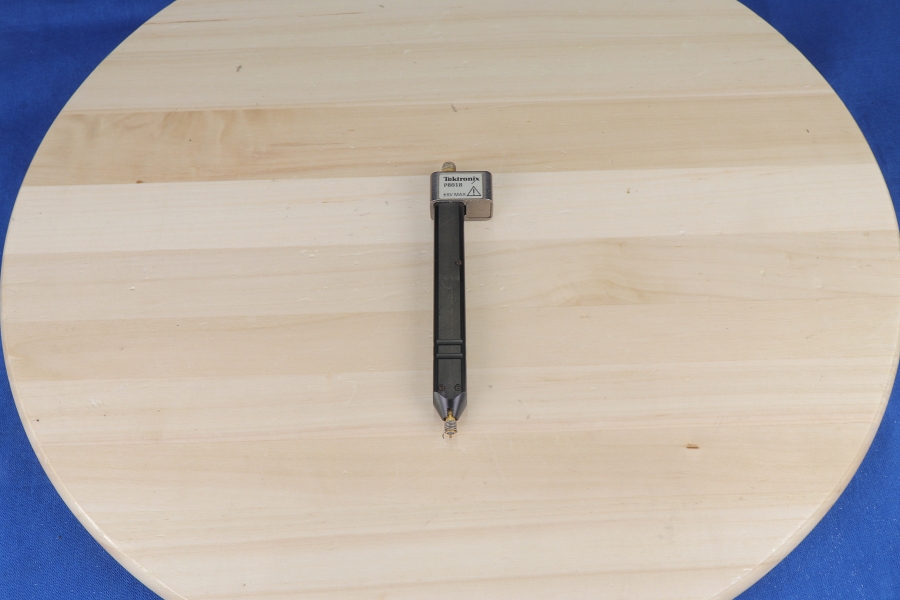

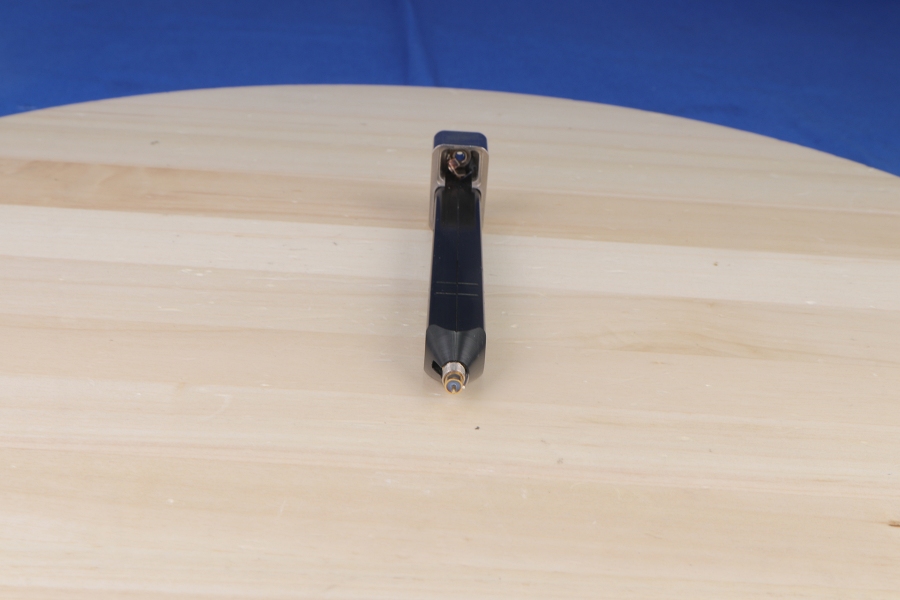

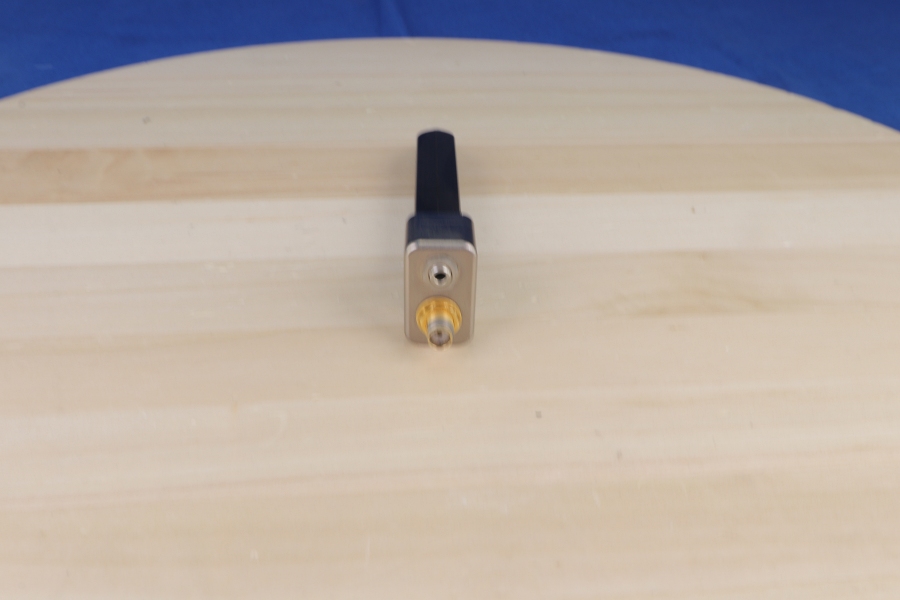

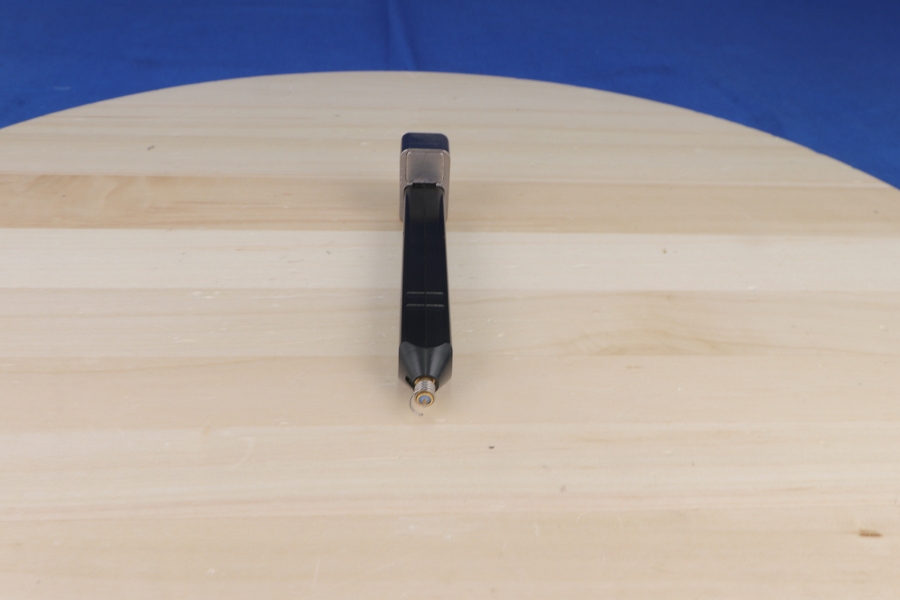

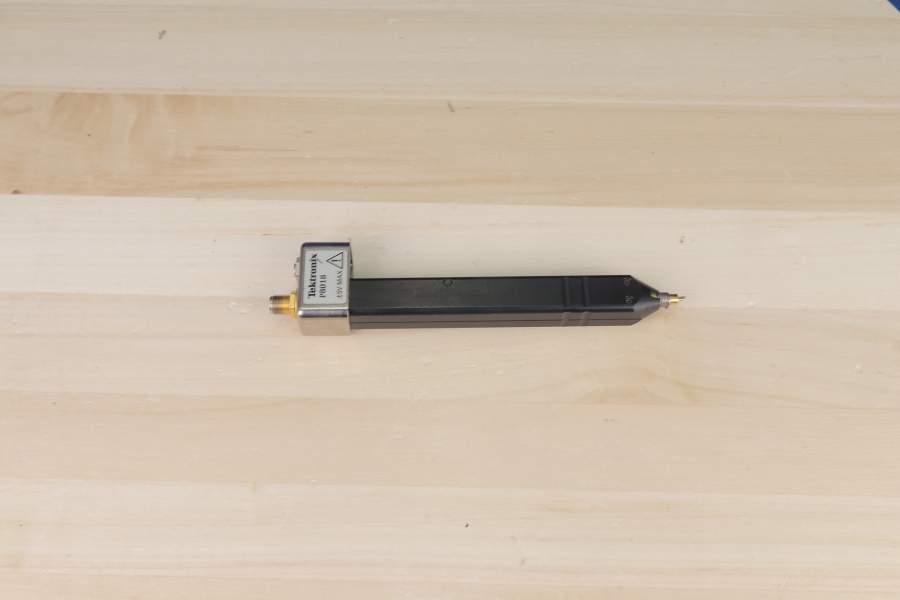

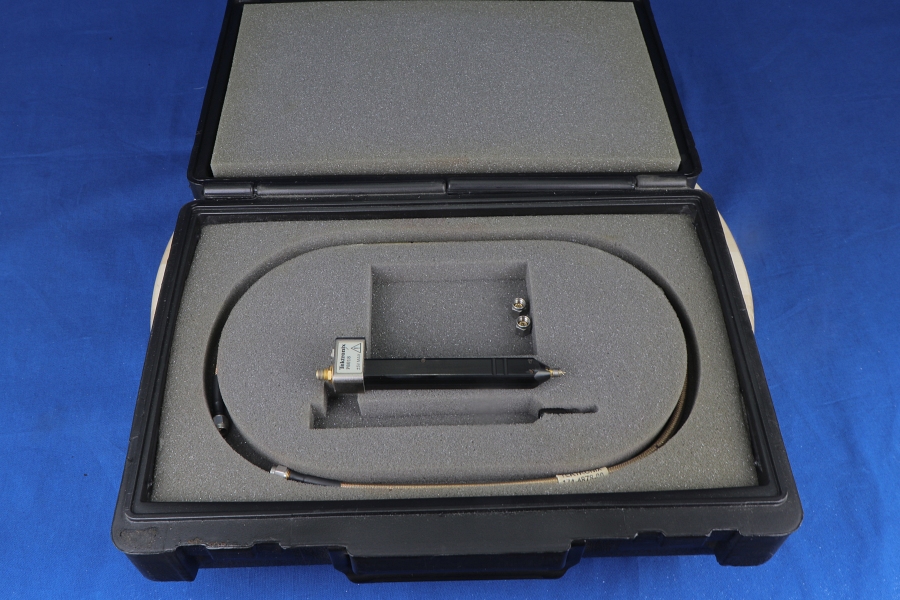

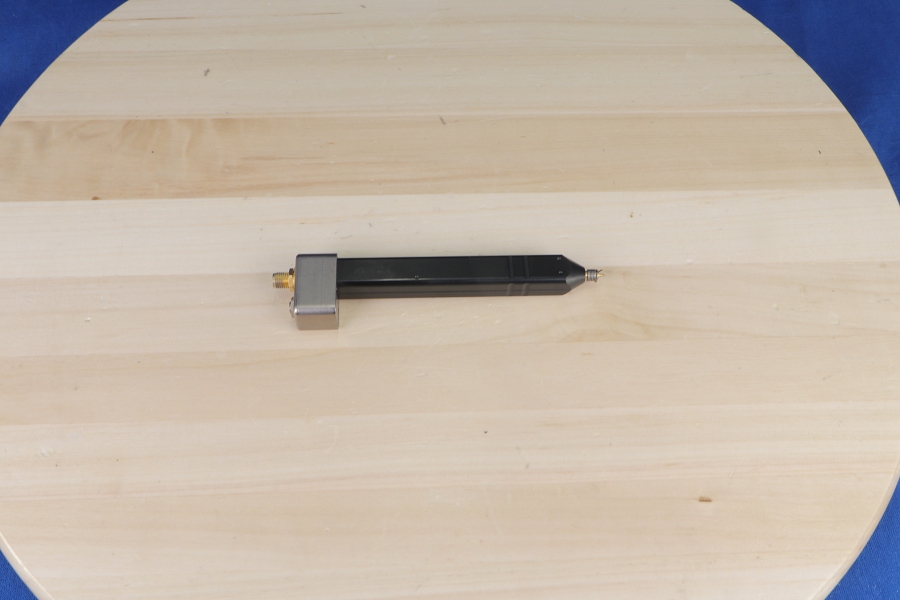

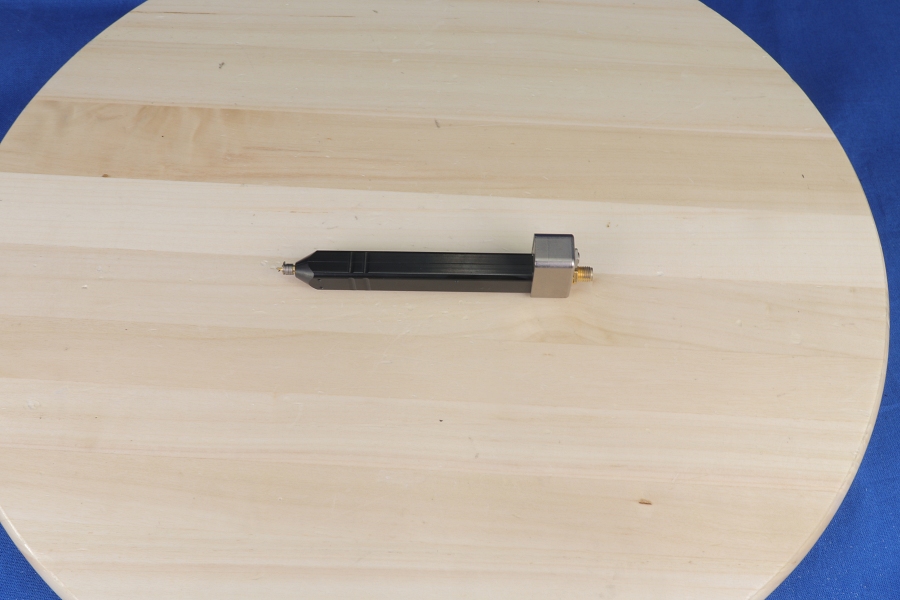

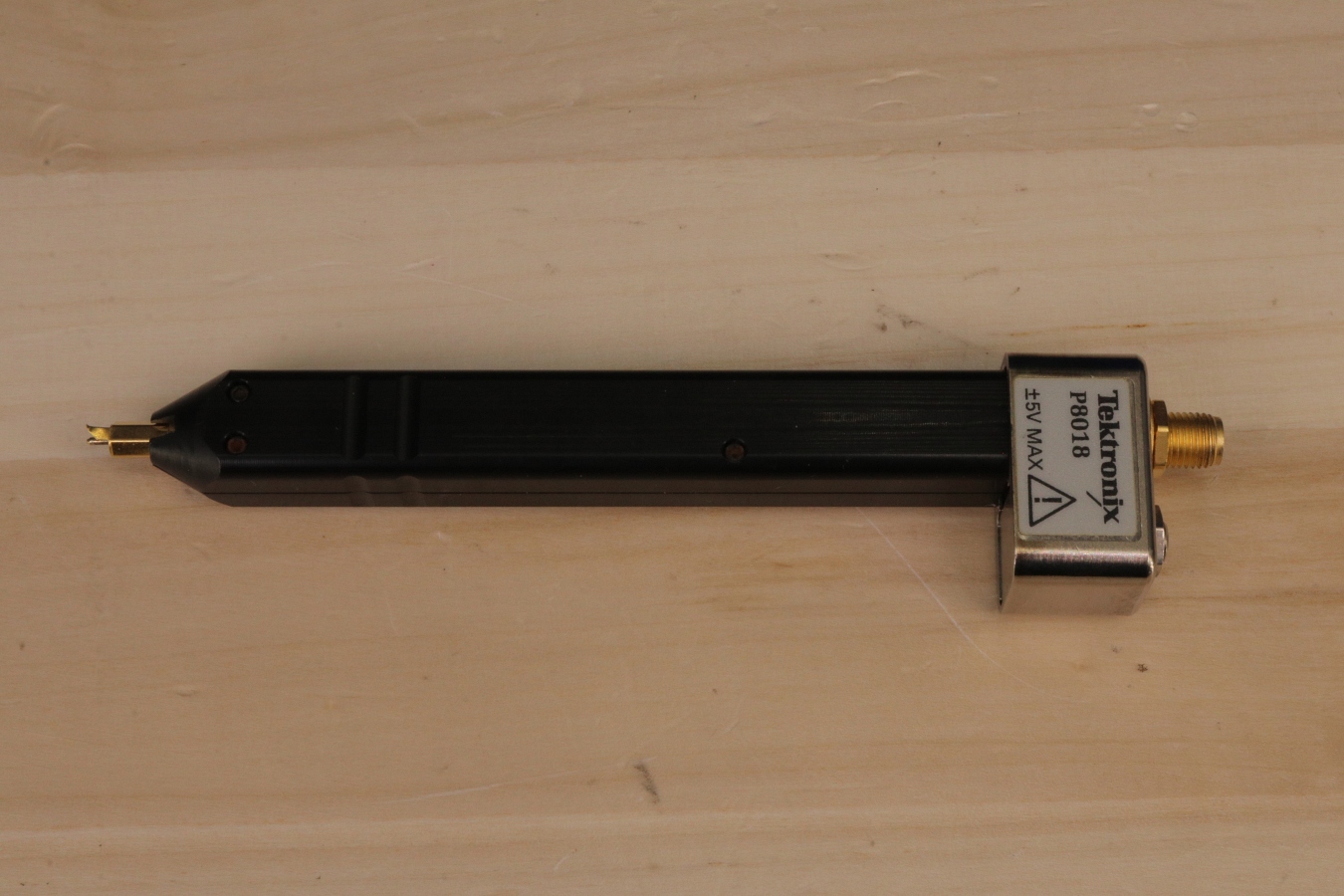

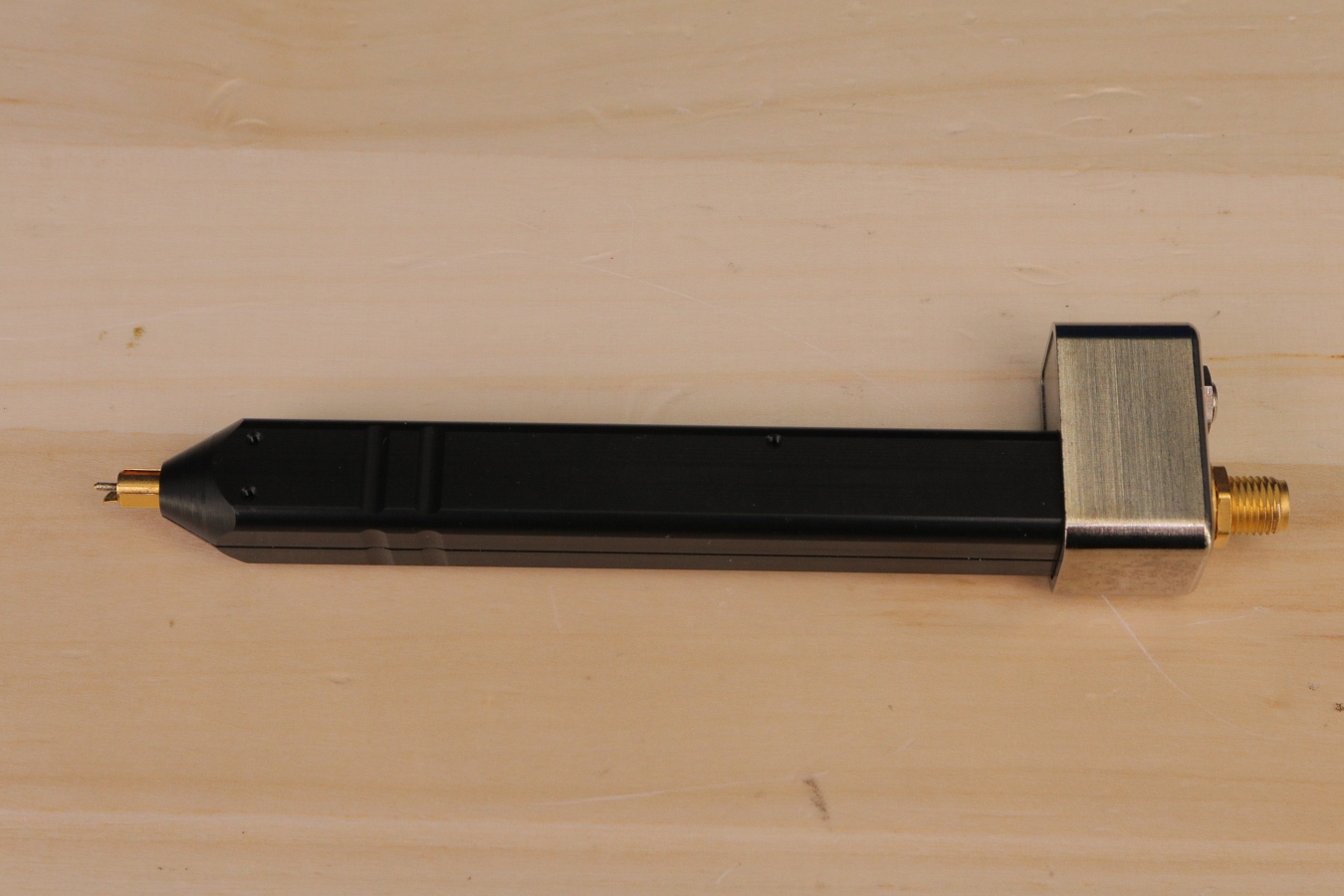

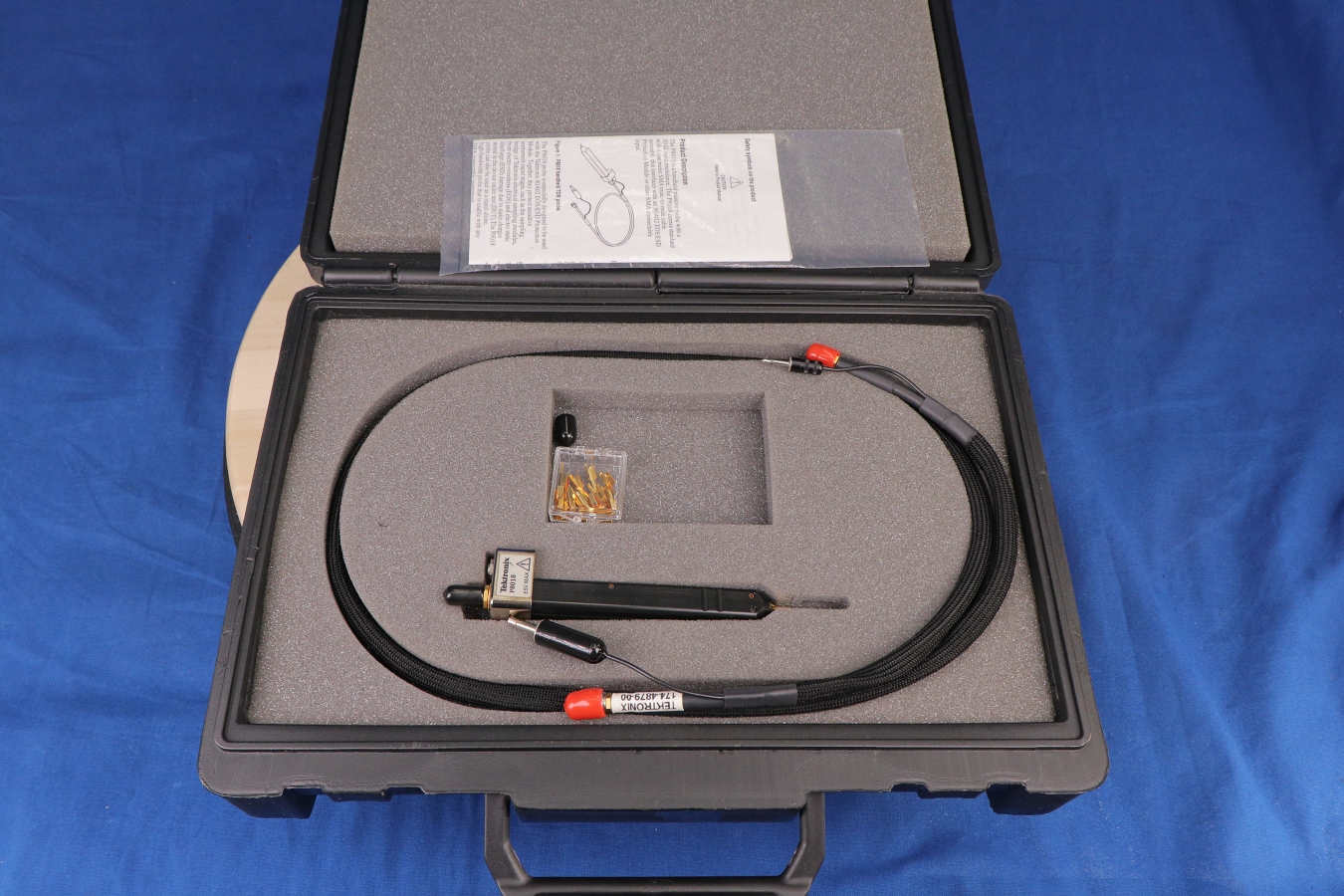

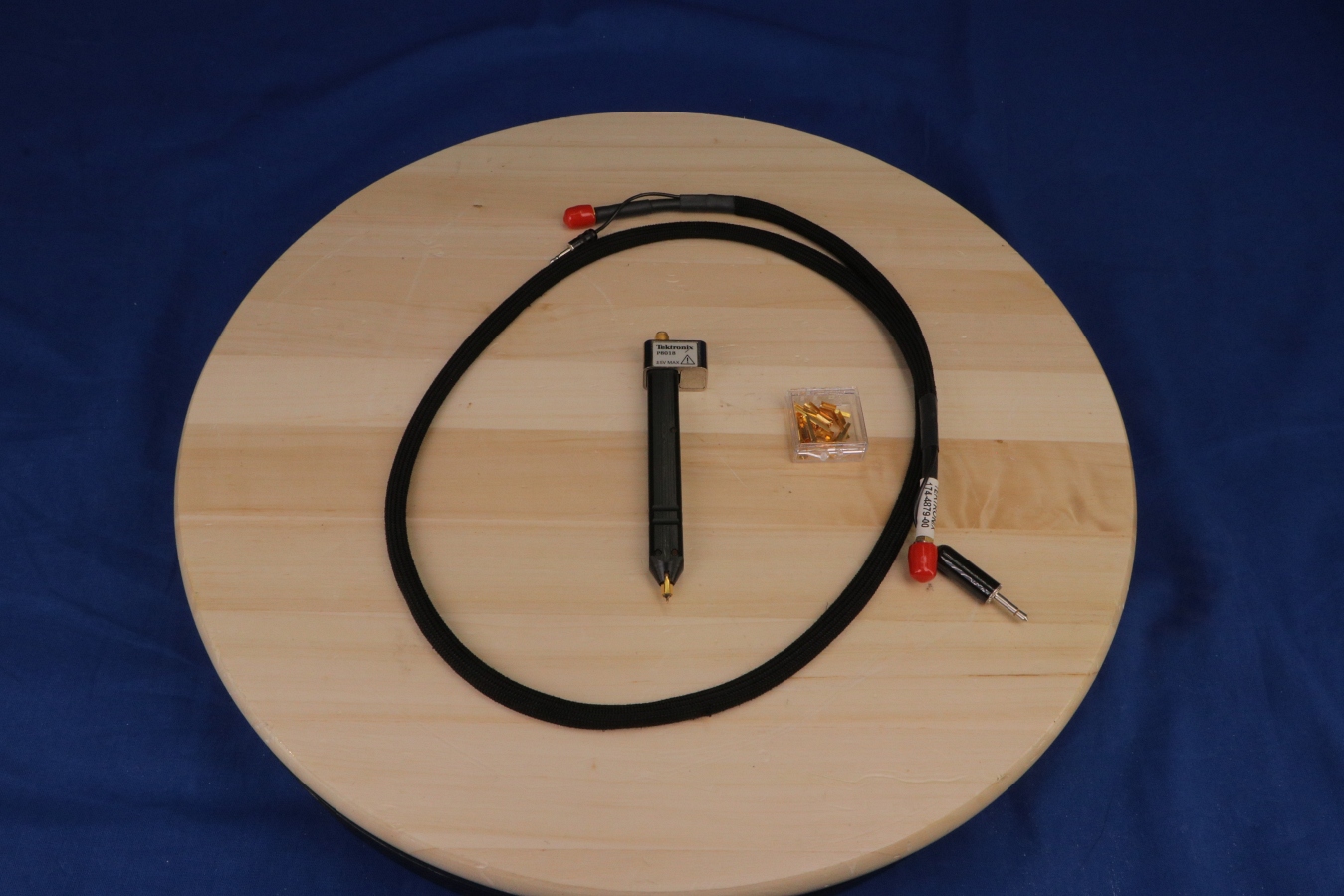

Additional Features: 20 GHz Probe Tip Bandwidth 50 Ω Impedance TDR Passive Probe Undisturbed 50 Ω Probe Reference Section Includes 20 GHz Precision SMA Cable Probe Tip Pressure Actuation Feature used to Actuate 80A02 EOS/ESD Protection Module Applications Circuit Board Controlled Impedance Testing (TDR) Designed for Use with 80A02 EOS/ESD Protection Module Characteristics Nominal Length with Cable: 1 meter Attenuation: 1X Probe Only Bandwidth: >20 GHz Probe Pitch: 1.8 mm (signal to ground) Cable Bandwidth: 20 GHz Connector Type: SMA Measured Reflected TDR Fall Time: <38 ps spec (<28 ps typical measure with 80E04) Loading Input: 50 Ω Max Vin: 5.0 V Probe Only Propagation Delay: 1.0 ns TDR Control Activation Force: 200 to 260 grams The Tektronix P8018 Handheld TDR Probe is a greater than 20 GHz, 50 Ω input impedance, single-ended passive probe with a precision 20 GHz bandwidth SMA cable that provides a high performance solution for electrical sampling TDR circuit board impedance characterization and high-speed electrical signal analysis applications. The P8018 probe can be used as a stand alone high bandwidth probe, but it is specially designed with features to be used with the 80A02 EOS/ESD Protection Module for protecting the sampling bridge of Tektronix electrical sampling modules from damage due to electro-overstress (EOS) and electro-static discharge (ESD) where large static charges can be stored in the DUT. The P8018 provides a unique probe tip pressure actuating feature and control circuit which, used with the matching 80A02 EOS/ESD Protection Module, enables a superior technique and performance capability for electrical sampling module EOS/ESD protection of acquired electrical signals and TDR measurements.
