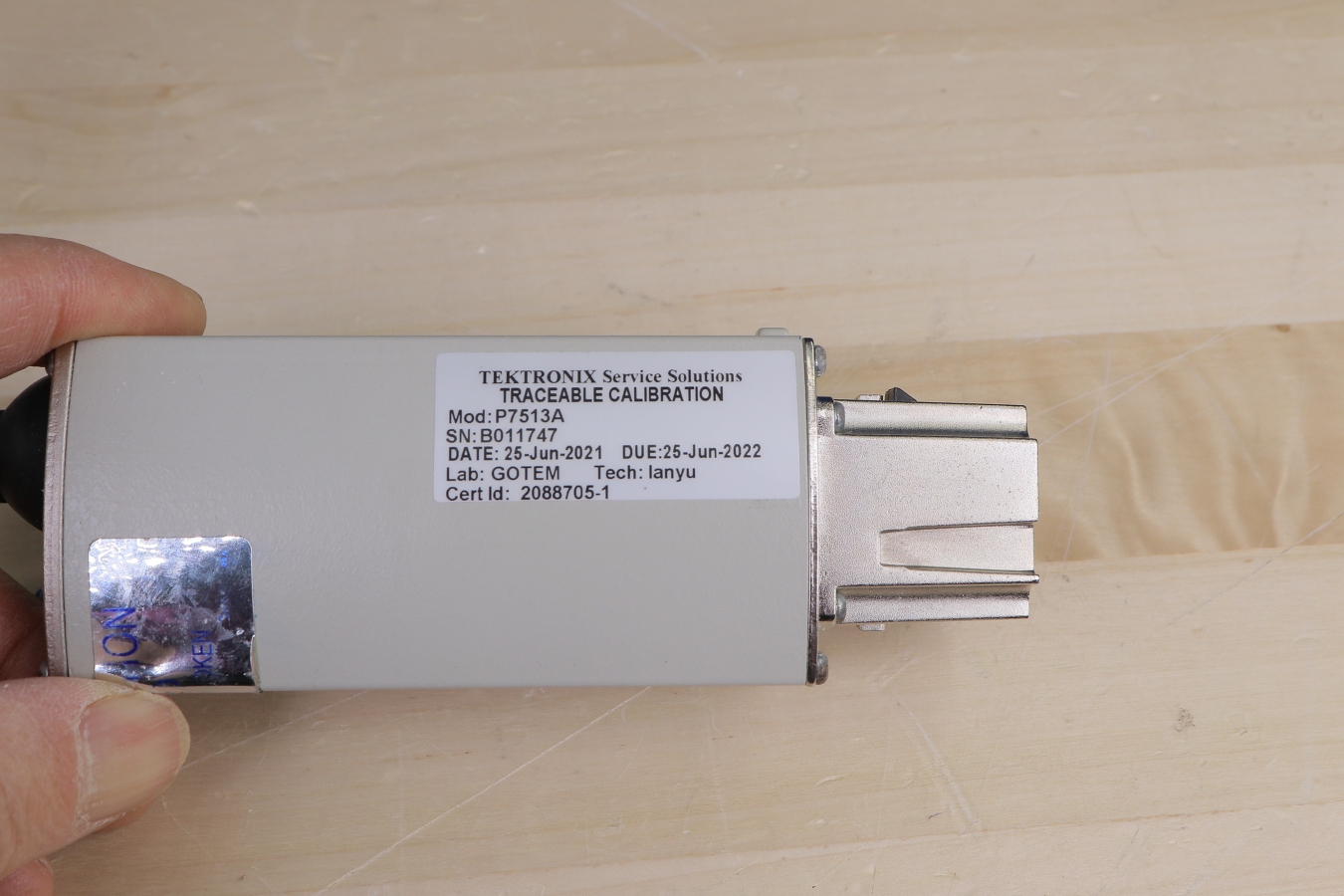

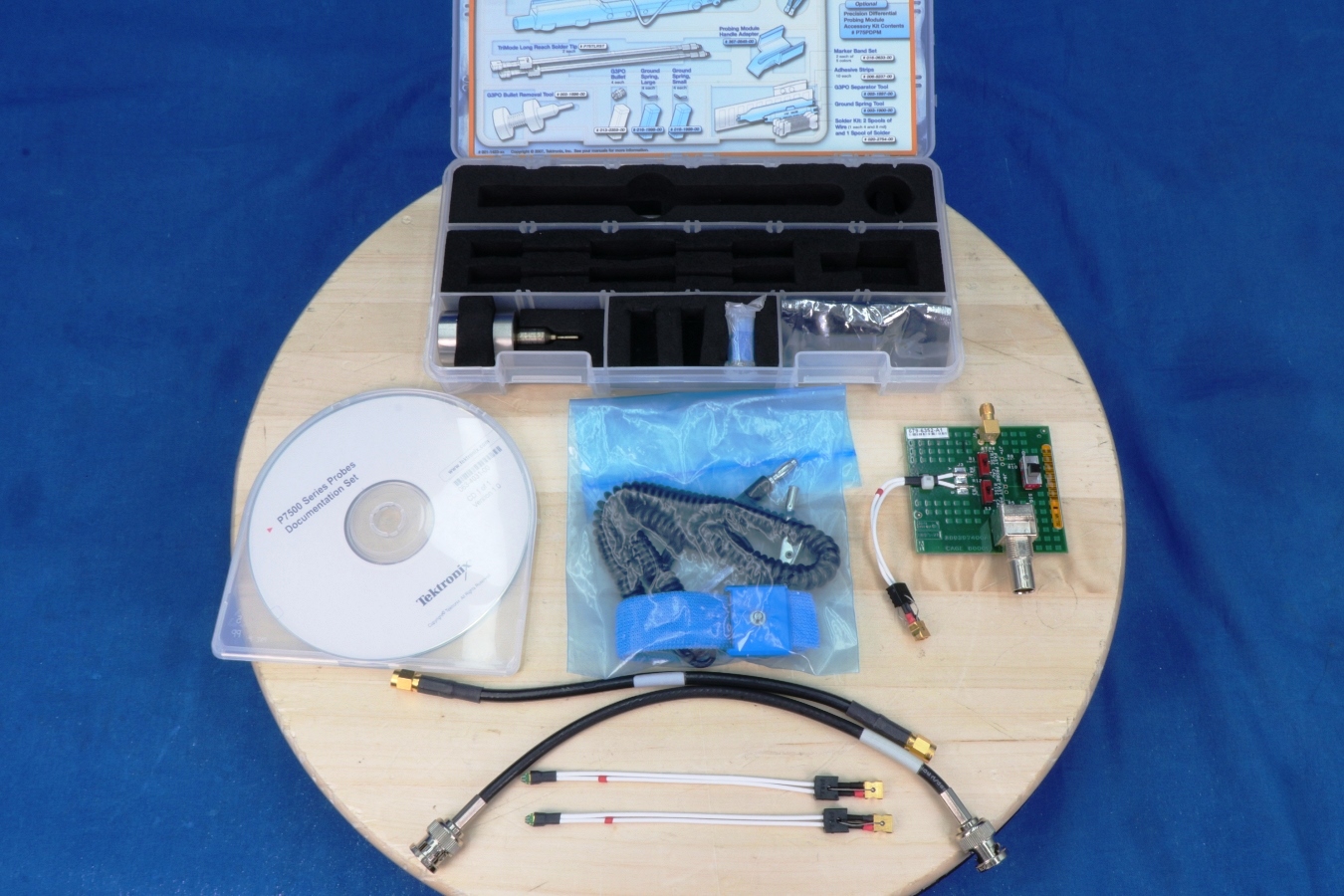

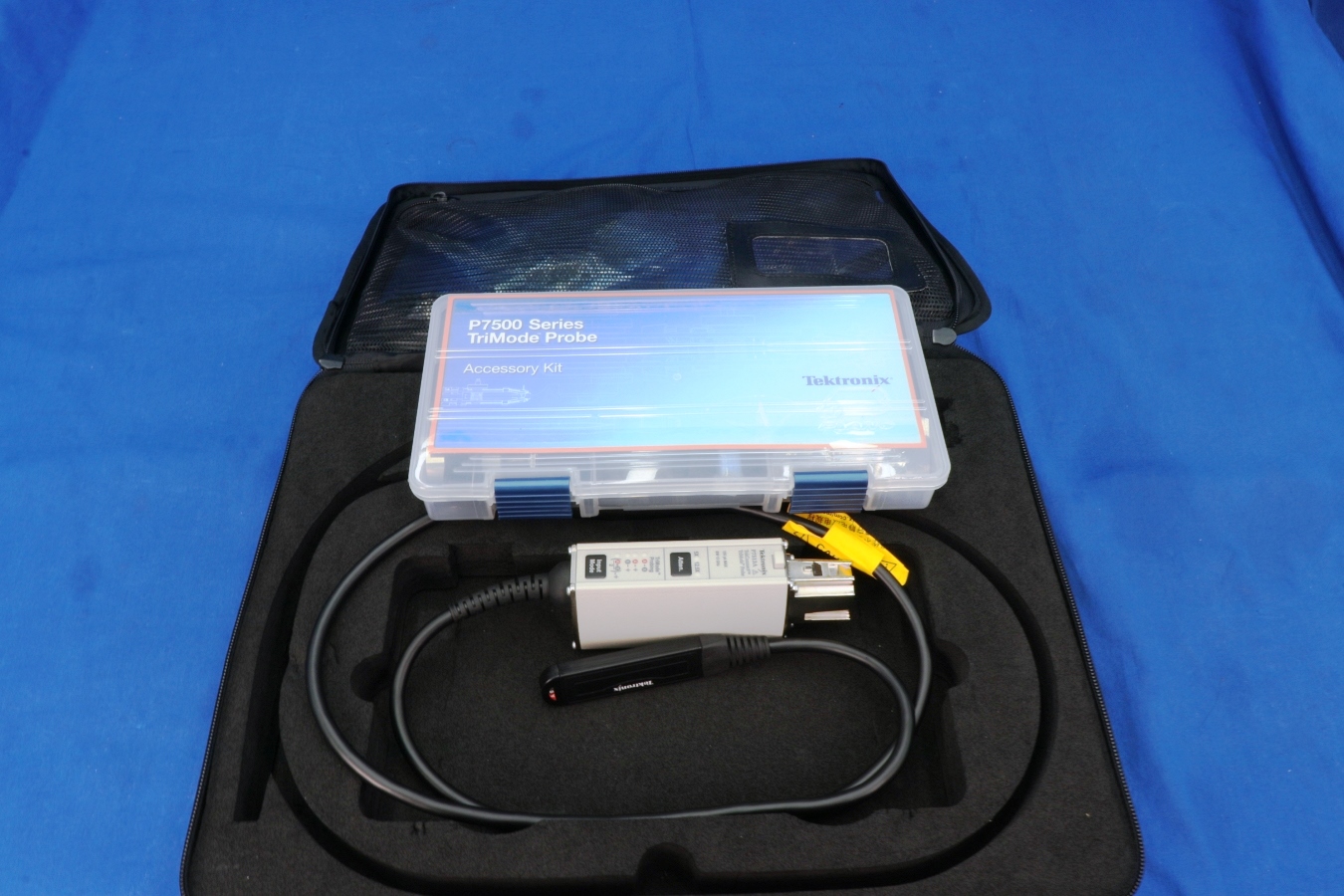

Features Differential Single ended Common mode (Requires only one probe vs. conventional probing techniques) Excellent step response Low-DUT loading High CMRR Differential, single ended, or common mode measurements using one probe Applications Examples include, but are not limited to: PCI Express, Serial ATA, DDR2/3/4, USB Accessories (Inclucuded) 1 - DC Probe Calibration Fixture (067-1967-xx) 1 - 50 ? Coax Cable - Male BNC to Male BNC (012-0208-xx) 1 - 50 ? Coax Cable - Male SMA to Male SMA (174-1120-xx) 2 - TriMode Long-Reach Solder Tips (P75TLRST) 1 - Solder Kit, Including (1) Solder Spool and (1) Wire Spool (020-2754-xx) 10 - Tape, Adhesive Strips (006-8237-xx) 10 - Marker Bands, Including (2) Each of (5) Colors (016-0633-xx) 1 - Socket Cable (020-2954-xx) 1 - Data Calibration Report 1 - Certificate of Traceable Calibration 1 - User Manual Specifications Bandwidth (probe only): >13 GHz  Rise time (10-90%) (probe only): <40 ps Rise time (20-80%) (probe only): <28 ps Attenuation (user selectable): 5X or 12.5X DC gain (guaranteed): 0.2 ±2% (5X) 0.08 ±2% (12.5X) Differential input range: ±0.75 V (5X) ±1.75 V (12.5X) Operating voltage window: +4.0 to –2.0 V Offset voltage range: +2.5 to –1.5 V, A-B mode +3.4 to –1.8 V, other modes DC input resistance (differential): 100k ohms Noise: <33 nV / √Hz (5X) <48 nV / √Hz (12.5X) Nondestructive input range: ±15 V Interface: TekConnect™ Cable length: 1 meter   The Tektronix P7513A 13 GHz TriMode Differential Probe for TekConnect Interface Oscilloscopes has one-probe setup, which makes differential, single ended, and common mode measurements accurately and definitively. Tektronix is a known leader when it comes to signal fidelity and signal acquisition. Building on our history of market-leading innovations in probing, we invented a revolutionary probing architecture called "TriMode Probing" that defines the next-generation industry benchmark for usability and signal fidelity. This architecture changes the rules of probing and allows you to work more effectively and efficiently. By enabling unique functionality, the P7513A TriMode probe allows you to switch between differential, single ended, and common mode measurements without moving the probe from its connection points.
