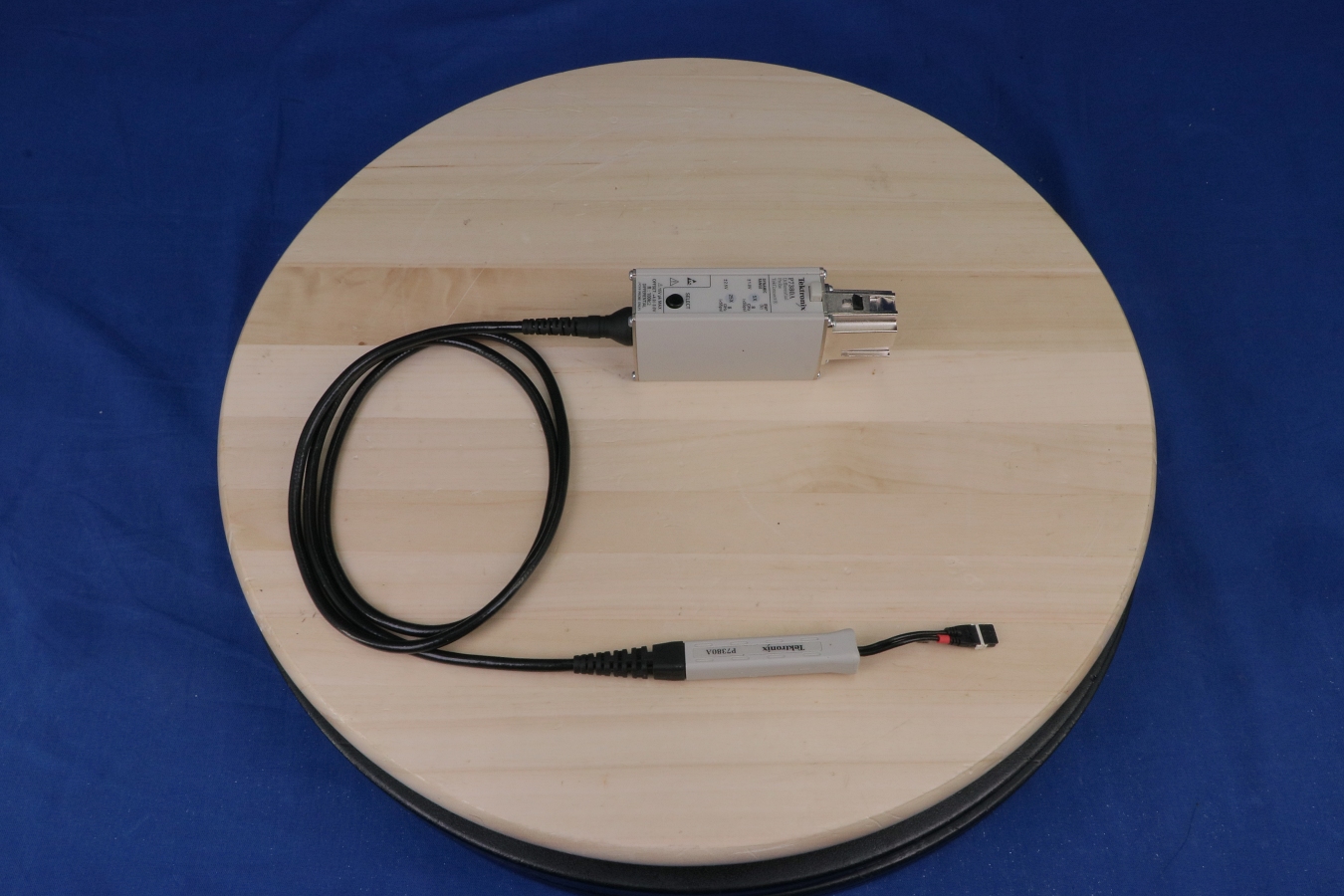

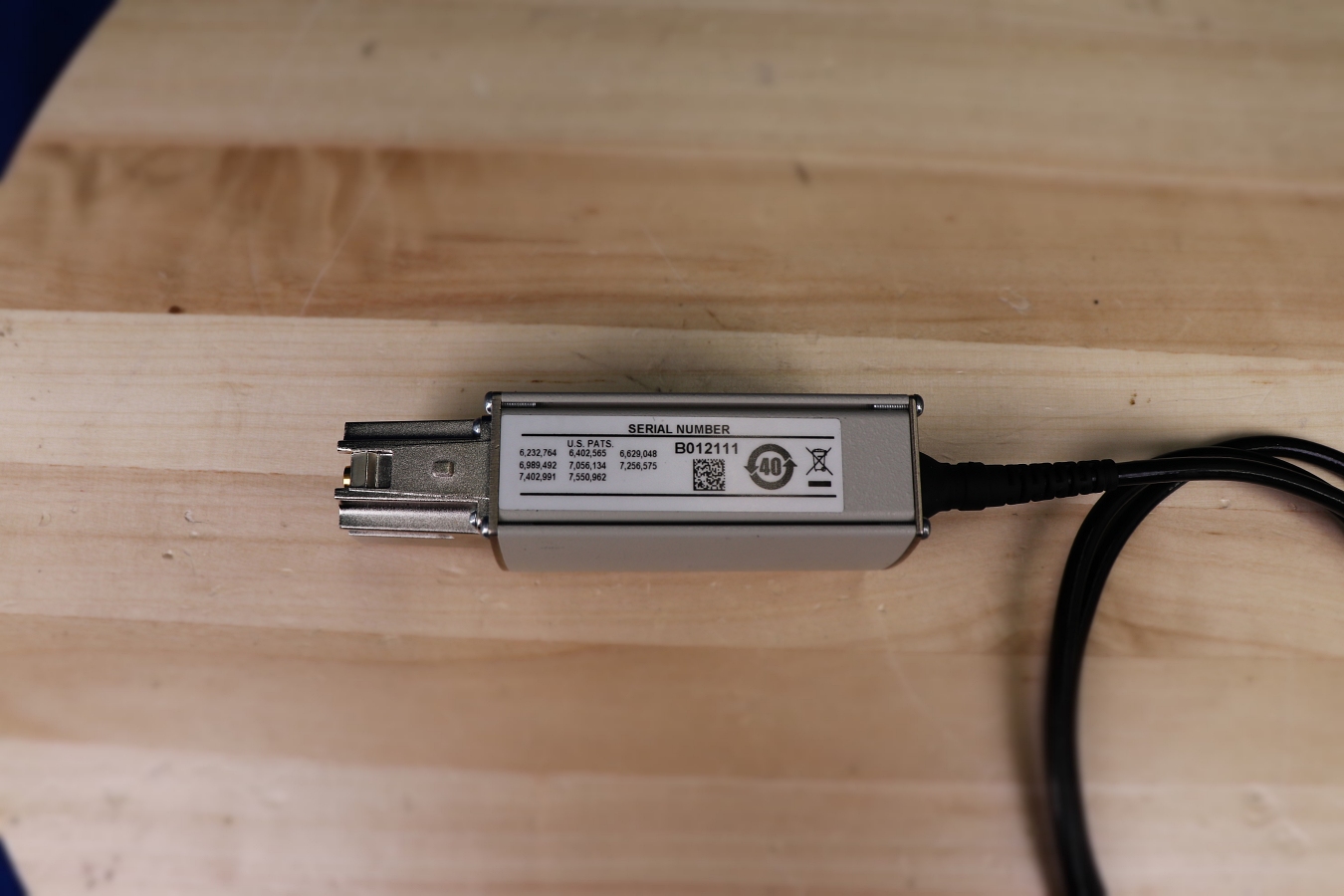

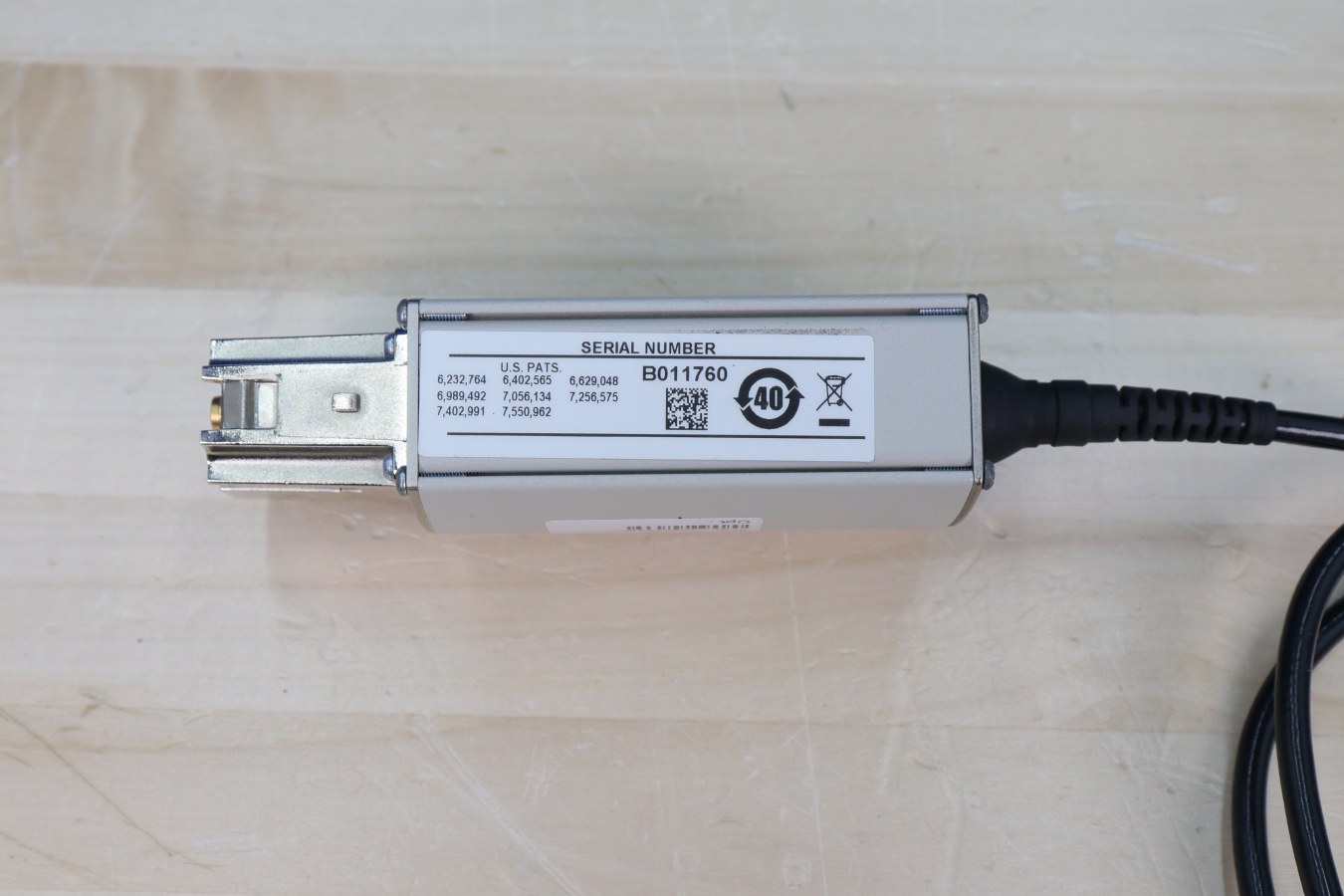

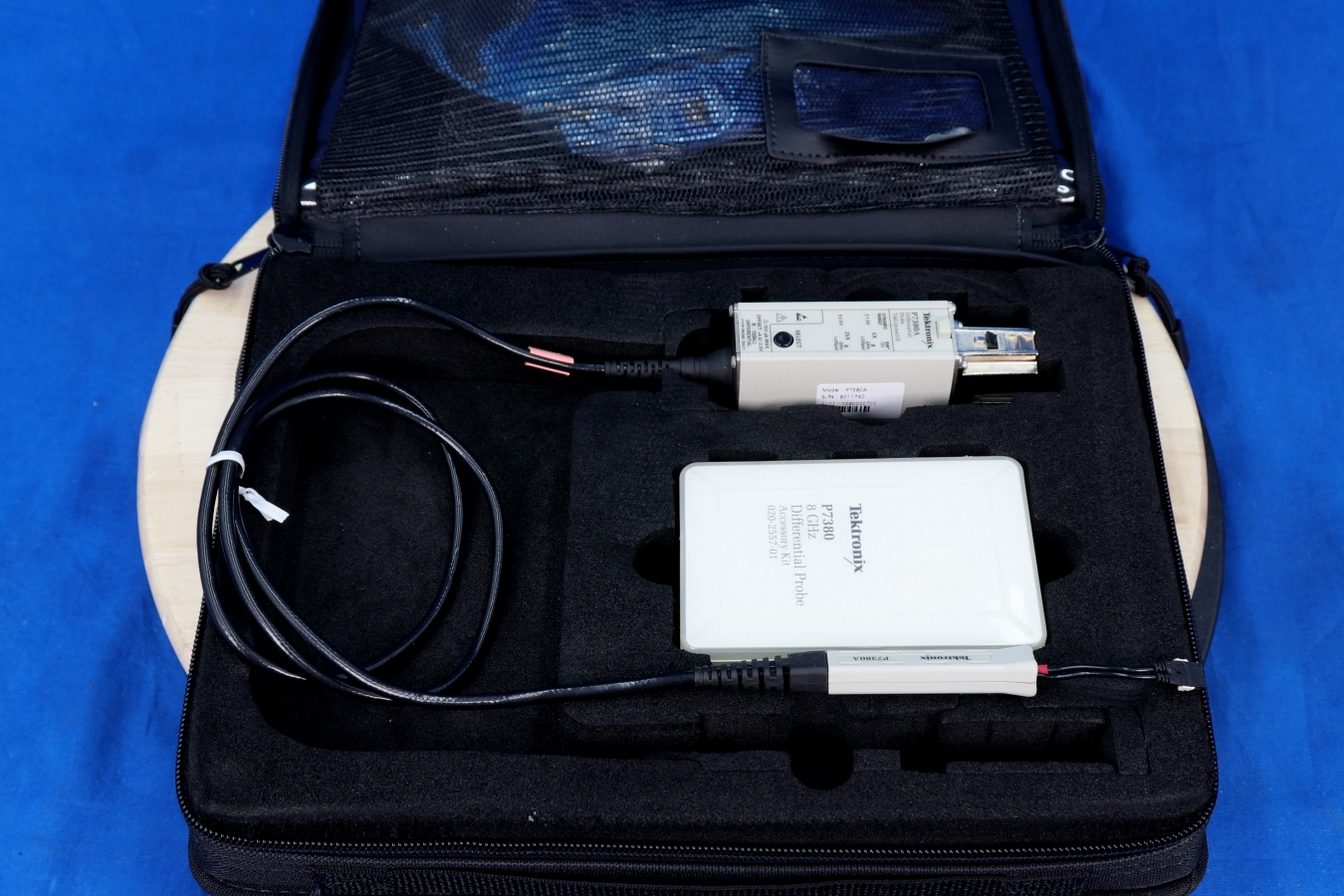

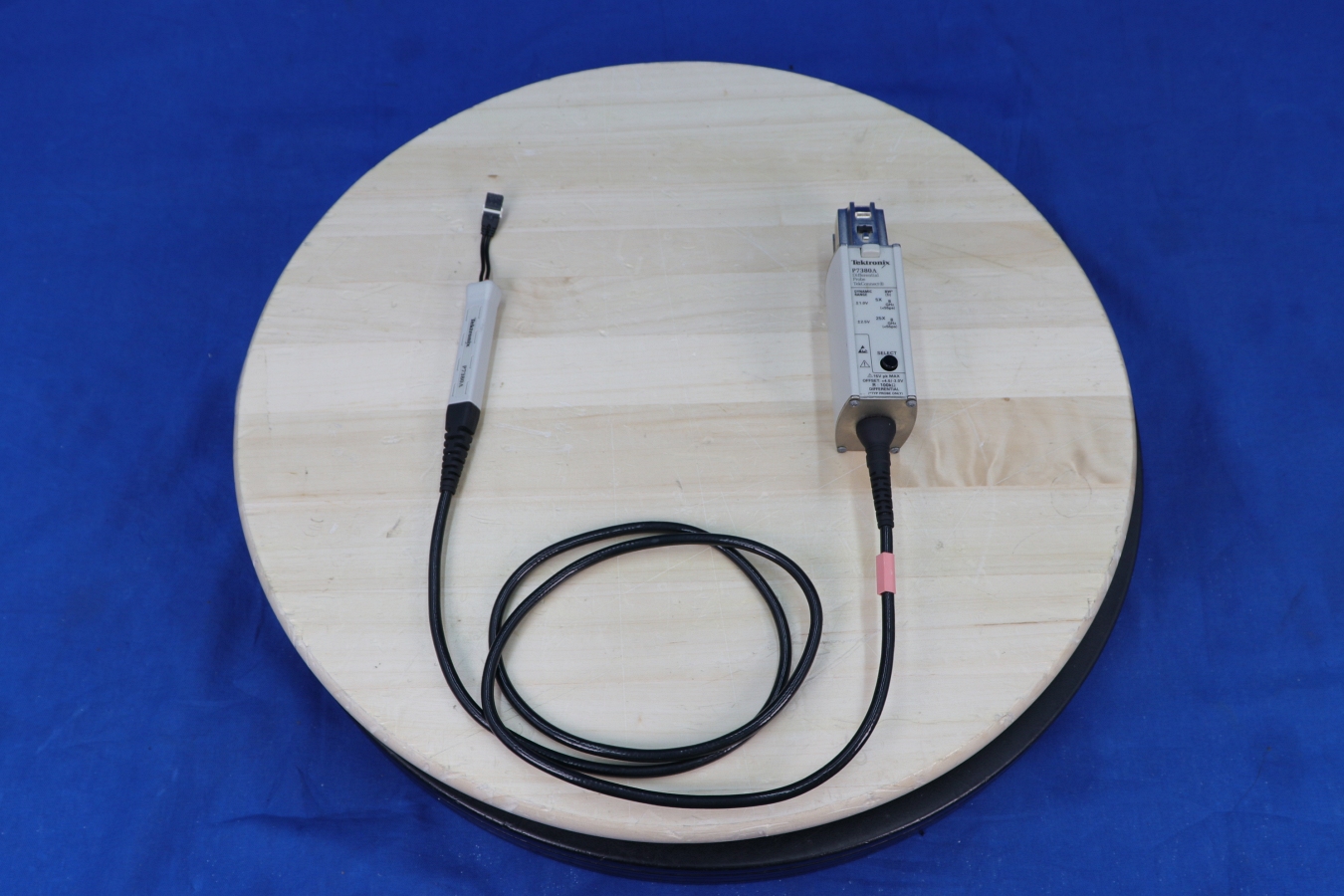

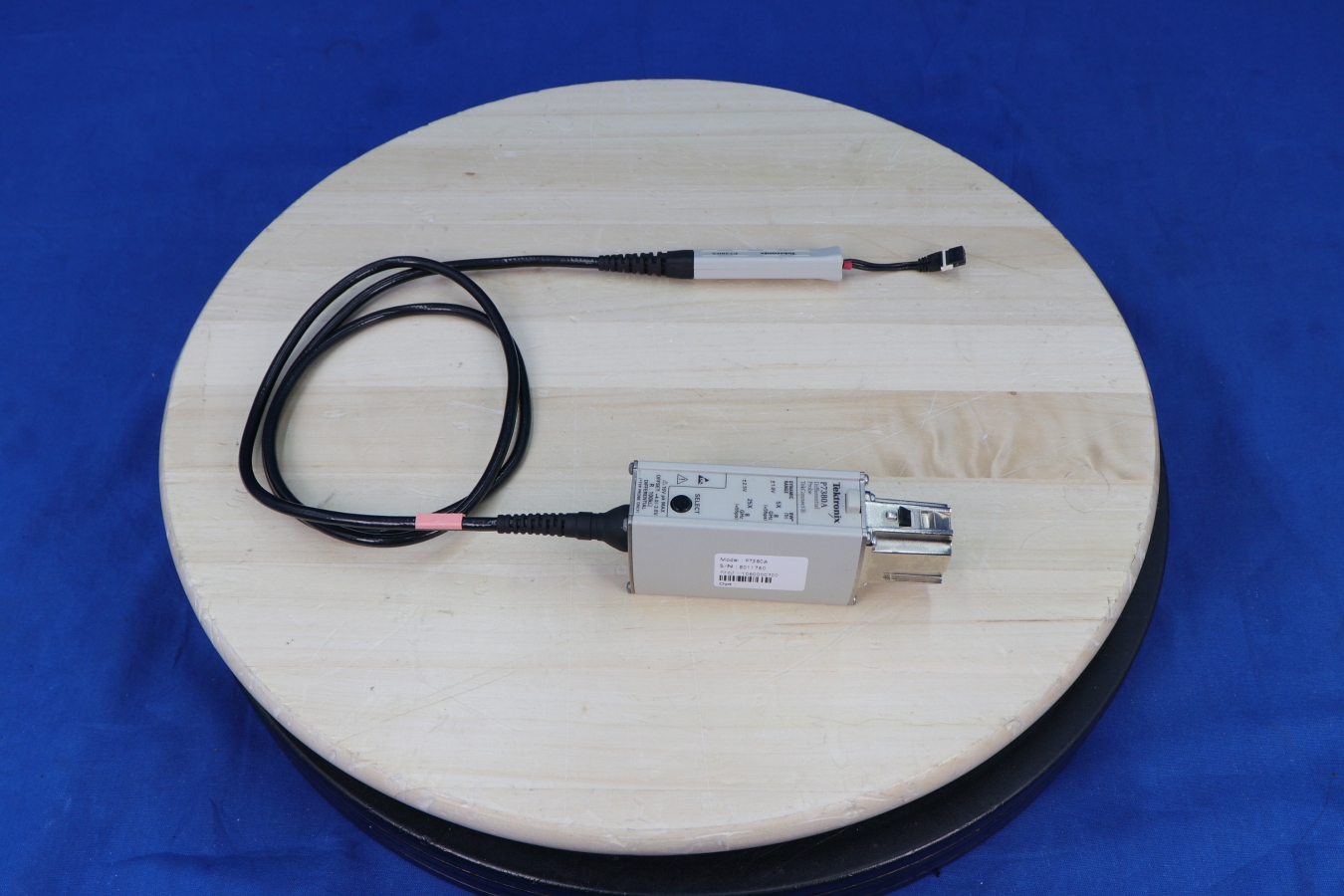

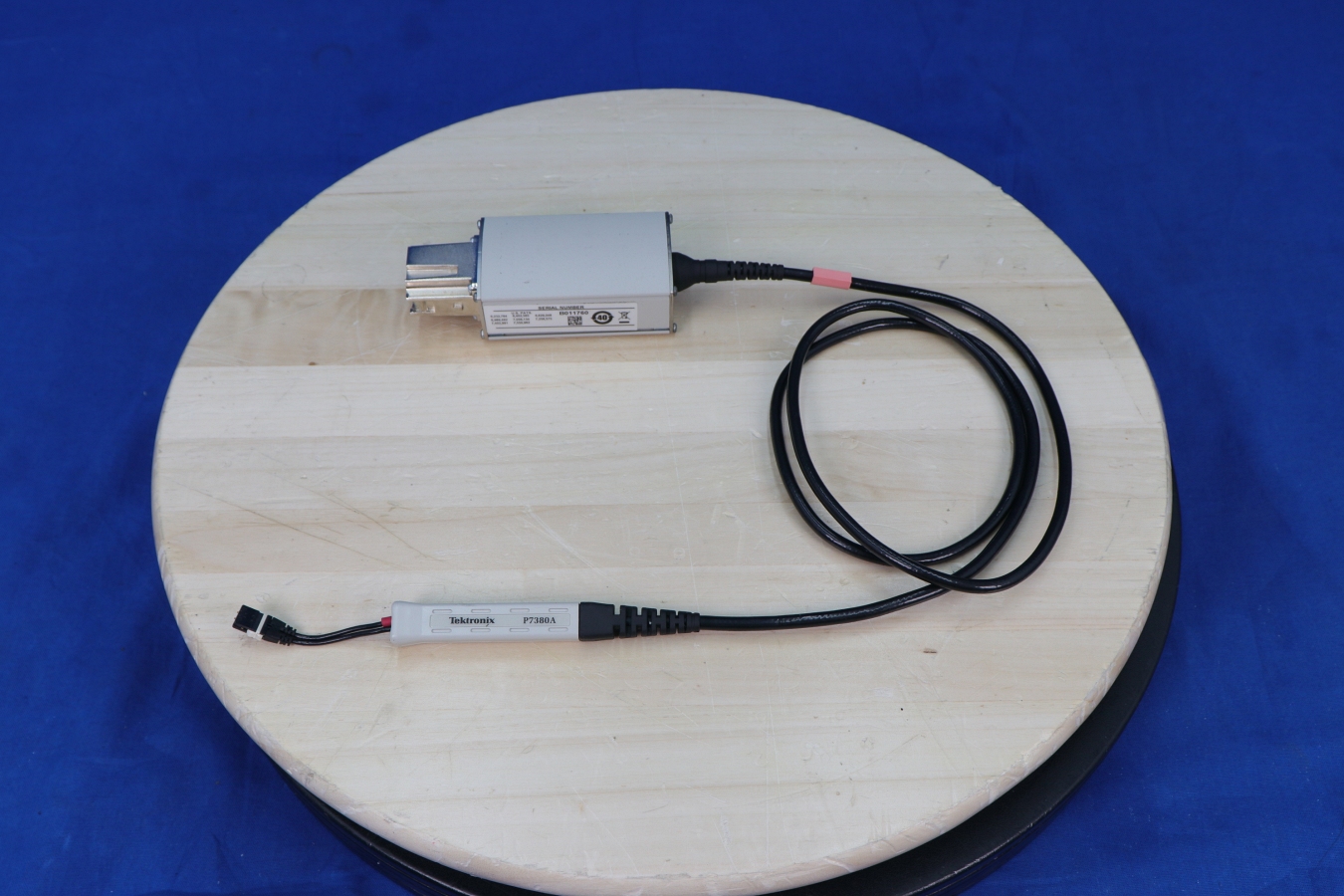

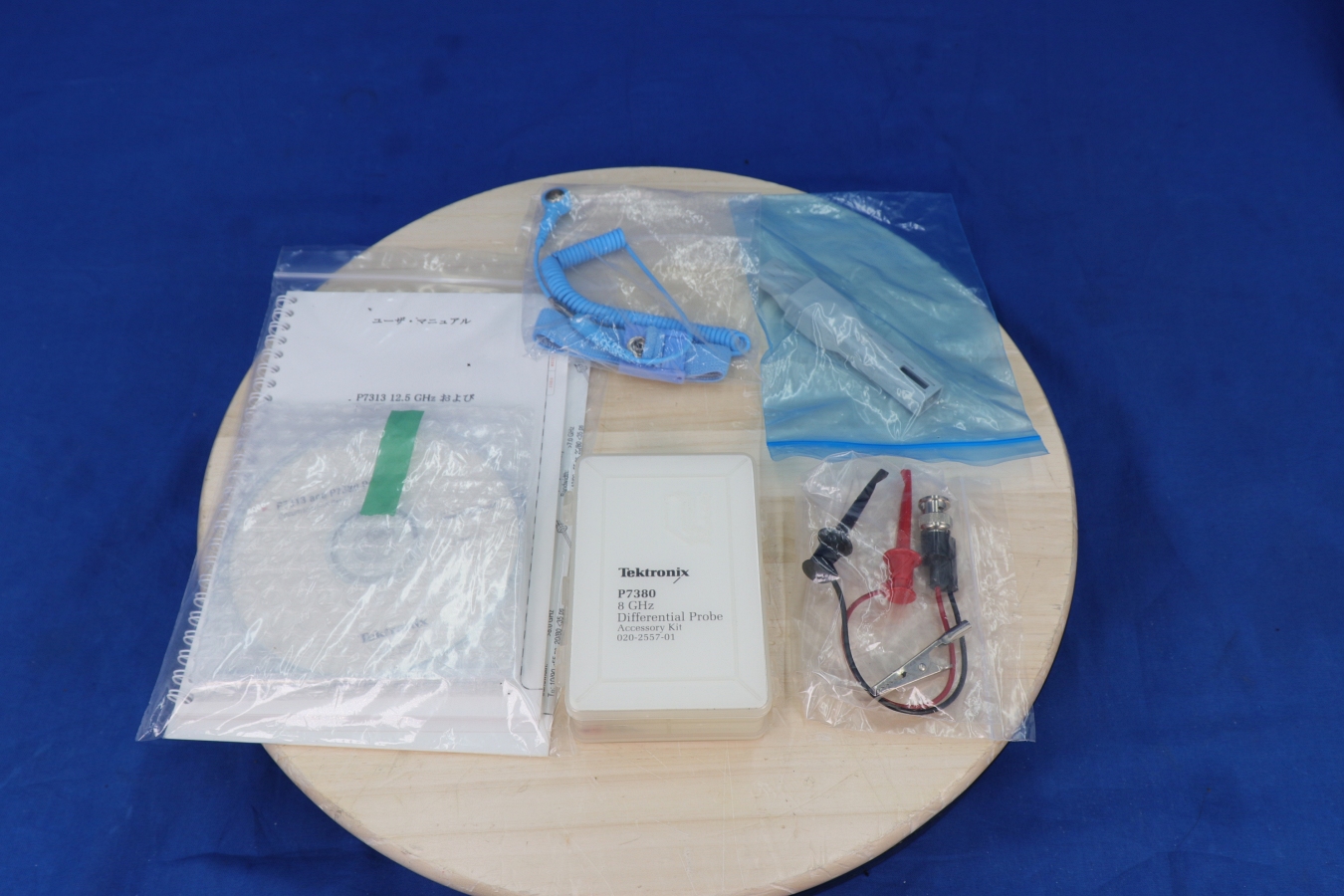

TekConnect® Interface Applications: -Examples Include, but are not Limited To: PCI-Express I and II, Serial ATA II, USB 2.0, DDRII, DDRIII, Fireware 1394b, Rambus, XAUI Signal Fidelity: >8.0 GHz Bandwidth, Typical Extended Linear Dynamic Range: 2 Vp-p at 5x Attenuation Low Probe Loading: DC Input Resistance 100 kΩ differential 50 kΩ single-ended AC loading: Versatility: Make differential or single-ended (ground referenced) measurements Solder down capability Handheld probing with variable spacing and compliance Fixtured probing Interchangeable Tip-Clip assemblies: Connect to a variety of devices Economical Tektronix has created a revolutionary Z-Active probe architecture that sets the industry benchmark for signal fidelity. Tektronix active probe architecture preserves high bandwidth while providing improved connectivity with low loading. The Z-Active architecture is a hybrid approach composed of a distributed attenuator topology feeding an active probe amplifier. The Z-Active probes use a tiny passive probe tip element that is separate from the amplifier, extending the usable reach of the probe. In traditional active probes, adding this much length can introduce signal fidelity problems. However this architecture maintains high DC input resistance and presents a higher AC impedance than previous probe architectures. It accomplishes this while providing significant length between the probe body and the probe attachment point to the DUT. This architecture provides the best of both worlds: high DC impedance like existing active probes and the stable high-frequency loading of Zο probes.
