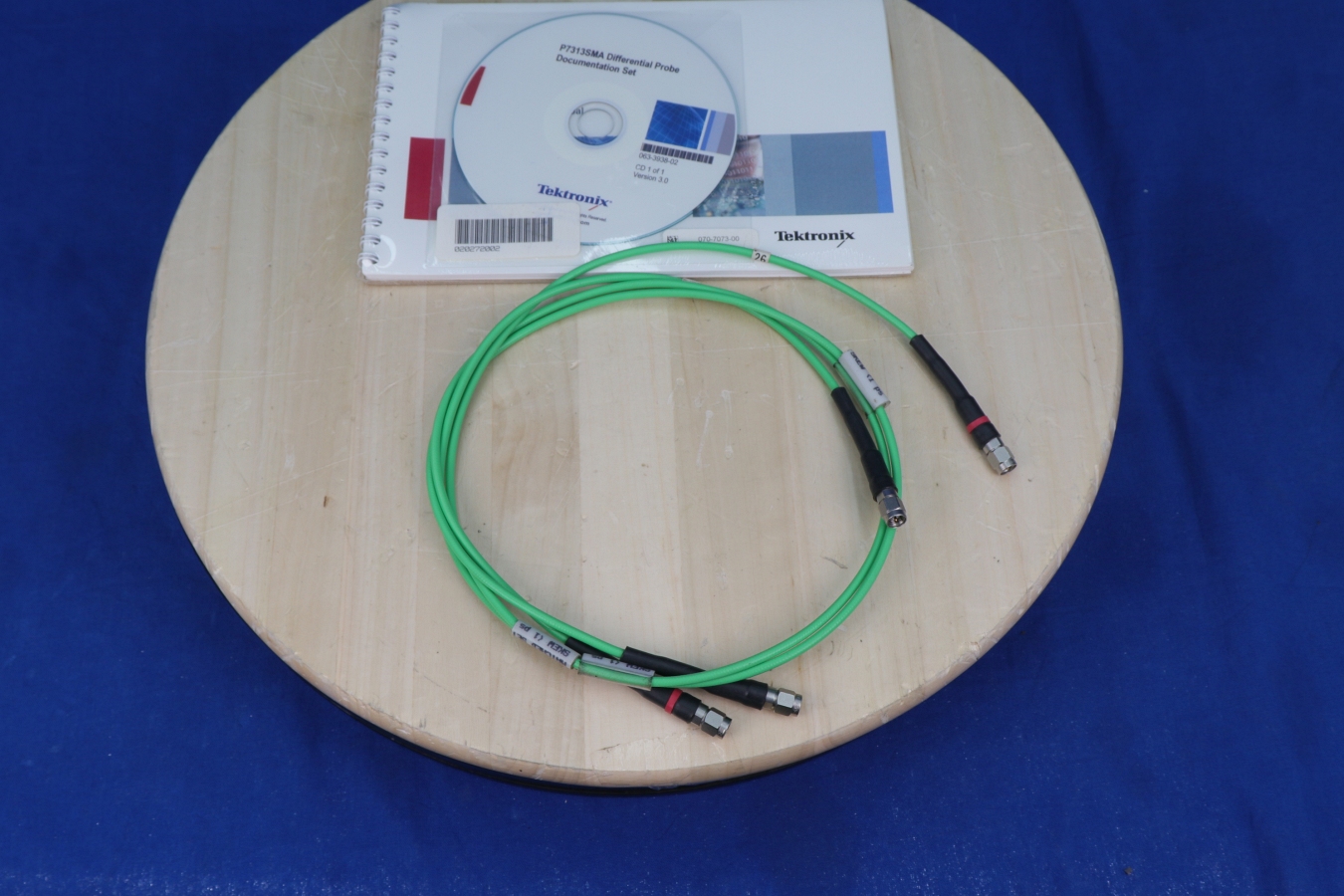

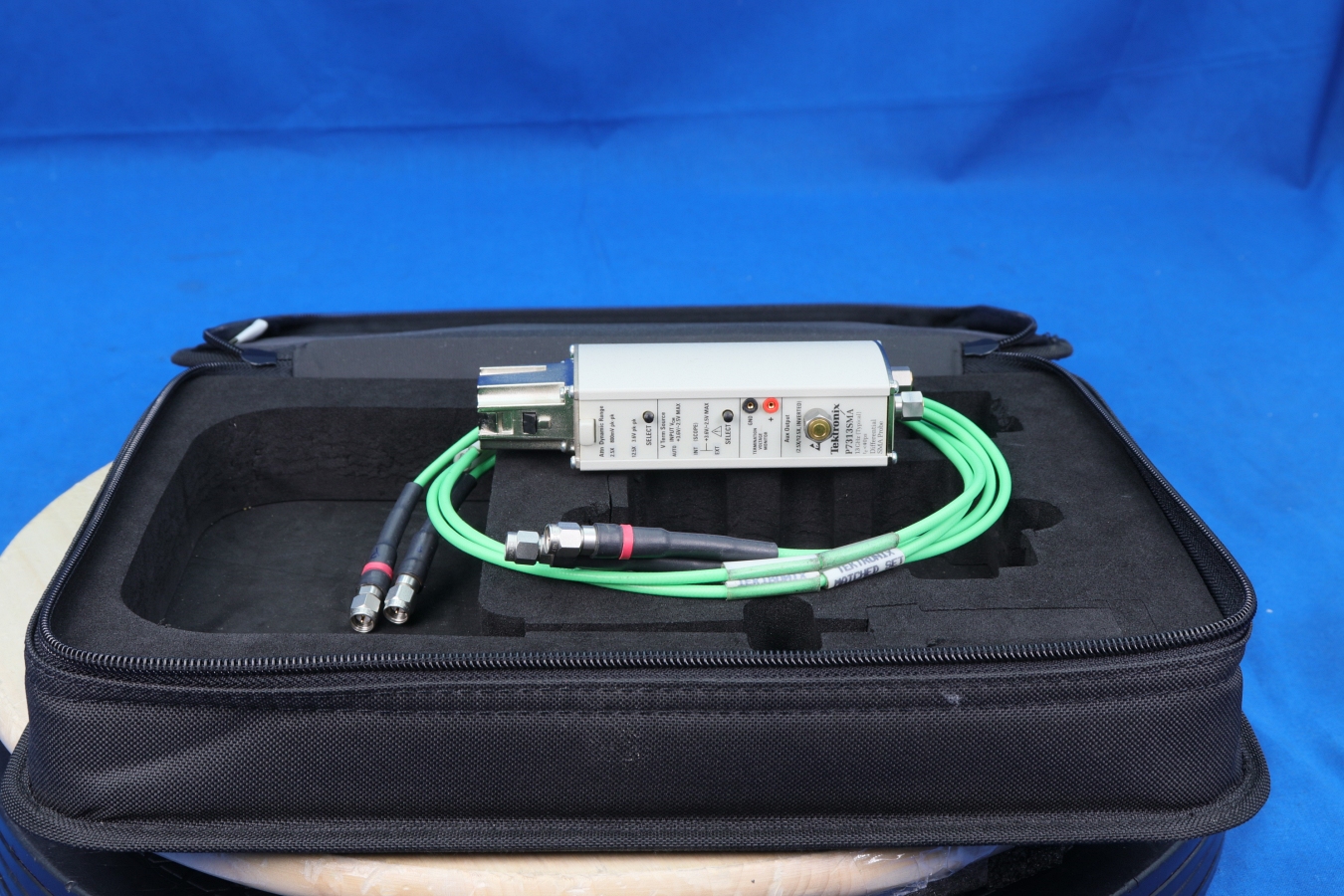

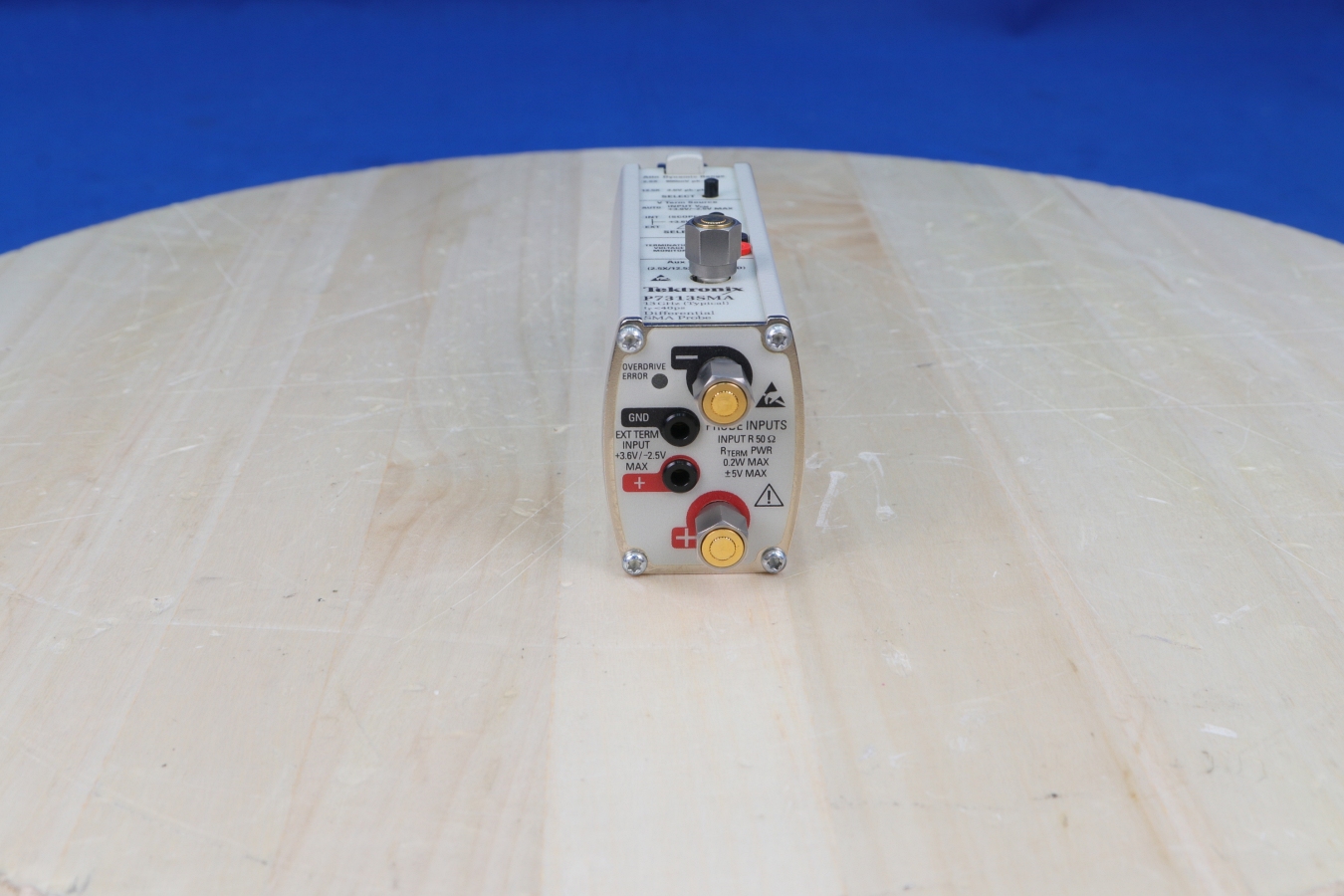

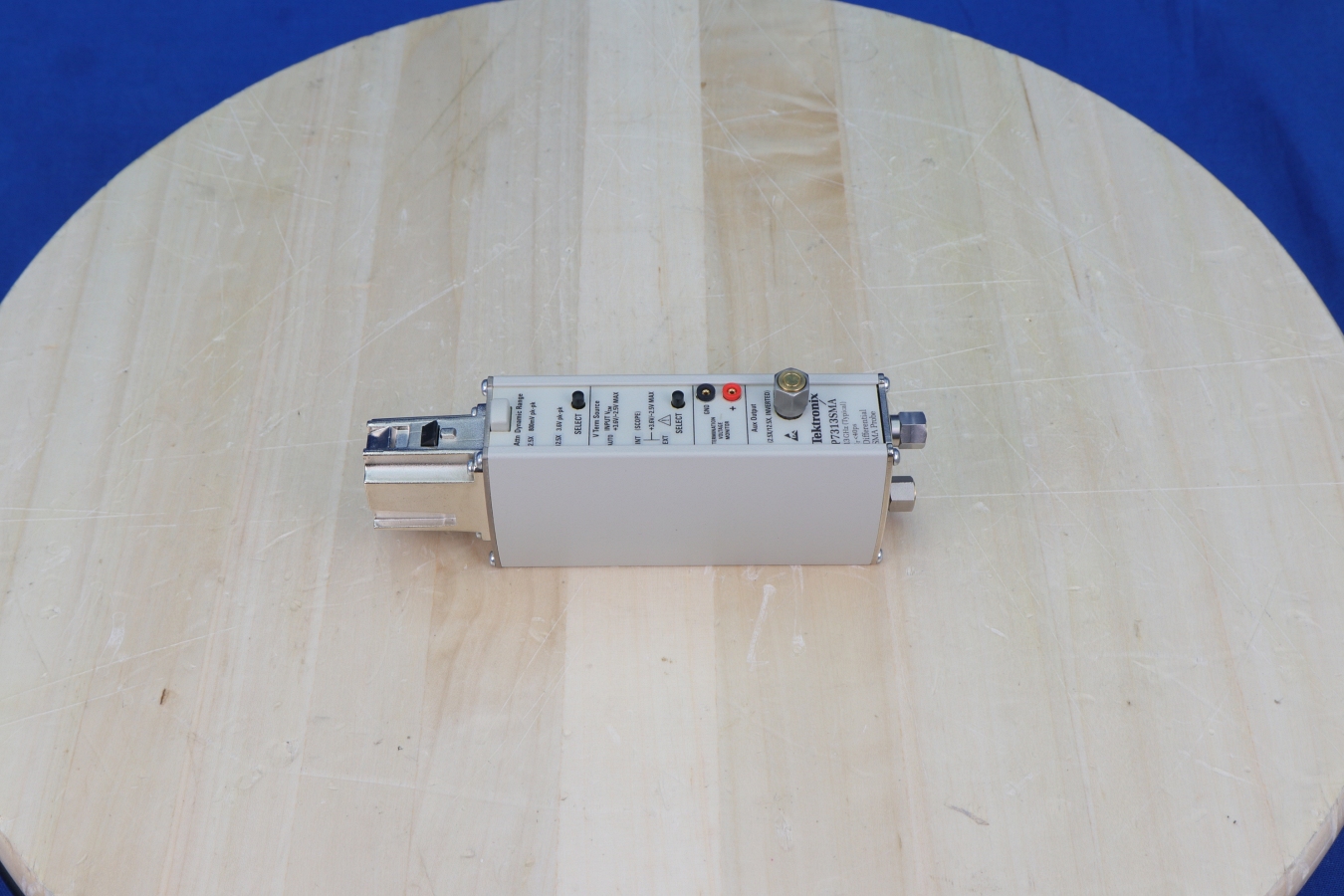

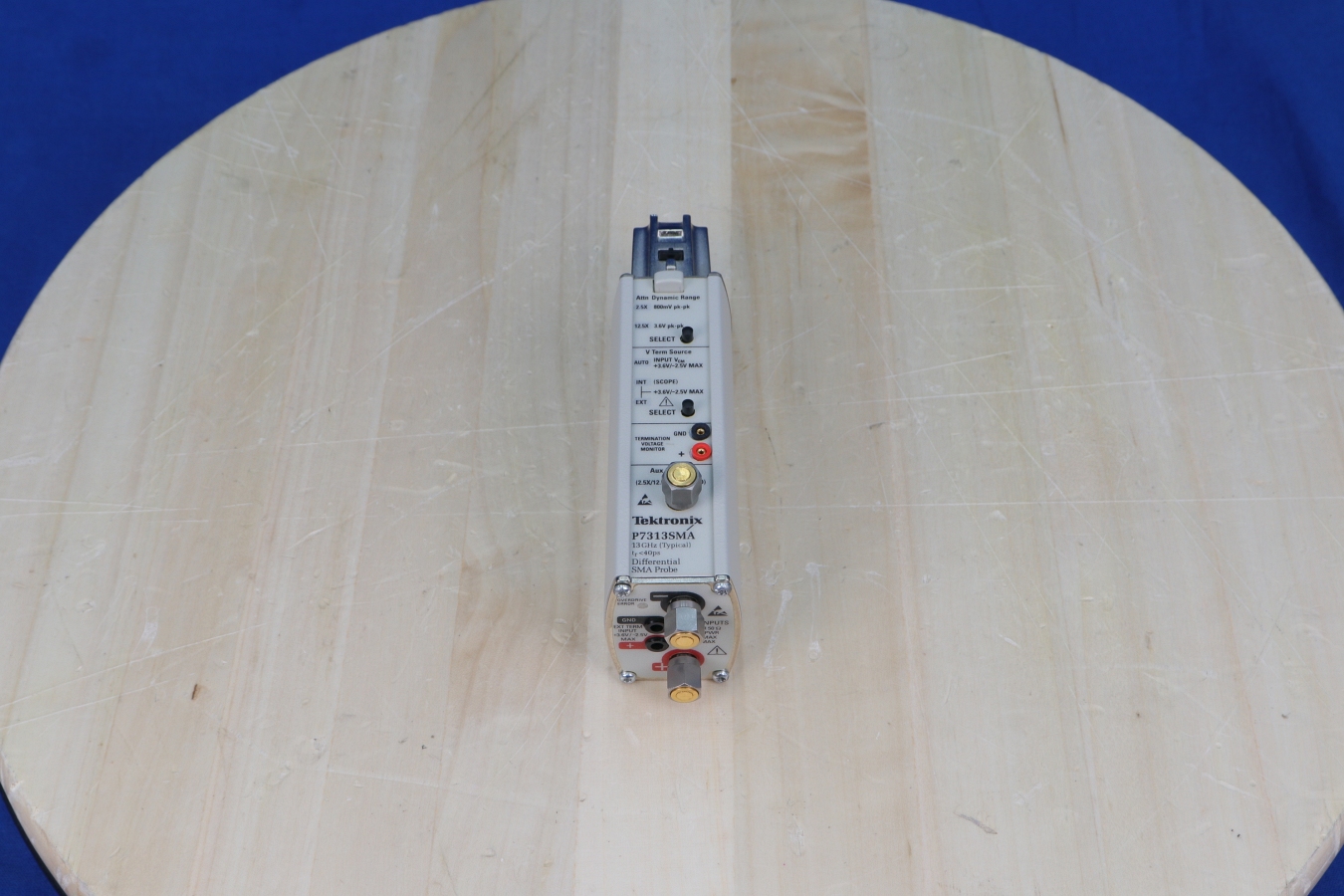

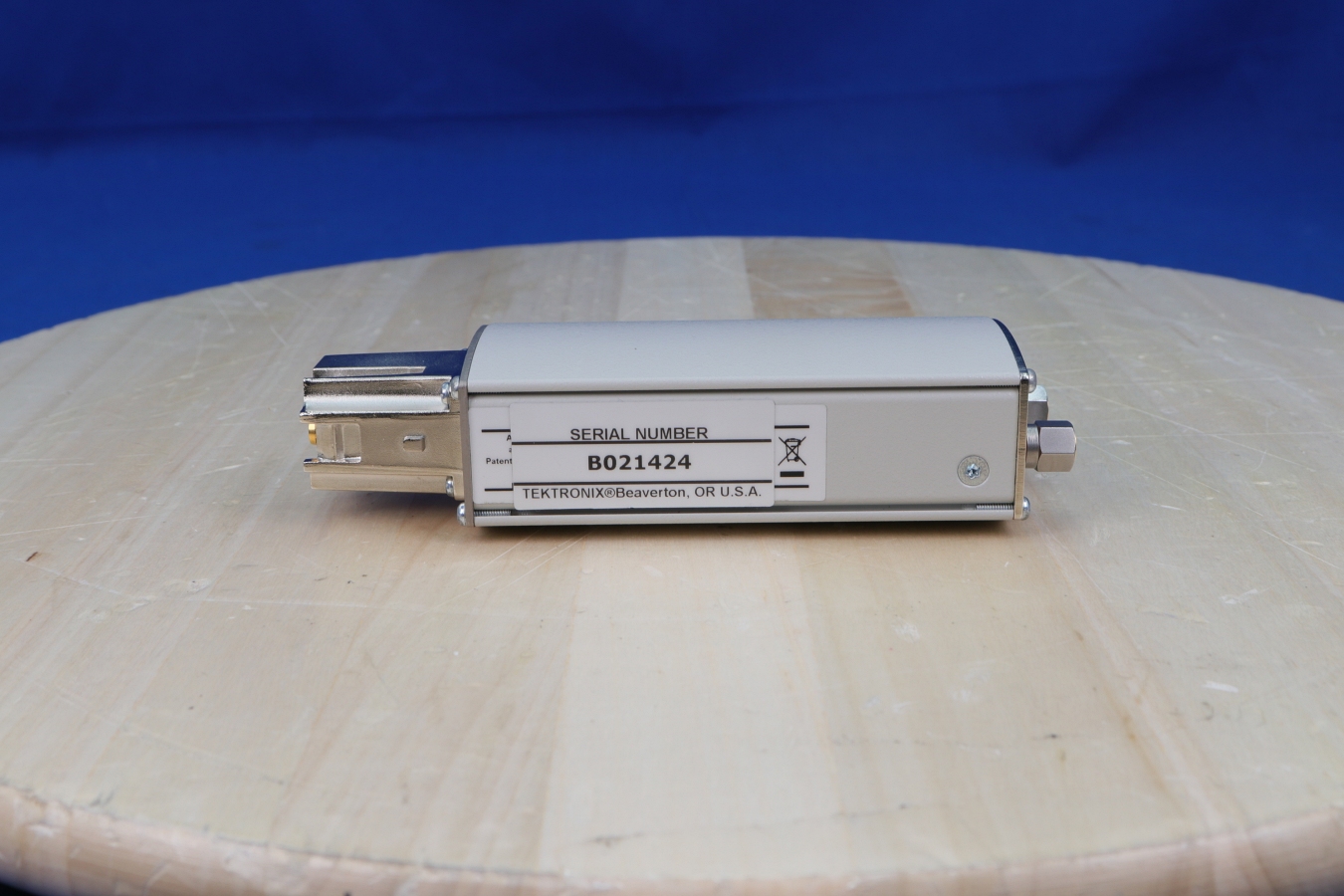

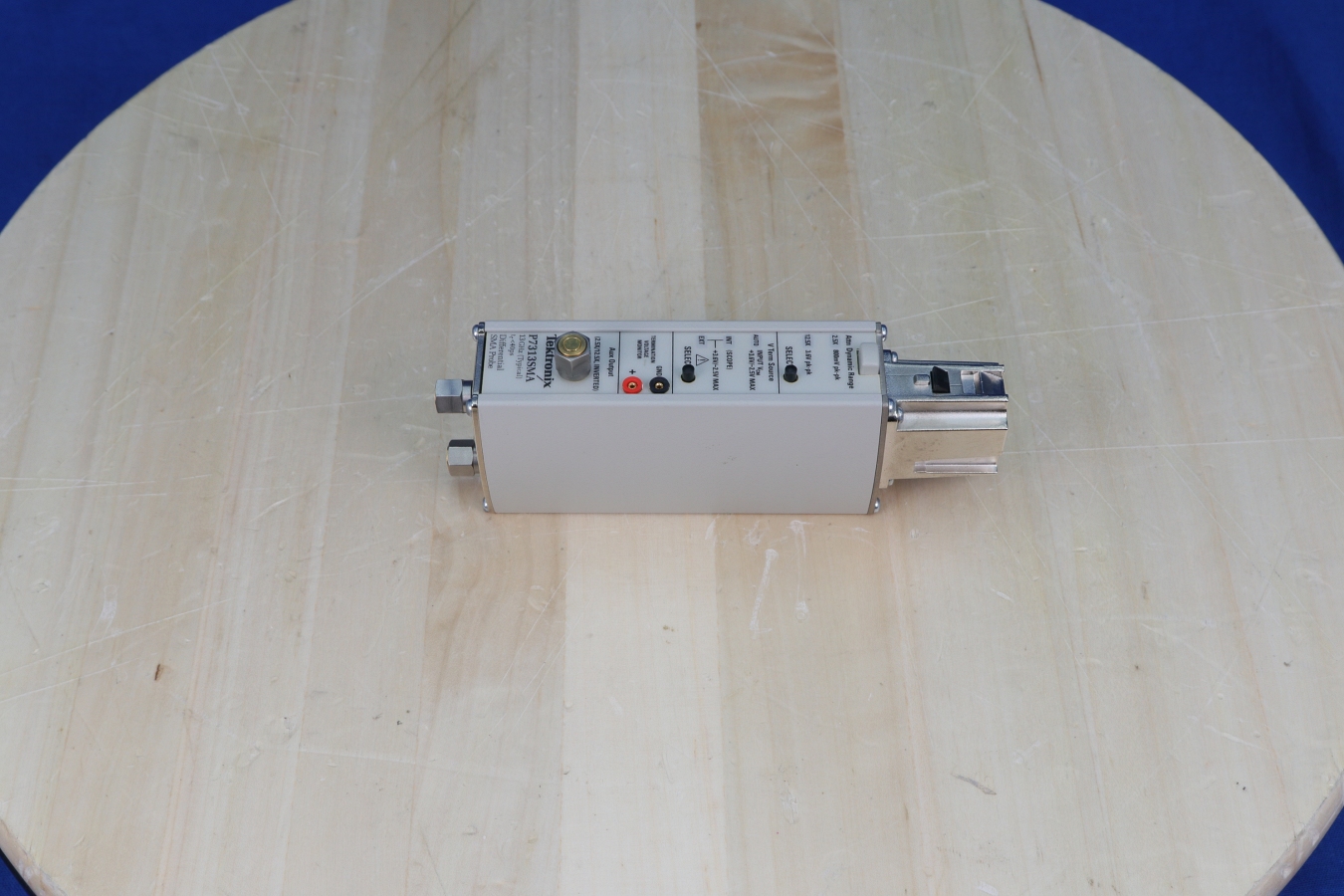

Features: >13.0 GHz bandwidth, 16 GHz with DSP filtering 50 Ω termination network, differential SMA inputs Industry-leading differential return loss and VSWR High-bandwidth differential amplifier with excellent CMRR Internal termination voltage generator can be controlled by the oscilloscope, by an external source, or automatically by the probe Phase-matched SMA cables (38 inch length, <1 ps skew) with cable loss compensation Switchable gain for extended dynamic range Auxiliary (inverted) output for use with spectrum analyzers, network analyzers, or as a clock recovery trigger source TekConnect™ Interface PCI Express Serial ATA USB MIPI M-PHY HDMI DisplayPort Specifications: Bandwidth, typical: >13.0 GHz (16 GHz with DSP filtering) Rise time:                      10 to 90%    <40 ps                      10 to 80%, typical     <25 ps Attenuation: 2.5X or 12.5X, user selectable Differential input range:  0.800 Vp-p (2.5X)                                             3.6 Vp-p (12.5X) Common Mode input range: +3.6/-2.5 V The P7313SMA probe provides a high fidelity, low noise, differential input connection for Tektronix real-time oscilloscopes. This probe also includes features that enable proper termination for high-speed serial buses.
