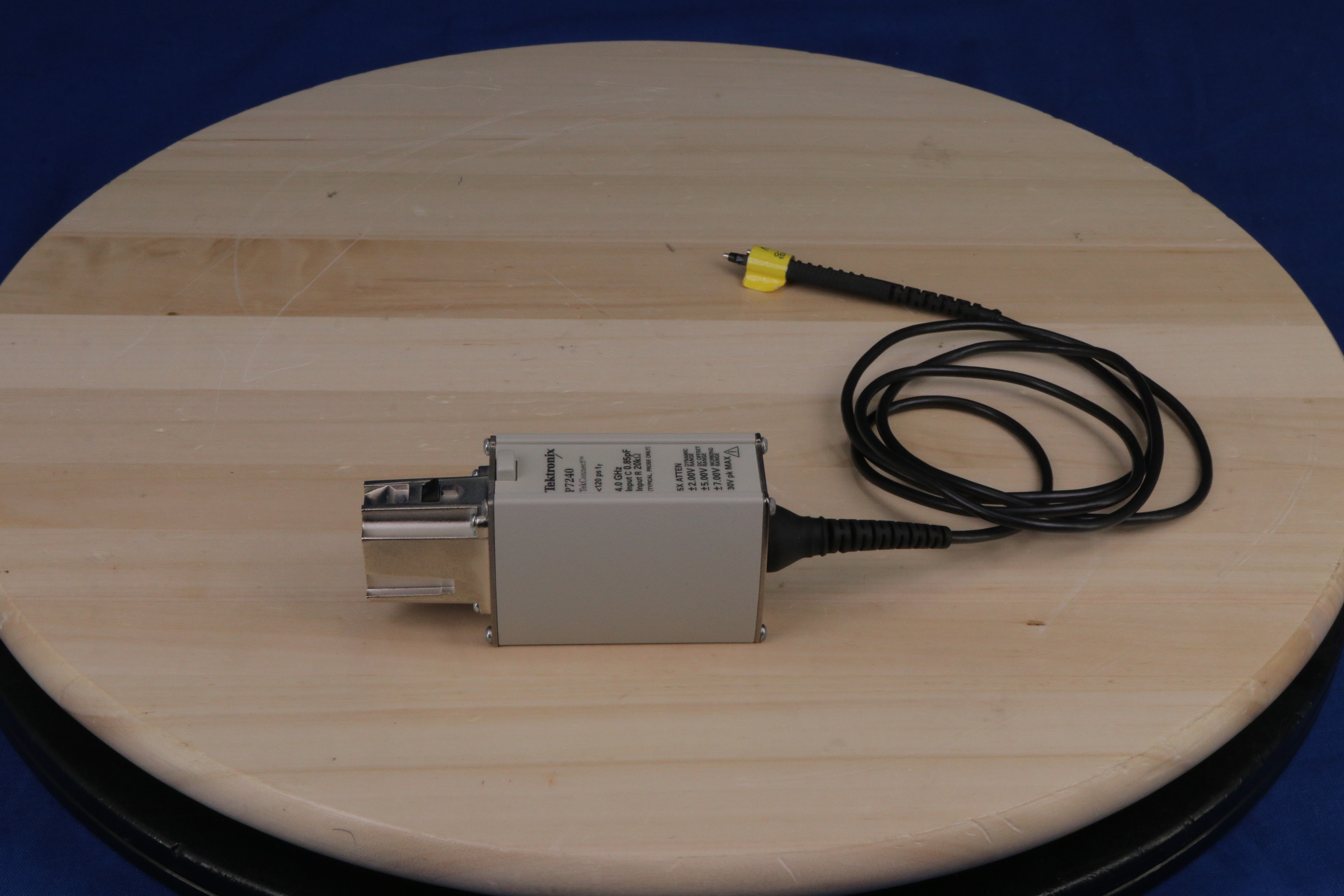

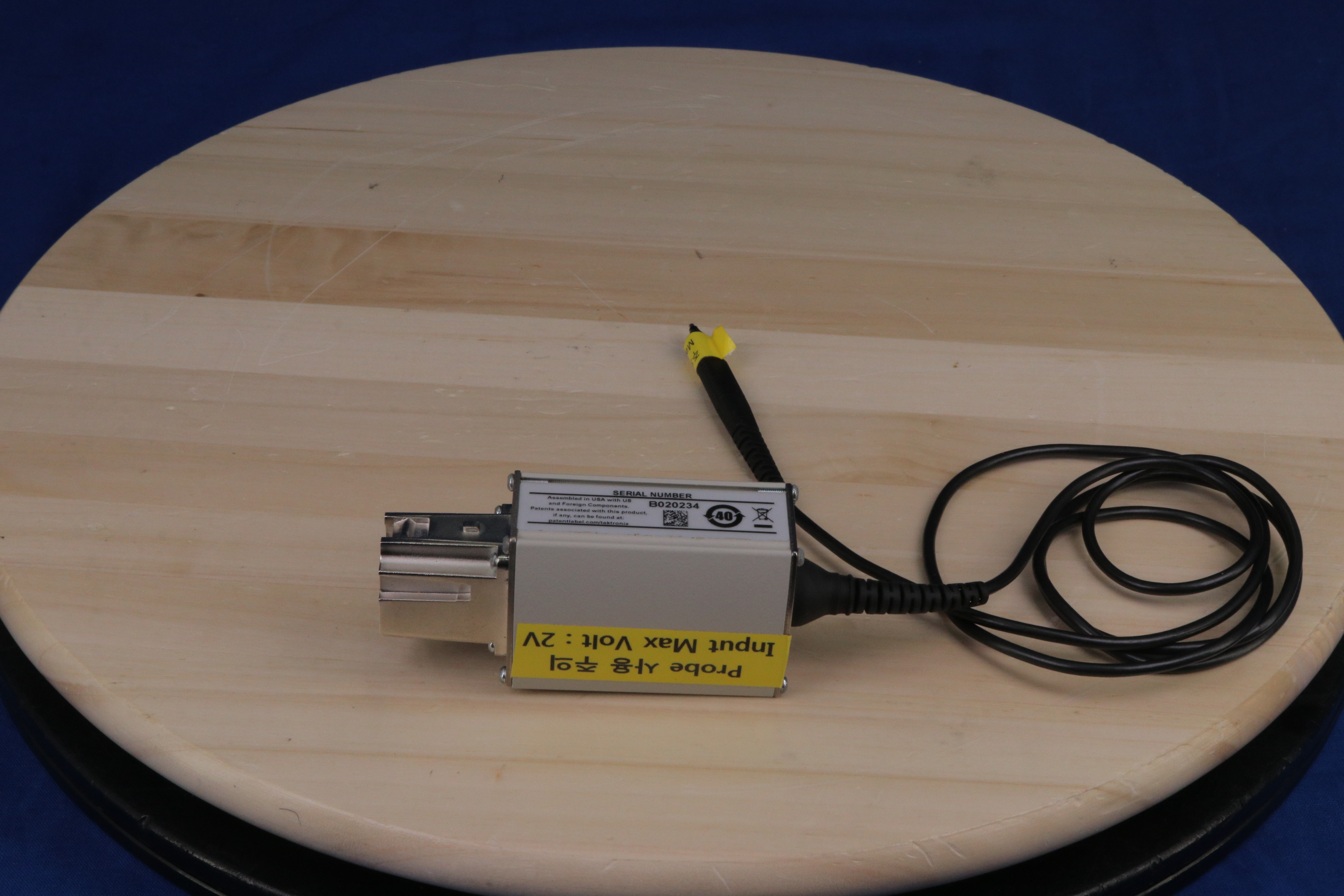

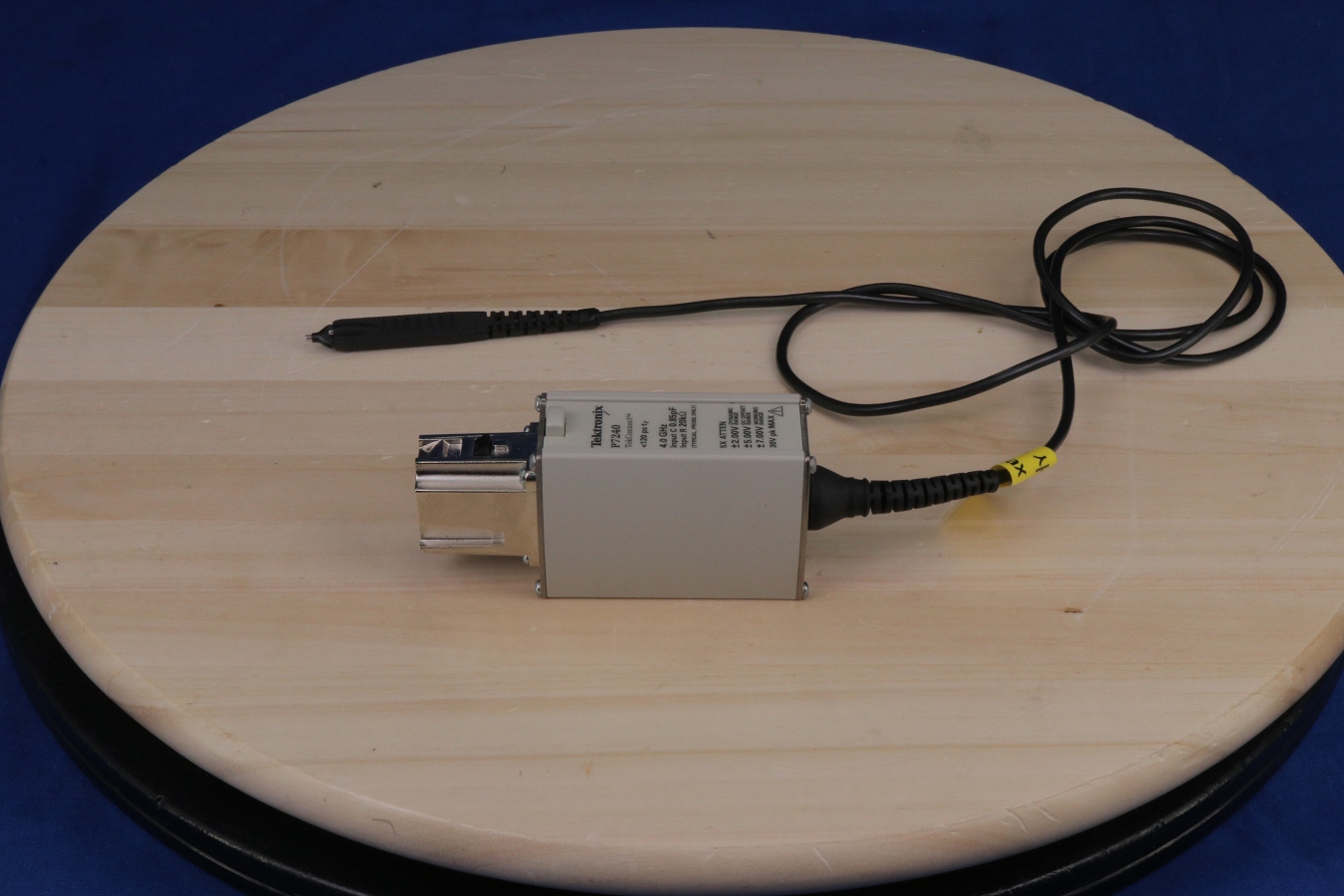

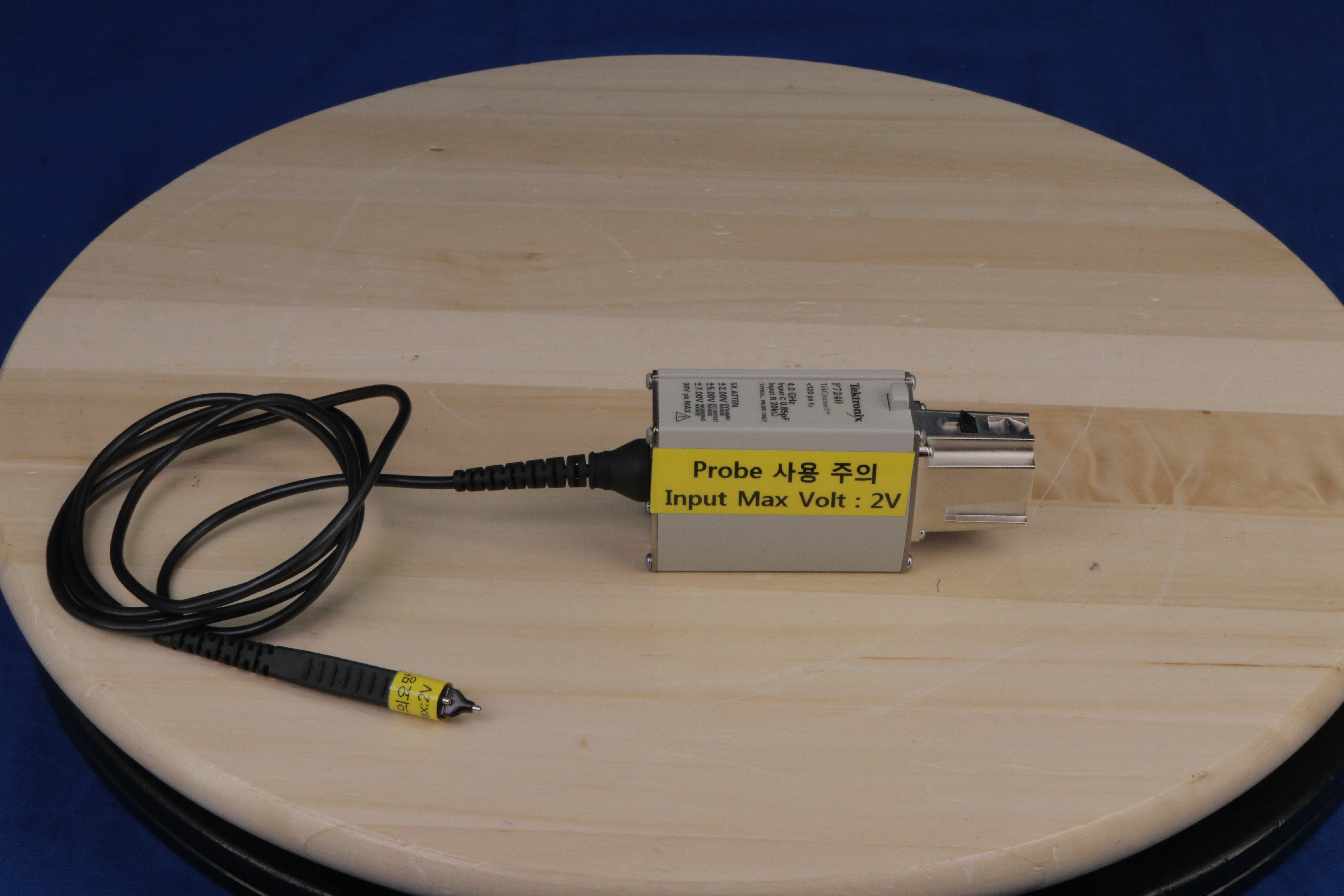

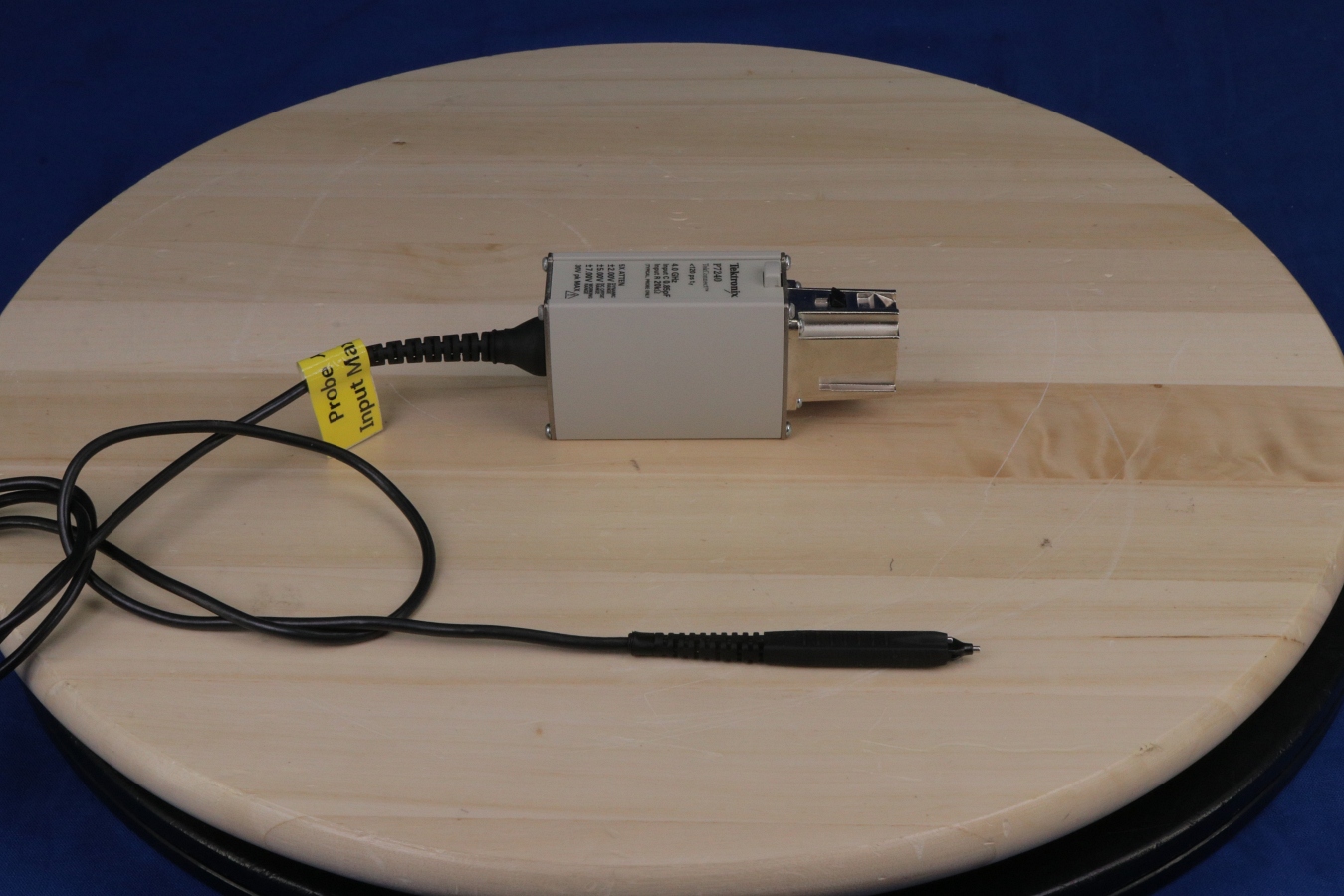

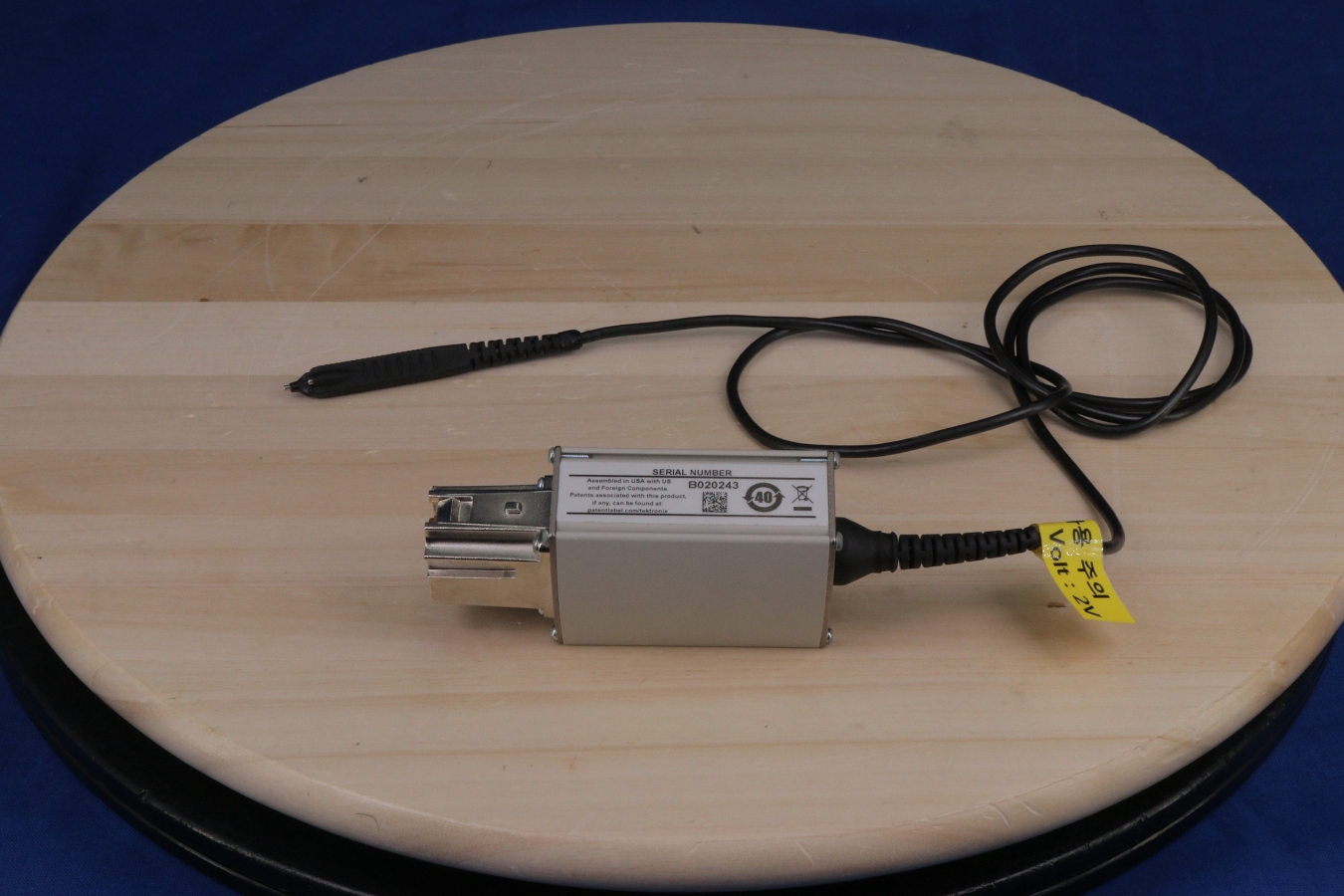

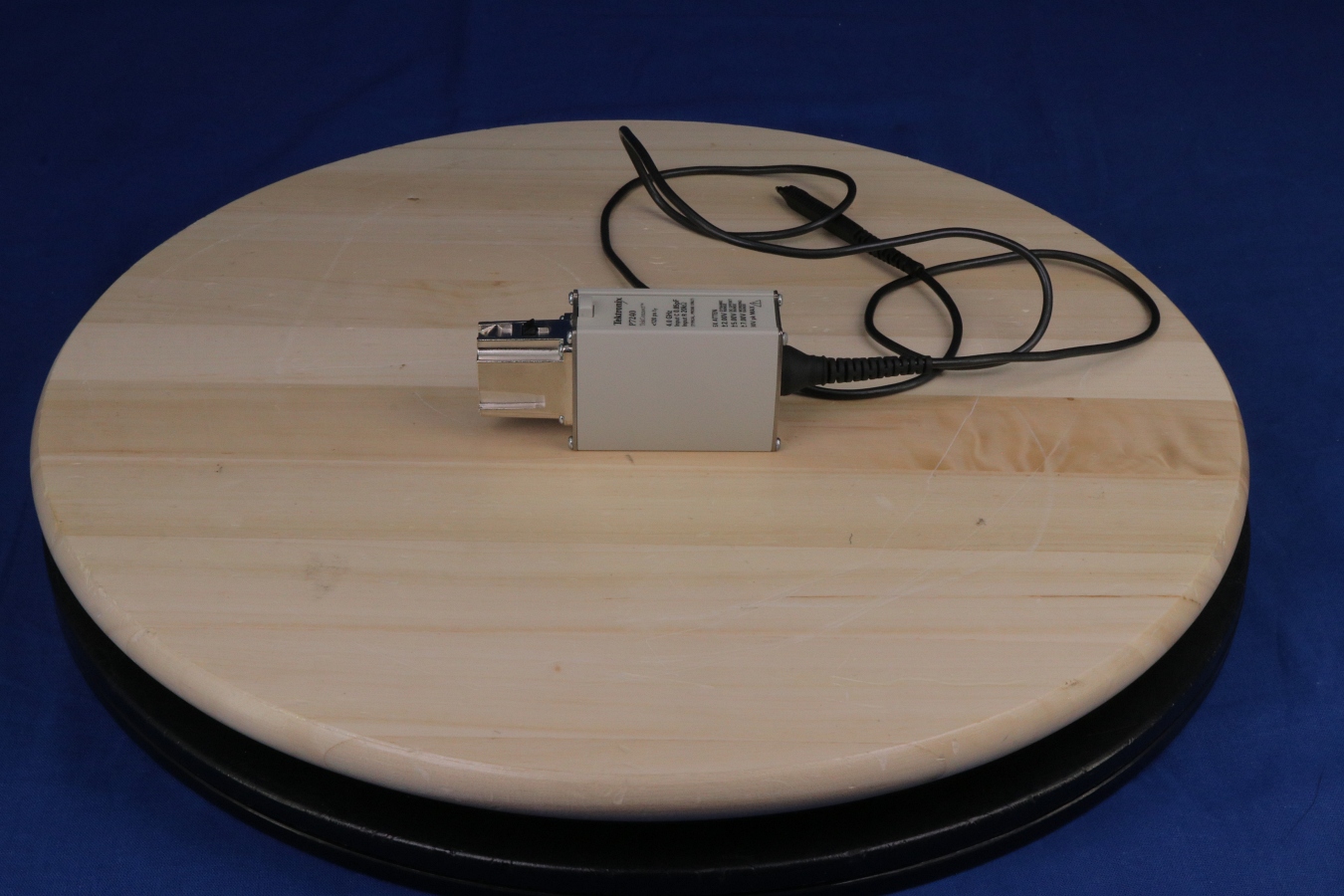

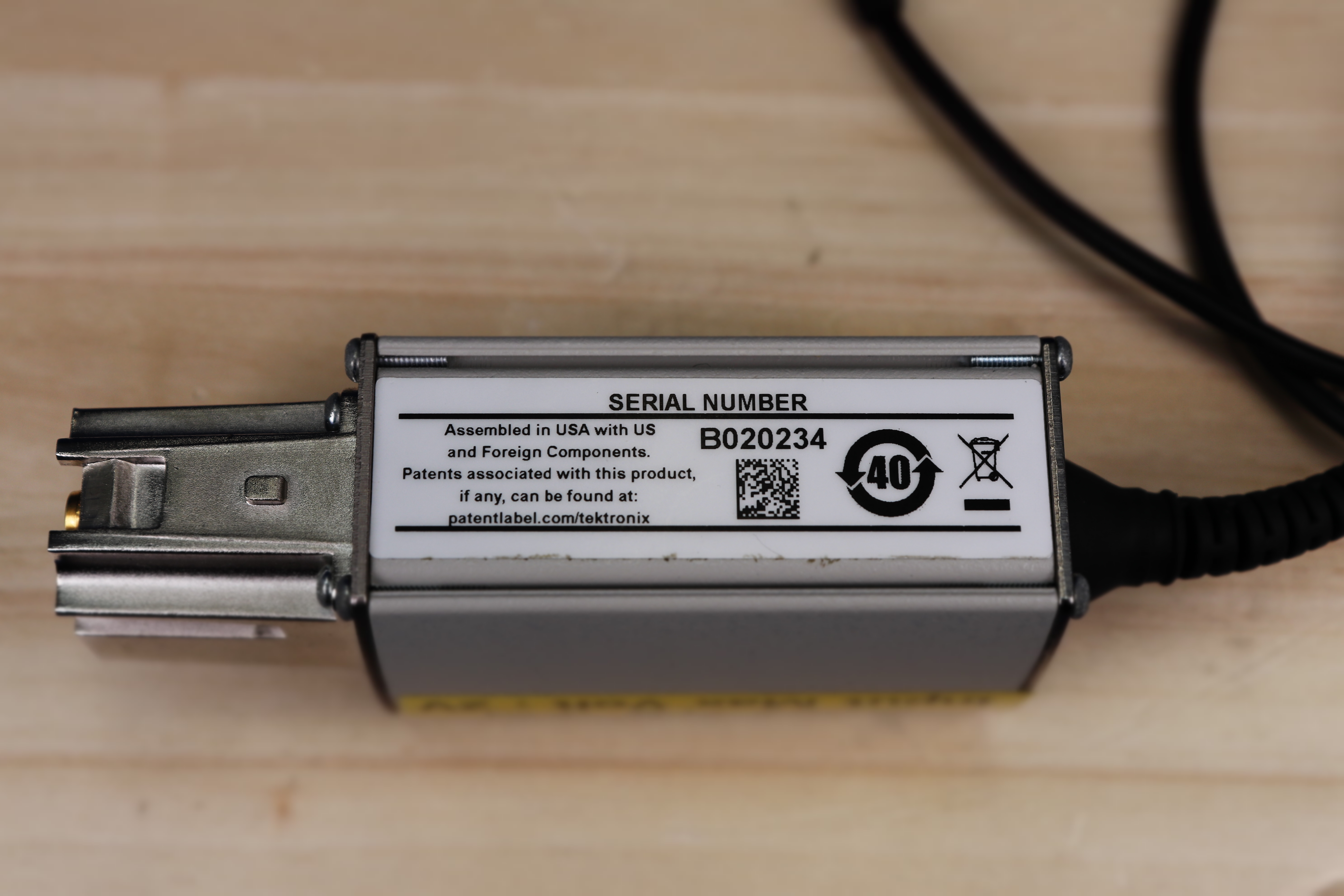

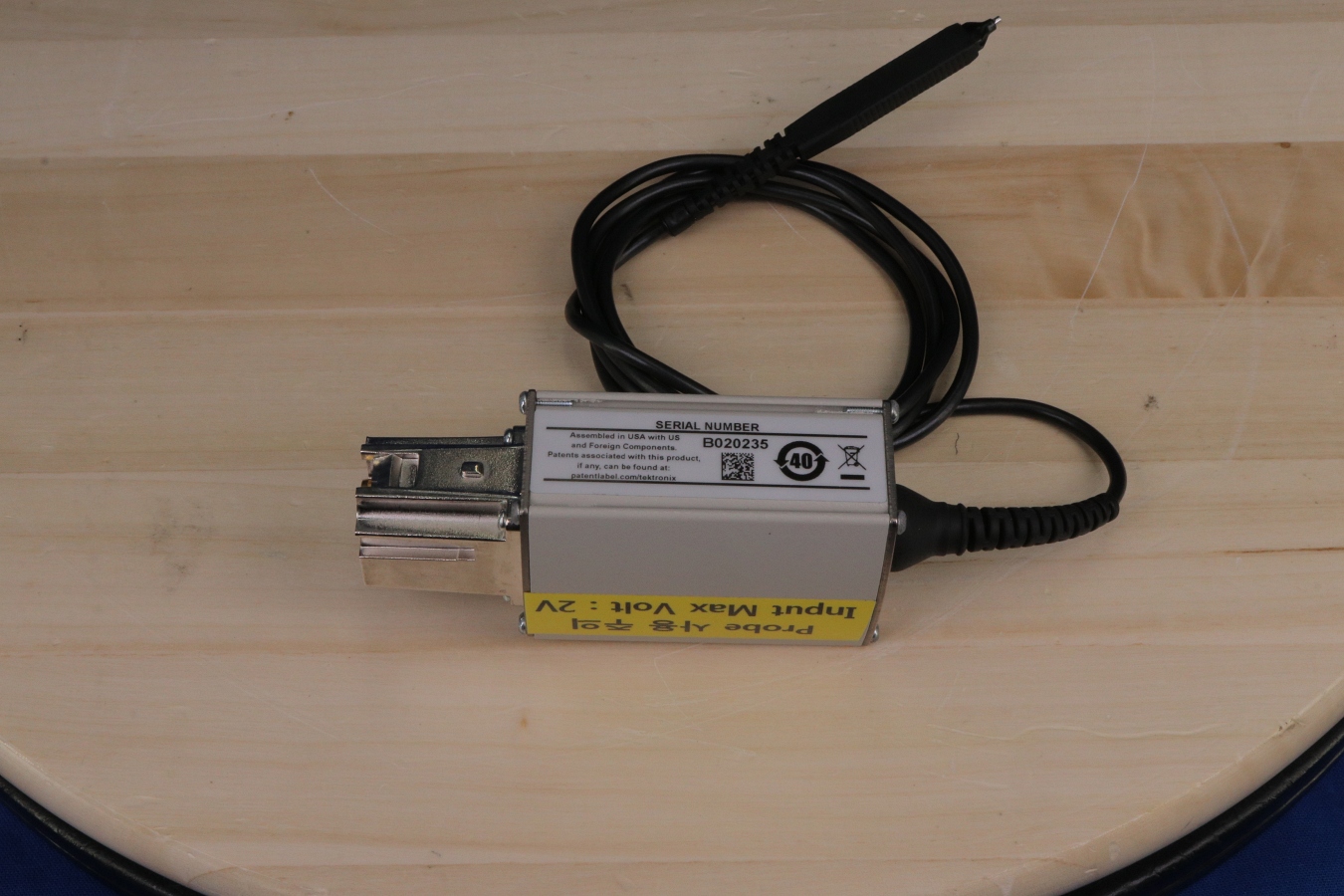

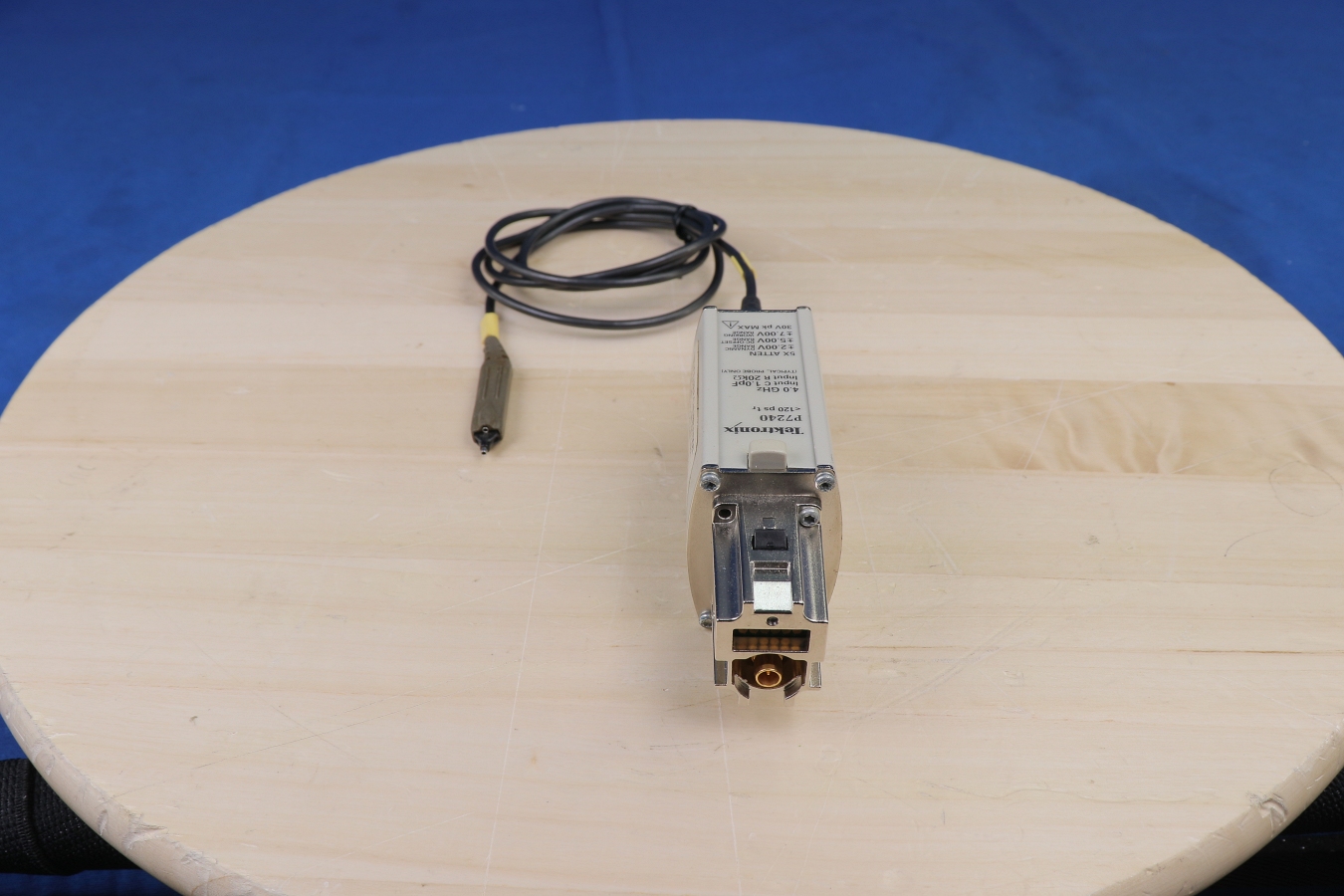

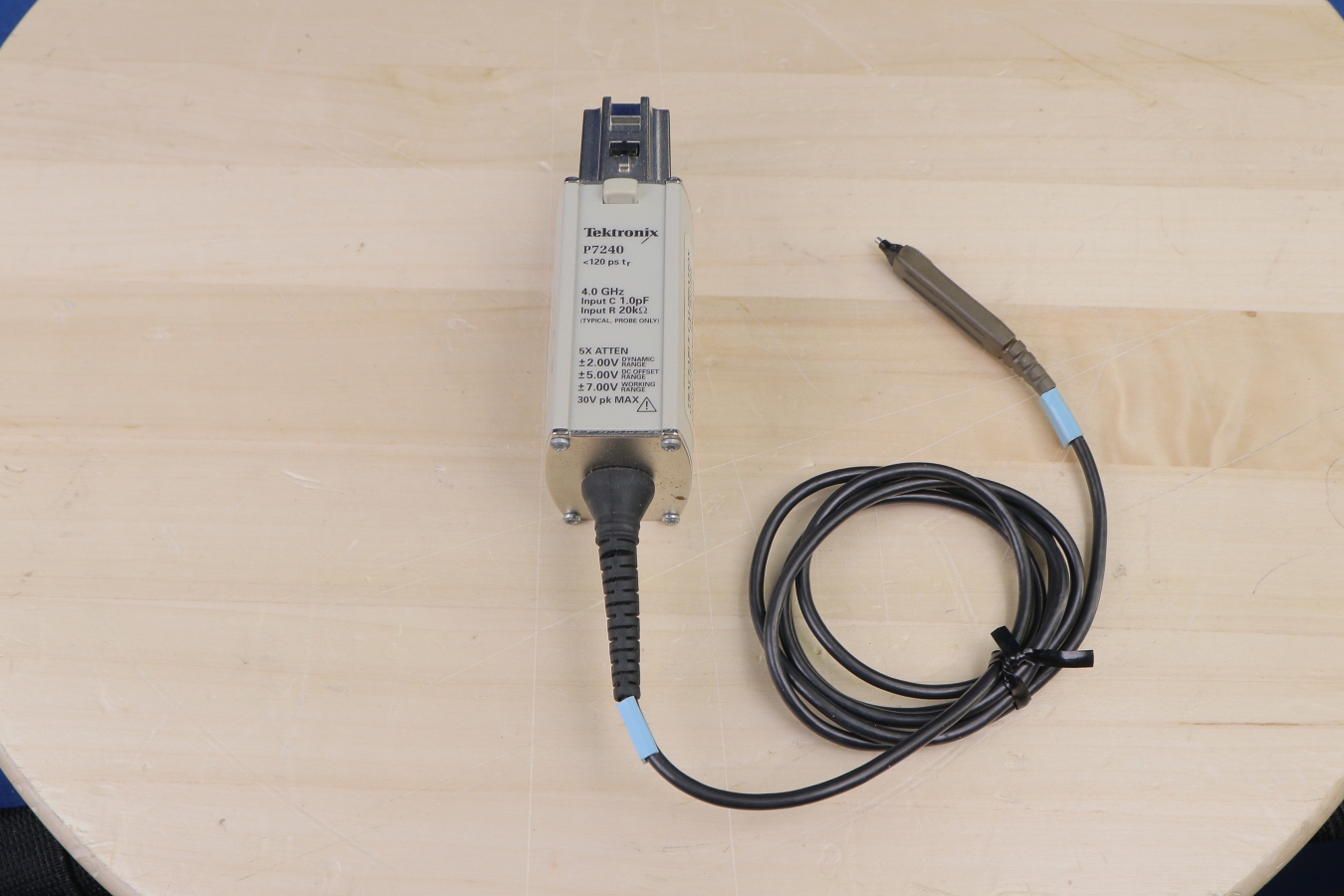

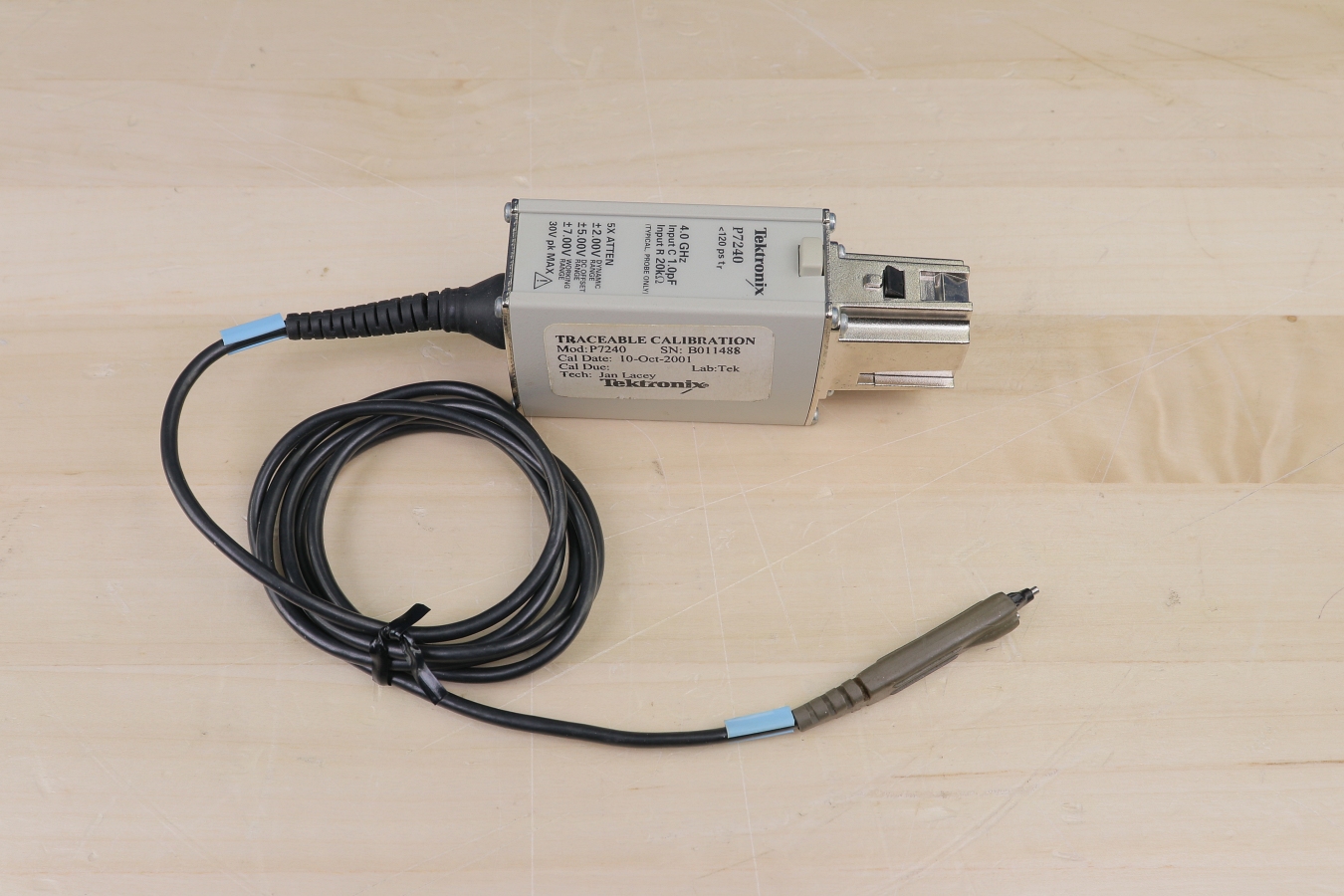

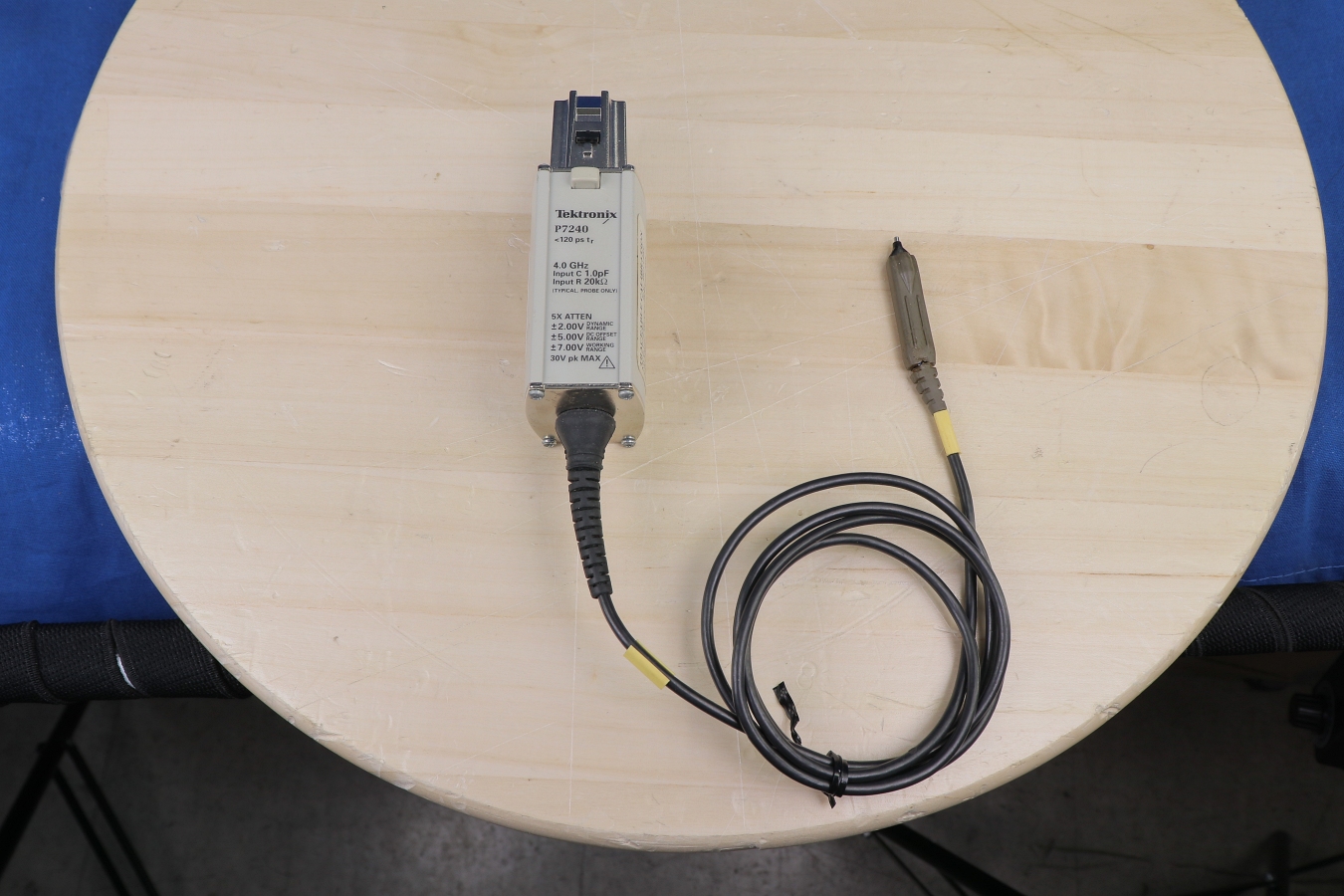

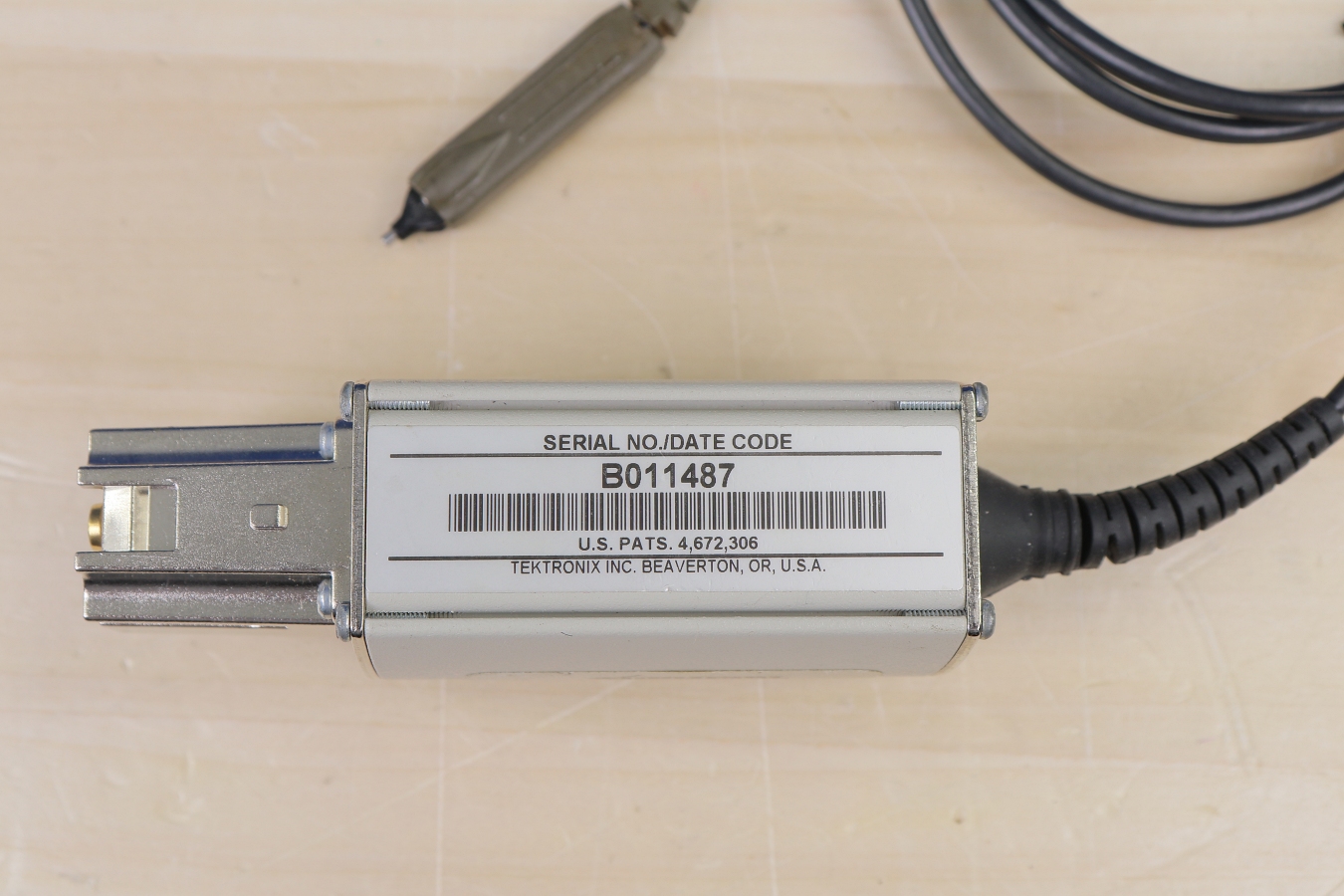

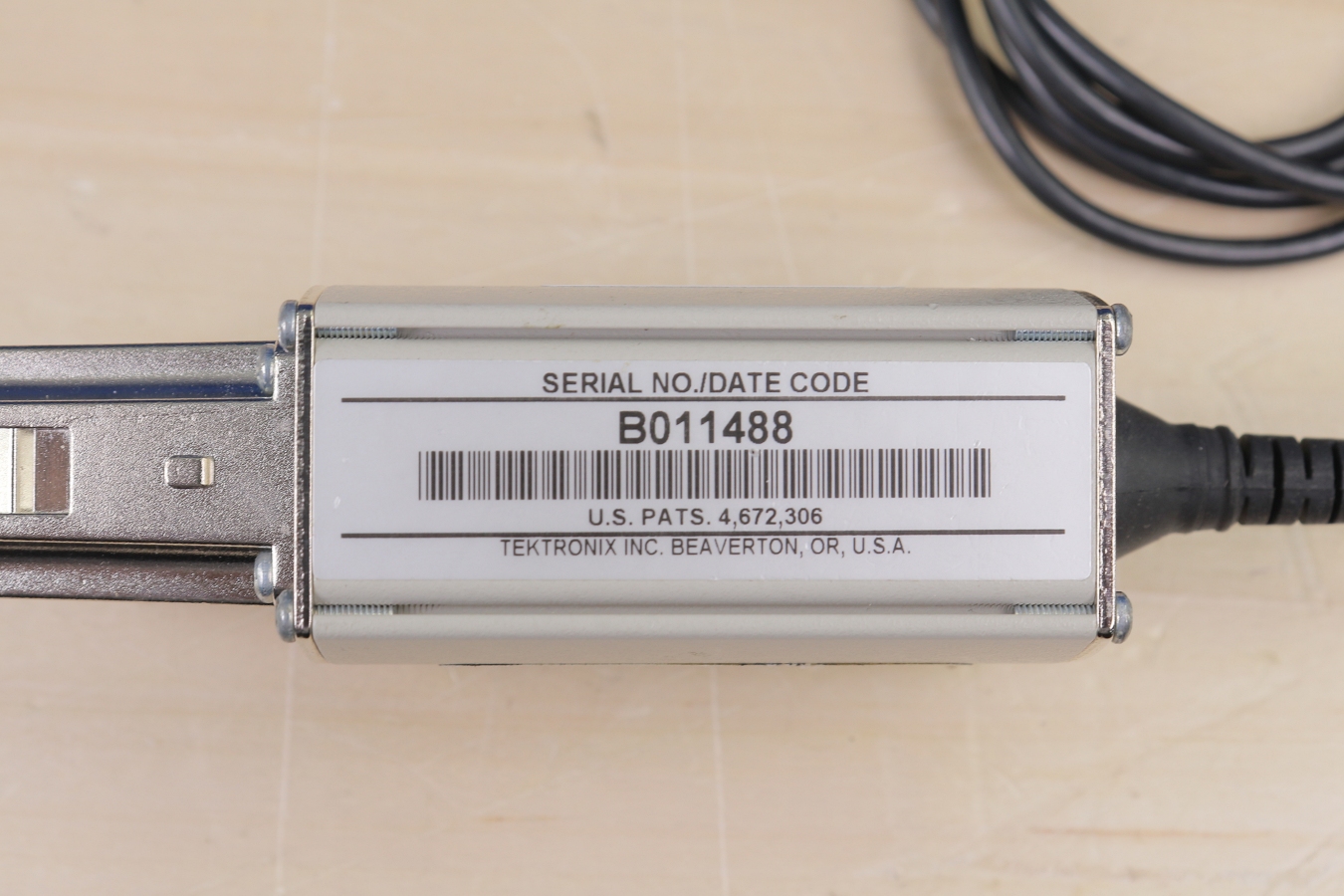

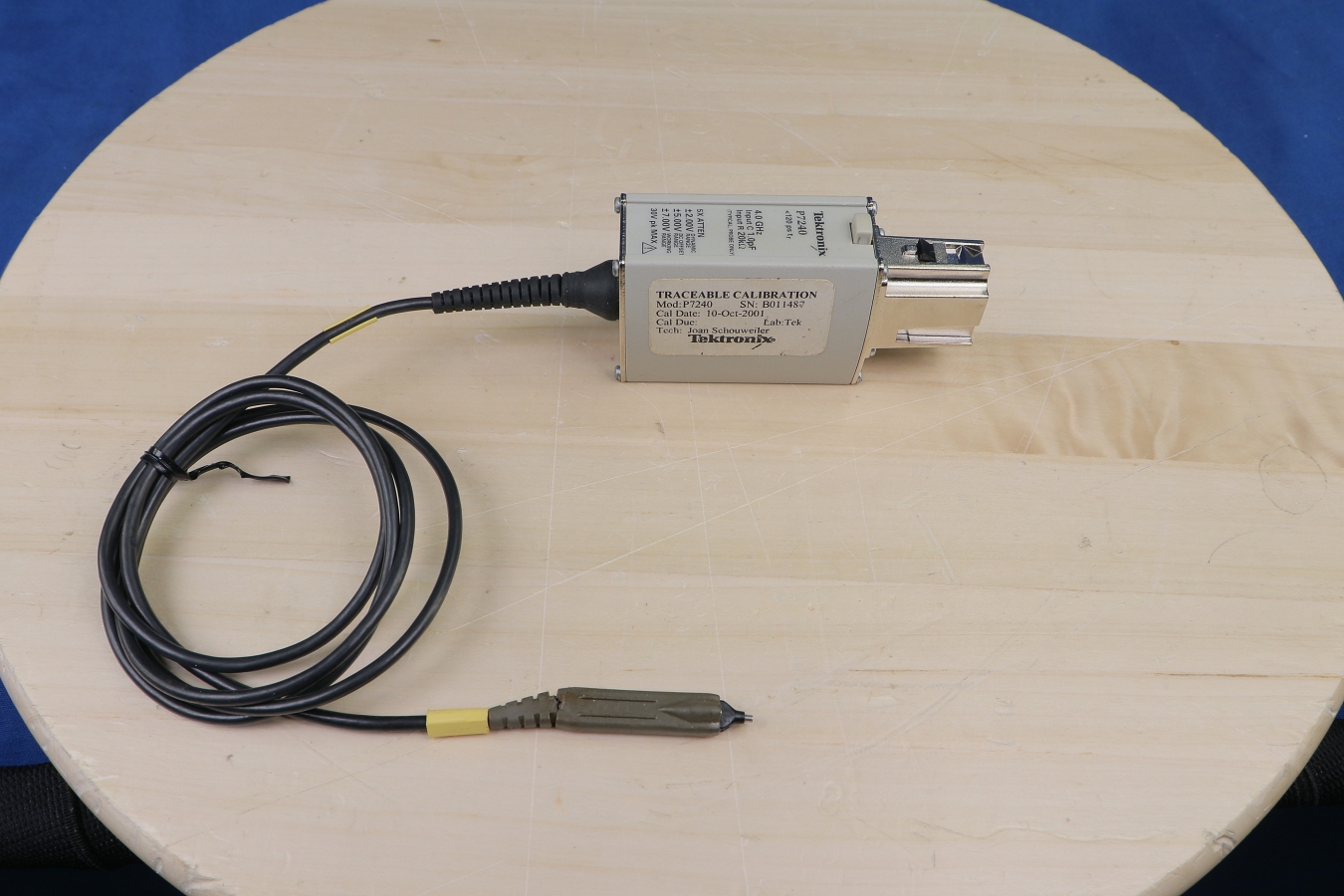

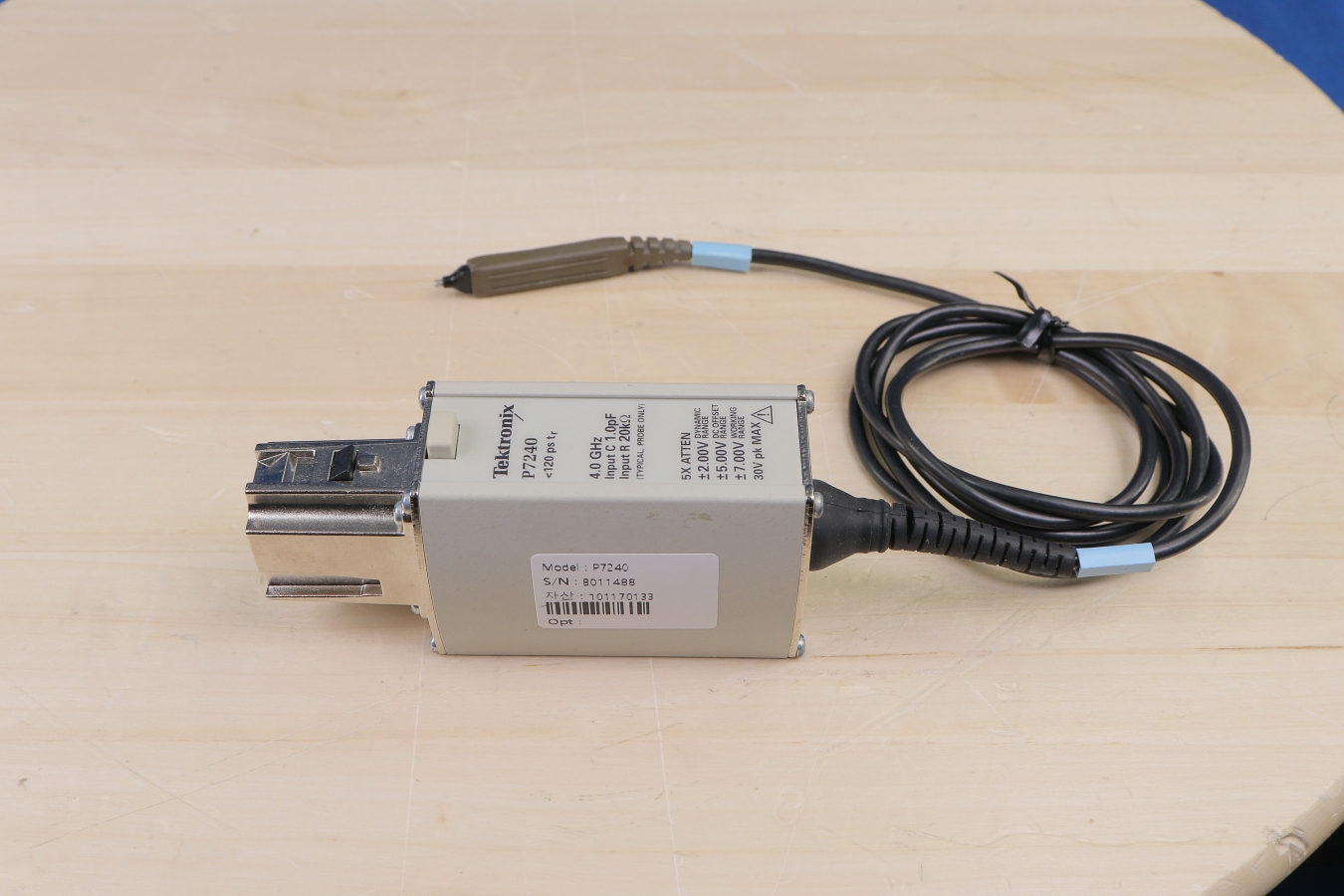

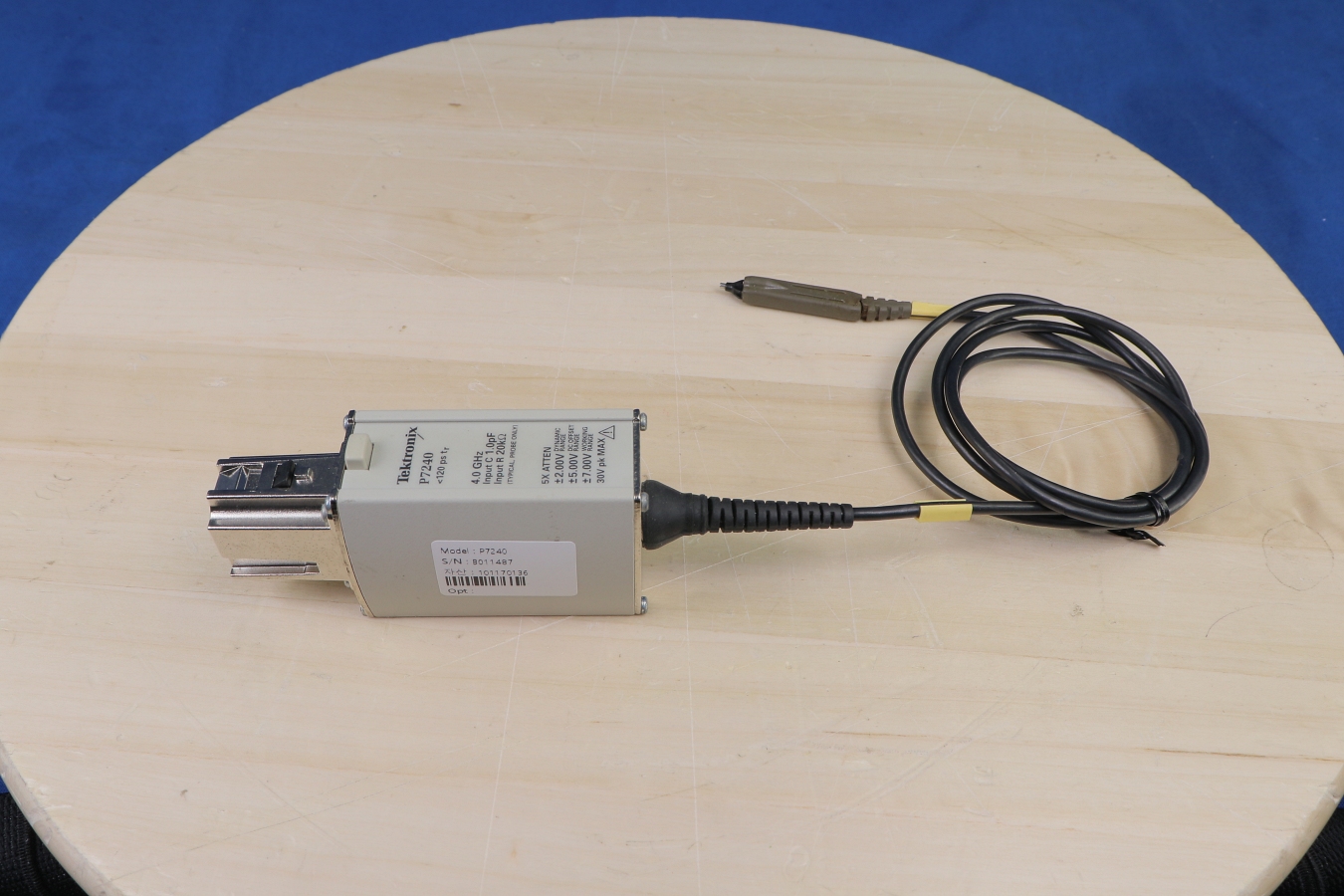

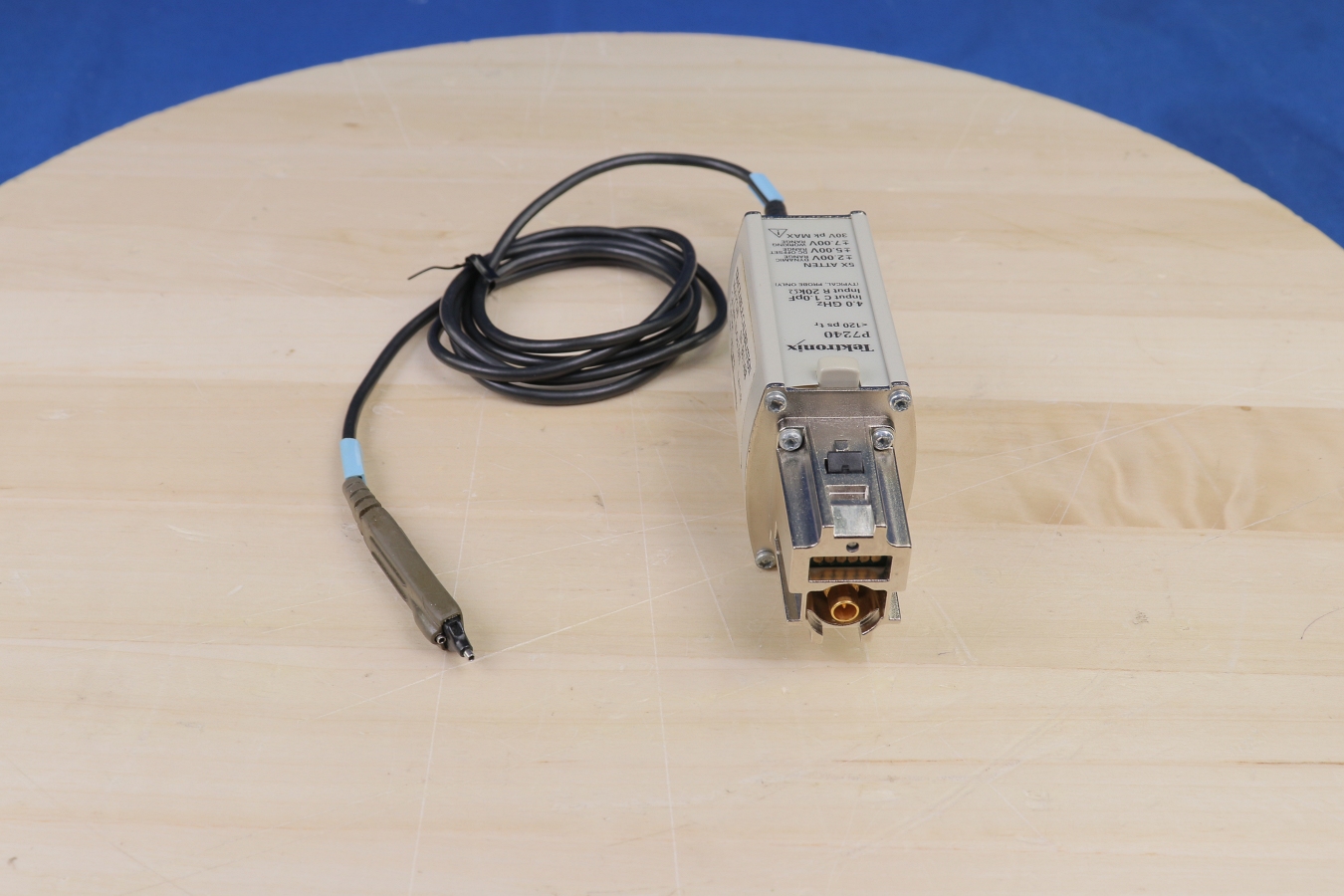

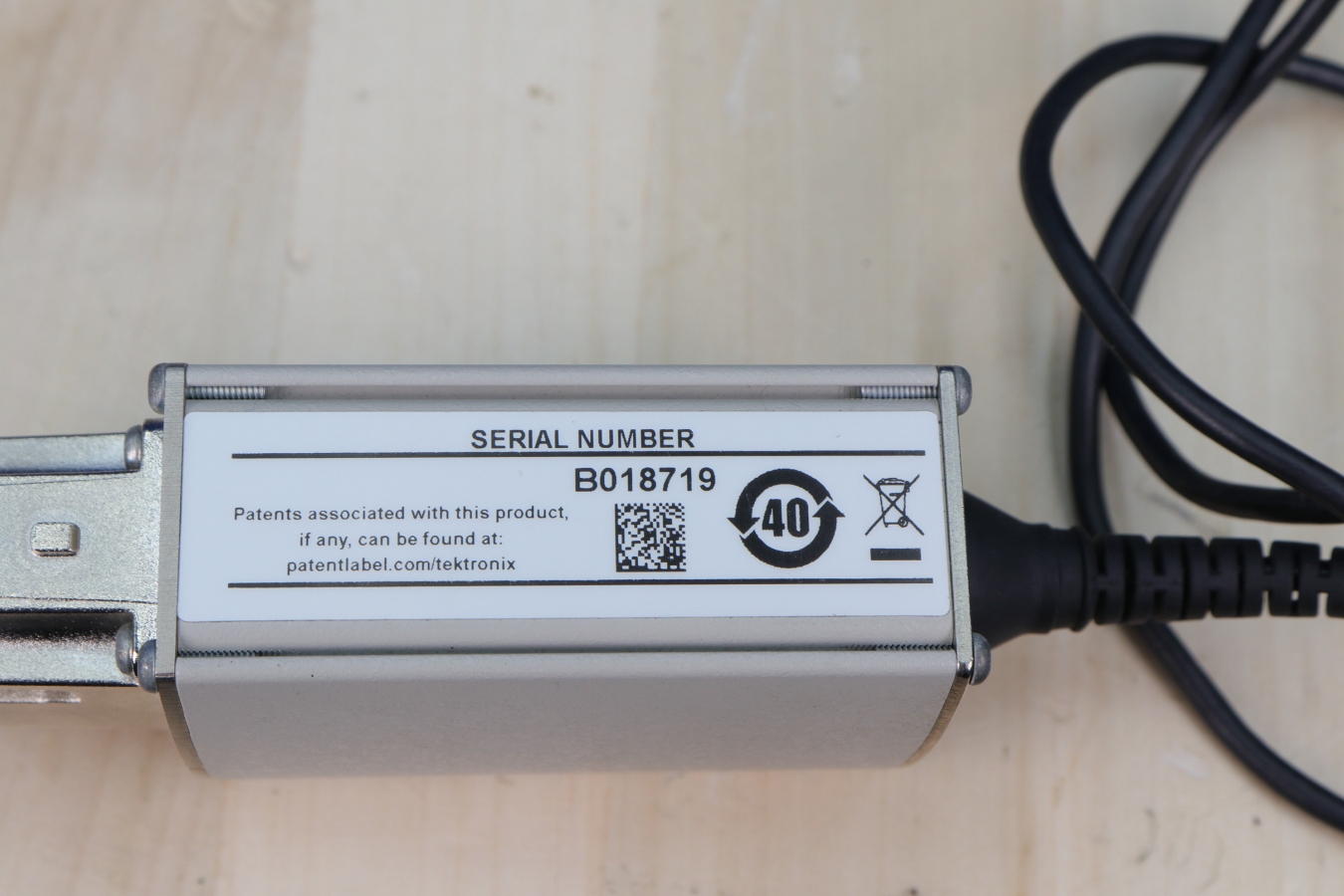

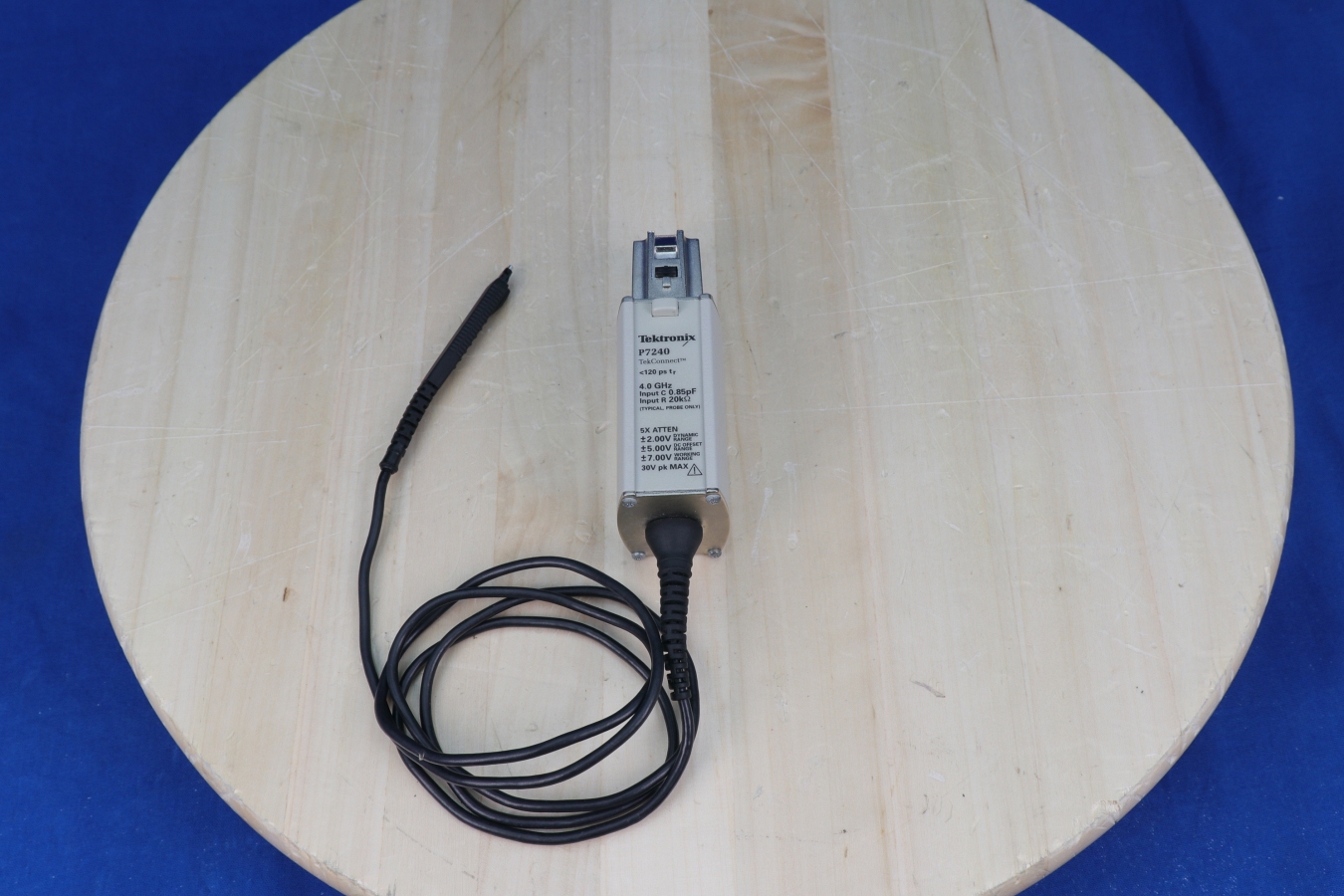

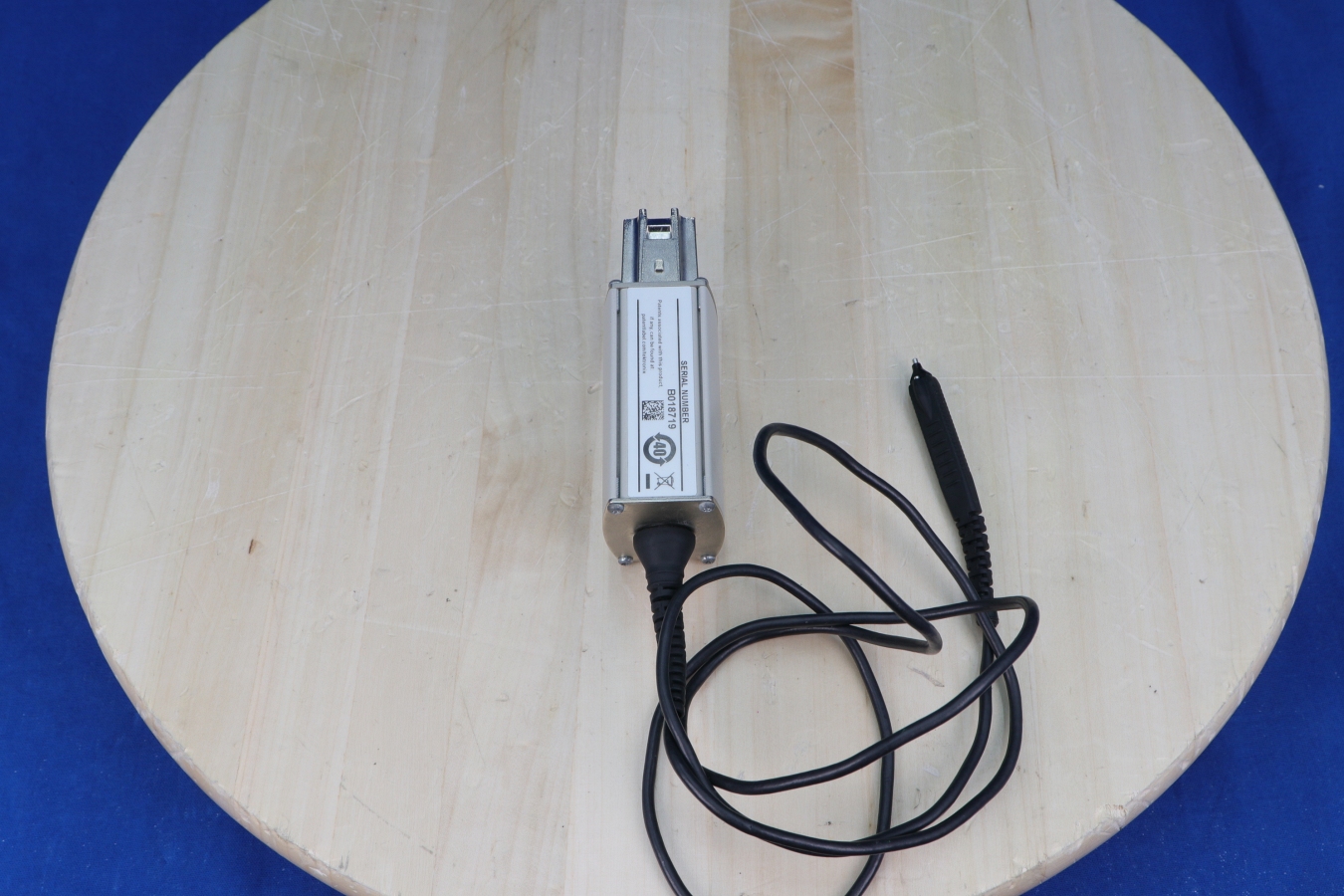

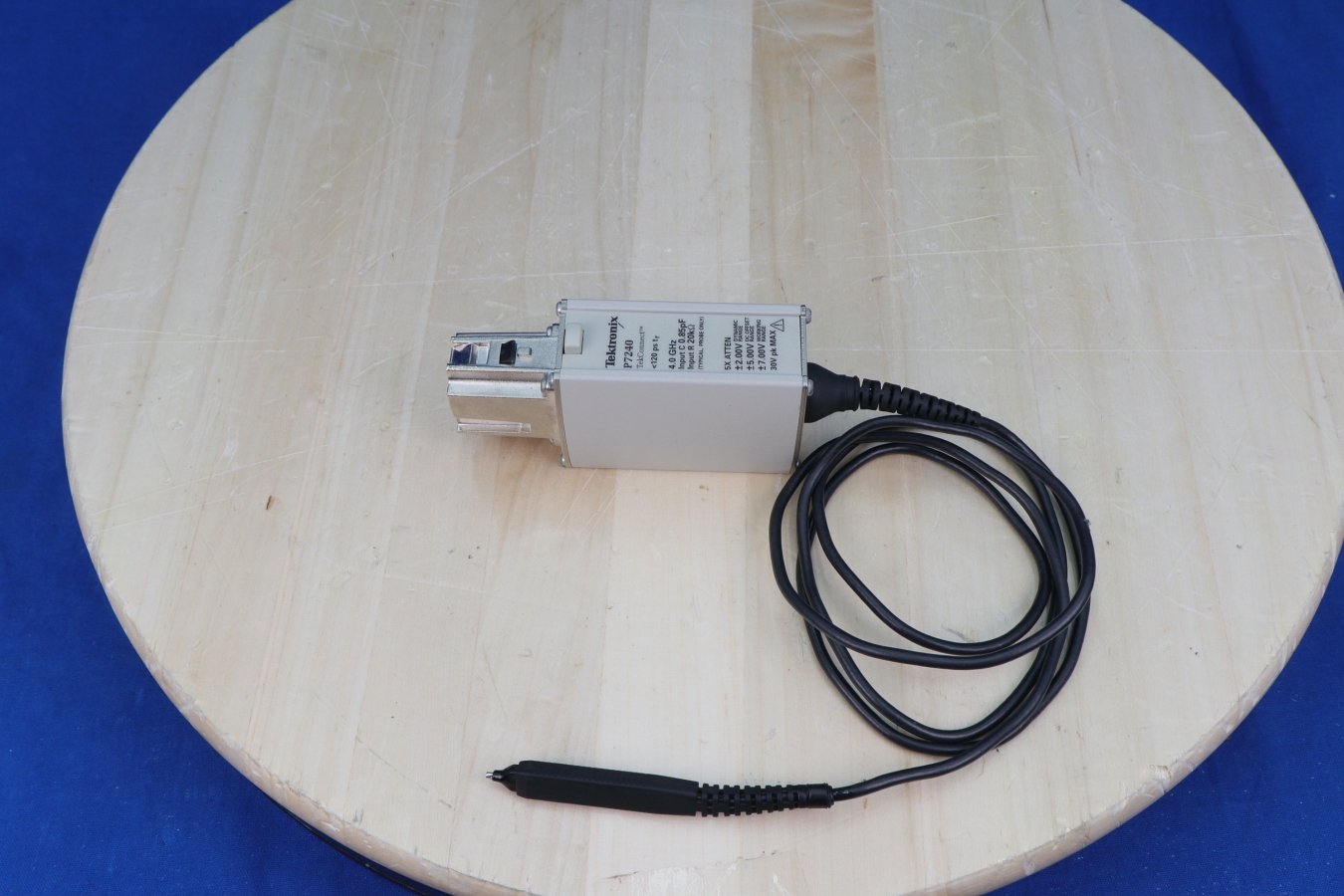

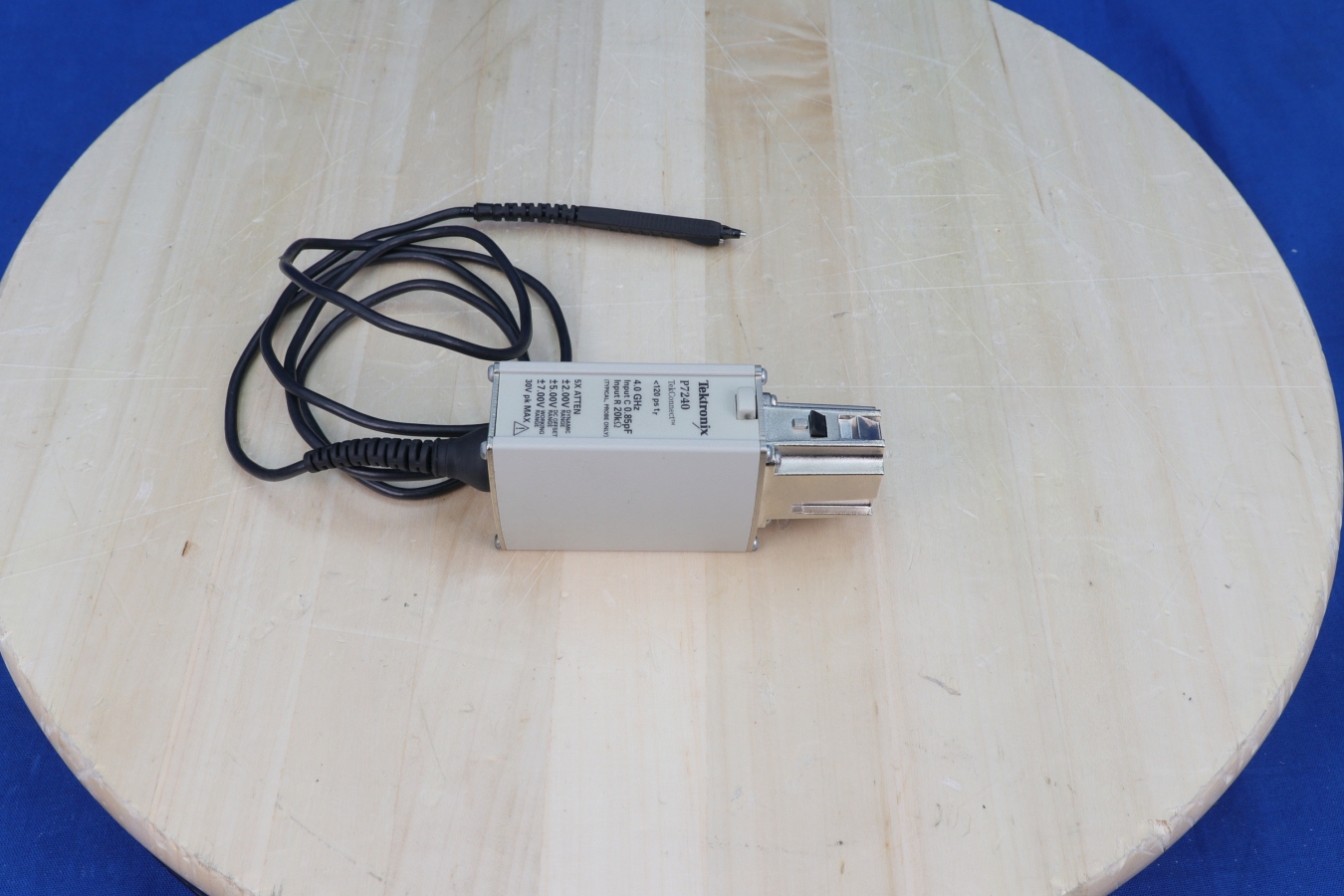

Additional Features: Small form factor probe head Direct access to SMDs Supports MSO/DPO/DSA70000 series oscilloscopes TekConnect™ Interface Applications High-speed digital systems design Component design/characterization Signal integrity, jitter, and timing analysis Mechanical engineering and test Measures 3.0 V logic, InfiniBand, PCI Express, DDR, Rambus Data Lines, Gigabit Ethernet Warranted characteristics Rise time ≤120 ps Attenuation 5X Typical characteristics Bandwidth 4.0 GHz DC resistance 20 k? Input capacitance <1 pF Dynamic range ±2 V Offset range ±5 V Physical characteristics Unit weight (probe only) 223 g (7.52 oz) Cable length 1.3 m (50 in) Environmental characteristics Temperature Operating 0 °C to +40 °C (+32 °F to +104 °F) Nonoperating -55 °C to +75 °C (-67 °F to +167 °F) Humidity 0 to 90% RH at +30 °C to +40 °C (+86 °F to +104 °F) Altitude Operating 4572 m (15,000 ft) Nonoperating 15,240 m (50,000 ft) The Tektronix P7240 4 GHz, 5X active FET probe provides truer signal reproduction and fidelity for high-frequency measurements. The probe has low input capacitance and high input resistance to minimize circuit loading over a wide bandwidth range.
