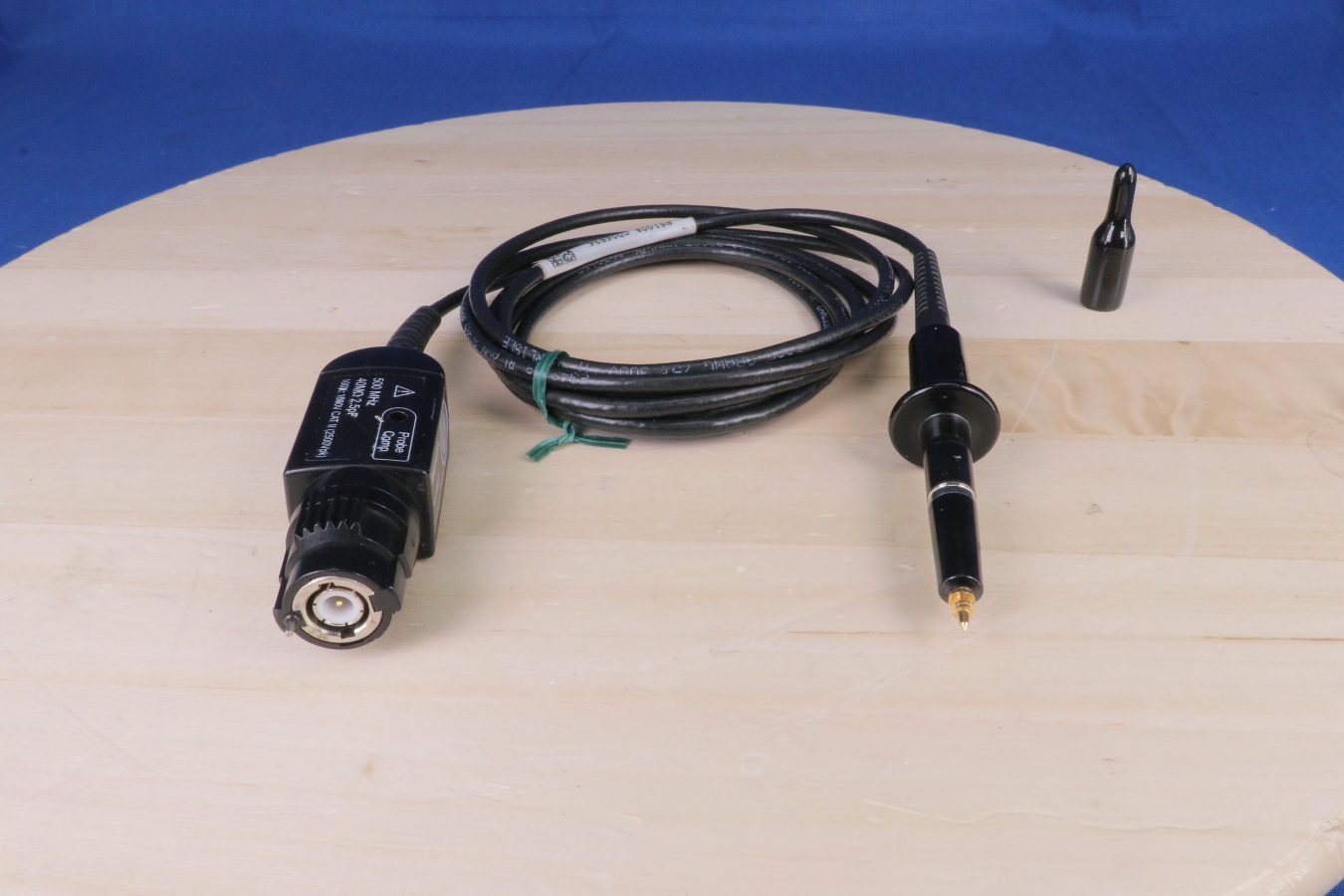

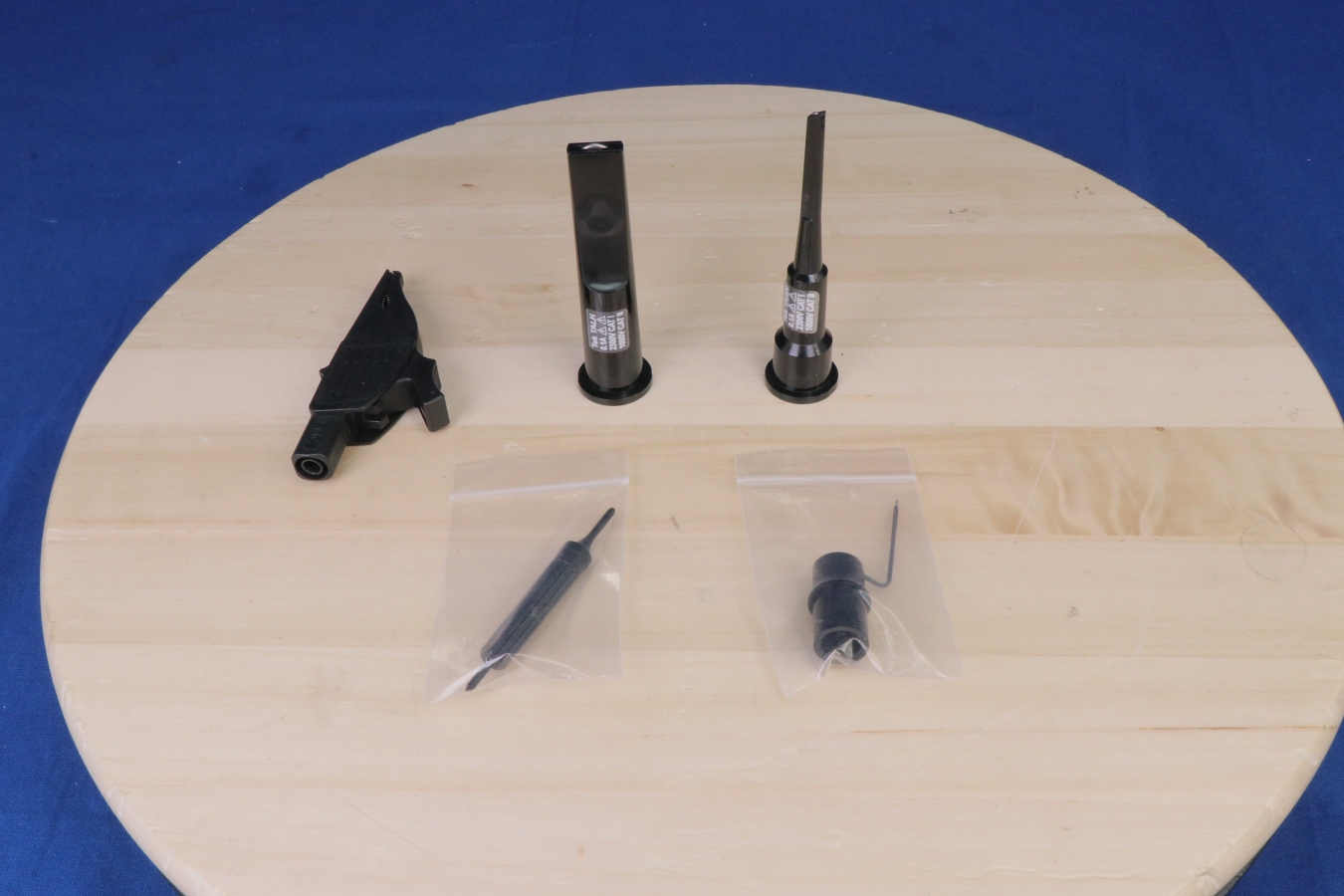

Features DC to 500 MHz 2500 VPeak, 1000 V CAT II 100X with Readout Coding UL3111-1, EN61010-1, IEC61010-2-031, CSA1010.1, CSA1010.2.031 7 to 30 pF Compensation Range Nominal Length: 2m Attenuation: 100x Rise Time (typical):1.75 ns Loading:40 MΩ/1.5 pF Max. Input VDC or RMS: 2.5 kV, (DC+Pk AC), 1,000 V CAT II Readout:Yes Applications Power Supply Design Design Motor Drive Electronic Ballast Power Semiconductors Switch Mode Control UPS Systems Power Converters The Tektronix P5100A is a low input capacitance, high-voltage probe (2.5 kV) designed for higher-frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7-30 pF. A variety of screw-on accessories provide easy connection to the device-under-test.
