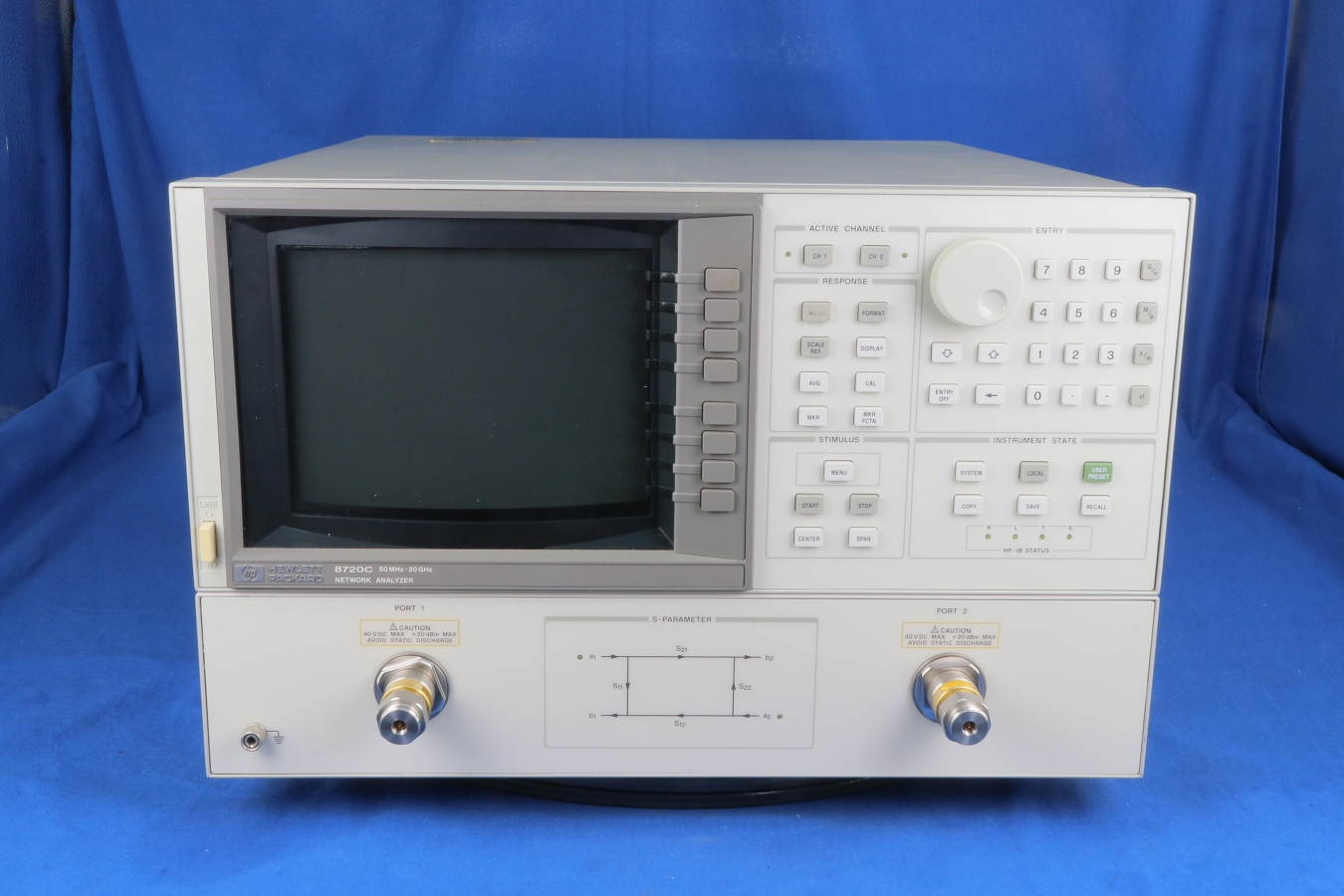

Additional Features: Fast-sweeping built-in synthesized source with optional 1 Hz frequency resolution Integrated switching test set measures all four S-parameters with a single connection Vector accuracy enhancement Optional time domain capability computes and displays response versus time or distance Optional solid state switch allows simultaneous measurement of forward and reverse parameters and continuous update for all four s-parameters as required for two-part error correction Productivity is enhanced with pass/fail testing, direct printer/plotter output of results, advanced marker functions, and save/recall of test configurations Two independent display channels for simultaneous measurement of reflection and transmission characteristics The Agilent 8720C vector network analyzer characterizes RF and microwave components down to 50 MHz and up to 20 GHz. The Agilent 8720C Network Analyzer includes a fast-sweeping synthesized source, S-parameter test set, tuned receiver, and large color display in a single package. The Agilent 8720C Network Analyzer is an ideal choice for cost- and space-conscious engineers in research and development, manufacturing, incoming inspection, or quality assurance.

Option	Description
001	1Hz Frequency Resolution
006	Solid-State Switching Test Set
010	Time Domain Capability
C02	Direct Sampler Access
UK6
